Selection of Waste Lubricant Oil Regenerative Technology Using Entropy-Weighted Risk-Based Fuzzy Axiomatic Design Approach
Volume 29, Issue 1 (2018), pp. 41–74
Abteen Ijadi Maghsoodi   Arian Hafezalkotob   Iman Azizi Ari   Sasan Ijadi Maghsoodi   Ashkan Hafezalkotob

Authors


Placeholder
https://doi.org/10.15388/Informatica.2018.157
Pub. online: 1 January 2018      Type: Research Article      Open accessOpen Access

Received
1 August 2017
Accepted
1 January 2018
Published
1 January 2018

Abstract

The selection of waste lubricant oil regenerative technology regarding the complexity of the technologies and financial issues is a complex problem. Some risk factors exist regarding the ratings of technologies on the effective criteria. The current study tackles the selection of the technology based on fuzzy axiomatic design approach considering risk factors. Shannon entropy significance coefficients are computed for criteria. The problem is first solved by considering all criteria and then supplementary solutions are presented by categorizing the criteria to technical and economic groups. Two types of risk factors are identified for the technologies, i.e. general and specific risk factors.

1 Introduction

Lubricants, whether extracted from unrefined petroleum (crude oil) or manufactured as synthetic oils, are vital elements in a broad spectrum of applications such as metalworking fluids, lubricating oils, internal combustion engines, gear oils, and transformer oils (Chari et al., 2012). Different automotive and industrial sources recently produce vast amounts of used lubricating oils worldwide which create serious environmental problems (Kupareva et al., 2013). One of the most efficient ways of managing waste lubricants is recycling and regeneration methods. Indeed, the efficient and effective recycling of used lubricants can be a great help for reduction of the environmental pollution; therefore, these methods will create high efficiency not only from the aspect of environmental friendliness but also from the viewpoint of financial and economic levels (Hsu et al., 2010).
Recycling of used oils has been developed in past fifty years, and modern techniques have been widely adopted and succeeded among the traditional approaches in commercial applications. Thus, with the rise in awareness of environmental and economic concerns as well as competitions in lubricant industries, one of the great challenges will be selecting and assessing the best available technology which can support industries, decision-makers, and regulators in directing environmental and economic concerns in industries with consideration of the application of reduction and prevention strategies (Chung et al., 2013).
For selection of an optimal recycling technology, various criteria should be considered. Hence, the selection process is a multi-criteria decision making (MCDM) problem. In a MCDM problem, decision maker encounters multiple alternatives affected by various criteria with beneficial or non-beneficial objective values (Parnell et al., 2013).
In past few years, several techniques have been developed to tackle MCDM problems such as the Multi-Objective Optimization on the Basis of Ratio Analysis (MOORA), the Technique for the Order of Prioritization by Similarity to Ideal Solution (TOPSIS), scoring models, outranking methods, and Axiomatic Design (AD) approach. Due to the complications of waste lubricant regenerative technologies, the selection of regenerative technology and strategy for used lubricant oil can be considered as a decision-analysis problem that is typically made by a committee of experts from academia, industry, and the government (Hsu et al., 2010).
In decision-making models, “risk” refers to undesirable various uncertain result of events. In some cases, the risk may be the measure of the degree of optimism about the information available in the problem (Hafezalkotob and Hafezalkotob, 2016a). Additionally, risk can be clarified as the intensity and probability of adverse effects in other cases (Ravindran et al., 2010). Like all decision-making scopes, in technology selection process, risk factors can emerge from different issues. For instance, risk factors may demonstrate the deviation between the nominal properties of technology provided in various handbooks (e.g. American Petroleum Institute (API) and United Nations (UN) compendiums for developing technologies) and the real properties of technology dependent on the design structure and experts review committee. Furthermore, risk factors may show the effect of the contrast between the designed and unexpected conditions (Hafezalkotob and Hafezalkotob, 2016a). The methods of defining risk factors for technology selection problems are explained in Section 3.4.
The Axiomatic Design (AD) approach is a major decision-making technique developed based on information theory and entropy principles by Suh (1998). By integrating AD approach with fuzzy data, the Fuzzy Axiomatic Design (FAD) method is generated (Kulak and Kahraman, 2005a). By considering risk factors for each alternative with respect to criteria, Risk-Based Fuzzy Axiomatic Design (RFAD) method was developed (Kulak et al., 2015). For risk-based technology selection, the RFAD method can effectively be utilized. Entropy concept which is exploited in interdisciplinary fields (e.g. physical and social sciences such as economics and information theory) can be useful in the process of decision-making because it can evaluate deviation between data sets (Hafezalkotob and Hafezalkotob, 2016b).
The focus of the present paper is to introduce a decision-making approach for assessing the best available regenerative and recycling technology for lubricating oils. Adopting the appropriate technology can be a consequential challenge for investors and companies that have a developing strategy. This research examines five types of regenerative technologies that have already been frequently employed commercially and initiates a systematic technique for evaluating regenerative technologies. This research has two main steps: the first step is a decision-analysis considering all criteria and the second step is a categorized decision-analysis based on technical and economic characteristics.
This paper is structured as follows: Sections 2.1 and 2.2 respectively present a short survey on applications of MCDM methods in technology selection and AD approaches. Section 2.3 reviews waste lubricant oil regenerative technologies and Section 2.4 provides the research gap and contributions of current research. Section 3 gives a short explanation about Axiomatic Design (AD) approaches, Fuzzy Axiomatic Design (FAD), weighted FAD (WFAD), and FAD with risk factors (RFAD). Section 4 presents the applications of each approach in the technology selection for recycling used lubricant oils considering all criteria and categorized criteria, while Section 5 offers conclusions and recommendations for the future research.

2 Literature Review

2.1 Survey on Applications of MCDM Methods in Technology Selection

Many MCDM methods have been used for technology selection, such as Preference Ranking Organization Method for Enrichment Evaluations (PROMETHEE), method for regeneration technologies assessment and selection (Pohekar and Ramachandran, 2004; Khelifi et al., 2006; Behzadian et al., 2010), Best Available Technology (BAT) framework in multiple industries (Georgopoulou et al., 2007; Liu and Wen, 2012; Chung et al., 2013; Ibáñez-Forés et al., 2013, 2014), the Elimination and Choice Expressing Reality (ELECTRE-II) method in environmental issues (Pohekar and Ramachandran, 2004; Hatami-Marbini et al., 2013; Wen et al., 2015), reference point technique and subjective weight factors methods in technology assessment (Duijm, 2002), expert judgment based models (Shehabuddeen et al., 2006; Daim and Intarode, 2009), TOPSIS in analysis of alternatives for selection of enabling technology (Georgiadis et al., 2013), Multi-Criteria Decision Aiding Hybrid Algorithm (THOR) in waste recycling technology selections (Gomes et al., 2008), VlseKriterijumska Optimizacija IKompromisno Resenje (VIKOR) in platform selection (Lin et al., 2016), Analytical Network Process (ANP) (Molinos-Senante et al., 2015), fuzzy analytic hierarchy process (F-AHP) and fuzzy TOPSIS (Taylan et al., 2016), fuzzy Delphi integrated with fuzzy AHP as well as crisp AHP in lubricant regenerative technology selection (Hsu et al., 2010; Hsu and Liu, 2011), and graphical and traditional methods in waste lubricant regenerative technology selection (Chari et al., 2012).
In addition to the mentioned methods which have been applied in technology selection problems, there are some approaches with hybrid algorithms. For example, Cid-López et al. (2016) suggested a linguistic multi-criteria decision-making model based on 2-tuple linguistic labels for application in ICT services.

2.2 Survey on Developments and Applications of Axiomatic Design Approaches

Axiomatic Design (AD) principles are developed by Suh (1990) with an ultimate goal of establishing a scientific basis that help designers in logical thought processes (Suh, 1990, 2001; Suh et al., 1998). Kulak and Kahraman (2005b) presented a fuzzy version of AD approach for solving MCDM problems under uncertainty. Significance coefficients of criteria have been added to Fuzzy Axiomatic Design (FAD) model by Kulak et al. (2005) to form the Weighted Fuzzy Axiomatic Design (WFAD) approach.
The FAD and WFAD methods were employed for finding optimal and suitable technology and machine in a manufacturing system. Hierarchical Fuzzy Axiomatic Design (HFAD) approach has been developed by Kahraman and Çebi (2009) to solve a hierarchical teaching assistant selection problem. Gören and Kulak (2014) added risk factors for ratings of alternatives on criteria to HFAD method to generate Risk-Based Fuzzy Axiomatic Design (RFAD) technique. Gören and Kulak employed RFAD approach to specify the best supplier of classic travertine. Kulak et al. (2015) examined the application of RFAD approach in a decision-making problem by considering risks related to criteria regarding the selection of medical imaging devices. Hafezalkotob and Hafezalkotob (2016a) utilized RFAD method with the integrated Shannon entropy significance coefficients. The integration of Shannon entropy with a multi-attribute decision-making method can generate a more robust decision-aid technique. The proposed method was employed in a material selection problem regarding industrial gas turbine blades which are exposed to a shocked temperature and a risk factor is calculated to consider the effect of the difference between the primary and shocked temperature domains on material property.
Many AD applications in the designing systems, products, organization, software, and other interdisciplinary areas appeared in the literature for 27 years. Three detailed literature reviews exist on AD principles and applications. Kulak et al. (2010) reviewed both the crisp and fuzzy AD approaches and provided an overview of the literature on AD principles by covering and classifying 63 papers from 1990 to 2010. Rauch et al. (2016) reviewed the applications of AD in manufacturing system design by covering 20 years of research from 1996–2015. Büyüközkan and Göçer (2017) considered the fuzzy AD principles from 2010 to 2015, by covering 28 papers in the past five years. They combined intuitionistic fuzzy sets with AD methodology in a supplier selection problem. Cheng et al. (2017) presented a novel Heterogeneous Axiomatic Design (HAD) method to solve heterogeneous multi-attribute decision making (HMADM) problems involving deviation criteria, which cannot be solved by ordinary HMADM approaches. The proposed technique was employed in the anti-vibration optimization of the key components in a turbo-generator when a set of alternative schemes are provided.
Kir and Yazgan (2016) proposed a tabu search and genetic algorithm to prepare proper schedules and compute the penalty costs of earliness and tardiness in a scheduling problem of producing milk products on a single machine. This methodology is based on the concept of FAD technique. Integrating the fuzzy Simple Multi-Attribute Rating Technique (SMART) and the WFAD approach, Çakır (2016) employed the proposed methodology to handle a decision-making problem of selecting continuous fluid bed tea dryer. Hou et al. (2016) introduced a new method to analyse and compare alternative schemes based on AD theory and the Markov function that was used to determine the optimization direction of the chosen scheme.
Khandekar and Chakraborty (2015) presented an application of the FAD approach in a material handling equipment selection considering two real-world problems which are selection of an automated guided vehicle, and selection of loading and hauling equipment in surface mines. Chen et al. (2016) suggested a new matching degree calculation method for effectively matching suitable knowledge service demanders and suppliers based on a FAD approach along with a multi-objective optimization model.
Guo et al. (2017) applied the FAD approach in a green supplier evaluation and selection in an apparel manufacturer in Hong Kong. Zheng et al. (2017) developed a rough set FAD approach for performance evaluation and the selection of appropriate additive manufacturing (AM) process.
Chakraborty et al. (2017) proposed a hybrid approach considering FAD and Fuzzy Analytic Hierarchy Process (FAHP) methods in a product design remanufacturing process in India.
Besides the AD priniciples which are target-based approaches based on common area of membership functions of alternative ratings and target values of attributes, there are specific types of normalization methods which allow decision makers to assign targets for criteria. For example, Hafezalkotob and Hafezalkotob (2017) proposed a target-based VIKOR approach based on interval values supported on interval distance and preference degree for two machine selection problems concerning punching equipment and continuous fluid bed tea dryer.

2.3 Survey on Studies into Waste Lubricant Oil Regenerative Technologies

Lubricating oil as a crucial element of hazardous waste in today’s increasing usage of internal combustions engines is one the most valuable liquids that is used in almost all vehicles and industrial machines (Mohammed et al., 2013). Nevertheless, waste oil can be a treasured resource because it contains a significant amount of base oil which may be used to formulate new lubricants by separating undesirable pollutants from the oil by the optimal regenerative process (Rincón et al., 2007). Modern lubricating oils are mixtures of base stock or base oil (71.5–96.2 wt%) blended with an amount of part per million chemical additives to meet the specific requirements of desirable lubricant (Mohammed et al., 2013; Grimes and Thompson, 2016). The recycling of used lubricant oil was in practice to various degrees during the Second World War when the shortage of sufficient supplies of crude oil made a huge constraint for the material consumption and encouraged the reuse of all types of materials including lubricating oils (Abdulkareem et al., 2014; Jafari and Hassanpour, 2015).
Nowadays, there is a serious consideration for sustainability and environmental issues. Three options basically exist to tackle the problem of waste oil: (a) disposing the used oil into water surfaces, land, and sewerage system and garbage heap, (b) regenerating base oil from waste oil, and (c) heat extraction from waste oil through combustion processes (Mohammed et al., 2013). Disposing of the waste oil onto the environment or extraction of heat from the oil will lead to critical environmental consequences. Therefore, because of the great value of waste oil, high possibility of waste recovery and continuous and ongoing care for the sustainability of the green environment, regenerative lubricant oil technologies increasingly come to be seen (Kupareva et al., 2013).
Previous researches (Dalla et al., 2003; Kanokkantapong et al., 2009; Hsu et al., 2010; Chari et al., 2012; Jafari and Hassanpour, 2015) show that many types of lubricant recycling technologies exist that are commercially and technically available and popular such as: distillation process, acid/clay process, Thin Film Evaporation (TFE) with hydro-finishing, TFE with solvent finishing, TFE with clay finishing, solvent extraction hydro-finishing, Thermal De-Asphalting (TDA) with hydro-finishing, and TDA with clay finishing.
Some differences exist among these technologies considering multiple criteria, i.e. economic issues, evolution, and environmental impacts (Hsu et al., 2010). Two comprehensive compendiums of recycling technologies have been developed by United Nations (UN) (Dalla et al., 2003; Chari et al., 2012) which introduce commercial and prototype technologies.
Kupareva et al. (2013) reviewed the regenerative technologies for used lubricant oils applied in Europe and examined 28 plants treating waste oils. Jafari and Hassanpour (2015) presented a comprehensive survey on operational processes of used lubricants regenerative technologies and a comparison of these technologies. There are vast numbers of laboratory researches into the new and novel technologies of lubricant recycling methods that are still in prototype level and not yet provided commercially; i.e. ionic liquid processes (Grimes and Thompson, 2016), various solvent extraction techniques (Al-Zahrani and Putra, 2013).

2.4 Research Gap

Only three applications of the RFAD method, i.e. supplier selection problem (Gören and Kulak, 2014), the selection problem of appropriate medical imaging system (Kulak et al., 2015), and material selection problem for industrial gas turbine blade (Hafezalkotob and Hafezalkotob, 2016a) have been presented in the literature. Therefore, this paper presents a new application for the RFAD approach. Regarding to Section 2.1, only four studies have tackled waste lubricant oil regenerative technology selection problems using the MCDM methods, i.e. fuzzy Delphi integrated with fuzzy AHP as well as crisp AHP technique (Hsu et al., 2010; Hsu and Liu, 2011), PROMTHEE approach (Vranes et al., 1999), and graphical and traditional methods (Chari et al., 2012). To the best of authors’ knowledge, no study has considered AD approaches in used lubricant regenerative technology selection. Moreover, no research was conducted on technology selection with consideration of risk factors. However, for uncertain or unexpected situations in some real-world cases like lubricant regenerative technology selection, a risk-based MADM technique is required.
The focus of this paper is to provide a risk-based selection process employing the RFAD approach weighted by the integrated Shannon entropy significance coefficients to find the optimal lubricant regenerative technology among various alternatives based on different criteria. Another contribution of this paper is the proposition of risk factors for the problem of lubricant regenerative technology selection. In this study, after identification of general and specific technology-related risk factors, a comprehensive evaluation for each factor is given.
The decision-making process for the practical case has been classified into two categories. First, by considering all criteria and second, by taking account of the categorized criteria, i.e. the technical and economic aspects. The classification can improve the robustness of the decision process by showing the importance of the economic criteria. There is no study considering categorized criteria in lubricant regenerative technology selection problem.

3 Axiomatic Design Approaches

3.1 The AD Approach

AD technique is a systematic tool and substitute for traditional MADM methods also helpful for engineers to overlook the whole process of design phase (Khandekar et al., 2015; Hafezalkotob and Hafezalkotob, 2016a). On the other hand, AD principles can evaluate system capabilities by measuring how well the system can satisfy the functional requirements (FRs) (Kulak et al., 2015).
AD principle includes two axioms which are Independence and Information Axioms. Independence Axiom keeps the independence of FRs and Information Axiom keeps the information content at the minimum level (Kulak et al., 2015). Nevertheless, based on the information axiom, the optimal design has the minimum value of the information content. The relationship between the DPs and FRs can be represented as follows:
(1)
\[ (\mathit{FR})=[A]\times (\mathit{DP}),\]
in which:
$(\mathit{FR})$ denotes the functional requirement vector,
$(\mathit{DP})$ shows the design parameter vector, and
$[A]$ demonstrates the design matrix which outlines the design.
Referring to Eq. (1), in general, each entry ${a_{ij}}$ of $[A]$ relates the ith $FR$ to the jth $DP$ (Kulak et al., 2010).
Information Axiom presents the information through information content ${I_{ij}}$:
(2)
\[ {I_{ij}}={\log _{2}}\bigg(\frac{1}{{p_{ij}}}\bigg),\]
in which ${p_{ij}}$ is the probability of satisfying the ith $\mathit{FR}$. The reason for using a logarithmic function is that the information content will be additive in the case that several FRs exist that have to be satisfied simultaneously (Kulak et al., 2010). Subsequently, when n FRs exist, the total information content will be the sum of all individual ${I_{ij}}$ (Fengqiang et al., 2008; Kulak et al., 2015).
In any design situation on the basis of AD principles, the success probability of the design is dependent on two elements; design range, what the designer considers to gain in terms of the expected domain and; system range, what the system is capable of delivering (Kulak et al., 2015; Hafezalkotob and Hafezalkotob, 2016a). The overlap of the two elements (design and system ranges) is named common range, which is the domain of the acceptable design solution (Kulak and Kahraman, 2005a).
As shown in Fig. 1, x-axis illustrates the functional requirement and y-axis denotes the function of probability density. When probability distribution function (PDF) is uniform, ${p_{ij}}$ is obtained as follows:
(3)
\[ {p_{ij}}=\bigg(\frac{\mathrm{Common}\hspace{2.5pt}\mathrm{area}}{\mathrm{System}\hspace{2.5pt}\mathrm{area}}\bigg).\]
Hence, the information content ${I_{ij}}$ is calculated as:
(4)
\[ {I_{ij}}={\log _{2}}\bigg(\frac{\mathrm{System}\hspace{2.5pt}\mathrm{area}}{\mathrm{Common}\hspace{2.5pt}\mathrm{area}}\bigg).\]

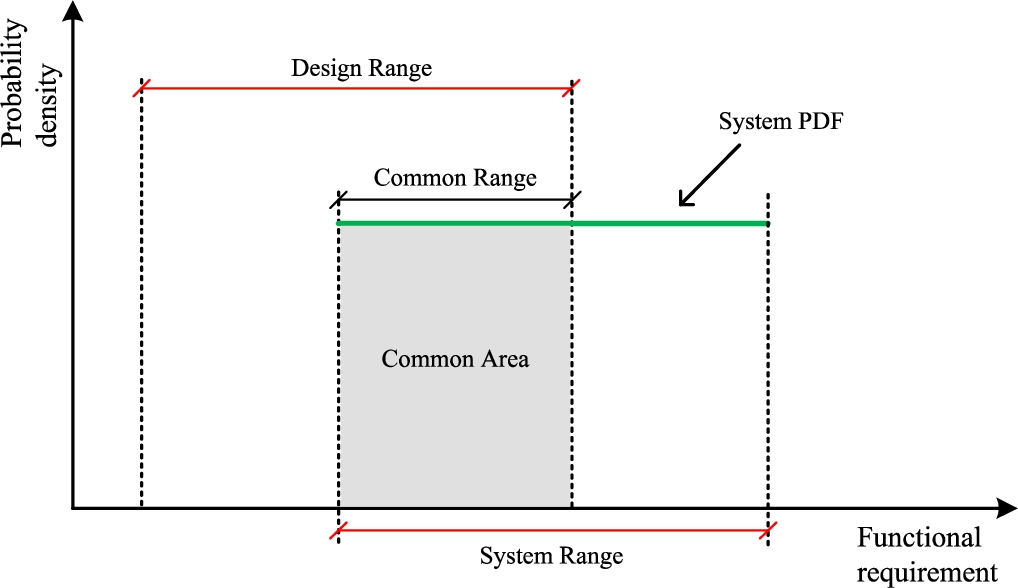

Fig. 1
Design, system, and common ranges as well as common area for a uniform probability density function of a functional requirement.
The optimal alternative is the one with the minimum total information content. This feature of the AD method is broadly employed in MADM problems to compare available alternatives (Kulak et al., 2015).

3.2 The FAD Approach

In the real-world decision-making problems, uncertain information is often utilized rather than precise data. The AD principles cannot tackle these practical cases because information is imprecise and there is no probability distribution function available. The fuzzy sets theory approaches could give a solution to human reasoning in uncertain areas. The theory of fuzzy numbers was particularly introduced to deal with vagueness and uncertainty (Zadeh, 1965; Hsu et al., 2010; Gören and Kulak, 2014). Therefore, vague information about the design and system ranges could be presented employing linguistic terms which are then converted into fuzzy numbers (Kulak et al., 2015).
In addition to fuzzy numbers, there are linguistic approaches which could deal with vague information (Liao et al., 2017; Morente-Molinera et al., 2017b). Morente-Molinera et al. (2017a) proposed a multi-granular fuzzy linguistic modelling which allows each expert to choose the linguistic label set. Li et al. (2017) applied a Personalized Individual Semantics (PIS) method to personalize individual semantics by means of an interval numerical scale and the 2-tuple linguistic model in group decision making problem. Capuano et al. (2017) proposed a hybrid model which adopts fuzzy rankings in order to collect both experts preferences on available alternatives and trust statements on other experts which could be useful in situations such as incomplete information availability. Liu et al. (2017) defined the preference relation with self-confidence by taking multiple self-confidence levels into consideration based on heterogeneous preference relations with self-confidence.
In the FAD method, design and system ranges can be represented as trapezoidal or triangular fuzzy sets. In the current study, triangular fuzzy sets are utilized:
(5)
\[ \mathrm{System}\hspace{2.5pt}\mathrm{range}={\tilde{x}_{ij}}=({x_{ij,1}},{x_{ij,2}},{x_{ij,3}}),\]
(6)
\[ \mathrm{Design}\hspace{2.5pt}\mathrm{range}={\tilde{d}_{j}}=({d_{j,1}},{d_{j,2}},{d_{j,3}}),\]
in which i and j respectively stand for alternatives and criteria, $i=1,2,\dots ,m$ and $j=1,2,\dots ,n$.
As aforementioned, design ranges are ideal properties that are considered by decision-makers on the basis of FRs. Common area ${c_{ij}}$ is the overlap of system and design areas as demonstrated in Fig. 2. Eq. (7) shows the formula of ${c_{ij}}$ when the membership functions $\mu (x)$ of system and ranges areas have similar shape.
(7)
\[ {c_{ij}}=\left\{\begin{array}{l@{\hskip4.0pt}l}\mathrm{If}\hspace{2.5pt}{x_{ij,2}}>{d_{j,2}},\hspace{1em}& \bigg\{\begin{array}{l@{\hskip4.0pt}l}\mathrm{If}\hspace{2.5pt}{x_{ij,1}}<{d_{j,3}},\hspace{1em}& \frac{{({d_{j,3}}-{x_{ij,1}})^{2}}}{2[({d_{j,3}}-{x_{ij,1}})+({x_{ij,2}}-{d_{j,2}})]},\\ {} \mathrm{otherwise},\hspace{1em}& 0,\end{array}\\ {} \mathrm{If}\hspace{2.5pt}{x_{ij,2}}<{d_{j,2}},\hspace{1em}& \bigg\{\begin{array}{l@{\hskip4.0pt}l}\mathrm{If}\hspace{2.5pt}{x_{ij,3}}>{d_{j,1}},\hspace{1em}& \frac{{({d_{j,1}}-{x_{ij,3}})^{2}}}{2[-({d_{j,1}}-{x_{ij,3}})-({x_{ij,2}}-{d_{j,2}})]},\\ {} \mathrm{otherwise},\hspace{1em}& 0,\end{array}\\ {} \mathrm{If}\hspace{2.5pt}{x_{ij,2}}={d_{j,2}},\hspace{1em}& \mathrm{common}\hspace{2.5pt}\mathrm{area}=\mathrm{system}\hspace{2.5pt}\mathrm{area}.\end{array}\right.\]

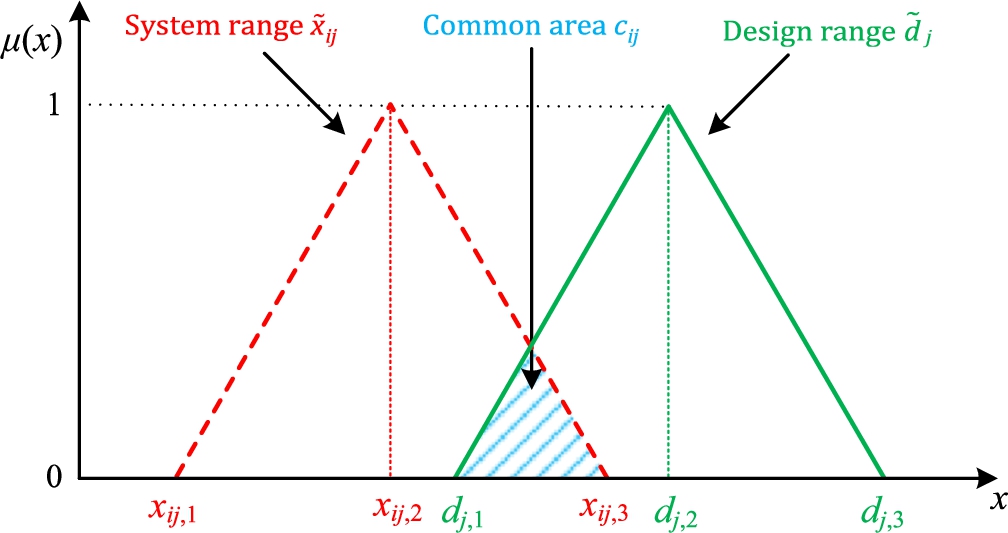

Fig. 2
Common area of system and design ranges.
The probability of satisfying design range ${\tilde{d}_{j}}$ for alternative i, i.e. ${p_{ij}}$, is obtained by considering common area ${c_{ij}}$ and system area ${\hat{x}_{ij}}$ as follows:
(8)
\[ {p_{ij}}=\bigg(\frac{\mathrm{Common}\hspace{2.5pt}\mathrm{area}}{\mathrm{System}\hspace{2.5pt}\mathrm{area}}\bigg)=\bigg(\frac{{c_{ij}}}{\widehat{{x_{ij}}}}\bigg).\]
Similar to AD approach, the information content ${I_{ij}}$ in FAD method is also specified by calculating logarithm with base 2 of the reverse of probability ${p_{ij}}$ (Gören and Kulak, 2014):
(9)
\[ {I_{ij}}={\log _{2}}\bigg(\frac{\mathrm{1}}{{p_{ij}}}\bigg).\]
The total information content is computed for each alternative as follows (Hafezalkotob and Hafezalkotob, 2016a):
(10)
\[ {T_{i}}={\sum \limits_{j=1}^{n}}{I_{ij}}.\]
${T_{i}}$ denotes the assessment value of the FAD method. The best alternative on the basis of this technique has the minimum ${T_{i}}$, which is demonstrated as follows:
(11)
\[ {A_{\mathrm{FAD}}^{\ast }}=\Big\{{A_{i}}\hspace{2.5pt}\Big|\hspace{2.5pt}\underset{i}{\min }{T_{i}}\Big\}.\]

3.3 The WFAD Approach

The importance of criteria in decision-making problems is often not similar. Consequently, to achieve an optimal realistic solution, the relative importance of criteria should be considered. In general, the significance coefficients can be computed using objective, subjective, or integrated techniques (Hafezalkotob and Hafezalkotob, 2016a). Subjective significance coefficients are achieved from the opinions of experts while objective significance coefficients are obtained employing the values of decision matrix without utilizing the judgments of experts. The two types of significance coefficients may be combined. Different techniques exist for calculating significance coefficients of criteria (Rezaei, 2015; Alemi-Ardakani et al., 2016; Hafezalkotob and Hafezalkotob, 2016b, 2016c).
Entropy is based on the classical measures of Boltzmann and the second law of thermodynamics (Zhang et al., 2011; Hafezalkotob and Hafezalkotob, 2016a). The idea of entropy in information science originally suggested by Shannon (1948) is a tool for specifying uncertainty of a variable. The general concept of Shannon’s entropy is to evaluate significance coefficient of each criteria from the distribution of data over variables.
The Shannon entropy has been utilized with combinations of many MCDM tecchniques for various applications; e.g. material selection problems (Hafezalkotob and Hafezalkotob, 2015, 2016a, 2016b, 2016c), competitiveness in tourism industry (Zhang et al., 2011), operational methods for irrigation canals (Shahdany and Roozbahani, 2016), supplier selection problem in petroleum industry facilities (Wood, 2016), phase change materials (Rastogi et al., 2015), and Combined Heat and Power (CHP) systems evaluation (Cavallaro et al., 2016).
The Shannon’s entropy approach also has been combined with many other weighting methods in order to calculate the criteria significance coefficients. Zavadskas and Podvezko (2016) combined the best features of the Shannon entropy method and the criterion impact loss (CILOS) approach to obtain a new method which is Integrated Determination of Objective CRIteria Weights (IDOCRIW). The proposed novel method was combined with FAHP method for application in a contract quality assurance evaluation problem (Trinkūnienė et al., 2017).
The following procedure has to be considered to compute Shannon entropy significance coefficients, assuming that ${x_{ij}}$ denotes the rating of an alternative on a criterion in a crisp MCDM problem.
Step 1: Normalization of ${x_{ij}}$ to determine ${f_{ij}}$, which is the project outcome (Jahan and Edwards, 2015):
(12)
\[ {f_{ij}}=\frac{{x_{ij}}}{{\textstyle\textstyle\sum _{i=1}^{m}}{x_{ij}}}.\]
Step 2: Calculation of Shannon entropy measure ${E_{j}}$ using the project outcomes ${f_{ij}}$ (Hwang and Yoon, 1981):
(13)
\[ {E_{j}}=-k{\sum \limits_{i=1}^{m}}({f_{ij}}\mathrm{ln}{f_{ij}})\hspace{1em}\mathrm{in}\hspace{2.5pt}\mathrm{which}\hspace{2.5pt}k=\frac{1}{\ln (m)}.\]
Step 3: Calculation of objective significance coefficients employing ${E_{j}}$ (Hwang and Yoon, 1981):
(14)
\[ {w_{j}^{o}}=\frac{{d_{j}}}{{\textstyle\textstyle\sum _{j=1}^{n}}{d_{j}}}\hspace{1em}\mathrm{in}\hspace{2.5pt}\mathrm{which}\hspace{2.5pt}{d_{j}}=1-{E_{j}}.\]
Step 4: Calculation of the integrated Shannon significance coefficients, if the expert assigns subjective significance coefficients ${w_{j}^{s}}$ (Hwang and Yoon, 1981):
(15)
\[ {w_{j}^{\ast }}=\frac{{w_{j}^{s}}{w_{j}^{o}}}{{\textstyle\textstyle\sum _{j=1}^{n}}{w_{j}^{s}}{w_{j}^{o}}}.\]
When ${w_{j}^{o}}$, i.e. objective significance coefficient is larger, the variation degree of ratings on the criteria is higher, which is a result of a smaller ${E_{j}}$ of a criterion. Adversely, larger ${E_{j}}$ denotes lower degree of variation of ratings, the less information over criterion j, and minor objective significance coefficient ${w_{j}}$ (Hafezalkotob and Hafezalkotob, 2016a).
To use the integrated Shannon entropy significance coefficients in FAD approach, the fuzzy ratings of alternatives on criteria first have to be defuzzified. The defuzzified value of system range ${\tilde{x}_{ij}}$ for triangular fuzzy sets can be calculated as follows (Allahviranloo and Saneifard, 2012; Ahmed et al., 2014):
(16)
\[ {\overline{x}_{ij}}=\frac{{x_{ij,1}}+{4x_{ij,2}}+{x_{ij,3}}}{6}.\]
Based on the aforementioned steps of calculating the integrated Shannon significance coefficients and the defuzzified system ranges ${\overline{x}_{ij}}$, the integrated Shannon significance coefficients are determined. The integrated significance coefficients are then used to generate the information content of the WFAD${^{\ast }}$ approach, i.e. ${I_{ij}^{{w^{\ast }}}}$, as follows:
(17)
\[ {I_{ij}^{w}}=\left\{\begin{array}{l@{\hskip4.0pt}l}{({I_{ij}})^{1/{w_{j}^{\ast }}}},\hspace{1em}& 0\leqslant {I_{ij}}\leqslant 1,\\ {} {({I_{ij}})^{{w_{j}^{\ast }}}},\hspace{1em}& {I_{ij}}>1,\\ {} {w_{j}^{\ast }},\hspace{1em}& {I_{ij}}=1.\end{array}\right.\]
The total information content and the optimal alternative based on the WFAD method are computed as:
(18)
\[ {T_{i}^{w}}={\sum \limits_{j=1}^{n}}{I_{ij}^{w}},\]
(19)
\[ {A_{\mathrm{WFAD}}^{\ast }}=\Big\{{A_{i}}\hspace{2.5pt}\Big|\hspace{2.5pt}\underset{i}{\min }{T_{i}^{w}}\Big\}.\]

3.4 The RFAD Approach

Risk can be defined differently based on its application. “The possibility of loss, injury, disadvantage or destruction”, as defined in Webster dictionary, is one of the definitions of risk. British standards describe risk as “a combination of the probability of frequency of occurrence of a defined hazard and the magnitude of the consequences of the occurrence” (Subramanyan et al., 2012). Risks are considered as the probability of occurrence of some uncertain, unpredictable, and even undesirable outcome(s) arising from a decision and a negative (or positive) possibility for the profitability of a given investment (Kartam and Kartam, 2001; Okmen and Oztas, 2008; Sharma and Swain, 2015).
By utilizing FAD method with risk factors achieving a practical decision is more likely. Thus, by combining elements of risk and FAD approach, the RFAD method is obtained. The information content for the RFAD technique is calculated as follows Gören and Kulak (2014):
(20)
\[ {I_{ij}^{r}}={\log _{2}}\bigg(\frac{1}{{P_{ij}}(1-{r_{ij}})}\bigg),\]
in which ${r_{ij}}$ is a risk factor with a value in the range of zero and one. Comparing information contents of FAD and RFAD approaches, it is explicit that each ${I_{ij}^{r}}$ is greater than its corresponding ${I_{ij}}$. Greater risk factor ${r_{ij}}$ leads to higher value of information content ${I_{ij}^{r}}$. The total information content and the optimal alternative on the basis of the RFAD approach is obtained as follows:
(21)
\[ {T_{i}^{r}}={\sum \limits_{j=1}^{n}}{I_{ij}^{r}},\]
(22)
\[ {A_{\mathrm{RFAD}}^{\ast }}=\Big\{{A_{i}}\hspace{2.5pt}\Big|\hspace{2.5pt}\underset{i}{\min }{T_{i}^{r}}\Big\}.\]

3.5 The WRFAD Approach

Hafezalkotob and Hafezalkotob (2016a) developed the RFAD method with the integrated Shannon entropy significance coefficients to generate entropy-weighted risk-based fuzzy axiomatic design (WRFAD) approach. The information content of the WRFAD technique based on the integrated Shannon significance coefficients is determined as follows:
(23)
\[ {I_{ij}^{wr}}=\left\{\begin{array}{l@{\hskip4.0pt}l}{({I_{ij}^{r}})^{1/{w_{j}^{\ast }}}},\hspace{1em}& 0\leqslant {I_{ij}^{r}}\leqslant 1,\\ {} {({I_{ij}^{r}})^{{w_{j}^{\ast }}}},\hspace{1em}& {I_{ij}^{r}}>1,\\ {} {w_{j}^{\ast }},\hspace{1em}& {I_{ij}^{r}}=1,\end{array}\right.\]
in which ${w_{j}^{\ast }}$ denotes the integrated Shannon entropy significance coefficients of criterion j. The total information content and the optimal alternative on the basis of the WRFAD is computed as:
(24)
\[ {T_{i}^{wr}}={\sum \limits_{j=1}^{n}}{I_{ij}^{wr}},\]
(25)
\[ {A_{\mathrm{WRFAD}}^{\ast }}=\Big\{{A_{i}}\hspace{2.5pt}\Big|\hspace{2.5pt}\underset{i}{\min }{T_{i}^{wr}}\Big\}.\]
In green technology selection process, ${r_{ij}}$ which denotes the risk factor can be obtained based on comments of decision-makers or by performing specific experiments. The risk factors may be caused from multiple sources such as economic, environmental, and sustainability aspects. In Section 4, Tables 2 and 3 offer a comprehensive description on the general and specific risk factors concerning waste lubricant oil regenerative technologies, respectively.
The process of the proposed WRFAD approach for green technology selection is illustrated in Fig. 3. Design ranges are the considered limits for criteria and system ranges are the performances of the candidate technologies on the criteria. In a typical green technology selection problem, system and design ranges as well as risk factors can be obtained by laboratory experiments, simulations, or based on comments of experts or utilizing handbooks and standards. Significance coefficients for criteria are calculated as described in Section 3.3. The information contents can be computed for the FAD, WFAD, RFAD, and WRFAD methods as explained in Section 3 employing the significance coefficients, probability formula, and risk factors. Eventually, the best green technology and the rankings are determined based on the total information contents.

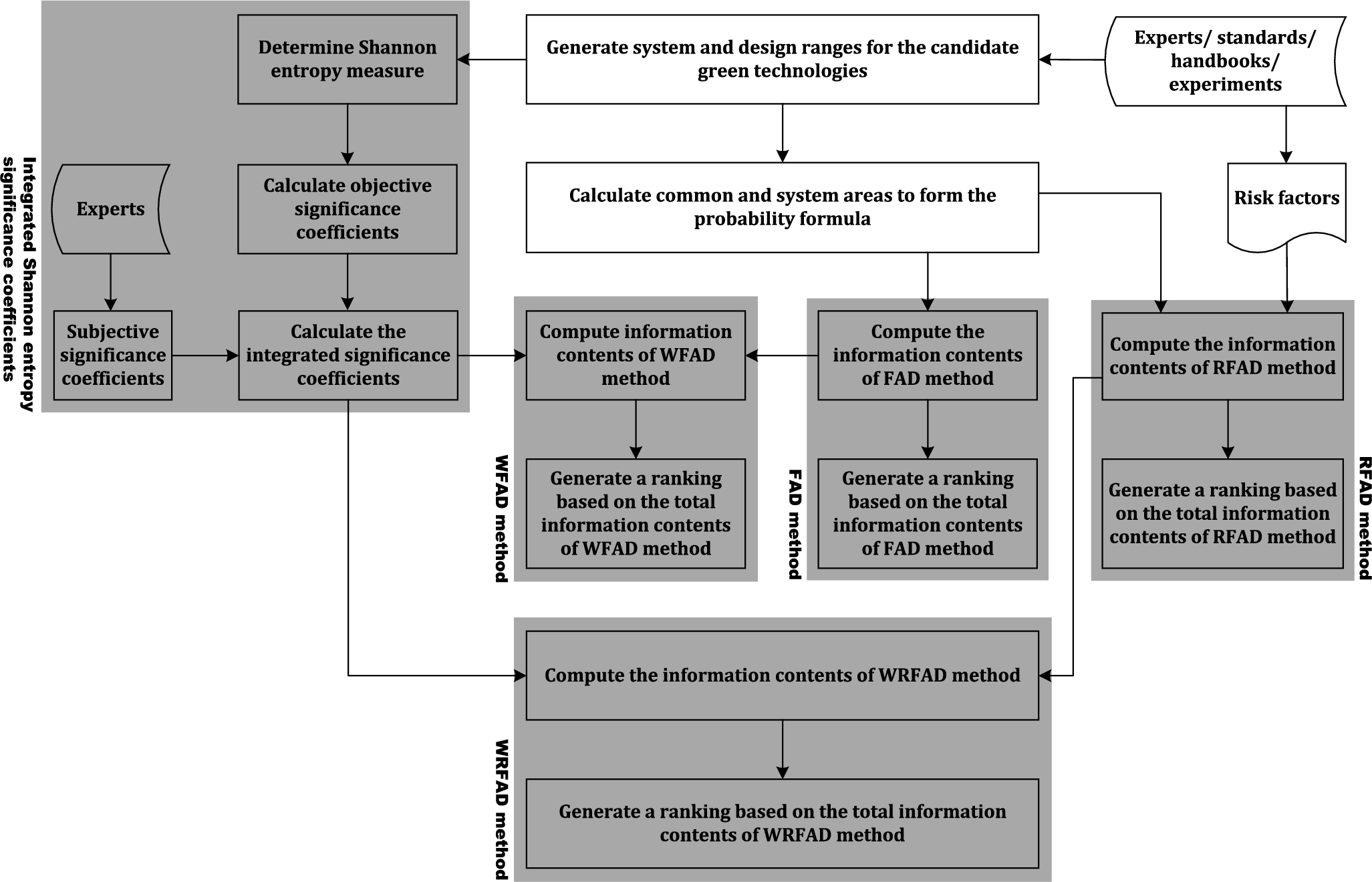

Fig. 3
Flowchart of risk-based green technology selection methodology supported on axiomatic design principles.

4 Application of Axiomatic Design Approaches in a Waste Lubricant Oil Regenerative Technology Selection Problem

In this section, the FAD, WFAD, RFAD, and WRFAD approaches are utilized to select optimal regenerative technology for recycling waste oils into functional lubricating base oils. To reach a better understanding of regenerative technology selection problem and present a comprehensive analysis, technology selection is performed in two phases, i.e. first by considering all criteria, and second by considering categorized criteria which include technical and economic criteria.
As mentioned in Section 2.3, lubricating oil nowadays plays a vital role in various fields (Chari et al., 2012). With serious considerations for sustainability and environmental issues, selection of appropriate technology regarding key atributes is crucial. The degree of sustainability or the process stability in many technologies is low. On the other hand, many technologies are exploited around the world with the lack of concerns for environmental issues. Based on a report prepared by Iranian Industry Organization, there are more than 200 reprocessing units of waste oil in Iran which use acid/clay process. According to a statement of the United States Environmental Protection Agency (USEPA), acidic sludge which is the residue of acid/clay process is considered as a dangerous waste material (Jafari and Hassanpour, 2015).
One of the effective methods for decreasing the health and environmental threats of acidic sludge is neutralization through physical modifications. However, since neutralization process of acidic sludge is not economical considering the decrease in crude oil price in the past few years, many companies do not attempt to solve the problem. Technical and economic matters are two critical factors that every organization faces in selection process of an appropriate technology.
In the current study, based on the related researches (Hsu et al., 2010; Hsu and Liu, 2011; Chari et al., 2012; Jafari and Hassanpour, 2015) and the comments of experts, the following five technologies are determined as candidate alternatives: (a) Acid-clay process, (b) Acid-activated clay process, (c) Thin/wiped film evaporation (based on vacuum distillation), (d) Solvent extraction process, and (e) Hydro-process (Hydro-extraction). A short graphical summary of the candidate technologies is shown in Fig. 4.

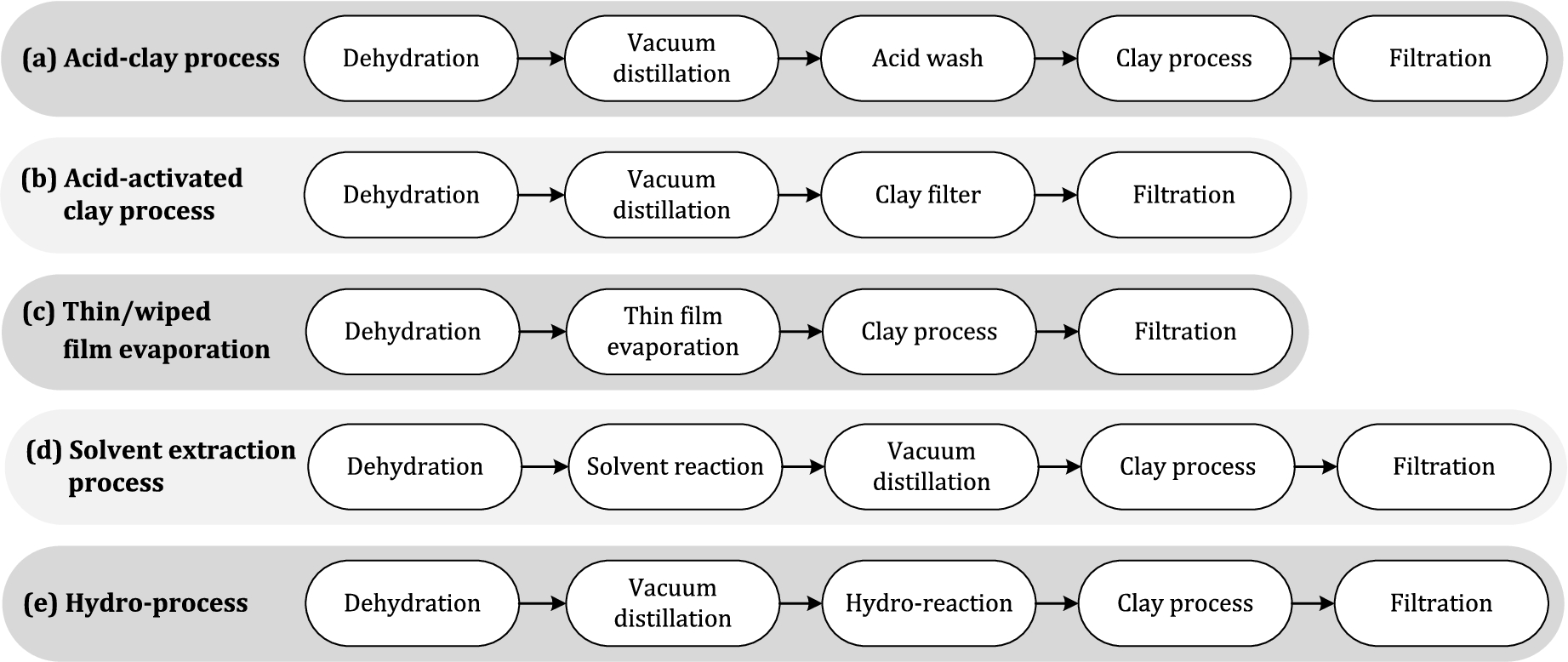

Fig. 4
A typical illustration of the steps of candidate technologies.
The focus of this study is on popular and practical regenerative technologies for waste lubricant oils; however, other technologies exist which are in research and development state or utilized in few numbers of plants such as KTI process, Safety–Kleen technology, Axens/Viscolube (REVIVOIL) technology, IFP technology/Snamprogetti technology, HyLube process, BERC/NIPER hydrogenation, and Vaxon Process (Chari et al., 2012). In this practical green technology selection problem, thirteen criteria are specified based on various researches (Dalla et al., 2003; Hsu et al., 2010; Hsu and Liu, 2011; Chari et al., 2012; Kupareva et al., 2013; Mohammed et al., 2013; Jafari and Hassanpour, 2015) and the comments of experts. Table 1 presents the evaluation criteria in decision process for used lubricant oil regenerative technologies classified into three aspects.
Table 1
Criteria definition for selection of waste lubricant oil regenerative technologies.
Aspects ID∗ Criteria Description
Technicality and sustainability T1 Compatibility with all types of used oil The availability of water content, organic and chemical contaminants (e.g. Paraffin contaminants, PCB contaminants, and heavy metals), light lubricants (e.g. diesel and solvents), and sludge or crude oil within the used oil which affects the margin of production with diverse technologies
T2 Quality of product Based on laboratory tests provided by American Society for Testing and Materials (ASTM) and with reference to American Petroleum Institute (API) which classify base-oil quality into five groups, quality of the product is determined (American Petroleum Institute, 2015)
T3 Proven technology and adaptability for future Due to the application of every technology, it is substantial to identify the type used in various scenarios (i.e. commercially available, prototype, research and development state). Based on the different states of the technology and its adaptability to be upgraded, experts can rank technologies
T4 Process sustainability and stability It is crucial for every production plant to have stable and sustainable operations which results in the desired consequences. The technology should be applicable in variable situations. Besides, risk estimation and real-time problem solving are essential
T5 Degree of automation/ sophistication Knowledge and human resource managements are critical factors in every industry and organization. The level of sophistication of technologies is based on the degree of knowledge and availability of the human resource. Subsequently, the level of automation is a critical factor in the efficiency of production
Health, safety and environmental considerations E1 Risk levels regarding the environment, e.g. as for lands, ecological receptors, and water contaminations Chemical and physical contaminants are one of the most stressors to ecosystems and the environment which can induce an adverse and irreversible effects. Regenerating plants may increase risk levels regarding the nature by producing specific by-products, e.g. acidic sludge and water contaminations
E2 Risk levels for workers, communities, and beneficiaries One of the fundamental requirements for selecting a technology is the level of influence on employees and communities. It is crucial to choose a technology to decrease risk among beneficiaries of any production process
E3 Energy and water consumption Every technology has variable intake of energy and water. The optimal technology minimizes the consumption of energy and water
E4 Emissions and odor (pollution) Decomposition of chemical components by heat and solvents may cause atmospheric pollutions. Volatile Organic Compounds (VOC) which easily evaporate are very common in processing hydrocarbons. In optimal operations, pollution rate is minimized
Economic considerations S1 Income generation potential Dependent on the production method, level of technology, production economic standard parameters, production margin profit of a specific technology is obtained
F1 Capital costs/ investment costs Based on the feasibility evaluation of a technology which provides investment information, e.g. fixed and variable costs, the expenses of a technology are determined
F2 Operation and maintenance costs Operation costs are defined according to the infrastructures of the production plant, specific material handling, and the total maintenance cost of a technology. Also, the depreciation rate of any technology has a direct influence on this criterion
F3 Economic viability An economically viable technology is feasible, innovative, and sustainable regarding investing resources. A technology is more feasible when its predetermined goals are achieved faster, i.e. by reaching the head to head point
∗Identification code for criteria.
Table 2
General risk factors regarding waste lubricant oil regenerative technologies.
Aspects   Risk label Description
Characteristics and limitations of raw materials
  • • Physical contaminations (e.g. water content, light hydrocarbons, heavy metals, and synthetic oils)
  • • Chemical contaminations (e.g. paraffin, PCB, and PAO)
  • • Physical and chemical properties of raw material (e.g. viscosity, flash point, pour point, and colour)
  • • Availability of raw material
  • • Transportation of raw material
There are a couple of limitations considering raw materials. Mentioned risk factors are some of the influencing factors which can make impact on elements such as quality and sustainability of finished product or may have environmental consequences
Characteristics of finished product (i.e. base-oils)
  • • Physical contaminations (e.g. anonymous particles, water content, bleaching clay particles, and heavy metals)
  • • Chemical contaminations (e.g. sulfonate and paraffin)
  • • Physical and chemical properties of finished product (e.g. viscosity, flash point, odour, pour point, and colour)
The existence of contaminations and low standard of technical properties in finished product will result in poor quality of product and increases environmental and health parameters
Technological complexities
  • • Technical knowledge (e.g. technological and operational knowledge)
  • • Manufacturing method (e.g. batch and continuous production)
  • • Compatibility with existing production plant
  • • Process stability
  • • Adaptability to future situations
  • • Level of technical sophistication
Flexibility and adaptability of infrastructures and the existing technologies are important factors in creation of technical complexities. Technical knowledge of sophisticated technologies has a huge impact on risk prevention and optimization of process stability
Human resource factors
  • • Employees performance and influencing elements such as employees satisfaction and loyalty
  • • Compatibility and suitability of technology regarding the existing educational and skill levels
  • • Human reliability
  • • Availability of experts in the required fields
  • • Level of employees efficiency
  • • Recruitment factors
Human resource is one of the valuable assets of organizations. One of the great responsibilities of industrial plants is to optimize effectiveness and efficiency of resources. Human resource factors can have effective influence on quality and quantity of products
Waste management
  • • Hazardous by-products (e.g. acidic sludge and PCB)
  • • Biodiversity threats
  • • Transportation issues
  • • Waste water handling
  • • Waste depot problems
  • • Solid waste handling
  • • Ego-system waste issues
Hazardous dumps and leakage of specified wastes can have irreparable damages to the environment. Today, one the most important factors of chemical regenerative technologies is waste management. The considerable amount of hazardous wastes will make this factor a great threat to factories
Topographical and geographical factors
  • • Production plant location
  • • Noise and vibration
  • • Weather properties
  • • Physical space requirements
Topographical and geographical aspects such as location and physical space can have great effects on quantity of products dependent on the size of operation
Health, safety and environmental issues (HSE factors)
  • • Human resource safety factors such as on-site and off-site and insurance
  • • Force major health and safety conditions for employees
  • • Greenhouse and non-greenhouse gases
  • • By-product emission and odour (e.g. light combustible hydrocarbon gasses)
  • • Incident prevention (e.g. hazardous gas leakage, fire, explosion, and electrical shocks)
  • • Ergonomics (e.g. employees fatigue reduction systems, increasing safety spots, and noise reduction)
Dependent on the scale and sensitivity of the proposed technological interventions, a full-fledged risk assessment exercise is mandatory in HSE factors. Before making decision on the final technology enhancement, it is crucial to analyse health, safety, and ergonomic measures for employees and environmental issues for biodiversity and humans
Specific energy and material consumption
  • • Specific energy usage (e.g. water, gas, fuel, and electricity)
  • • Specific material consumption (e.g. hydrogen, polymer, various solvents, and bleaching clay)
Consuming specific energies or materials may cause overhead expenses and inefficient technology
Economic factors and regulations
  • • Entrepreneurship
  • • Economic investor factors
  • • Cultural factors
  • • Depreciation and maintenance factors
  • • Revenue and marginal factors
  • • Competitiveness and strategies
  • • Scheduling and resource factors
  • • International and domestic regulations and rules
The main reason for all measures which organizations adopt to enhance process sustainability and improve quality and quantity is to gain a high marginal profit from the whole process. Economic factors may pose high risks to an organization
Table 3
Specific risk factors regarding waste lubricant oil regenerative technologies.
Risk label Influenced technologies Description
Paraffin contamination (a), (b), (c), (d) Mixing used oil with all sorts of materials (e.g. sludge from oil tankers carrying crude oil) causes finished product to be misty and cloudy even after regeneration process. High temperatures (over 340${^{\circ }}$C) can reduce paraffin whereas the reduction amount can vary in different technologies
Coke formation (a), (b), (c), (d), (e) High temperatures in regenerative technologies due to nature of hydrocarbons result in coke formation (from cracked or decomposed cracked oil) and in any regenerative process, coke formation is inevitable in some units (e.g. reboilers, distillation towers, and reactors surface). Coke formation causes blockage in valves, pipes, and all the reactors in the surface
Oxidation (a), (b) Application of sulfuric acid and high crack temperature cause the finished product, i.e. base oil, to oxidize and affect the colour of the base oil
High temperature cracking (a), (b) Existence of high temperature in distillation column or in clay mixing reactor not only causes a lot of coke formation, but also, reduces the yield of the finished product and produces huge amount of cracked gasses
Sulfuric acid purity (a) The purity of the applied sulfuric acid is a critical factor in acid-wash process and exerts remarkable effects on the sludge formation in reactors
Type of clay (a), (b) In regeneration process, a non-activated clay needs small amount (3–4%) of sulfuric acid and high temperature oil in reactor. On the other hand, an activated clay works well in much lower temperature with the same result but higher prices
Quantity of clay (b), (c) Using about 40–45% of non-activated clay (e.g. bentonite clay) in clay process not only produces huge amount of waste and disposed clay, but also, reduces the product margin due to oil content in the used clay
High level of fatigue and corrosion in process (a) Presence of sulfuric acid in various forms in regeneration process causes corrosion in the whole production system in contact with acid. Existence of acid in any process unit has decay effects on whole process unit and increases the final depreciation rate
Continuous maintenance service (a), (b), (c), (d), (e) One of the essential factors in every operating plant is preventive maintenance. Regarding high temperature within the regenerative technologies, regular maintenance to safe-guard the operation is crucial. Subsequently, the acidic and bleaching plants need higher attention for maintenance
Acidic sludge storage (a) According to high remaining acid contents and salts within acid-clay process, it is important to have a secure handling and material storage facility. In case of spillage or storage failure, the excess acid within sludge causes the sludge to be runny. Therefore, in case of dumping sludge material in dead land, it would not penetrate and if covered by soil it would surface eventually
Spent clay storage (a), (b) Used clay should be stored under a covered area because a small amount of oil exists in it. Besides, this measure helps in blocking direct sun contact as to avoid evaporation of remaining oil within the spent clay. Moreover, correct storage would prevent contamination of the underground water and surface running water
Sulfuric acid procurements (a), (b) Transportation of sulfuric acid in any type of container needs special precaution and safety because of its hazardous nature. This element is a very important factor in particular processes such as acid-clay process and acid-activated clay process
Employees training for application of sulfuric acid (a) Because of the hazardous nature of sulfuric acid, it is crucial to have a training process for employees to deal with the material
Employees training for application of bleaching clay (b) High quantity of clay usage in acid-activated clay process may cause troubles for employees. Specific training courses for handling the clay (e.g. feeding and discharging methods) can boost the effectiveness of bleaching process
Acid handling (a), (b) Sulfuric acid is a highly corrosive; thus, particular attentions should be given throughout the transportation and consumption process
Clay handling (a), (b), (c), (d) As partial hazardous material, bentonite clay should be handled with care and protection. Because of small particles (micro-particles) in bentonite clay, it would harm employees without adopting proper safety measures
Fire eruption (a), (b), (c), (d), (e) Presence of high operating temperature in lubricant oil regenerative plant besides light fuels and cracked gasses create a high-risk environment for fire eruptions. Employees training, proper fire prevention, and disarming systems reduce the probability of fire eruptions. In hydro-process plant, the use of hydrogen provides an extremely high-risk environment
Human errors in maintenance overhaul (a), (b) Regarding the high demand of maintenance in acid-clay process and acid-activated clay process, probability of human errors is high. High temperature and huge amount of clay usage within the reactors can have negative impacts on employees’ safety and production process
Cracked gasses (Gas emission) (a), (b), (c), (d), (e) There is a certain amount of light oils (e.g. diesel and petrol) in used oils which evaporate during the operating process. The process produces cracked gasses (e.g. VOCs). By using incinerators, these gasses can be burned in high temperature and gas emission would be reduced
Acidic salt emission (a) In the sulfonating unit and clay reactors, different sorts of acidic salts (e.g. sulfonates) form during the acid clay process. The process has a huge amount of air pollution which causes immediate breathing problems. The mentioned units besides a neutralization unit help in minimizing the acidic salt
Water emission (a), (b), (c), (d), (e) Presence of water content in used oil is inevitable. This water content should be evaporated and condensed separately as not to vaporize to atmosphere. There is an amount of water content mixed with light oil which should be separated by any means before disposing to drain. Since there is also about 7% water in clay packing, the more clay consumption, the more water within the reactor will be and consequently the more water evaporates which should be treated prior to drain disposal. The waste water in case of drainage in sanitation (ego) system would result in oil contamination in the sewage plant. In case of dumping sludge and used oils at the ground, they would contaminate the underground water sources
Acidic sludge emission (a) Due to high consumption of sulfuric acid in acid clay process up to 25% of initial oil in volume, it should be treated carefully. Regarding hazardous nature of acidic sludge, this acidic waste should be neutralized by mixing acidic sludge with casting soda or hydroxide calcium prior to disposing or any other usage
Clay consumption (a), (b), (c), (d) To improve the colour of finished base-oil and clarify of finished product, earth clay as active or bentonite forms is applied. High consumption of clay may have disposal and storage problems. The waste clay which produces by regeneration process can be sent to cement factories where it can be utilized as filler to cement clinker
Fuel consumption (a), (b), (c), (d), (e) Fuel is employed to generate high temperature for regenerative operations. Higher fuel consumption has higher environmental impacts such as heat exchange to greenhouse and gas emissions
Caustic soda lye handling and process (a) In acid clay process, using caustic soda lye as a neutralizing agent is compulsory because of the active sulfuric acid within the process. Sodium hydroxide as a hazardous chemical has destructive effects on human skin and particularly eyes. Also, if sodium hydroxide penetrates to the ground, it would contaminate underground water and vegetation
Quality of solvent (d), (e) Quality of solvent significantly affects the production result. Low-quality solvent not only reduces the margin of the product but also consumes more energy in the specific units, e.g. compressors, of the regenerative process
Purity of hydrogen (e) One of the important elements in hydro-process is purity of hydrogen which can affect the hydro-process operation and either increase or reduce the quantity and quality of finished product
Catalyst type (e) The type of catalyst used in hydro-process massively affects the process by prolonging the time of process or it can reduce process time and affects the marginal yield of production
Vacuum failure (c) The thin/wiped film evaporation process mainly runs by high vacuum either using vacuum pumps or ejectors. Any failure causes the unprocessed oil to drop to the receivers and ruin the oil and increase the pressure within the reactor which is dangerous and can lead to fire and gas emission in the operation plant
Solvent leakage (d), (e) Solvents are low flash point substances; thus, a leakage may cause fire or explosion in the unit and can have a catastrophic effect on the operation site
Specific technical knowledge (c), (d), (e) Lack of knowledge in any sophisticated process may cause enormous damages. Special trainings are needed to be executed for all employees in case of emergency
Operating system failure (c), (d), (e) Due to the sophisticated operations and systems, failure of any operational procedure will result in a catastrophic disaster such as huge explosions
Solvent storage (d), (e) Regarding the low flash point of solvent, serious attention and special storage are required
Risk factors for technology selection problems can be defined differently dependent on the nature of efficient technologies. In this practical case, two categories of risk factors have been defined for each technology and a comprehensive description of each element is presented. The first category introduces the general risk factors which have a roughly similar effect on all waste lubricant oil regenerative technologies. The second category presents specific risk factors that may differently affect the technologies. Tables 2 and 3 list the general and specific risk factors, respectively.
In this case study, the ratings of candidate technologies on each criterion are linguistic variables obtained based on comments of experts. Table 4 demonstrates the linguistic variables and their corresponding triangular fuzzy sets.
Table 4
Linguistic terms and the corresponding triangular fuzzy numbers.
Linguistic term Abbreviated linguistic term Triangular fuzzy number
Extremely Low EL $(0,1,2)$
Very Low VL $(1,2,3)$
Low L $(2,3,4)$
Medium Low ML $(3,4,5)$
Medium M $(4,5,6)$
Medium High MH $(5,6,7)$
High H $(6,7,8)$
Very High VH $(7,8,9)$
Extremely High EH $(8,9,10)$
According to the thirteen criteria, candidate technologies, and the conversation table for linguistic variables, the decision matrix has been structured as shown in Table 5. The functional requirement for each criterion is obtained by experts’ comments. Therefore, for every criterion, a design range is determined which is then transformed into triangular fuzzy numbers based on Table 4. System ranges are the translated form of the linguistic ratings of candidate technologies on each criterion specified through the comments of experts. Table 5 also provides subjective significance coefficients.
Table 5
System and design ranges in the form of triangular fuzzy numbers.
Criteria Alternatives of waste lubricant oil regenerative technology Subjective significance coefficients Design ranges
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 $(6,7,8)$ $(6,7,8)$ $(7,8,9)$ $(6,7,8)$ $(6,7,8)$ 0.084 $(7,8,9)$
T2 $(6,7,8)$ $(6,7,8)$ $(7,8,9)$ $(7,8,9)$ $(7,8,9)$ 0.087 $(7,8,9)$
T3 $(4,5,6)$ $(4,5,6)$ $(6,7,8)$ $(5,6,7)$ $(6,7,8)$ 0.068 $(5,6,7)$
T4 $(4,5,6)$ $(4,5,6)$ $(6,7,8)$ $(4,5,6)$ $(6,7,8)$ 0.068 $(5,6,7)$
T5 $(4,5,6)$ $(4,5,6)$ $(6,7,8)$ $(6,7,8)$ $(6,7,8)$ 0.052 $(5,6,7)$
E1 $(7,8,9)$ $(7,8,9)$ $(5,6,7)$ $(5,6,7)$ $(5,6,7)$ 0.084 $(6,7,8)$
E2 $(4,5,6)$ $(4,5,6)$ $(5,6,7)$ $(5,6,7)$ $(5,6,7)$ 0.073 $(5,6,7)$
E3 $(4,5,6)$ $(4,5,6)$ $(5,6,7)$ $(5,6,7)$ $(5,6,7)$ 0.054 $(4,5,6)$
E4 $(7,8,9)$ $(7,8,9)$ $(5,6,7)$ $(5,6,7)$ $(5,6,7)$ 0.089 $(6,7,8)$
S1 $(5,6,7)$ $(5,6,7)$ $(6,7,8)$ $(5,6,7)$ $(5,6,7)$ 0.090 $(6,7,8)$
F1 $(3,4,5)$ $(3,4,5)$ $(4,5,6)$ $(5,6,7)$ $(5,6,7)$ 0.091 $(4,5,6)$
F2 $(5,6,7)$ $(5,6,7)$ $(4,5,6)$ $(5,6,7)$ $(5,6,7)$ 0.064 $(4,5,6)$
F3 $(4,5,6)$ $(4,5,6)$ $(6,7,8)$ $(5,6,7)$ $(5,6,7)$ 0.096 $(5,6,7)$

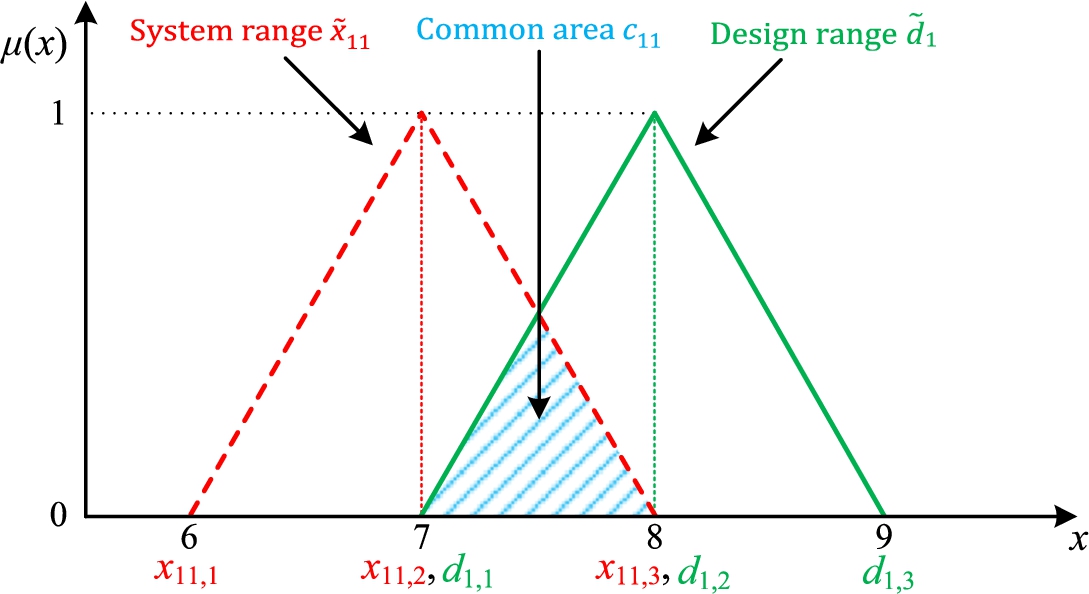

Fig. 5
Common area of ${\tilde{x}_{11}}$ and ${\tilde{d}_{1}}$.
System area denotes the area under the membership function of system range which in current data sets is the area of the triangle. Common area is calculated utilizing Eq. (7). Fig. 5 illustrates the common and system areas related to design and system ranges ${\tilde{x}_{11}}$ and ${\tilde{d}_{1}}$.
Common area ${c_{11}}$ and system area ${\hat{x}_{11}}$ are computed as follows:
\[\begin{aligned}{}{c_{11}}=& \frac{1}{2}\bigg[\frac{{({d_{j,1}}-{x_{ij,3}})^{2}}}{[-({d_{j,1}}-{x_{ij,3}})-({x_{ij,2}}-{d_{j,2}})]}\bigg]\\ {} =& \frac{1}{2}\bigg[\frac{{(7-8)^{2}}}{[-(7-8)-(7-8)]}\bigg]=\frac{1}{4}=0.25,\\ {} {\hat{x}_{11}}=& \frac{1}{2}\big[({x_{11,3}}-\hspace{2.5pt}{x_{11,1}})(1)\big]=\frac{1}{2}\big[(9-7)(1)\big]=1.\end{aligned}\]
Common areas for the problem are reported in Table 6. In this technology selection problem, the values of system areas are all the same value, i.e. 1. That is, the height of the triangle of all system ranges is 1 and because of the considered linguistic variables, the base of the triangle is always 2 which leads to the system area equal to 1.
Table 6
Common areas in the waste lubricant oil regenerative technologies selection problem.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 0.25 0.25 1 0.25 0.25
T2 0.25 0.25 1 1 1
T3 0.25 0.25 0.25 1 0.25
T4 0.25 0.25 0.25 0.25 0.25
T5 0.25 0.25 0.25 0.25 0.25
E1 0.25 0.25 0.25 0.25 0.25
E2 0.25 0.25 1 1 1
E3 1 1 0.25 0.25 0.25
E4 0.25 0.25 0.25 0.25 0.25
S1 0.25 0.25 1 0.25 0.25
F1 0.25 0.25 1 0.25 0.25
F2 0.25 0.25 1 0.25 0.25
F3 0.25 0.25 0.25 1 1
The triangular fuzzy system ranges of Table 5 can be defuzzified using Eq. (16) to obtain the crisp values needed for calculating entropy significance coefficients. After obtaining defuzzified numbers, normalized values are computed using Eq. (12). The normalized values of the defuzzified system ranges are shown in Table 7. Regarding Eq. (13), Shannon entropy measures are obtained for the criteria of the problem. The entropy measures assist in specifying more critical criteria by dispersion analysis of the decision matrix. Eq. (14) is utilized to calculate objective significance coefficients. Finally, the subjective and objective significance coefficients are integrated based on Eq. (15). Table 8 shows the objective significance coefficients and the integrated entropy significance coefficients for the current green technology selection problem.
Table 7
Normalized defuzzified system ranges.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 0.194 0.194 0.222 0.194 0.194
T2 0.184 0.184 0.211 0.211 0.211
T3 0.167 0.167 0.233 0.200 0.233
T4 0.172 0.172 0.241 0.172 0.241
T5 0.161 0.161 0.226 0.226 0.226
E1 0.235 0.235 0.176 0.176 0.176
E2 0.179 0.179 0.214 0.214 0.214
E3 0.179 0.179 0.214 0.214 0.214
E4 0.235 0.235 0.176 0.176 0.176
S1 0.194 0.194 0.226 0.194 0.194
F1 0.160 0.160 0.200 0.240 0.240
F2 0.207 0.207 0.172 0.207 0.207
F3 0.172 0.172 0.241 0.207 0.207
Table 8
Entropy measures, objective and integrated significance coefficients.
T1 T2 T3 T4 T5 E1 E2 E3 E4 S1 F1 F2 F3
${E_{j}}$ 0.999 0.999 0.994 0.991 0.992 0.994 0.998 0.998 0.994 0.999 0.990 0.998 0.995
${w_{j}^{o}}$ 0.015 0.021 0.113 0.142 0.130 0.104 0.040 0.040 0.104 0.020 0.163 0.025 0.084
${w_{j}^{\ast }}$ 0.017 0.024 0.101 0.126 0.089 0.113 0.038 0.028 0.120 0.024 0.194 0.021 0.105
As described in Section 3.2, the probability of achieving design range ${p_{ij}}$ and the information content ${I_{ij}}$ for the technology selection problem are respectively calculated employing Eqs. (8) and (9). Table 9 demonstrates information contents of the FAD approach. Some of the information contents in Table 9 equal zero, that is, the corresponding system and common areas are equal t (e.g. ${\tilde{d}_{1}}={\tilde{x}_{81}}\to {c_{81}}={\hat{x}_{81}}\to {I_{81}}=0$). In Table 9, information content equal to two denotes that the system area is fourfold the common area (e.g. ${c_{11}}={\hat{x}_{11}}/4\to {I_{11}}=2$). In AD principles, when information content tends to infinity, common area equals zero. In other words, the system and design ranges are not overlapped. In this case, which an information content is infinity, the corresponding total information content will also be calculated as infinity and the candidate technology will be the worst option. Regarding the integrated significance coefficients ${w_{j}^{\ast }}$, i.e. Eq. (15), the information contents ${I_{ij}^{{w^{\ast }}}}$ are determined employing Eq. (17).
Table 9
Information contents of the FAD method.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 2 2 0 2 2
T2 2 2 0 0 0
T3 2 2 2 0 2
T4 2 2 2 2 2
T5 2 2 2 2 2
E1 2 2 2 2 2
E2 2 2 0 0 0
E3 0 0 2 2 2
E4 2 2 2 2 2
S1 2 2 0 2 2
F1 2 2 0 2 2
F2 2 2 0 2 2
F3 2 2 2 0 0
In the current study, there are two types of risk factors, i.e. general and specified risk factors, which are respectively explained in Tables 2 and 3. The most of general risk aspects affect all criteria in the same amount, thus their corresponding risk factors are mainly equal to zero in risk measurements which means the specified element does not have any risk influence on the ratings of technologies on the criteria. For example, investor and scheduling factors would influence all technologies identically. Lack of timely schedule or finance resource would affect technology selection intrinsically and it does not matter which technology is selected when there is a lack of sponsorship. The risk factors, shown in Table 10, are the aggregate values of the general and specified risk factors for the problem. Using these risk factors, information contents of RFAD method ${I_{ij}^{r}}$ are computed based on Eq. (20) which are shown in Table 11.
Table 10
Proposed risk factors for the regenerative waste lubricant technologies.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 0.335 0.350 0.090 0.090 0.100
T2 0.150 0.233 0.075 0.075 0.050
T3 0 0 0 0 0
T4 0.288 0.275 0.080 0.205 0.535
T5 0.050 0.040 0.235 0.217 0.313
E1 0.356 0.317 0.175 0.137 0.250
E2 0.172 0.236 0.070 0.113 0.357
E3 0 0 0 0 0
E4 0.350 0.285 0.050 0.055 0.055
S1 0 0 0.150 0.270 0.380
F1 0 0 0 0 0
F2 0 0 0 0 0
F3 0 0 0 0 0
Table 11
Information contents of the RFAD method.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 2.589 2.621 0.136 2.136 2.152
T2 2.234 2.383 0.112 0.112 0.074
T3 2 2 2 0 2
T4 2.489 2.464 2.120 2.331 3.105
T5 2.074 2.059 2.386 2.352 2.542
E1 2.635 2.549 2.278 2.212 2.415
E2 2.272 2.388 0.105 0.172 0.636
E3 0 0 2 2 2
E4 2.621 2.484 2.074 2.082 2.082
S1 2 2 0.234 2.454 2.690
F1 2 2 0 2 2
F2 2 2 0 2 2
F3 2 2 2 0 0
Based on the information contents of the RFAD approach ${I_{ij}^{r}}$ and the integrated significance coefficients, the information contents of the WRFAD method are computed using Eqs. (23). Total information contents for the FAD, WFAD, RFAD, WRFAD techniques considering all criteria are respectively calculated by applying Eqs. (10), (18), (21), and (24) which have been shown in Table 12.
Table 12
Total information contents considering all criteria.
Alternatives of waste lubricant oil regenerative technology Total information contents
FAD WFAD RFAD WRFAD
Acid-clay process 24 12.702 26.915 12.818
Acid-activated clay process 24 12.702 26.949 12.813
Thin/wiped film evaporation 14 7.491 15.446 7.537
Solvent extraction process 18 9.530 19.852 9.591
Hydro-process 20 10.603 23.696 10.725
Table 13 indicates the rankings of the technology selection problem considering all criteria. The optimal technology is specified by minimizing the corresponding total information contents. Dependent on Eqs. (11), (19), (22), and (25), the optimal technology for regenerating waste lubricant oils is ${A_{\mathrm{FAD}}^{\ast }}={A_{\mathrm{WFAD}}^{\ast }}={A_{\mathrm{RFAD}}^{\ast }}={A_{\mathrm{WRFAD}}^{\ast }}$ = thin/wiped film evaporation technology.
Table 13
Rankings of the candidate technologies considering all criteria.
Alternatives of waste lubricant oil regenerative technology Rankings
FAD WFAD RFAD WRFAD
Acid-clay process 4 4 4 5
Acid-activated clay process 4 4 5 4
Thin/wiped film evaporation 1 1 1 1
Solvent extraction process 2 2 2 2
Hydro-process 3 3 3 3
As aforementioned in the beginning of Section 4, the same problem can be tackled by considering categorized criteria. First, the solution based on the technical criteria, i.e. T1–T5 and E1–E4, is discussed and afterwards the solution based on the economic criteria, i.e. S1 and F1–F3, is analysed. Tables 14 and 15 list the total information contents of all methods considering technical and economic criteria, respectively. Table 16 shows the resultant rankings of technology selection problem based on the two categories.
Table 14
Total information contents considering technical criteria.
Alternatives of waste lubricant oil regenerative technology Total information contents
FAD WFAD RFAD WRFAD
Acid-clay process 16 8.451 18.915 8.567
Acid-activated clay process 16 8.451 18.949 8.562
Thin/wiped film evaporation 12 6.415 13.212 6.461
Solvent extraction process 12 6.355 13.398 6.410
Hydro-process 14 7.427 17.006 7.542
Table 15
Total information contents considering economic criteria.
Alternatives of waste lubricant oil regenerative technology Total information contents
FAD WFAD RFAD WRFAD
Acid-clay process 8 4.251 8 4.251
Acid-activated clay process 8 4.251 8 4.251
Thin/wiped film evaporation 2 1.076 2.234 1.076
Solvent extraction process 6 3.176 6.454 3.181
Hydro-process 6 3.176 6.690 3.183
Table 16
Rankings of the candidate technologies considering categorized criteria.
Alternatives of waste lubricant oil regenerative technology Rankings based on technical criteria Rankings based on economic criteria
FAD WFAD RFAD WRFAD FAD WFAD RFAD WRFAD
Acid-clay process 4 4 4 5 4 4 4 4
Acid-activated clay process 4 4 5 4 4 4 4 4
Thin/wiped film evaporation 1 2 1 2 1 1 1 1
Solvent extraction process 1 1 2 1 2 2 2 2
Hydro-process 3 3 3 3 2 2 3 3

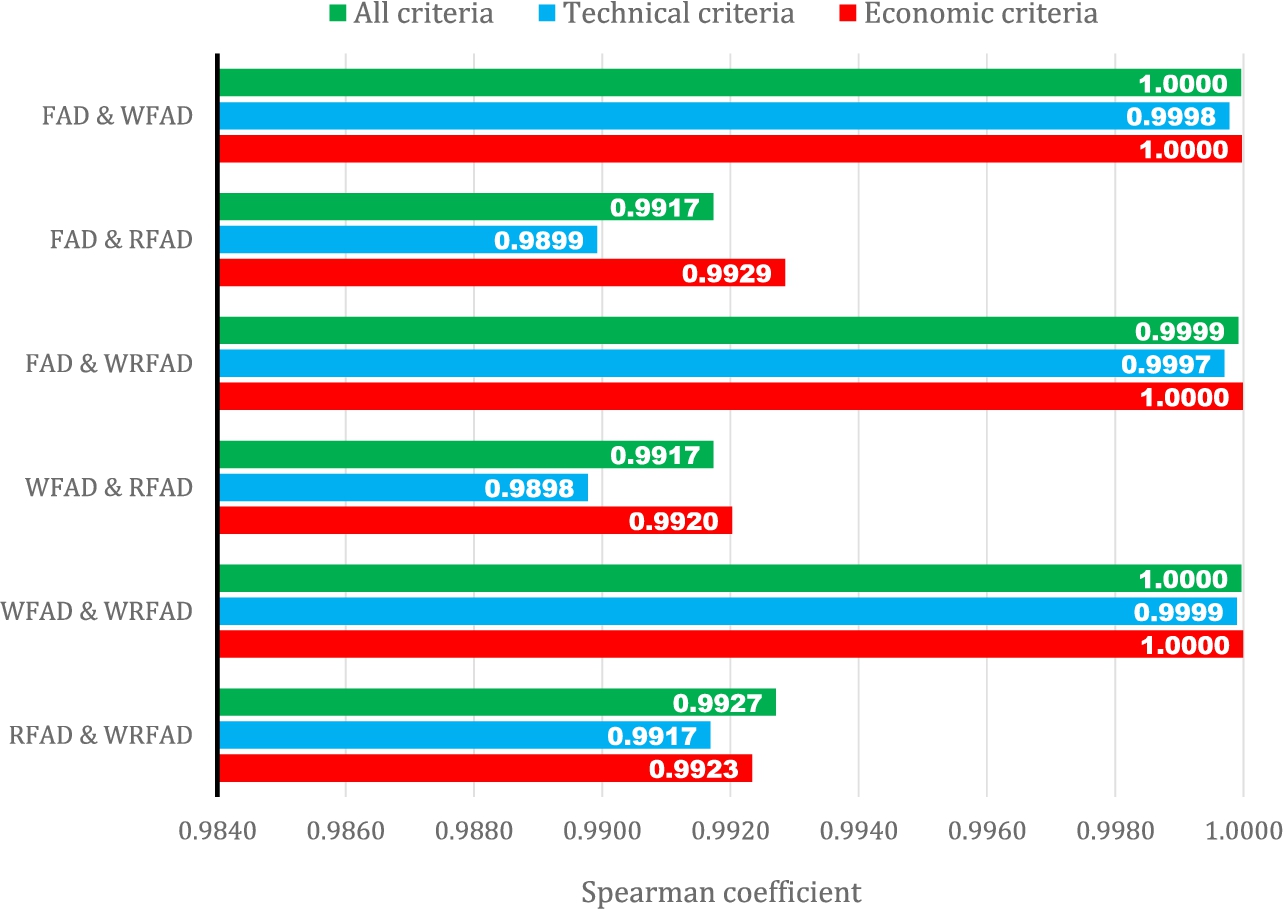

Fig. 6
Correlation between the rankings based on Spearman coefficient considering all and categorized criteria.
The Spearman rank correlation coefficient helps in evaluating similarity of the rankings. The coefficient is a real number in the range of −1 and 1. Spearman coefficient equal to 1 denotes identical rankings and −1 indicates opposite rankings. Fig. 6 illustrates the correlation between ranking lists by utilizing Spearman rank correlation coefficient. Three sets of correlation coefficients are presented in the figure considering all criteria and the two categories. Based on Fig. 6, in the category of technical criteria, the correlation of the methods are lower comparing the category of economic criteria and when all criteria considered for solution. Overall, utilizing all criteria or categorized criteria in the technology selection problem will have different effect on rankings. However, the optimal technology for regenerating used lubricant oils is mostly determined as thin/wiped film evaporation based on Tables 13 and 16.
Thin film evaporation (TFE) or wiped film evaporation (WFE) technology provides short residence time and low pressure drop configuration, allowing continuous and reliable processing of many heat sensitive, viscous, or fouling materials without product degradation. TFE/WFE technology is a high-tech process which is commercially available around the world. Thin film evaporators rapidly separate volatile components employing indirect heat transfer and mechanical turbulence of a flowing product film in supervised circumstances, i.e. using heat jackets and scrapers running along the process and applying high vacuum conditions. Vaporized component or concentrated component (distillate) may be the product depending on the application. This technology has other applications besides recycling of lubricating oils, e.g. tomato pastes. TFE/WFE technology selected from the decision-making process has some advantages compared to other alternatives, e.g. environmental and safety risks of the technology is very low, also the marginal profit of process is higher than other technologies.

5 Conclusion

In today’s dynamic and competitive environment of production companies, selecting the best available technology is substantial. In high-tech production lines, selecting the optimal technology is a tough task which may require given experiments and special experiences. The information in the technology selection problems related to such environments because of existence of uncertainties may entail risks. Selecting the optimal lubricant oil regenerative technology considering sustainability, environmental issues, and stakeholders’ satisfaction may cause unexpected scenarios and conditions which increase the possibility of risks. Because of the current environmental concerns in the 21st century, there is a heavy criticism against the usage of fossil fuels and hydrocarbon compositions. Therefore, decision-making about the selection of appropriate waste lubricant oil regenerative technology is a weighty responsibility which is discussed in the current research.
The current study presented a new practical industrial application for the RFAD method. Considering risk factors in the proposed algorithm, a practical technology selection example about used lubricant oil regenerative technologies was considered. In the present paper, risk factors were first identified and a comprehensive description of general and specific risk factors in waste lubricant oil regenerative technologies was provided. Second, the extended version of the RFAD approach, i.e. WRFAD, with the integrated Shannon entropy significance coefficients was utilized to provide a risk-based technology selection algorithm that is applicable for high-tech production plants. Third, two attitudes for solving the problem were adopted, a technology selection based on every criterion, and a solution by dividing all criteria into two major categories. Finally, the correlations between the rankings were examined by applying Spearman rank correlation coefficients.
The decision matrix of the case study contains five potential technologies which are currently exploited in modern regenerated lubricant oils production lines. The system ranges of the example are triangular fuzzy ratings determined based on the experts’ comments. Information contents were calculated employing AD principles.
Suggestions for future developments of this study may be as follows. First, input data of the AD approach can be extended for the cases in which the data of the problem has different mathematical forms such as the extensions of fuzzy sets, e.g. L-fuzzy sets, flou sets, fuzzy multi-sets, and bipolar fuzzy sets. An interesting form of uncertain decision making is linguistic decision analysis. The linguistic assessment is more flexible and user friendly to represent preferences of decision makers (Cabrerizo et al., 2013, 2014). Second, significance coefficients of criteria may be achieved using various techniques. In the current study, subjective significance coefficients were considered and objective significance coefficients were determined based on Shannon entropy. Subjective significance coefficients may be computed applying various methods like the ANP and AHP. Third, the introduced technology selection algorithm can be employed in other industrial activities in which the importance of risk factors are high like municipal solid waste management and polychlorinated biphenyl (PCB) treatment. Fourth, in the current study, many general and specified risk factors are identified and described for the practical case. However, some unseen risk factors may exist that can be recognized based on systematic analyses.

References


Abdulkareem, A.S., Afolabi, A.S., Ahanonu, S.O., Mokrani, T. (2014). Effect of treatment methods on used lubricating oil for recycling purposes. Energy Sources, Part A: Recovery. Utilization, and Environmental Effects, 36(9), 966–973.

Ahmed, J.S., Kasim, M.M., Langroudi, M.Z.A.E. (2014). An application of a defuzzification method for a group of dependent fuzzy numbers in solving a ranking problem. In: AIP Conference Proceedings, pp. 41–44.

Al-Zahrani, S.M., Putra, M.D. (2013). Used lubricating oil regeneration by various solvent extraction techniques. Journal of Industrial and Engineering Chemistry, 19(2), 536–539.

Alemi-Ardakani, M., Milani, A.S., Yannacopoulos, S., Shokouhi, G. (2016). On the effect of subjective, objective and combinative weighting in multiple criteria decision making: a case study on impact optimization of composites. Expert Systems with Applications, 46, 426–438.

Allahviranloo, T., Saneifard, R. (2012). Defuzzification method for ranking fuzzy numbers based on center of gravity. Iranian Journal of Fuzzy Systems, 9(6), 57–67.

American Petroleum Institute (2015). Annex E-API base oil interchangeaility guidelines for passenger car motor oils and diesel engine oils. API Handbooks, 1–13.

Behzadian, M., Kazemzadeh, R.B., Albadvi, A., Aghdasi, M. (2010). PROMETHEE: a comprehensive literature review on methodologies and applications. European Journal of Operational Research, 200(1), 198–215.

Büyüközkan, G., Göçer, F. (2017). Application of a new combined intuitionistic fuzzy MCDM approach based on axiomatic design methodology for the supplier selection problem. Applied Soft Computing, 52, 1222–1238.

Cabrerizo, F.J., Herrera-Viedma, E., Pedrycz, W. (2013). A method based on PSO and granular computing of linguistic information to solve group decision making problems defined in heterogeneous contexts. European Journal of Operational Research, 230(3), 624–633.

Cabrerizo, F.J., Ureña, R., Pedrycz, W., Herrera-Viedma, E. (2014). Building consensus in group decision making with an allocation of information granularity. Fuzzy Sets and Systems, 255, 115–127.

Çakır, S. (2016). An integrated approach to machine selection problem using fuzzy SMART-fuzzy weighted axiomatic design. Journal of Intelligent Manufacturing.

Capuano, N., Chiclana, F., Fujita, H., Herrera-Viedma, E., Loia, V. (2017). Fuzzy group decision making with incomplete information guided by social influence. IEEE Transactions on Fuzzy Systems.

Cavallaro, F., Zavadskas, E., Raslanas, S. (2016). Evaluation of combined heat and power (CHP) systems using fuzzy shannon entropy and fuzzy TOPSIS. Sustainability, 8(6), 556.

Chakraborty, K., Mondal, S., Mukherjee, K. (2017). Analysis of product design characteristics for remanufacturing using fuzzy AHP and axiomatic design. Journal of Engineering Design, 28(5), 338–368.

Chari, K.R. et al. (2012). Compendium of Recycling and Destruction Tecnologies for Waste Oils. United Nations Environment Programme, USA.

Chen, X., Li, Z., Fan, Z.P., Zhou, X., Zhang, X. (2016). Matching demanders and suppliers in knowledge service: a method based on fuzzy axiomatic design. Information Sciences, 346–347, 130–145.

Cheng, J., Feng, Y., Lin, Z., Liu, Z., Tan, J. (2017). Anti-vibration optimization of the key components in a turbo-generator based on heterogeneous axiomatic design. Journal of Cleaner Production, 141, 1467–1477.

Chung, J., Kim, J., Kim, Y., Hwang, Y. (2013). Assessment and selection of best available technology (BAT) for wastewater facilities in the leather tanning and finishing industry. Resources, Conservation and Recycling, 70, 32–37.

Cid-López, A., Hornos, M.J., Carrasco, R.A., Herrera-Viedma, E. (2016). Applying a linguistic multi-criteria decision-making model to the analysis of ICT suppliers’ offers. Expert Systems with Applications, 57, 127–138.

Daim, T.U., Intarode, N. (2009). A framework for technology assessment: case of a Thai building material manufacturer. Energy for Sustainable Development, 13(4), 280–286.

Dalla, G., Khlebinskaia, O., Lodolo, A., Miertus, S. (2003). Compendium of Used Oil Regeneration Technologies. United Nations Industrial Development Organization, 10–15.

Duijm, N.J. (2002). Hazard analysis of technologies for disposing explosive waste. Journal of Hazardous Materials, 90(2), 123–135.

Fengqiang, L., Jiadong, Q., Yi, L. (2008). Computer-assisted stereotactic neurosurgery with framework neurosurgery navigation. Clinical Neurology and Neurosurgery, 110(7), 696–700.

Georgiadis, D.R., Mazzuchi, T.A., Sarkani, S. (2013). Using multi criteria decision making in analysis of alternatives for selection of enabling technology. Systems Engineering, 16(3), 287–303.

Georgopoulou, E., Mirasgedis, S., Sarafidis, Y., Hontou, V., Gakis, N., Lalas, D.P., Loukatos, A., Gargoulas, N., Mentzis, A., Economidis, D., Triantafilopoulos, T., Korizi, K., Mavrotas, G. (2007). A decision-aid framework to provide guidance for the enhanced use of best available techniques in industry. Environmental Management, 40(3), 413–429.

Gomes, C.F.S., Nunes, K.R.A., Helena Xavier, L., Cardoso, R., Valle, R. (2008). Multicriteria decision making applied to waste recycling in Brazil. Omega, 36(3), 395–404.

Gören, H.G., Kulak, O. (2014). A new fuzzy multi-criteria decision making approach: extended hierarchical fuzzy axiomatic design approach with risk factors. Lecture Notes in Business Information Processing, 184, 22–33.

Grimes, S.M., Thompson, F. (2016). Recovery of lubricant base oils using ionic liquid processes. Proceedings of the Institution of Civil Engineers – Waste and Resource Management, 169(2), 73–82.

Guo, Z., Liu, H., Zhang, D., Yang, J. (2017). Green supplier evaluation and selection in apparel manufacturing using a fuzzy multi-criteria decision-making approach. Sustainability, 9(4), 650.

Hafezalkotob, A., Hafezalkotob, A. (2015). Comprehensive MULTIMOORA method with target-based attributes and integrated significant coefficients for materials selection in biomedical applications. Materials & Design, 87, 949–959.

Hafezalkotob, A., Hafezalkotob, A. (2016a). Risk-based material selection process supported on information theory: a case study on industrial gas turbine. Applied Soft Computing.

Hafezalkotob, A., Hafezalkotob, A. (2016b). Extended MULTIMOORA method based on Shannon entropy weight for materials selection. Journal of Industrial Engineering International, 12(1), 1–13.

Hafezalkotob, A., Hafezalkotob, A. (2016c). Fuzzy entropy-weighted MULTIMOORA method for materials selection. Journal of Intelligent & Fuzzy Systems, 31(3), 1211–1226.

Hafezalkotob, A., Hafezalkotob, A. (2017). Interval target-based VIKOR method supported on interval distance and preference degree for machine selection. Engineering Applications of Artificial Intelligence, 57, 184–196.

Hatami-Marbini, A., Tavana, M., Moradi, M., Kangi, F. (2013). A fuzzy group Electre method for safety and health assessment in hazardous waste recycling facilities. Safety Science, 51(1), 414–426.

Hou, Y., Qin, J., Li, X., Liu, Y. (2016). Decision-making analysis of scheme selection under different preferences. Procedia CIRP, 53, 225–230.

Hsu, Y.-L., Liu, C.-C. (2011). Evaluation and selection of regeneration of waste lubricating oil technology. Environmental Monitoring and Assessment, 176(1–4), 197–212.

Hsu, Y.-L., Lee, C.-H., Kreng, V.B. (2010). The application of Fuzzy Delphi Method and Fuzzy AHP in lubricant regenerative technology selection. Expert Systems with Applications, 37(1), 419–425.

Hwang, C.L., Yoon, K. (1981). Multiple Attribute Decision Making: Methods and Applications. Springer-Verlag, New York.

Ibáñez-Forés, V., Bovea, M.D., Azapagic, A. (2013). Assessing the sustainability of Best Available Techniques (BAT): methodology and application in the ceramic tiles industry. Journal of Cleaner Production, 51, 162–176.

Ibáñez-Forés, V., Bovea, M.D., Pérez-Belis, V. (2014). A holistic review of applied methodologies for assessing and selecting the optimal technological alternative from a sustainability perspective. Journal of Cleaner Production, 70, 259–281.

Jafari, A.J., Hassanpour, M. (2015). Analysis and comparison of used lubricants, regenerative technologies in the world. Resources, Conservation and Recycling, 103, 179–191.

Jahan, A., Edwards, K.L. (2015). A state-of-the-art survey on the influence of normalization techniques in ranking: improving the materials selection process in engineering design. Materials and Design, 65, 335–342.

Kahraman, C., Çebi, S. (2009). A new multi-attribute decision making method: Hierarchical fuzzy axiomatic design. Expert Systems with Applications, 36(3 Part 1), 4848–4861.

Kanokkantapong, V., Kiatkittipong, W., Panyapinyopol, B., Wongsuchoto, P., Pavasant, P. (2009). Used lubricating oil management options based on life cycle thinking. Resources, Conservation and Recycling, 53(5), 294–299.

Kartam, N.A., Kartam, S.A. (2001). Risk and its management in the Kuwaiti construction industry: a contractors’ perspective. International Journal of Project Management, 19(6), 325–335.

Khandekar, A.V., Chakraborty, S. (2015). Selection of material handling equipment using fuzzy axiomatic design principles. Informatica, 26(2), 259–282.

Khandekar, A.V., Antuchevičienė, J., Chakraborty, S. (2015). Small hydro-power plant project selection using fuzzy axiomatic design principles. Technological and Economic Development of Economy, 21(5), 756–772.

Khelifi, O., Giovanna, F.D., Vranes, S., Lodolo, A., Miertus, S. (2006). Decision support tool for used oil regeneration technologies assessment and selection. Journal of Hazardous Materials, 137(1), 437–442.

Kir, S., Yazgan, H.R. (2016). A sequence dependent single machine scheduling problem with fuzzy axiomatic design for the penalty costs. Computers and Industrial Engineering, 92, 95–104.

Kulak, O., Kahraman, C. (2005a). Fuzzy multi-attribute selection among transportation companies using axiomatic design and analytic hierarchy process. Information Sciences, 170(2–4), 191–210.

Kulak, O., Kahraman, C. (2005b). Multi-attribute comparison of advanced manufacturing systems using fuzzy vs. crisp axiomatic design approach. International Journal of Production Economics, 95(3), 415–424.

Kulak, O., Durmuşoǧlu, M.B., Kahraman, C. (2005). Fuzzy multi-attribute equipment selection based on information axiom. Journal of Materials Processing Technology, 169(3), 337–345.

Kulak, O., Cebi, S., Kahraman, C. (2010). Applications of axiomatic design principles: a literature review. Expert Systems with Applications, 37(9), 6705–6717.

Kulak, O., Goren, H.G., Supciller, A.A. (2015). A new multi criteria decision making approach for medical imaging systems considering risk factors. Applied Soft Computing, 35, 931–941.

Kupareva, A., Mäki-Arvela, P., Murzin, D.Y. (2013). Technology for rerefining used lube oils applied in Europe: A review. Journal of Chemical Technology and Biotechnology, 88(10), 1780–1793.

Li, C.-C., Dong, Y., Herrera, F., Herrera-Viedma, E., Martínez, L. (2017). Personalized individual semantics in computing with words for supporting linguistic group decision making. An application on consensus reaching. Information Fusion, 33(1), 29–40.

Liao, H., Xu, Z., Herrera-Viedma, E., Herrera, F. (2017). Hesitant fuzzy linguistic term set and its application in decision making: a state-of-the-art survey. International Journal of Fuzzy Systems. Accepted.

Lin, C.-L., Shih, Y.-H., Tzeng, G.-H., Yu, H.-C. (2016). A service selection model for digital music service platforms using a hybrid MCDM approach. Applied Soft Computing, 48, 385–403.

Liu, X., Wen, Z. (2012). Best available techniques and pollution control: a case study on China’s thermal power industry. Journal of Cleaner Production, 23(1), 113–121.

Liu, W., Dong, Y., Chiclana, F., Cabrerizo, F.J., Herrera-Viedma, E. (2017). Group decision-making based on heterogeneous preference relations with self-confidence. Fuzzy Optimization and Decision Making, 16(4), 429–447.

Mohammed, R.R., Ibrahim, I.A.R., Taha, A.H., McKay, G. (2013). Waste lubricating oil treatment by extraction and adsorption. Chemical Engineering Journal, 220, 343–351.

Molinos-Senante, M., Gómez, T., Caballero, R., Hernández-Sancho, F., Sala-Garrido, R. (2015). Assessment of wastewater treatment alternatives for small communities: an analytic network process approach. Science of The Total Environment, 532, 676–687.

Morente-Molinera, J.A., Kou, G., González-Crespo, R., Corchado, J.M., Herrera-Viedma, E. (2017a). Solving multi-criteria group decision making problems under environments with a high number of alternatives using fuzzy ontologies and multi-granular linguistic modelling methods. Knowledge-Based Systems, 137, 54–64.

Morente-Molinera, J.A., Mezei, J., Carlsson, C., Herrera-Viedma, E. (2017b). Improving supervised learning classification methods using multigranular linguistic modeling and fuzzy entropy. IEEE Transactions on Fuzzy Systems, 25(5), 1078–1089.

Okmen, O., Oztas, A. (2008). Construction project network evaluation with correlated schedule risk analysis model. Journal of Construction Engineering and Management, 134(1), 49–63.

Parnell, G.S., Bresnick, T.A., Tani, S.N., Johnson, E.R. (2013). Handbook of Decision Analysis. John Wiley & Sons, Inc., Hoboken, NJ, USA.

Pohekar, S.D., Ramachandran, M. (2004). Application of multi-criteria decision making to sustainable energy planning – a review. Renewable and Sustainable Energy Reviews, 8(4), 365–381.

Rastogi, M., Chauhan, A., Vaish, R., Kishan, A. (2015). Selection and performance assessment of phase change materials for heating, ventilation and air-conditioning applications. Energy Conversion and Management, 89, 260–269.

Rauch, E., Matt, D.T., Dallasega, P. (2016). Application of axiomatic design in manufacturing system design: a literature review. Procedia CIRP, 53, 1–7.

Ravindran, A.R., Bilsel, R.U., Wadhwa, V., Yang, T. (2010). Risk adjusted multicriteria supplier selection models with applications. International Journal of Production Research, 48(2), 405–424.

Rezaei, J. (2015). Best-worst multi-criteria decision-making method. Omega, 53, 49–57.

Rincón, J., Cañizares, P., García, M.T. (2007). Regeneration of used lubricant oil by ethane extraction. Journal of Supercritical Fluids, 39(3), 315–322.

Shahdany, M.H., Roozbahani, A. (2016). Selecting an appropriate operational method for main irrigation canals within multicriteria decision-making methods. Journal of Irrigation and Drainage Engineering, 142(4), 4015064.

Shannon, C.E. (1948). A mathematical theory of communication. The Bell System Technical Journal, 27(July 1928), 379–423.

Sharma, S.K., Swain, N. (2015). Risk management in construction projects. Technological and Economic Development of Economy, 21(1), 65–78.

Shehabuddeen, N., Probert, D., Phaal, R. (2006). From theory to practice: challenges in operationalising a technology selection framework. Technovation, 26(3), 324–335.

Subramanyan, H., Sawant, P.H., Bhatt, V. (2012). Construction project risk assessment: development of model based on investigation of opinion of construction project experts from India. Journal of construction engineering and management, 138.

Suh, N.P. (1990). The Principles of Design. Oxford University Press, New York.

Suh, N.P. (1998). Axiomatic design theory for systems. Research in Engineering Design, 10(4), 189–209.

Suh, N.P. (2001). Axiomatic Design: Advances and Applications. Oxford University Press, New York.

Suh, N.P., Cochran, D.S., Paulo, C.L. (1998). Manufacturing system design. CIRP Annals, 47(2), 627–639.

Taylan, O., Kaya, D., Demirbas, A. (2016). An integrated multi attribute decision model for energy efficiency processes in petrochemical industry applying fuzzy set theory. Energy Conversion and Management, 117, 501–512.

Trinkūnienė, E., Podvezko, V., Zavadskas, E.K., Jokšenė, I., Vinogradova, I., Trinkūnas, V. (2017). Evaluation of quality assurance in contractor contracts by multi-attribute decision-making methods. Economic Research-Ekonomska Istraživanja, 30(1), 1152–1180.

Vranes, S., Giovanna, F.D., Khelifi, O., Lodolo, A., Miertus, S. (1999). Software support for waste oil management.

Wen, Z., Yu, Y., Yan, J. (2015). Best available techniques assessment for coal gasification to promote cleaner production based on the ELECTRE-II method. Journal of Cleaner Production, 129, 12–22.

Wood, D.A. (2016). Supplier selection for development of petroleum industry facilities, applying multi-criteria decision making techniques including fuzzy and intuitionistic fuzzy TOPSIS with flexible entropy weighting. Journal of Natural Gas Science and Engineering, 28, 594–612.

Zadeh, L.A. (1965). Fuzzy sets. Information and Control, 8(3), 338–353.

Zavadskas, E.K., Podvezko, V. (2016). Integrated determination of objective criteria weights in MCDM. International Journal of Information Technology and Decision Making, 15(2), 267–283.

Zhang, H., Gu, C.L., Gu, L.W., Zhang, Y. (2011). The evaluation of tourism destination competitiveness by TOPSIS and information entropy – a case in the Yangtze River Delta of China. Tourism Management, 32(2), 443–451.

Zheng, P., Wang, Y., Xu, X., Xie, S.Q. (2017). A weighted rough set based fuzzy axiomatic design approach for the selection of AM processes. The International Journal of Advanced Manufacturing Technology, 91(5–8), 1977–1990.

Biographies

Ijadi Maghsoodi Abteen
Aimaghsoodi@srbiau.ac.ir

A. Ijadi Maghsoodi is a MSc student in industrial engineering at the Islamic Azad University, Science and Research Branch, Tehran, Iran. He has earned a BSc degree in industrial engineering from Islamic Azad University, Qazvin Branch, Qazvin, Iran. He has industrial experience in lubricating oils industry and regenerative waste products at Monad Oil Company in UAE. His research interests are focused on MCDM, intelligent decision support systems, statistical learning, and data-mining.

Hafezalkotob Arian
ar_hafezalkotob@azad.ac.ir

Ar. Hafezalkotob is a lecturer at Islamic Azad University, South Tehran Branch, Iran from 2014–2017. He received a MSc degree in mechanical engineering (applied design), in 2010, and a BSc degree in mechanical engineering (solids design), in 2007, both from Islamic Azad University, Tehran, Iran. He is also a member of young researchers and elite club, South Tehran Branch, Islamic Azad University, Tehran, Iran. He has authored several research papers published in highly-ranked journals including Elsevier’s ASOC, APM, EAAI, and JMAD as well as IOS-Press’s JIFS. His research interests include the fields of MCDM under risk and uncertainty, fuzzy and interval sets, design optimization, material selection, machine selection, composites, biomedical prostheses, buckling, finite element method, and artificial neural networks.

Azizi Ari Iman
Imanazizi65@gmail.com

I. Azizi-Ari received his BSc in industrial engineering from the Islamic Azad University, South Tehran Branch, Tehran, Iran. Currently, he is a MSc student in industrial engineering at the Islamic Azad University, Science and Research Branch, Tehran, Iran. He has a background in quality management systems, supervising and leading projects in the field of quality assurance and control in companies such as Shatel and National Iranian Gas Company. His current research interests are human resource developments, quality assurance, quality control, and MCDM.

Ijadi Maghsoodi Sasan
Sasansim@yahoo.co.uk

S. Ijadi Maghsoodi is the general-manager and CEO of the Monad Oil F.Z.C in UAE and PAK oil company in Kazakhstan. He earned BSc and MSc degrees in civil and construction engineering from the Swansea University, Wales, UK. He has long experience in managing development projects regarding recycling technologies.

Hafezalkotob Ashkan
a_hafez@azad.ac.ir

As. Hafezalkotob is currently an associate professor at the Industrial Engineering College of South Tehran Branch of Islamic Azad University. He received his BSc degree in industrial engineering in 2004, MSc degree in industrial engineering in 2007, and PhD degree in industrial engineering in 2012 from Iran University of Science and Technology, Tehran, Iran. He has authored papers published in highly-ranked journals including TRE, IJPE, JCLP, ASOC, EAAI, CAIE, APM, AMC, JMAD, IJFS, MPE, JMSY, as well as some other journals and conferences proceedings. His research interests include supply chain management, decision-making techniques, game theory, and mathematical modelling.


Reading mode PDF XML

Table of contents
  • 1 Introduction
  • 2 Literature Review
  • 3 Axiomatic Design Approaches
  • 4 Application of Axiomatic Design Approaches in a Waste Lubricant Oil Regenerative Technology Selection Problem
  • 5 Conclusion
  • References
  • Biographies

Copyright
© 2018 Vilnius University
by logo by logo
Open access article under the CC BY license.

Keywords
waste lubricant oil regenerative technology MCDM FAD Shannon entropy risk factors

Metrics
since January 2020
1704

Article info
views

900

Full article
views

868

PDF
downloads

260

XML
downloads

Export citation

Copy and paste formatted citation
Placeholder

Download citation in file


Share


RSS

  • Figures
    6
  • Tables
    16
Fig. 1
Design, system, and common ranges as well as common area for a uniform probability density function of a functional requirement.
Fig. 2
Common area of system and design ranges.
Fig. 3
Flowchart of risk-based green technology selection methodology supported on axiomatic design principles.
Fig. 4
A typical illustration of the steps of candidate technologies.
Fig. 5
Common area of ${\tilde{x}_{11}}$ and ${\tilde{d}_{1}}$.
Fig. 6
Correlation between the rankings based on Spearman coefficient considering all and categorized criteria.
Table 1
Criteria definition for selection of waste lubricant oil regenerative technologies.
Table 2
General risk factors regarding waste lubricant oil regenerative technologies.
Table 3
Specific risk factors regarding waste lubricant oil regenerative technologies.
Table 4
Linguistic terms and the corresponding triangular fuzzy numbers.
Table 5
System and design ranges in the form of triangular fuzzy numbers.
Table 6
Common areas in the waste lubricant oil regenerative technologies selection problem.
Table 7
Normalized defuzzified system ranges.
Table 8
Entropy measures, objective and integrated significance coefficients.
Table 9
Information contents of the FAD method.
Table 10
Proposed risk factors for the regenerative waste lubricant technologies.
Table 11
Information contents of the RFAD method.
Table 12
Total information contents considering all criteria.
Table 13
Rankings of the candidate technologies considering all criteria.
Table 14
Total information contents considering technical criteria.
Table 15
Total information contents considering economic criteria.
Table 16
Rankings of the candidate technologies considering categorized criteria.
Fig. 1
Design, system, and common ranges as well as common area for a uniform probability density function of a functional requirement.
Fig. 2
Common area of system and design ranges.
Fig. 3
Flowchart of risk-based green technology selection methodology supported on axiomatic design principles.
Fig. 4
A typical illustration of the steps of candidate technologies.
Fig. 5
Common area of ${\tilde{x}_{11}}$ and ${\tilde{d}_{1}}$.
Fig. 6
Correlation between the rankings based on Spearman coefficient considering all and categorized criteria.
Table 1
Criteria definition for selection of waste lubricant oil regenerative technologies.
Aspects ID∗ Criteria Description
Technicality and sustainability T1 Compatibility with all types of used oil The availability of water content, organic and chemical contaminants (e.g. Paraffin contaminants, PCB contaminants, and heavy metals), light lubricants (e.g. diesel and solvents), and sludge or crude oil within the used oil which affects the margin of production with diverse technologies
T2 Quality of product Based on laboratory tests provided by American Society for Testing and Materials (ASTM) and with reference to American Petroleum Institute (API) which classify base-oil quality into five groups, quality of the product is determined (American Petroleum Institute, 2015)
T3 Proven technology and adaptability for future Due to the application of every technology, it is substantial to identify the type used in various scenarios (i.e. commercially available, prototype, research and development state). Based on the different states of the technology and its adaptability to be upgraded, experts can rank technologies
T4 Process sustainability and stability It is crucial for every production plant to have stable and sustainable operations which results in the desired consequences. The technology should be applicable in variable situations. Besides, risk estimation and real-time problem solving are essential
T5 Degree of automation/ sophistication Knowledge and human resource managements are critical factors in every industry and organization. The level of sophistication of technologies is based on the degree of knowledge and availability of the human resource. Subsequently, the level of automation is a critical factor in the efficiency of production
Health, safety and environmental considerations E1 Risk levels regarding the environment, e.g. as for lands, ecological receptors, and water contaminations Chemical and physical contaminants are one of the most stressors to ecosystems and the environment which can induce an adverse and irreversible effects. Regenerating plants may increase risk levels regarding the nature by producing specific by-products, e.g. acidic sludge and water contaminations
E2 Risk levels for workers, communities, and beneficiaries One of the fundamental requirements for selecting a technology is the level of influence on employees and communities. It is crucial to choose a technology to decrease risk among beneficiaries of any production process
E3 Energy and water consumption Every technology has variable intake of energy and water. The optimal technology minimizes the consumption of energy and water
E4 Emissions and odor (pollution) Decomposition of chemical components by heat and solvents may cause atmospheric pollutions. Volatile Organic Compounds (VOC) which easily evaporate are very common in processing hydrocarbons. In optimal operations, pollution rate is minimized
Economic considerations S1 Income generation potential Dependent on the production method, level of technology, production economic standard parameters, production margin profit of a specific technology is obtained
F1 Capital costs/ investment costs Based on the feasibility evaluation of a technology which provides investment information, e.g. fixed and variable costs, the expenses of a technology are determined
F2 Operation and maintenance costs Operation costs are defined according to the infrastructures of the production plant, specific material handling, and the total maintenance cost of a technology. Also, the depreciation rate of any technology has a direct influence on this criterion
F3 Economic viability An economically viable technology is feasible, innovative, and sustainable regarding investing resources. A technology is more feasible when its predetermined goals are achieved faster, i.e. by reaching the head to head point
∗Identification code for criteria.
Table 2
General risk factors regarding waste lubricant oil regenerative technologies.
Aspects   Risk label Description
Characteristics and limitations of raw materials
  • • Physical contaminations (e.g. water content, light hydrocarbons, heavy metals, and synthetic oils)
  • • Chemical contaminations (e.g. paraffin, PCB, and PAO)
  • • Physical and chemical properties of raw material (e.g. viscosity, flash point, pour point, and colour)
  • • Availability of raw material
  • • Transportation of raw material
There are a couple of limitations considering raw materials. Mentioned risk factors are some of the influencing factors which can make impact on elements such as quality and sustainability of finished product or may have environmental consequences
Characteristics of finished product (i.e. base-oils)
  • • Physical contaminations (e.g. anonymous particles, water content, bleaching clay particles, and heavy metals)
  • • Chemical contaminations (e.g. sulfonate and paraffin)
  • • Physical and chemical properties of finished product (e.g. viscosity, flash point, odour, pour point, and colour)
The existence of contaminations and low standard of technical properties in finished product will result in poor quality of product and increases environmental and health parameters
Technological complexities
  • • Technical knowledge (e.g. technological and operational knowledge)
  • • Manufacturing method (e.g. batch and continuous production)
  • • Compatibility with existing production plant
  • • Process stability
  • • Adaptability to future situations
  • • Level of technical sophistication
Flexibility and adaptability of infrastructures and the existing technologies are important factors in creation of technical complexities. Technical knowledge of sophisticated technologies has a huge impact on risk prevention and optimization of process stability
Human resource factors
  • • Employees performance and influencing elements such as employees satisfaction and loyalty
  • • Compatibility and suitability of technology regarding the existing educational and skill levels
  • • Human reliability
  • • Availability of experts in the required fields
  • • Level of employees efficiency
  • • Recruitment factors
Human resource is one of the valuable assets of organizations. One of the great responsibilities of industrial plants is to optimize effectiveness and efficiency of resources. Human resource factors can have effective influence on quality and quantity of products
Waste management
  • • Hazardous by-products (e.g. acidic sludge and PCB)
  • • Biodiversity threats
  • • Transportation issues
  • • Waste water handling
  • • Waste depot problems
  • • Solid waste handling
  • • Ego-system waste issues
Hazardous dumps and leakage of specified wastes can have irreparable damages to the environment. Today, one the most important factors of chemical regenerative technologies is waste management. The considerable amount of hazardous wastes will make this factor a great threat to factories
Topographical and geographical factors
  • • Production plant location
  • • Noise and vibration
  • • Weather properties
  • • Physical space requirements
Topographical and geographical aspects such as location and physical space can have great effects on quantity of products dependent on the size of operation
Health, safety and environmental issues (HSE factors)
  • • Human resource safety factors such as on-site and off-site and insurance
  • • Force major health and safety conditions for employees
  • • Greenhouse and non-greenhouse gases
  • • By-product emission and odour (e.g. light combustible hydrocarbon gasses)
  • • Incident prevention (e.g. hazardous gas leakage, fire, explosion, and electrical shocks)
  • • Ergonomics (e.g. employees fatigue reduction systems, increasing safety spots, and noise reduction)
Dependent on the scale and sensitivity of the proposed technological interventions, a full-fledged risk assessment exercise is mandatory in HSE factors. Before making decision on the final technology enhancement, it is crucial to analyse health, safety, and ergonomic measures for employees and environmental issues for biodiversity and humans
Specific energy and material consumption
  • • Specific energy usage (e.g. water, gas, fuel, and electricity)
  • • Specific material consumption (e.g. hydrogen, polymer, various solvents, and bleaching clay)
Consuming specific energies or materials may cause overhead expenses and inefficient technology
Economic factors and regulations
  • • Entrepreneurship
  • • Economic investor factors
  • • Cultural factors
  • • Depreciation and maintenance factors
  • • Revenue and marginal factors
  • • Competitiveness and strategies
  • • Scheduling and resource factors
  • • International and domestic regulations and rules
The main reason for all measures which organizations adopt to enhance process sustainability and improve quality and quantity is to gain a high marginal profit from the whole process. Economic factors may pose high risks to an organization
Table 3
Specific risk factors regarding waste lubricant oil regenerative technologies.
Risk label Influenced technologies Description
Paraffin contamination (a), (b), (c), (d) Mixing used oil with all sorts of materials (e.g. sludge from oil tankers carrying crude oil) causes finished product to be misty and cloudy even after regeneration process. High temperatures (over 340${^{\circ }}$C) can reduce paraffin whereas the reduction amount can vary in different technologies
Coke formation (a), (b), (c), (d), (e) High temperatures in regenerative technologies due to nature of hydrocarbons result in coke formation (from cracked or decomposed cracked oil) and in any regenerative process, coke formation is inevitable in some units (e.g. reboilers, distillation towers, and reactors surface). Coke formation causes blockage in valves, pipes, and all the reactors in the surface
Oxidation (a), (b) Application of sulfuric acid and high crack temperature cause the finished product, i.e. base oil, to oxidize and affect the colour of the base oil
High temperature cracking (a), (b) Existence of high temperature in distillation column or in clay mixing reactor not only causes a lot of coke formation, but also, reduces the yield of the finished product and produces huge amount of cracked gasses
Sulfuric acid purity (a) The purity of the applied sulfuric acid is a critical factor in acid-wash process and exerts remarkable effects on the sludge formation in reactors
Type of clay (a), (b) In regeneration process, a non-activated clay needs small amount (3–4%) of sulfuric acid and high temperature oil in reactor. On the other hand, an activated clay works well in much lower temperature with the same result but higher prices
Quantity of clay (b), (c) Using about 40–45% of non-activated clay (e.g. bentonite clay) in clay process not only produces huge amount of waste and disposed clay, but also, reduces the product margin due to oil content in the used clay
High level of fatigue and corrosion in process (a) Presence of sulfuric acid in various forms in regeneration process causes corrosion in the whole production system in contact with acid. Existence of acid in any process unit has decay effects on whole process unit and increases the final depreciation rate
Continuous maintenance service (a), (b), (c), (d), (e) One of the essential factors in every operating plant is preventive maintenance. Regarding high temperature within the regenerative technologies, regular maintenance to safe-guard the operation is crucial. Subsequently, the acidic and bleaching plants need higher attention for maintenance
Acidic sludge storage (a) According to high remaining acid contents and salts within acid-clay process, it is important to have a secure handling and material storage facility. In case of spillage or storage failure, the excess acid within sludge causes the sludge to be runny. Therefore, in case of dumping sludge material in dead land, it would not penetrate and if covered by soil it would surface eventually
Spent clay storage (a), (b) Used clay should be stored under a covered area because a small amount of oil exists in it. Besides, this measure helps in blocking direct sun contact as to avoid evaporation of remaining oil within the spent clay. Moreover, correct storage would prevent contamination of the underground water and surface running water
Sulfuric acid procurements (a), (b) Transportation of sulfuric acid in any type of container needs special precaution and safety because of its hazardous nature. This element is a very important factor in particular processes such as acid-clay process and acid-activated clay process
Employees training for application of sulfuric acid (a) Because of the hazardous nature of sulfuric acid, it is crucial to have a training process for employees to deal with the material
Employees training for application of bleaching clay (b) High quantity of clay usage in acid-activated clay process may cause troubles for employees. Specific training courses for handling the clay (e.g. feeding and discharging methods) can boost the effectiveness of bleaching process
Acid handling (a), (b) Sulfuric acid is a highly corrosive; thus, particular attentions should be given throughout the transportation and consumption process
Clay handling (a), (b), (c), (d) As partial hazardous material, bentonite clay should be handled with care and protection. Because of small particles (micro-particles) in bentonite clay, it would harm employees without adopting proper safety measures
Fire eruption (a), (b), (c), (d), (e) Presence of high operating temperature in lubricant oil regenerative plant besides light fuels and cracked gasses create a high-risk environment for fire eruptions. Employees training, proper fire prevention, and disarming systems reduce the probability of fire eruptions. In hydro-process plant, the use of hydrogen provides an extremely high-risk environment
Human errors in maintenance overhaul (a), (b) Regarding the high demand of maintenance in acid-clay process and acid-activated clay process, probability of human errors is high. High temperature and huge amount of clay usage within the reactors can have negative impacts on employees’ safety and production process
Cracked gasses (Gas emission) (a), (b), (c), (d), (e) There is a certain amount of light oils (e.g. diesel and petrol) in used oils which evaporate during the operating process. The process produces cracked gasses (e.g. VOCs). By using incinerators, these gasses can be burned in high temperature and gas emission would be reduced
Acidic salt emission (a) In the sulfonating unit and clay reactors, different sorts of acidic salts (e.g. sulfonates) form during the acid clay process. The process has a huge amount of air pollution which causes immediate breathing problems. The mentioned units besides a neutralization unit help in minimizing the acidic salt
Water emission (a), (b), (c), (d), (e) Presence of water content in used oil is inevitable. This water content should be evaporated and condensed separately as not to vaporize to atmosphere. There is an amount of water content mixed with light oil which should be separated by any means before disposing to drain. Since there is also about 7% water in clay packing, the more clay consumption, the more water within the reactor will be and consequently the more water evaporates which should be treated prior to drain disposal. The waste water in case of drainage in sanitation (ego) system would result in oil contamination in the sewage plant. In case of dumping sludge and used oils at the ground, they would contaminate the underground water sources
Acidic sludge emission (a) Due to high consumption of sulfuric acid in acid clay process up to 25% of initial oil in volume, it should be treated carefully. Regarding hazardous nature of acidic sludge, this acidic waste should be neutralized by mixing acidic sludge with casting soda or hydroxide calcium prior to disposing or any other usage
Clay consumption (a), (b), (c), (d) To improve the colour of finished base-oil and clarify of finished product, earth clay as active or bentonite forms is applied. High consumption of clay may have disposal and storage problems. The waste clay which produces by regeneration process can be sent to cement factories where it can be utilized as filler to cement clinker
Fuel consumption (a), (b), (c), (d), (e) Fuel is employed to generate high temperature for regenerative operations. Higher fuel consumption has higher environmental impacts such as heat exchange to greenhouse and gas emissions
Caustic soda lye handling and process (a) In acid clay process, using caustic soda lye as a neutralizing agent is compulsory because of the active sulfuric acid within the process. Sodium hydroxide as a hazardous chemical has destructive effects on human skin and particularly eyes. Also, if sodium hydroxide penetrates to the ground, it would contaminate underground water and vegetation
Quality of solvent (d), (e) Quality of solvent significantly affects the production result. Low-quality solvent not only reduces the margin of the product but also consumes more energy in the specific units, e.g. compressors, of the regenerative process
Purity of hydrogen (e) One of the important elements in hydro-process is purity of hydrogen which can affect the hydro-process operation and either increase or reduce the quantity and quality of finished product
Catalyst type (e) The type of catalyst used in hydro-process massively affects the process by prolonging the time of process or it can reduce process time and affects the marginal yield of production
Vacuum failure (c) The thin/wiped film evaporation process mainly runs by high vacuum either using vacuum pumps or ejectors. Any failure causes the unprocessed oil to drop to the receivers and ruin the oil and increase the pressure within the reactor which is dangerous and can lead to fire and gas emission in the operation plant
Solvent leakage (d), (e) Solvents are low flash point substances; thus, a leakage may cause fire or explosion in the unit and can have a catastrophic effect on the operation site
Specific technical knowledge (c), (d), (e) Lack of knowledge in any sophisticated process may cause enormous damages. Special trainings are needed to be executed for all employees in case of emergency
Operating system failure (c), (d), (e) Due to the sophisticated operations and systems, failure of any operational procedure will result in a catastrophic disaster such as huge explosions
Solvent storage (d), (e) Regarding the low flash point of solvent, serious attention and special storage are required
Table 4
Linguistic terms and the corresponding triangular fuzzy numbers.
Linguistic term Abbreviated linguistic term Triangular fuzzy number
Extremely Low EL $(0,1,2)$
Very Low VL $(1,2,3)$
Low L $(2,3,4)$
Medium Low ML $(3,4,5)$
Medium M $(4,5,6)$
Medium High MH $(5,6,7)$
High H $(6,7,8)$
Very High VH $(7,8,9)$
Extremely High EH $(8,9,10)$
Table 5
System and design ranges in the form of triangular fuzzy numbers.
Criteria Alternatives of waste lubricant oil regenerative technology Subjective significance coefficients Design ranges
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 $(6,7,8)$ $(6,7,8)$ $(7,8,9)$ $(6,7,8)$ $(6,7,8)$ 0.084 $(7,8,9)$
T2 $(6,7,8)$ $(6,7,8)$ $(7,8,9)$ $(7,8,9)$ $(7,8,9)$ 0.087 $(7,8,9)$
T3 $(4,5,6)$ $(4,5,6)$ $(6,7,8)$ $(5,6,7)$ $(6,7,8)$ 0.068 $(5,6,7)$
T4 $(4,5,6)$ $(4,5,6)$ $(6,7,8)$ $(4,5,6)$ $(6,7,8)$ 0.068 $(5,6,7)$
T5 $(4,5,6)$ $(4,5,6)$ $(6,7,8)$ $(6,7,8)$ $(6,7,8)$ 0.052 $(5,6,7)$
E1 $(7,8,9)$ $(7,8,9)$ $(5,6,7)$ $(5,6,7)$ $(5,6,7)$ 0.084 $(6,7,8)$
E2 $(4,5,6)$ $(4,5,6)$ $(5,6,7)$ $(5,6,7)$ $(5,6,7)$ 0.073 $(5,6,7)$
E3 $(4,5,6)$ $(4,5,6)$ $(5,6,7)$ $(5,6,7)$ $(5,6,7)$ 0.054 $(4,5,6)$
E4 $(7,8,9)$ $(7,8,9)$ $(5,6,7)$ $(5,6,7)$ $(5,6,7)$ 0.089 $(6,7,8)$
S1 $(5,6,7)$ $(5,6,7)$ $(6,7,8)$ $(5,6,7)$ $(5,6,7)$ 0.090 $(6,7,8)$
F1 $(3,4,5)$ $(3,4,5)$ $(4,5,6)$ $(5,6,7)$ $(5,6,7)$ 0.091 $(4,5,6)$
F2 $(5,6,7)$ $(5,6,7)$ $(4,5,6)$ $(5,6,7)$ $(5,6,7)$ 0.064 $(4,5,6)$
F3 $(4,5,6)$ $(4,5,6)$ $(6,7,8)$ $(5,6,7)$ $(5,6,7)$ 0.096 $(5,6,7)$
Table 6
Common areas in the waste lubricant oil regenerative technologies selection problem.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 0.25 0.25 1 0.25 0.25
T2 0.25 0.25 1 1 1
T3 0.25 0.25 0.25 1 0.25
T4 0.25 0.25 0.25 0.25 0.25
T5 0.25 0.25 0.25 0.25 0.25
E1 0.25 0.25 0.25 0.25 0.25
E2 0.25 0.25 1 1 1
E3 1 1 0.25 0.25 0.25
E4 0.25 0.25 0.25 0.25 0.25
S1 0.25 0.25 1 0.25 0.25
F1 0.25 0.25 1 0.25 0.25
F2 0.25 0.25 1 0.25 0.25
F3 0.25 0.25 0.25 1 1
Table 7
Normalized defuzzified system ranges.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 0.194 0.194 0.222 0.194 0.194
T2 0.184 0.184 0.211 0.211 0.211
T3 0.167 0.167 0.233 0.200 0.233
T4 0.172 0.172 0.241 0.172 0.241
T5 0.161 0.161 0.226 0.226 0.226
E1 0.235 0.235 0.176 0.176 0.176
E2 0.179 0.179 0.214 0.214 0.214
E3 0.179 0.179 0.214 0.214 0.214
E4 0.235 0.235 0.176 0.176 0.176
S1 0.194 0.194 0.226 0.194 0.194
F1 0.160 0.160 0.200 0.240 0.240
F2 0.207 0.207 0.172 0.207 0.207
F3 0.172 0.172 0.241 0.207 0.207
Table 8
Entropy measures, objective and integrated significance coefficients.
T1 T2 T3 T4 T5 E1 E2 E3 E4 S1 F1 F2 F3
${E_{j}}$ 0.999 0.999 0.994 0.991 0.992 0.994 0.998 0.998 0.994 0.999 0.990 0.998 0.995
${w_{j}^{o}}$ 0.015 0.021 0.113 0.142 0.130 0.104 0.040 0.040 0.104 0.020 0.163 0.025 0.084
${w_{j}^{\ast }}$ 0.017 0.024 0.101 0.126 0.089 0.113 0.038 0.028 0.120 0.024 0.194 0.021 0.105
Table 9
Information contents of the FAD method.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 2 2 0 2 2
T2 2 2 0 0 0
T3 2 2 2 0 2
T4 2 2 2 2 2
T5 2 2 2 2 2
E1 2 2 2 2 2
E2 2 2 0 0 0
E3 0 0 2 2 2
E4 2 2 2 2 2
S1 2 2 0 2 2
F1 2 2 0 2 2
F2 2 2 0 2 2
F3 2 2 2 0 0
Table 10
Proposed risk factors for the regenerative waste lubricant technologies.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 0.335 0.350 0.090 0.090 0.100
T2 0.150 0.233 0.075 0.075 0.050
T3 0 0 0 0 0
T4 0.288 0.275 0.080 0.205 0.535
T5 0.050 0.040 0.235 0.217 0.313
E1 0.356 0.317 0.175 0.137 0.250
E2 0.172 0.236 0.070 0.113 0.357
E3 0 0 0 0 0
E4 0.350 0.285 0.050 0.055 0.055
S1 0 0 0.150 0.270 0.380
F1 0 0 0 0 0
F2 0 0 0 0 0
F3 0 0 0 0 0
Table 11
Information contents of the RFAD method.
Criteria Alternatives of waste lubricant oil regenerative technology
Acid-clay process Acid-activated clay process Thin/wiped film evaporation Solvent extraction process Hydro-process
T1 2.589 2.621 0.136 2.136 2.152
T2 2.234 2.383 0.112 0.112 0.074
T3 2 2 2 0 2
T4 2.489 2.464 2.120 2.331 3.105
T5 2.074 2.059 2.386 2.352 2.542
E1 2.635 2.549 2.278 2.212 2.415
E2 2.272 2.388 0.105 0.172 0.636
E3 0 0 2 2 2
E4 2.621 2.484 2.074 2.082 2.082
S1 2 2 0.234 2.454 2.690
F1 2 2 0 2 2
F2 2 2 0 2 2
F3 2 2 2 0 0
Table 12
Total information contents considering all criteria.
Alternatives of waste lubricant oil regenerative technology Total information contents
FAD WFAD RFAD WRFAD
Acid-clay process 24 12.702 26.915 12.818
Acid-activated clay process 24 12.702 26.949 12.813
Thin/wiped film evaporation 14 7.491 15.446 7.537
Solvent extraction process 18 9.530 19.852 9.591
Hydro-process 20 10.603 23.696 10.725
Table 13
Rankings of the candidate technologies considering all criteria.
Alternatives of waste lubricant oil regenerative technology Rankings
FAD WFAD RFAD WRFAD
Acid-clay process 4 4 4 5
Acid-activated clay process 4 4 5 4
Thin/wiped film evaporation 1 1 1 1
Solvent extraction process 2 2 2 2
Hydro-process 3 3 3 3
Table 14
Total information contents considering technical criteria.
Alternatives of waste lubricant oil regenerative technology Total information contents
FAD WFAD RFAD WRFAD
Acid-clay process 16 8.451 18.915 8.567
Acid-activated clay process 16 8.451 18.949 8.562
Thin/wiped film evaporation 12 6.415 13.212 6.461
Solvent extraction process 12 6.355 13.398 6.410
Hydro-process 14 7.427 17.006 7.542
Table 15
Total information contents considering economic criteria.
Alternatives of waste lubricant oil regenerative technology Total information contents
FAD WFAD RFAD WRFAD
Acid-clay process 8 4.251 8 4.251
Acid-activated clay process 8 4.251 8 4.251
Thin/wiped film evaporation 2 1.076 2.234 1.076
Solvent extraction process 6 3.176 6.454 3.181
Hydro-process 6 3.176 6.690 3.183
Table 16
Rankings of the candidate technologies considering categorized criteria.
Alternatives of waste lubricant oil regenerative technology Rankings based on technical criteria Rankings based on economic criteria
FAD WFAD RFAD WRFAD FAD WFAD RFAD WRFAD
Acid-clay process 4 4 4 5 4 4 4 4
Acid-activated clay process 4 4 5 4 4 4 4 4
Thin/wiped film evaporation 1 2 1 2 1 1 1 1
Solvent extraction process 1 1 2 1 2 2 2 2
Hydro-process 3 3 3 3 2 2 3 3

INFORMATICA

  • Online ISSN: 1822-8844
  • Print ISSN: 0868-4952
  • Copyright © 2023 Vilnius University

About

  • About journal

For contributors

  • OA Policy
  • Submit your article
  • Instructions for Referees
    •

    •

Contact us

  • Institute of Data Science and Digital Technologies
  • Vilnius University

    Akademijos St. 4

    08412 Vilnius, Lithuania

    Phone: (+370 5) 2109 338

    E-mail: informatica@mii.vu.lt

    https://informatica.vu.lt/journal/INFORMATICA
Powered by PubliMill  •  Privacy policy
