1 Introduction
Over the past few decades, advancement in digital technologies has made people’s lives more comfortable and faster. With all their charms, digital technologies, however, possess certain limitations to their robust utilization. Data transmission and reception over the internet is not secure in most cases. The problem can be resolved by applying encryption procedures to ensure that the data is only received by the intended user and even if the data is intercepted by an unauthorized or unintended user, the contents of the data should not make sense to him/her. Encryption is a process to disguise the information in such a way that only the intended user with a certain private key or code could be able to retrieve the actual data from the encrypted information (Acharya et al., 2008; Jakimoski and Subbalakshmi, 2008; Schneier, 1996; William, 2006), which is called decryption, the reverse process of encryption. Symmetric key algorithms use the same keys for encryption and decryption, whereas different keys are used for encryption and decryption in public key algorithms. The traditional symmetric algorithms like Advanced Encryption Standard (AES), Data Encryption Standard (DES) and International Data Encryption Standard (IDES) encrypt text data in an efficient way (Bruce, 1996; Stallings, 2006; Leong et al., 2000). These traditional algorithms, however, fail to provide efficient encryption of image data due to its associated high redundancy, strong correlation and bulk capacity (Khan et al., 2017a; Ahmad et al., 2017). In 1989, Mathews presented the concept of chaotic encryption (Matthews, 1984). Following Mathew’s novel idea, many researchers have turned their attention towards chaos-based image encryption and S-box construction techniques (Ahmad and Hwang, 2016; Anees et al., 2014a; Khan et al., 2015a; Ahmad and Hwang, 2015; Ahmad et al., 2015; Younas and Ahmad, 2014; Anees et al., 2014b; Dawei et al., 2004; Ahmad et al., 2016; Huang and Guan, 2005; Li and Zheng, 2002; Ahmad and Ahmed, 2010; Rehman et al., 2016; Khan et al., 2015b; Habib et al., 2017). These chaos-based image encryption algorithms have lots of merits, such as the large key space, ergodicity and sensitivity to the secret keys. Chung and Chang (1998) designed a new approach for encrypting binary images. They utilized different scan patterns at the same level in the scan tree structure and then applied a $2D$ run-encoding technique $(2\mathit{DRE})$. However, Chang and Yu (2002) present cryptanalysis of the above scheme. Belkhouche and Qidwai proposed binary image encoding based on $1D$ chaotic map (Belkhouche and Qidwai, 2003). In 2014, Amir et al. utilized the chaotic behaviour of Logistic map and used more than one substitution box. Logistic chaotic map generates random values that randomly select S-box which is employed in the substitution process. In this paper, we first examine Amir et al.’s algorithm (Anees et al., 2014a) and then improve it on the basis of the security parameters suggested in Ahmad et al. (2015), Khan et al. (2017b). To improve the security characteristics of the Amir’s scheme for binary images, bitwise XOR operation is applied on image pixels. In order to verify the security of the proposed algorithm, various statistical analyses and histogram tests are applied on encrypted images.
2 Fundamental Knowledge
In order to help readers to fully understand our modification to the Amir’s algorithm, we explain S-box, Non Chaotic Algorithm (NCA) and Logistic chaotic map. The Amir’s scheme works well for high number of gray scale values, but it totally fails in the case of small number of gray scale values. In this paper, we add diffusion to the Amir’s algorithm via XORed operation to validate the C. Shannon theory of SP-Network (Kam and Davida, 1979).
2.1 Substitution Box

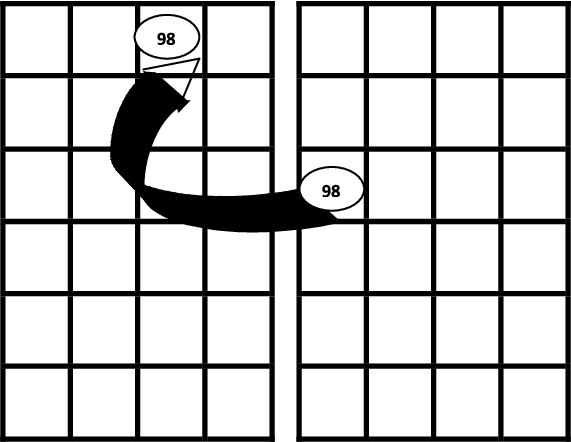

In the paper of Anees et al. (2014a), a novel chaotic scheme was proposed. Substitution is done using the technique of multiple substitution boxes (S-boxes). This paper addresses drawbacks of single S-box for substitutions in encryption algorithm and proposes a novel chaotic substitution scheme. For symmetric key algorithms of cryptography, S-box is a core component. S-box is basically a lookup table which is constructed by a boolean function taking n bits as input and producing m bits as output (Yildiz, 2004). The substitution refers to the replacement of plaintext image data with another data set. The resulting substituted data is called the ciphertext image. The plaintext image can be retrieved when the substitution process is reversed. Figure 1 shows the substitution of a single unit of data. Different algebraic structures exist in literature to construct S-boxes (Nyberg, 1992; Weister and Tavares, 1986; Kurosawa et al., 1997; Johansson and Pasalic, 2003). Several S-boxes are used in the field of cryptography and their performance varies by using algebraic and statistical analysis. S-box exhibits the property of non-linearity and several researches have been undertaken to increase this phenomenon (Hussain et al., 2012, 2013a, 2013b). Despite its high non-linearity, S-boxes tend to exhibit low substitution results in highly correlated data set. To resolve this issue, chaotic behaviours of different set of equations are utilized to induce diffusion in the encryption algorithm. This chaotic nature of different functions are known as chaotic maps. As the name implies, the theory refers to the states of confusion, randomness, lack of order, lack of predictability and so on.
2.2 Logistic Map
The nature of chaotic systems is such that any change in its initial conditions results in an unpredictable change in its outcome. These systems are therefore highly sensitive to the initial conditions. These systems bear the property that any change in the input, however it is infinitesimal, would result in extremely diverging outputs. This lowers the predictability of the outcomes to sufficiently impossible level. Diverse chaotic maps are practically deployed in various systems. Some of them are Arnold Cat map, Chen Lee system, Chirikov–Taylor map, Gauss map, Henon map, Horseshoe map, and Logistic map. The most popular is Logistic map. Mathematically, Logistic map can be written as:

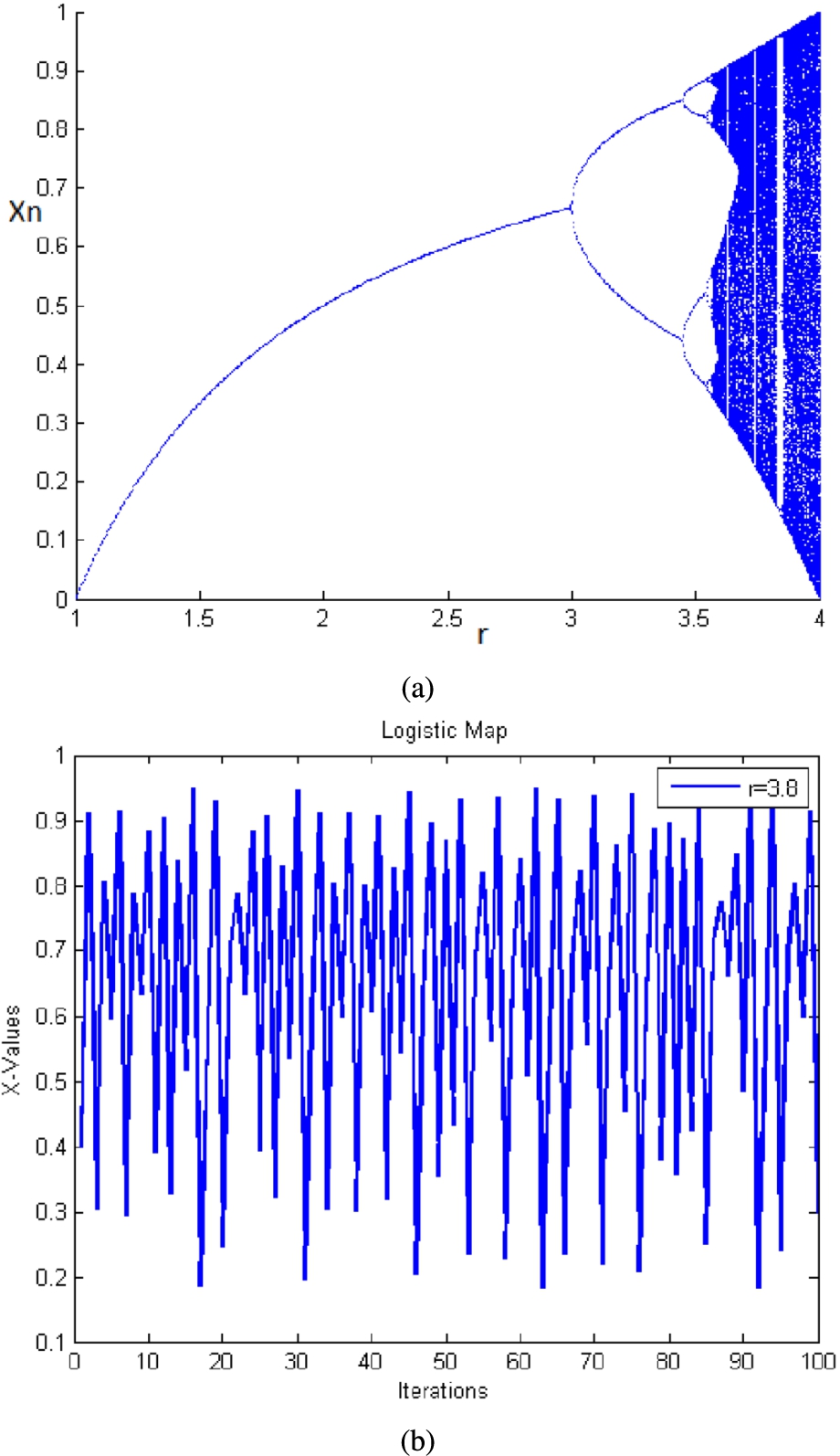

In Eq. (1), r ϵ $(0,4)$ is the control parameter and ${x_{0}}$ is the initial condition in range $(0,1)$. In Li et al. (2017), Gao et al. examined r and divided the interval r into three slices. For r ϵ $(0,3)$, one will get the same x after a number of iterations with no chaotic behaviour. The periodicity still appears for r ϵ $(3,3.6)$, but phase space has different values and when r ϵ $(3.6,4)$, the periodicity totally disappears and random phenomenon starts. Figure 2 shows the bifurcation and discrete domain plot of Logistic chaotic map. The Amir’s scheme utilizes chaotic behaviour of the Logistic map and uses more than one substitution box to substitute data. All S-boxes have values at altered positions and thus increase the probability of randomness in the algorithms. As the chaotic map generates random values, random selections of S-boxes are carried out.
(1)
\[\begin{array}{l}\displaystyle f:\mathit{IR}\to \mathit{IR}\\ {} \displaystyle {X_{n+1}}=f({X_{n}})=r.{X_{n}}(1-{X_{n}}).\end{array}\]2.3 Non-Linear Chaotic Map
In order to improve the security of and overcome some limitations in chaotic maps, the authors in Gao et al. (2006) designed a Non-Linear Chaotic Map (NCA). Due to the limitation of linear functions, the authors used power function ${(1-x)^{\beta }}$ and tangent function. Mathematically, NCA can be written as:
where the seed parameters are defined as:
(2)
\[ {x_{n+1}}=\big(1-{\beta ^{-4}}\big)\cot \bigg(\frac{\alpha }{1+\beta }\bigg){\bigg(1+\frac{1}{\beta }\bigg)^{\beta }}\tan (\alpha {x_{n}}){(1-{x_{n}})^{\beta }},\]
\[ \left\{\begin{array}{l}{x_{n}}\in (0,1),\\ {} \alpha \in (0,1.4],\\ {} \beta \in [5,43],\\ {} \text{or}\\ {} {x_{n}}\in (0,1),\\ {} \alpha \in (1.4,1.5],\\ {} \beta \in [9,38],\\ {} \text{or}\\ {} {x_{n}}\in (0,1),\\ {} \alpha \in (1.5,1.57],\\ {} \beta \in [3,15].\end{array}\right.\]
NCA map has more large key space than other chaotic maps. Detailed map can be found in Gao et al. (2006).Problem Statement
As binary images are very easy to process, they are actively used in many applications such as identification of objects on a conveyor belt or identification of object orientations. Due to the widespread use of binary images, an image encryption scheme should be strong enough to conceal pixelwise information. The plaintext Cameraman and Pepper binary images shown in Figs. 5(a), and 9(a) are encrypted using the Amir’s scheme (Anees et al., 2014a). As seen from Figs. 5(b) and 9(b), an encrypted binary image is still recognizable. The histogram results obtained from the Amir’s scheme shown in Figs. 5(d), and 9(d) are not flat. To support the observation, numerical results for entropy and correlation coefficient can be seen from Tables 1, 2, 3 and 4. The Amir’s algorithm has sufficient efficiency for the gray scale images. It, however, fails in the case of binary images. As binary data consists of just 0’s and 1’s, the substitution is done using five values only. As it does not conceal the original pixels in a binary image, the Amir’s scheme is vulnerable in high correlation scenarios.
3 The Proposed Scheme

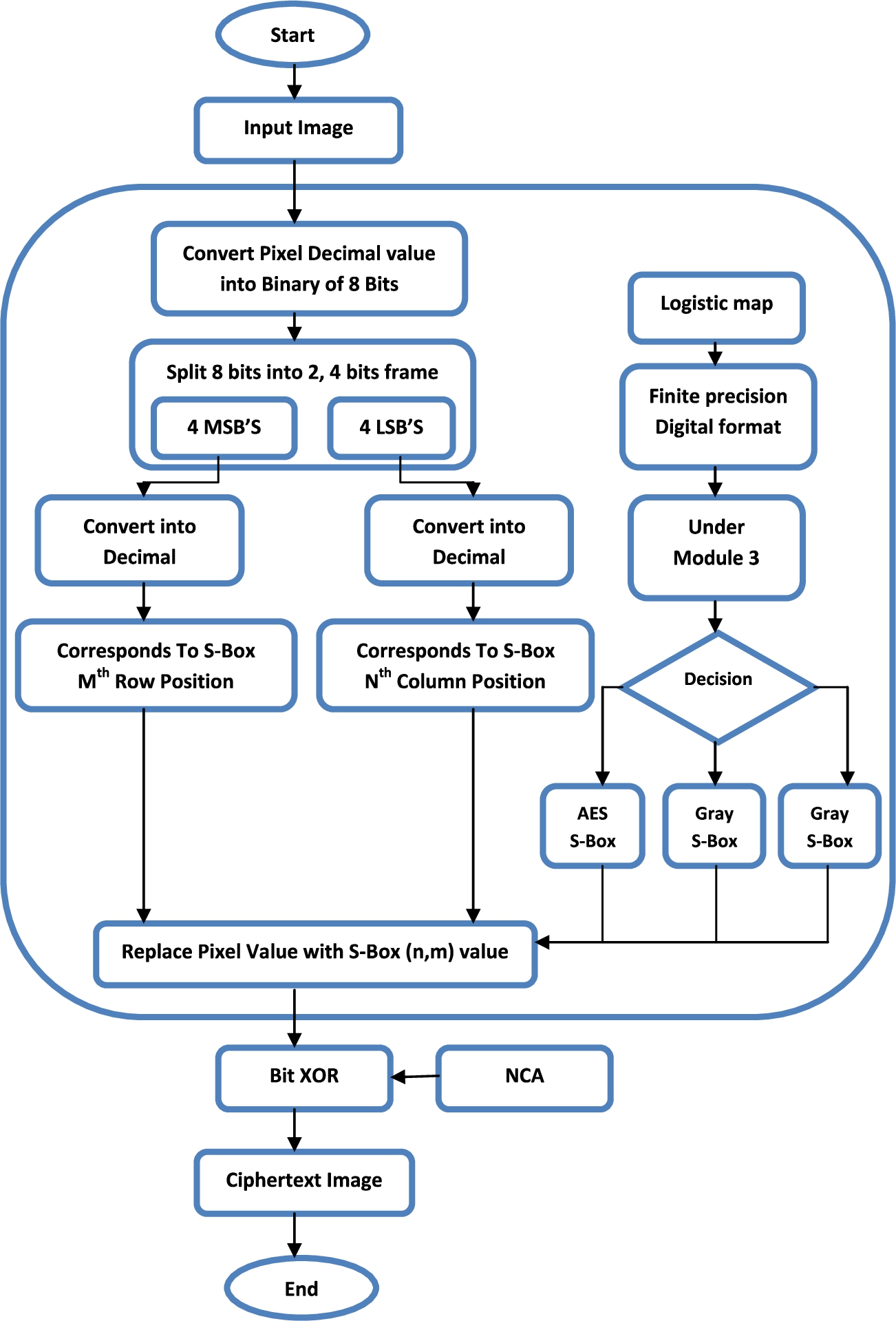

A new algorithm is proposed in order to improve the results of the Amir’s scheme (Anees et al., 2014a). Our main focus is on high correlated images, i.e. binary images. We added NCA based XORed operation to the existing Amir’s algorithm. Detailed steps of the modified Amir’s scheme are given as:
First, convert the pixel value of plaintext image I to binary value of 8 bits and store that binary value in I’.
where i and j are the positions of pixel value plaintext image I and 8 represents that the binary number are in range of 8 bits.
Split 8 bits pixels value into 4 bits frames, i.e. MSBs and LSBs. The binary value of MSBs and LSBs are again converted to decimal value, where the decimal value of MSBs and LSBs represent the row and column positions, respectively.
The Amir’s scheme utilizes chaotic behaviour of the Logistic map and uses more than one substitution box. Logistic chaotic map generates random values that randomly select S-box which is employed in the substitution process. The proposed modification is as follows:
Random values obtained from Eq. (2) are multiplied with a higher number, i.e. ${(10)^{14}}$ and stored in a variable Y. Pixels values obtained via the Amir’s scheme are XORed with Y to get Z. In order to restrict values between 0–255, modulo 256 operation is applied and obtained results are stored as a final ciphertext image C. The stepwise flowchart for the proposed algorithm is shown in Fig. 3. The decryption process is reverse of the aforementioned scheme. All the steps shown in Fig. 3 can be applied in reverse order to obtain the plaintext Cameraman image I from encrypted Cameraman image C.
4 Results and Comparative Analysis
Comparison needs to be done between the results of the Amir’s scheme (Anees et al., 2014a), Li’s scheme (Li et al., 2017) and the proposed scheme. The Li’s scheme is based on single dimension Skew tent chaotic map which cannot resist many differential attacks. In our proposed scheme, the Logistic chaotic map is utilized for the selection of S-box only. This would allow supporting the effectiveness of the proposed algorithm. As shown in Figs. 6, 7, 10 and 11, results are improved visually. To strengthen this argument, comparative results of the two algorithms are shown in Tables 1, 2, 3 and 4. As the correlation coefficients improve, similarity between the plaintext image and the ciphertext image decreases. Mathematically, correlation coefficients can be calculated as
where
In the above equation, E stands for expected value operator. From Fig. 12, one can see that the original plaintext Cameraman image has correlation in horizontal, vertical and diagonal directions, respectively. When the Cameraman image is encrypted via the proposed scheme, a disorder distribution without regular pattern appears shown in Fig. 13. Special attention must be given to the information entropy analysis, where the value of the security parameter approaches to 8 in the proposed algorithm. Entropy value close to 8 is considered as ideal which was proposed in the Shannon theory of information entropy. Entropy is the measure of unpredictability of the information content. The closer the value of entropy to ideal value, i.e. 8 bits, the more effective is the algorithm. As outlined in the problem statement, our objective is to improve the encryption results for a binary image. The entropy value has significantly increased from 2 to around 7.9. Mathematically, entropy can be written as:
where $p({x_{i}})$ is the probability of random variable x at ith index. Key sensitivity describes the percentage change resulting from a single bit change in the key on the decryption process or the difference in the two cipher images. The results show that the value of the parameter increases significantly, making it difficult to retrieve the contents of the plain image. Likewise, values for Peak Signal to Noise Ratio (PSNR) have also improved. Mathematically, PSNR can be defined as:

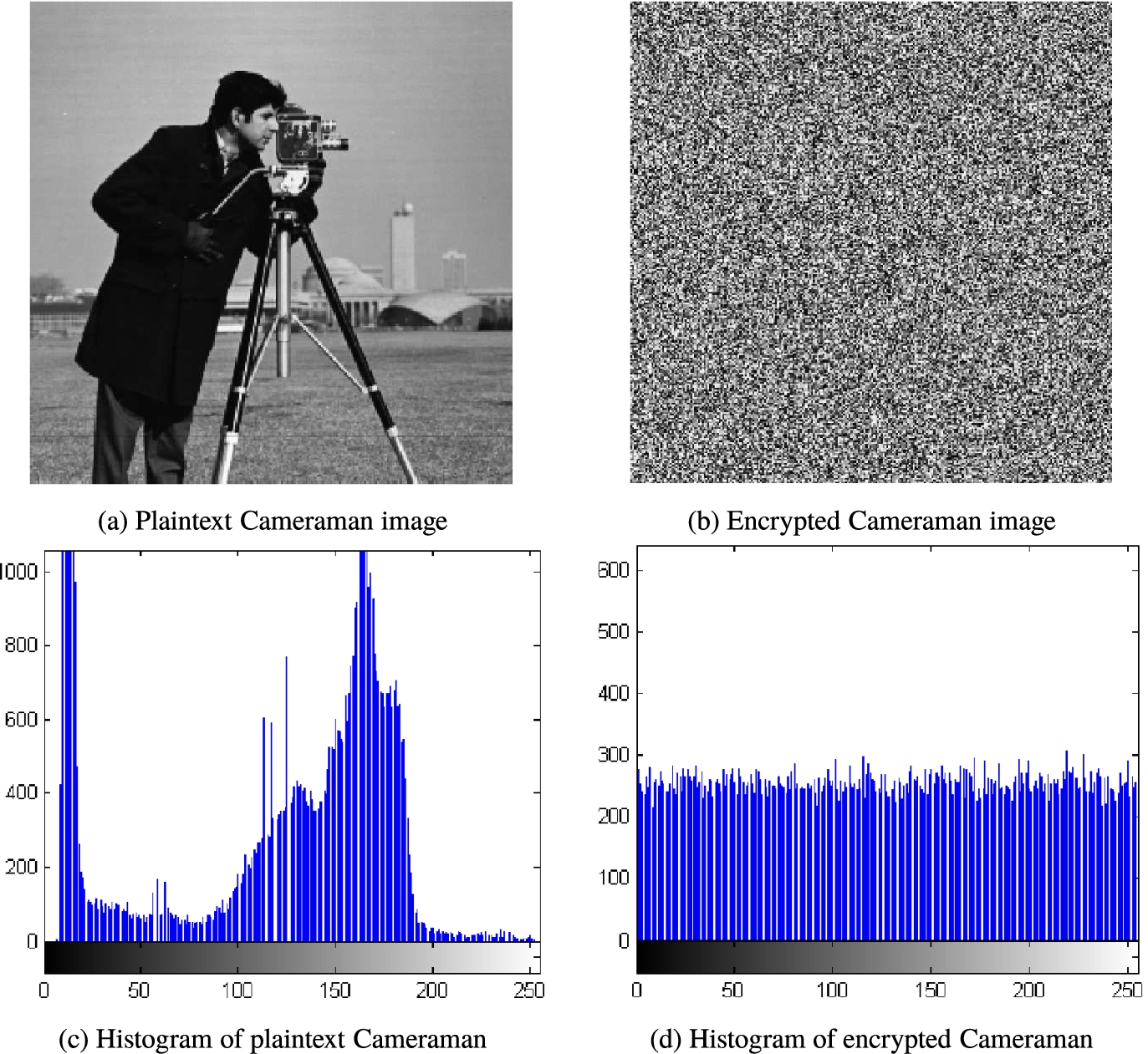

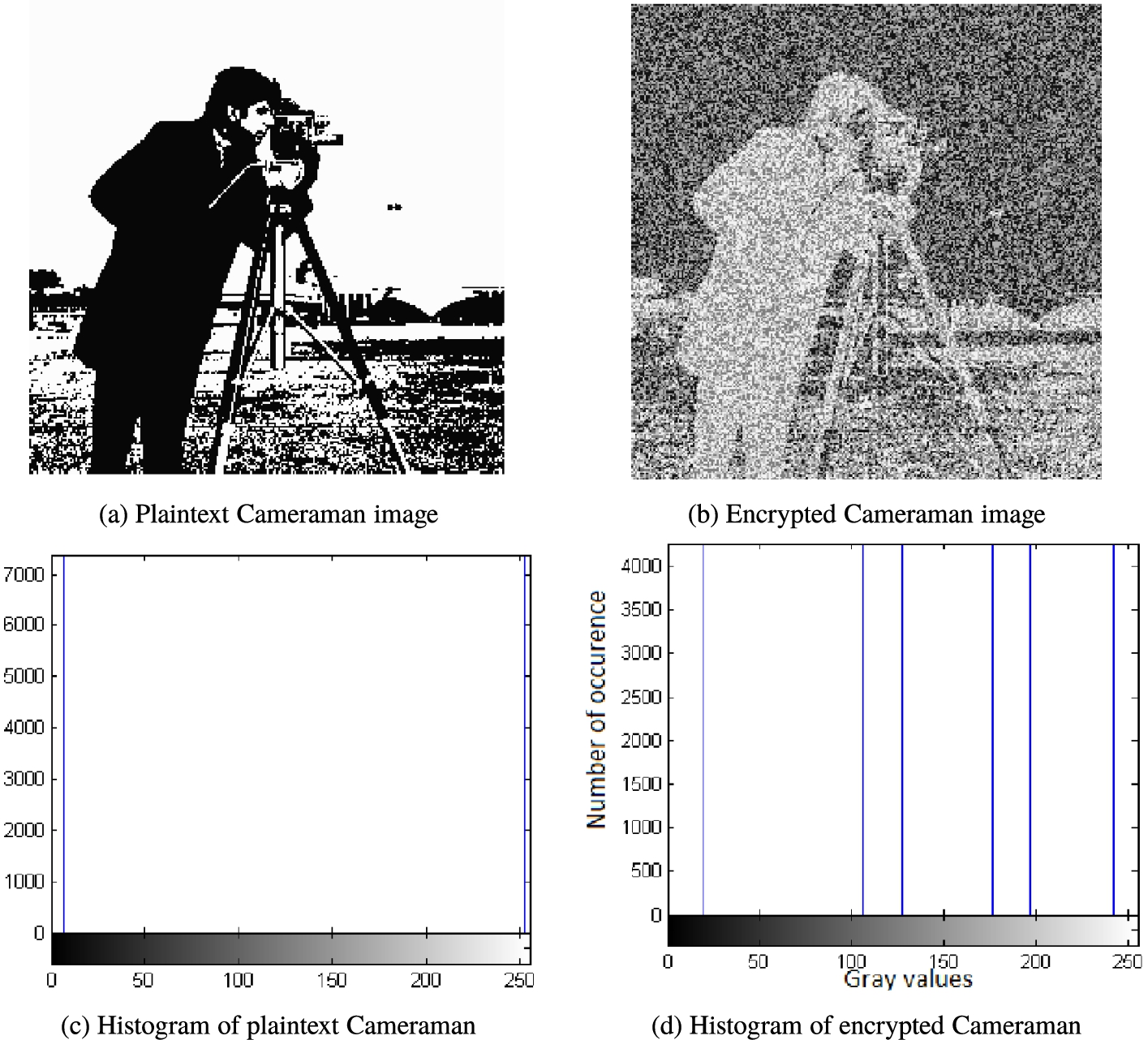

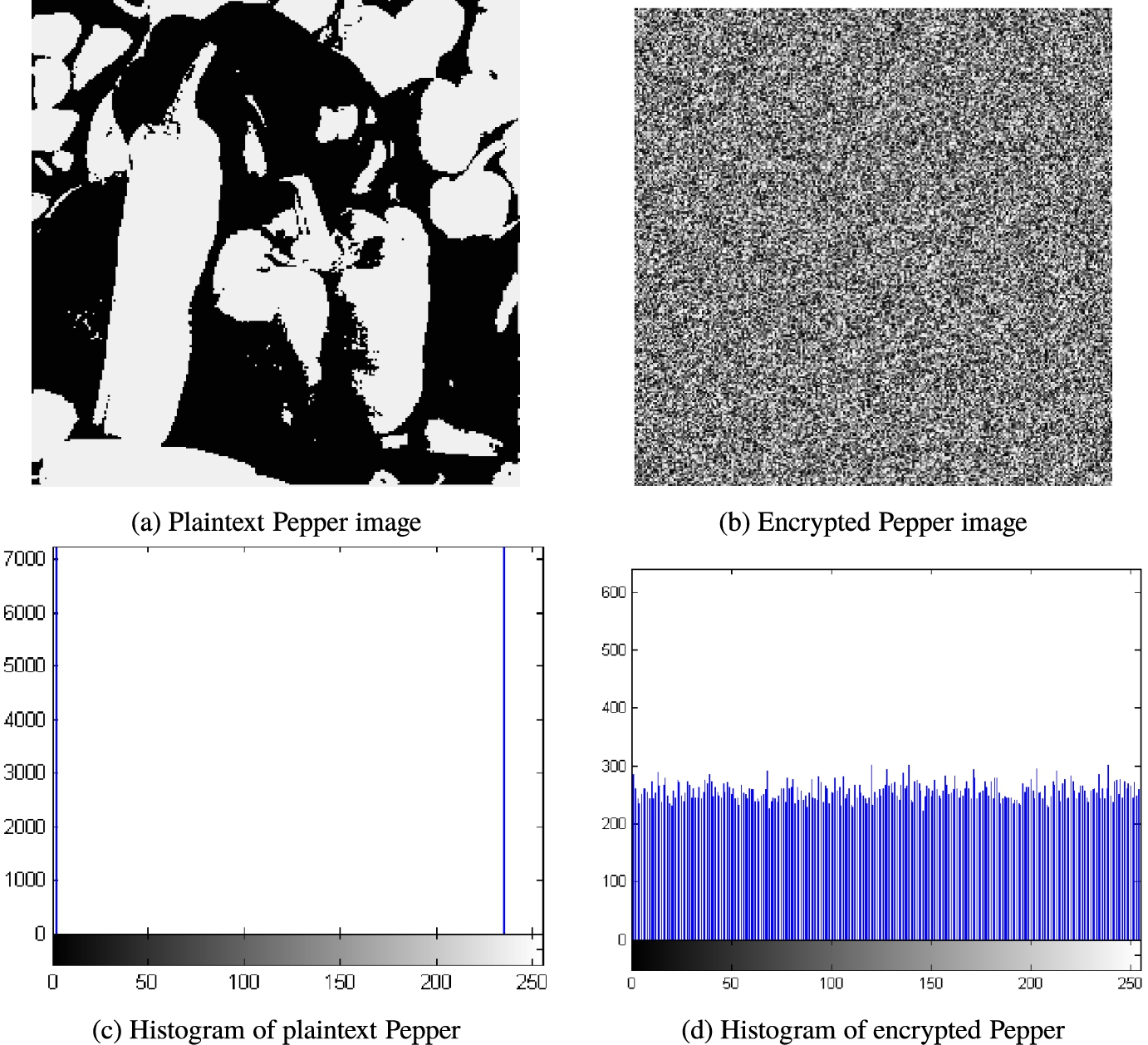

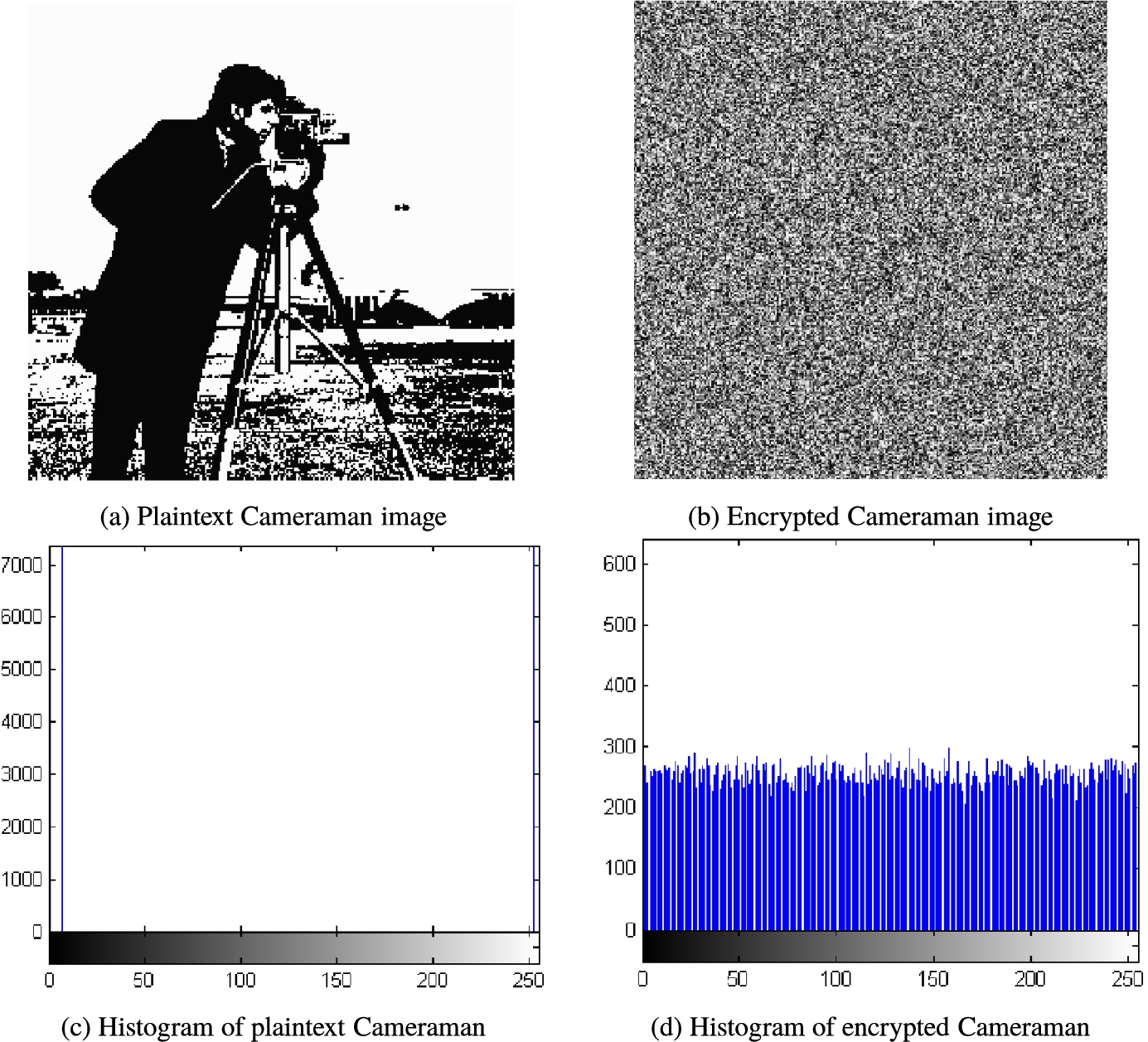

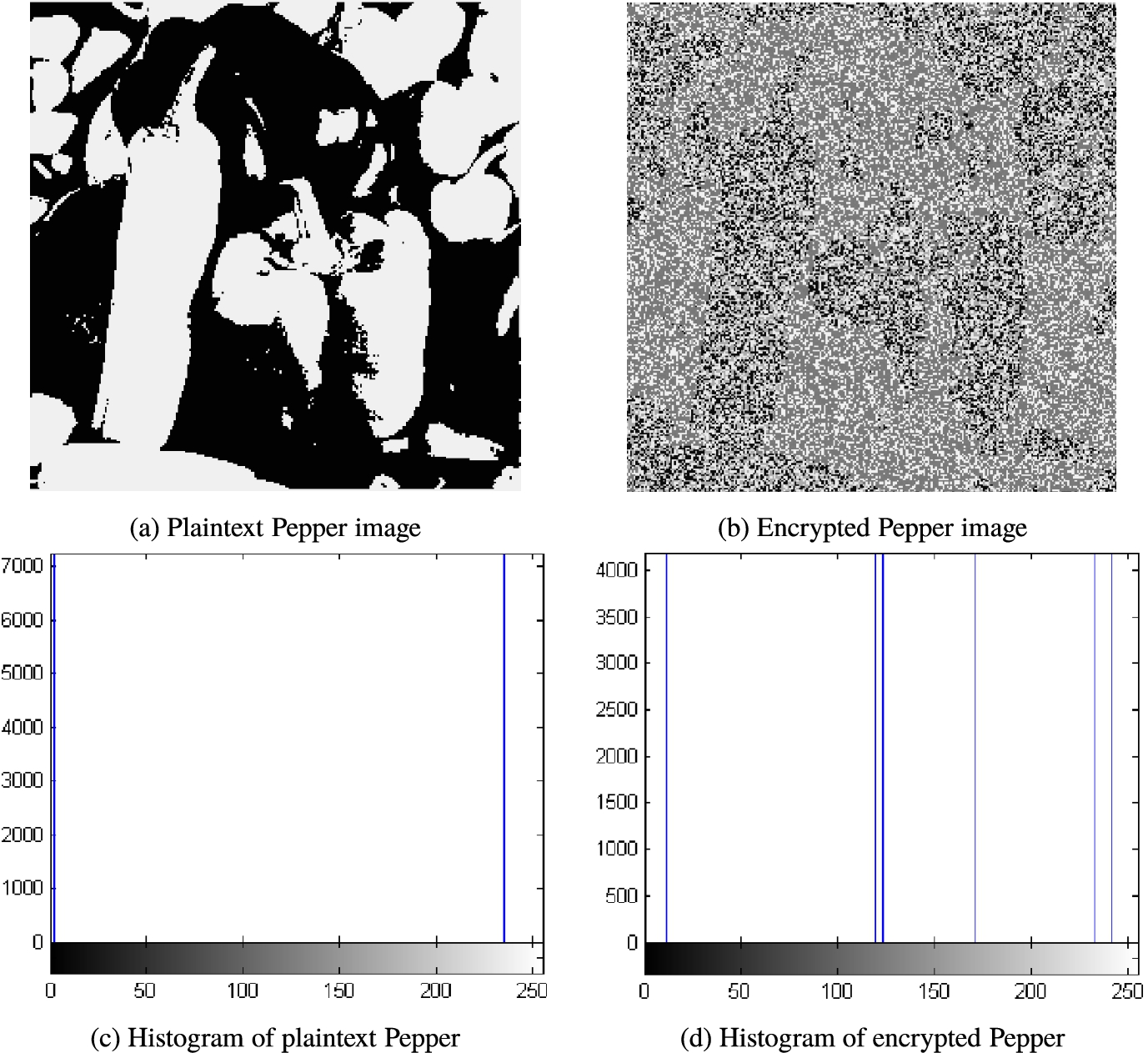

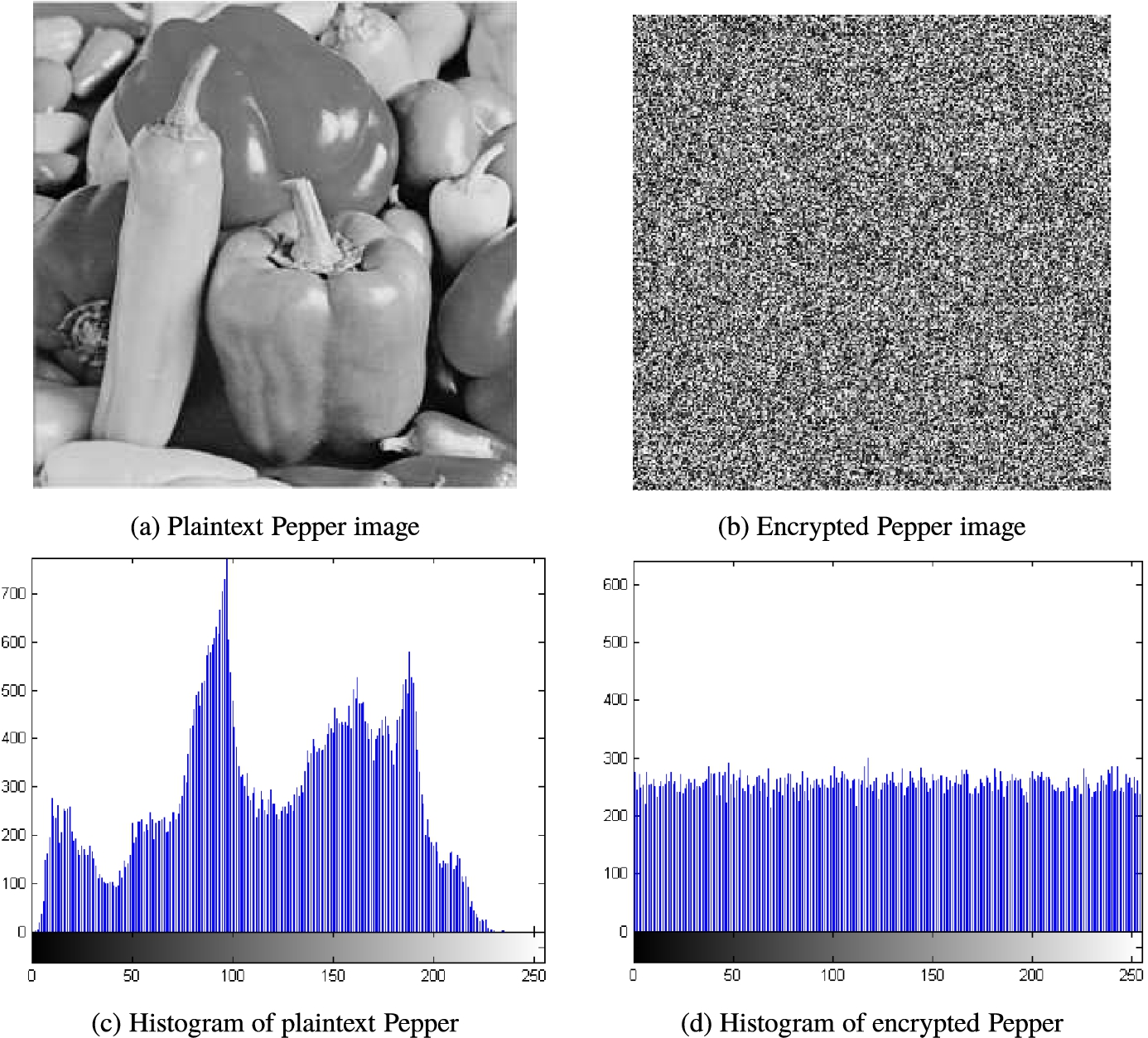

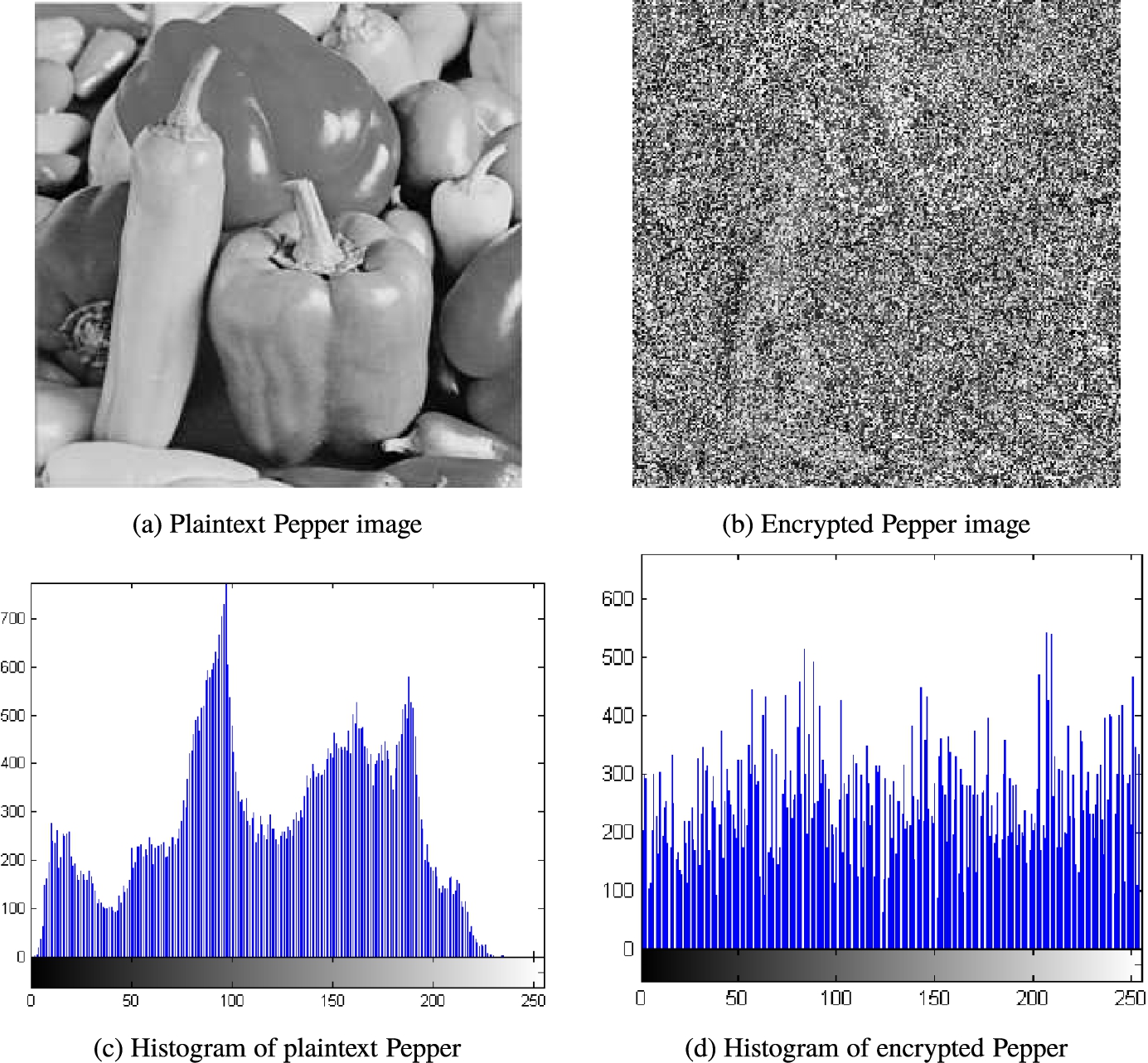

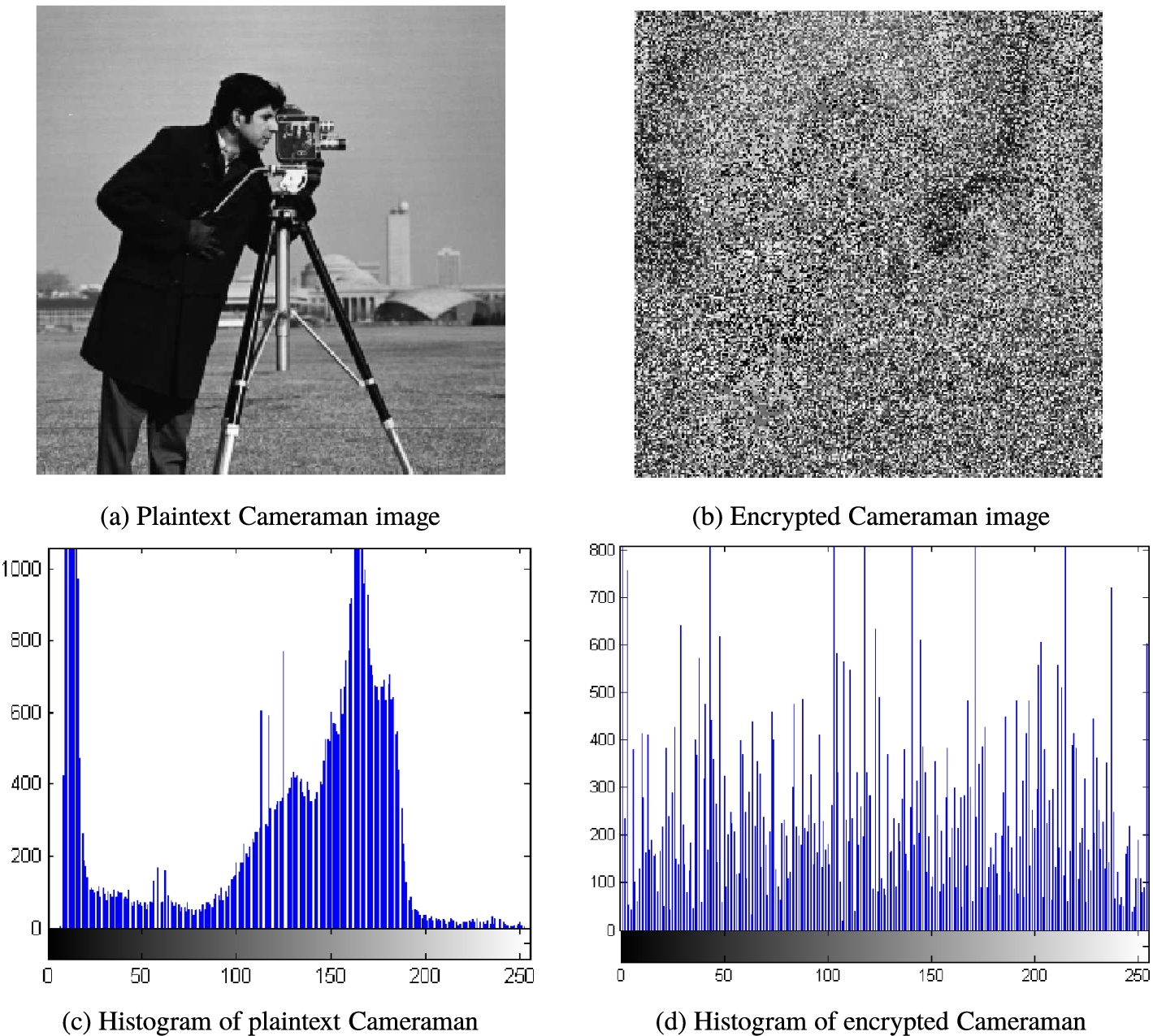

where ${I_{\mathit{MAX}}}$ is the maximum pixel value of the plaintext image. Histogram analysis shows that the pixels values of the encrypted image (resulting from the proposed algorithm) are distributed evenly over the entire range, which can be seen from Figs. 6(d), 7(d), 10(d) and 11(d). The probability of occurrence of each pixel value is therefore the same. This normalizes the image in such a way that the distribution of the information content is evenly distributed and it does not concentrate over certain values.
(8)
\[ \mathit{PSNR}=20\times {\log _{10}}\bigg(\frac{{I_{\mathit{MAX}}}}{\sqrt{\mathit{MSE}}}\bigg),\]Fig. 12
Plot of randomly chosen adjacent pixel of plaintext Cameraman image at pixel locations x and y (a) horizontal direction, (b) vertical direction, (c) diagonal direction.

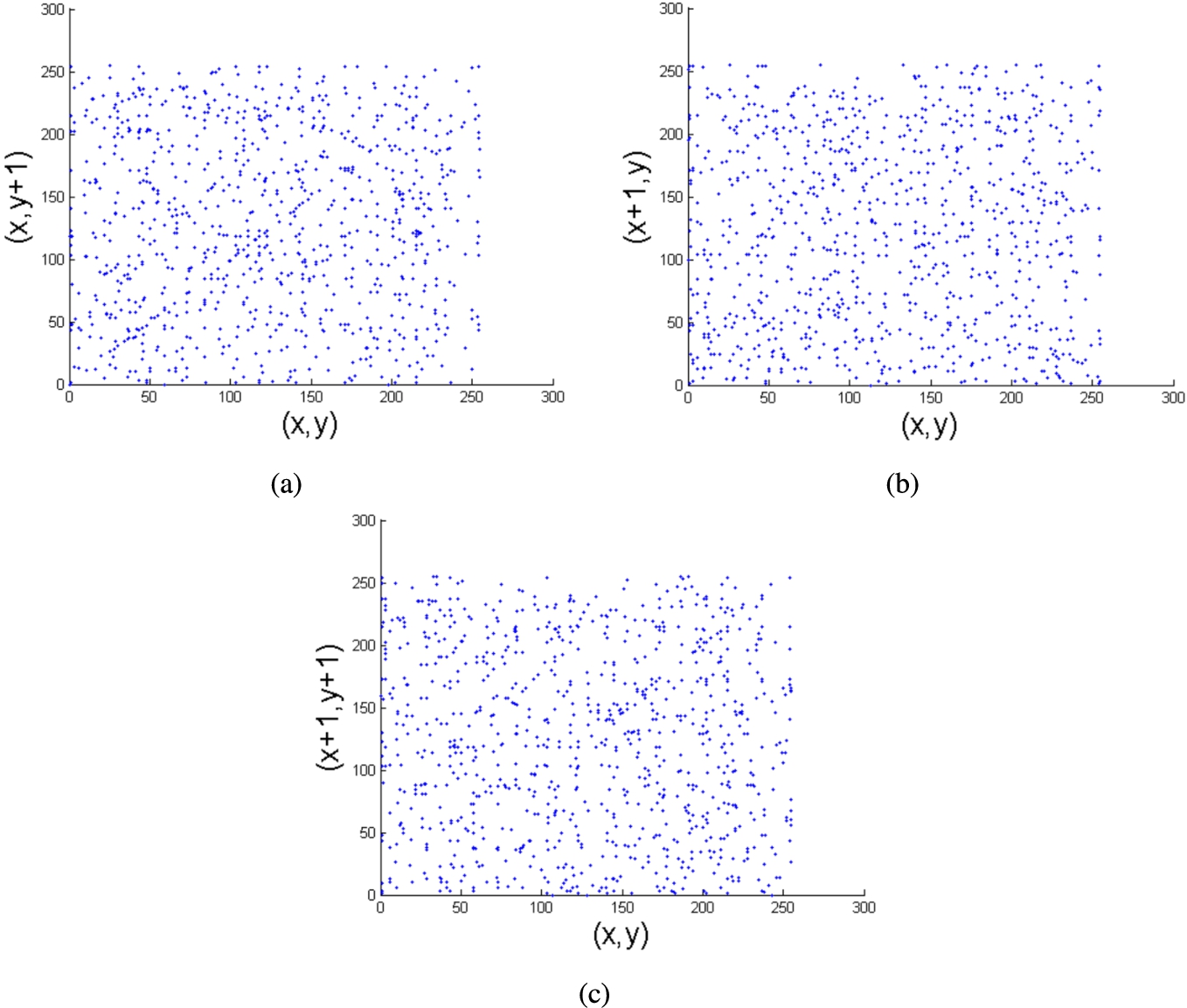

Fig. 13
Plot of randomly chosen adjacent pixel of encrypted Cameraman image at pixel locations x and y (a) horizontal direction, (b) vertical direction, (c) diagonal direction.
Other parameters like Mean Square Error (MSE), Number of Pixel Change (NPCR) and Uniform Average Change Intensity (UACI) are also calculated. MSE basically measures the cumulative square error between two digital images. MSE can be used to find the avalanche effect. NPCR and UACI are used to check the effect of single pixel change on the whole image. Mostly, for any encryption scheme, a small change in the plaintext image pixel value should cause significant change in the ciphertext image. Mathematically, MSE, NPCR and UACI are written as:
where
Here, M and N denote the number of rows and columns, respectively. $C(i,j)$ corresponds to ciphertext image pixel at ith row and jth column position and ${C^{\ast }}(i,j)$ corresponds to the ciphertext image pixel at ith row and jth column position; they differ by only a single bit. Similarly, quality analysis is also done to figure out the quality of the proposed image encryption scheme. The quality of an algorithm can be calculated via Irregular Deviation $I-D$ and Deviation from Uniform Histogram $D-P$. Mathematically, these parameters can be defined as:
where ${H_{i}}$ computes the amplitude of histogram difference between plaintext image and encrypted image at index i and ${A_{h}}$ calculates the average sum of histogram values. ${H_{Ei}}$ is the ideal while ${H_{E}}$ is the real histogram value of encrypted image at index i. Smaller value of $I-D$ and $D-P$ represents the high quality of an image encryption scheme. Likewise, contrast analysis is also carried out to allow an observer to strongly recognize the entity in texture of an image. Mathematically, contrast can be computed as:
where $\Gamma (i,j)$ represents the number of Gray-Level Co-Occurrence Matrices (GLCM). High contrast value shows that the image gray levels are considerably different. Using the aforementioned parameters, we compute the simulation results for our encryption scheme. Simulation results of gray and binary images for both Cameraman and Pepper images are shown from Tables 1 to 4. All simulation results are in favour of the proposed scheme. Apart from tabular values, we have also shown the correlation plots for the plaintext and ciphertext Cameraman image in Figs. 12 and 13, respectively. From these plots, one can see lower correlation between adjacent pixels.
(11)
\[\begin{array}{l}\displaystyle D(i,j)=\left\{\begin{array}{l@{\hskip4.0pt}l}0\hspace{1em}& \text{if}\hspace{2.5pt}C(i,j)={C^{\ast }}(i,j),\\ {} 1\hspace{1em}& \text{otherwise}.\end{array}\right.\\ {} \displaystyle \mathrm{UACI}=\frac{1}{M\times N}\bigg[\sum \limits_{i,j}\frac{C(i,j)-{C^{\ast }}(i,j)}{255}\bigg]\times 100.\end{array}\](13)
\[\begin{array}{l}\displaystyle D-P=\frac{{\textstyle\textstyle\sum _{i=0}^{255}}(|{H_{Ei}}-{H_{E}}|)}{M\times N},\\ {} \displaystyle {H_{Ei}}=\left\{\begin{array}{l@{\hskip4.0pt}l}\frac{M\times N}{256}\hspace{1em}& \text{if}\hspace{2.5pt}0\leqslant {E_{i}}\leqslant 255,\\ {} 0\hspace{1em}& \text{elsewhere},\end{array}\right.\end{array}\]Table 1
Evaluation of the proposed scheme for gray scale Cameraman image.
| Parameter | (Anees et al., 2014a) | (Li et al., 2017) | Proposed |
| MSE | 38.3683 | 40.3293 | 40.3774 |
| PSNR | 16.8046 | 6.7754 | 16.8233 |
| Entropy (H) | 7.9000 | 7.9901 | 7.9966 |
| NPCR | 98.8251 | 9.545 | 99.4537 |
| UACI | 33.1335 | 33.1907 | 33.6723 |
| I-D | 48,834 | 44,765 | 39,003 |
| D-P | 0.3446 | 0.3290 | 0.0678 |
| Contrast | 7.9935 | 8.6755 | 10.0678 |
| Key Sensitivity Difference | 66.2567 | 99.5453 | 99.6353 |
| Horizontal Direction Corr Coff | −0.0171 | 0.0132 | 0.0536 |
| Vertical Direction Corr Coff | 0.0449 | 0.0019 | −0.0047 |
| Diagonal Direction Corr Coff | 0.0250 | 0.0141 | 0.0089 |
| Time (Second) | 7.46 | 7.88 | 7.50 |
Table 2
Evaluation of the proposed scheme for binary Cameraman image.
| Parameter | (Anees et al., 2014a) | (Li et al., 2017) | Proposed scheme |
| MSE | 39.0926 | 40.0739 | 40.4153 |
| PSNR | 8.3952 | 8.7952 | 9.4948 |
| Entropy (H) | 2.2599 | 7.8867 | 7.9973 |
| NPCR | 66.7236 | 98.5453 | 99.2365 |
| UACI | 24.31205 | 33.2334 | 33.8234 |
| I-D | 122,876 | 98,745 | 20,554 |
| D-P | 2.0021 | 0.5587 | 0.0512 |
| Contrast | 5.7745 | 7.8876 | 10.1254 |
| Key Sensitivity Difference | 66.3325 | 98.4867 | 99.0452 |
| Horizontal Direction Corr Coff | 0.0091 | 0.0099 | −0.0046 |
| Vertical Direction Corr Coff | 0.0918 | 0.0418 | −0.0122 |
| Diagonal Direction Corr Coff | 0.0443 | 0.5280 | 0.0328 |
| Time (Second) | 7.48 | 7.67 | 7.51 |
Table 3
Evaluation of the proposed scheme for gray scale Pepper image.
| Parameter | (Anees et al., 2014a) | (Li et al., 2017) | Proposed |
| MSE | 39.4456 | 40.6745 | 40.8832 |
| PSNR | 15.9943 | 16.0045 | 16.8809 |
| Entropy (H) | 7.9102 | 7.9811 | 7.9977 |
| NPCR | 98.7824 | 97.6535 | 99.5562 |
| UACI | 33.2564 | 33.3326 | 33.7529 |
| I-D | 118,654 | 100,342 | 25,231 |
| D-P | 1.6432 | 0.7653 | 0.0923 |
| Contrast | 8.4312 | 8.6523 | 9.5678 |
| Key Sensitivity Difference | 66.4432 | 99.6231 | 99.6489 |
| Horizontal Direction Corr Coff | 0.0282 | 0.0331 | 0.0127 |
| Vertical Direction Corr Coff | 0.0481 | 0.0220 | 0.0065 |
| Diagonal Direction Corr Coff | 0.0502 | 0.0328 | 0.0142 |
| Time (Second) | 7.41 | 7.63 | 7.45 |
Table 4
Evaluation of the proposed scheme for binary scale Pepper image.
| Parameter | (Anees et al., 2014a) | (Li et al., 2017) | Proposed |
| MSE | 38.0543 | 40.1643 | 40.4687 |
| PSNR | 8.0065 | 8.4186 | 9.5196 |
| Entropy (H) | 2.3290 | 7.7156 | 7.9920 |
| NPCR | 66.6729 | 98.6112 | 99.5300 |
| UACI | 27.6599 | 33.7232 | 33.8823 |
| I-D | 121,115 | 101,659 | 21,772 |
| D-P | 1.7991 | 0.5834 | 0.1402 |
| Contrast | 3.5234 | 7.3332 | 9.6645 |
| Key Sensitivity Difference | 66.7705 | 98.5522 | 99.3001 |
| Horizontal Direction Corr Coff | 0.0101 | 0.0221 | 0.0058 |
| Vertical Direction Corr Coff | 0.0432 | 0.0664 | −0.0239 |
| Diagonal Direction Corr Coff | 0.0551 | 0.1200 | 0.0211 |
| Time (Second) | 7.44 | 7.61 | 7.47 |
5 Conclusion
We proposed a new algorithm on the basis of weaknesses found in the Amir’s scheme. Non-Linear Chaotic Algorithm (NCA) is employed for removing correlation and diffusion in plaintext image. The proposed algorithm enhances the security of the Amir’s scheme. In high correlated images such as binary images, the proposed scheme works very well. Desired results are achieved and performance upgrade is verified by comparing the results with the original scheme. Numbers of security parameters to evaluate the effectiveness of an image encryption algorithm are used to compare both modified and original schemes. These parameters include the correlation, information entropy, Unified Average Change Intensity (UACI), Peak Signal to Noise Ratio (PSNR), key sensitivity difference, avalanche effect and Number of Pixel Change Rate (NPCR). Although the computational complexity of the proposed scheme is a bit higher due to NCA based diffusion, this additional overhead provides higher security for the proposed scheme.
