1 Introduction
Investors frequently allocate a portion of their earnings to savings to safeguard their financial future. Their goal is typically to maximize investment efficiency, leading them to pursue instruments that promise the highest possible return relative to an acceptable level of risk (Çetin et al., 2025). However, the intricate and dynamic nature of contemporary financial markets introduces significant uncertainty, mandating the adoption of risk-mitigation strategies. The construction of optimal portfolios is primarily guided by two historical theoretical approaches: Traditional Portfolio Theory and Modern Portfolio Theory (MPT) (Yılmaz, 2025). Traditional portfolio theory, which was dominant until the 1950s, relied on the principle of simple diversification (Deniz and Okuyan, 2018). This perspective suggested that risk could be reduced merely by assembling securities with varying characteristics and quantities, largely disregarding the correlations between them (Leković, 2021).
Modern Portfolio Theory, pioneered by Harry Markowitz in 1952, fundamentally changed this view, asserting that asset correlations are essential considerations for constructing optimal portfolios (Uyar, 2019). MPT emphasizes that simply increasing the number of assets is insufficient to reduce risk; instead, incorporating securities with low correlation significantly enhances diversification benefits (Wysocki and Sakowski, 2022). Markowitz’s work, which presented the Mean–Variance Optimization (MVO) model, established the foundation for modern portfolio theory (Curtis, 2004).
MVO instructs investors to select the portfolio with the lowest variance (risk) from all portfolios capable of meeting a specified return target. Portfolios exhibiting higher variance are, by definition, deemed inefficient (Kolm et al., 2014). Despite its theoretical importance, MVO faces practical issues, including high sensitivity to estimation errors and a dependence on extensive historical data series (Lorenzo and Arroyo, 2023). These limitations frequently lead to unstable or suboptimal results, particularly in scenarios involving a high-dimensional set of assets. These inherent weaknesses have spurred researchers to develop alternative optimization models, such as the Arbitrage Pricing Model (Ross, 1976), the Mean Absolute Deviation (MAD) method (Konno and Yamazaki, 1991), the Black–Litterman model (Black and Litterman, 1991), the Capital Asset Pricing Model (CAPM) (Sharpe, 1963; Lintner, 1965; Mossin, 1966), and the Fama–French Three-Factor Model (Fama and French, 1993).
Multi-Criteria Decision Making (MCDM) methods are now extensively used in portfolio formation, as they facilitate the concurrent assessment of multiple criteria in complex decision landscapes. Furthermore, heuristic algorithms and artificial intelligence (AI)-based approaches are frequently preferred due to their demonstrated capacity to manage large datasets efficiently. The Hierarchical Risk Parity (HRP) algorithm is one such machine-learning-based methodology.
Introduced by De Prado (2016), the HRP algorithm was specifically engineered to overcome the deficiencies of conventional optimization techniques. HRP merges risk-based allocation with hierarchical clustering, effectively mitigating the instability, concentration, and underperformance issues commonly associated with quadratic optimization. It enables portfolio construction using only a single covariance matrix (Kaae et al., 2022). However, subsequent analyses have identified two critical limitations in HRP: the chaining problem and the inability to determine the optimal number of clusters (Kaae et al., 2022).
The core purpose of this research is to design a novel hybrid portfolio optimization algorithm that directly addresses both the chaining problem and the challenge of optimal cluster determination within the HRP framework. Our approach employs a comprehensive three-stage methodology. The initial phase involved a literature review focusing on HRP, the MEREC (Method based on the Removal Effects of Criteria) technique, and the WEDBA (Weighted Euclidean Distance Based Approach) method. The second phase executed portfolio optimization using seven distinct linkage methods (Ward, single, complete, average, weighted, centroid, and median) within the HRP structure. The third phase incorporated the Elbow method into the HRP algorithm specifically to resolve the chaining and optimal cluster identification issues. This analysis was further enriched by the HRP-MCDM approach. Finally, we conducted a rigorous comparison between the performance of portfolios generated by the standalone HRP algorithm and those from the hybrid HRP-MCDM approach to thoroughly evaluate their relative effectiveness.
This study seeks to provide substantial insights into enhancing clustering techniques and refining decision-making processes in financial management, thereby making a significant contribution to the portfolio optimization field. The HRP, MEREC, and WEDBA methods were selected for this study because their respective strengths are complementary and highly suitable for overcoming the limitations of traditional portfolio optimization models. The HRP algorithm was chosen over conventional mean-variance models because it reduces concentration risk, avoids covariance matrix inversion, and yields more stable weight allocations even when financial data is noisy. However, given HRP’s acknowledged weaknesses—specifically the chaining problem and the lack of a mechanism for optimal cluster determination—additional methodological support is essential. Consequently, the MEREC method was included as an objective and data-driven weighting technique. It calculates the influence of each criterion without relying on subjective expert judgment, making it superior to many subjective or hybrid weighting methods used in MCDM. Similarly, the WEDBA method was preferred over other ranking techniques because it assesses alternatives based on weighted Euclidean distances to ideal and non-ideal solutions, allowing for a more robust performance evaluation within the HRP-derived clusters. Together, these three methods establish a powerful hybrid framework that merges machine-learning-based risk clustering with objective multi-criteria evaluation, providing a solution that is more resilient and practically applicable than any of the individual components used in isolation.
2 Literature Review

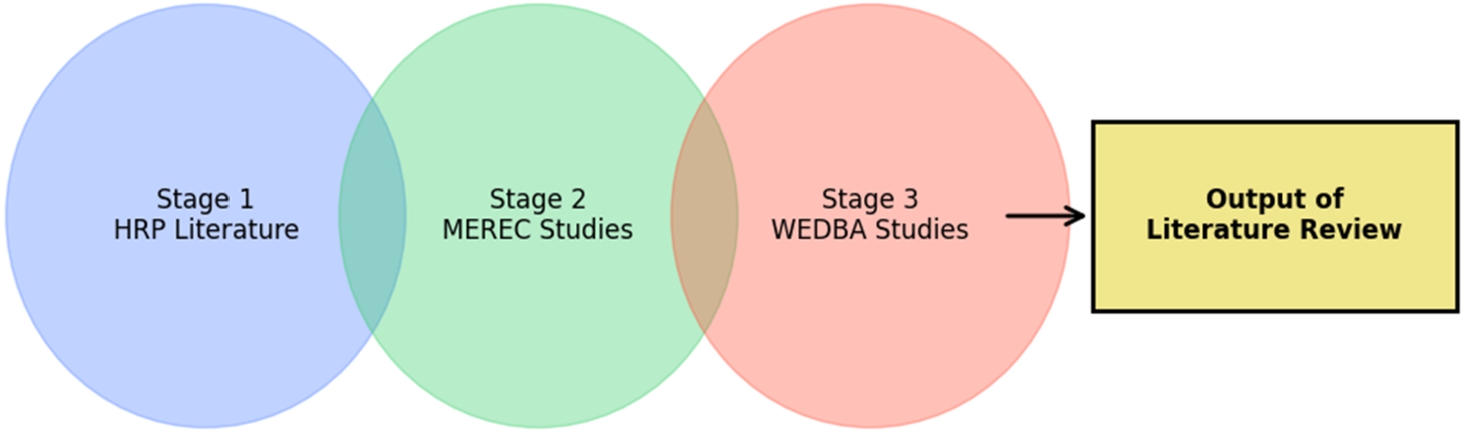

The literature review for this study was structured using a three-stage methodological framework. The initial stage involved a detailed examination of the HRP algorithm and previous research that proposed enhancements to its core structure. The second stage concentrated on studies that have employed the MEREC method, while the third stage reviewed research utilizing the WEDBA method. The general design of the methods explored in this study, along with the overall flow of the literature review, is visually represented in Fig. 1.
2.1 Literature Review on the HRP Method
In the initial phase of this review, we conducted a systematic examination of the Hierarchical Risk Parity (HRP) algorithm, along with various scholarly works aimed at refining or expanding its core methodology. Since its original introduction by De Prado (2016), HRP has quickly captured the interest of the portfolio optimization community, prompting numerous researchers to apply and adapt the approach across a wide spectrum of financial markets and distinct asset classes.
Early studies immediately recognized HRP’s potential. Alipour et al. (2016), for instance, benchmarked HRP against Minimum Variance, Inverse Variance Parity (IVP), and Quantum-Inspired HRP (QHRP) across a global set of 38 futures contracts, which included equity, bond, and commodities like oil, wheat, and gold. Their comparative analysis clearly established QHRP as the superior performer among all models tested. Focusing on the Indian market, Jothimani (2017) pioneered an HRP model based on Gerber statistics (HRP-GS), employing machine-learning-driven optimization techniques. This model’s efficacy was evaluated against both the standard HRP and Global Minimum Variance portfolios derived from historical correlations and Gerber statistics. Subsequently, Raffinot (2018) put forward the Hierarchical Equal Risk Contribution (HERC) model, which integrates HRP with the HCAA method. By testing this model on European, US, and 365 S&P 500 stocks, Raffinot demonstrated that HERC portfolios structured using Conditional Value at Risk (CVaR) provided statistically superior risk-adjusted performance, especially when incorporating Conditional Drawdown at Risk (CDaR) structures.
Further validating the model’s attractiveness, Liutov (2018) analysed closing prices for 30 DJIA stocks between 1990 and 2017 and concluded that HRP offered a more appealing option for investors compared to the traditional Mean-Variance Optimization (MVO) model. Building on this, Jothimani and Bener (2019) introduced the HRP-HC (Historical Correlation–Based HRP) alongside the HRP-GS models, evaluating them against 250 firms on the Toronto Stock Exchange over a decade (2007–2016). Their findings consistently pointed to the HRP-GS model’s superiority. Contrasting results were noted by Uyar (2019), who assessed HRP, Minimum Variance, and IVP portfolios using BIST, FTSE, and DAX index returns. Uyar’s work indicated that HRP’s performance lagged on the BIST and FTSE indices but proved positive on the DAX. In 2020, Bechis constructed various portfolios using 30 DJIA stocks and 15 ETFs, prioritizing profitability, diversification, and risk minimization. Compared to models like Minimum Variance, IVP, CLA, equally weighted, and Randomized Weighted Portfolios (RWP), HRP consistently delivered well-diversified portfolios. Supporting this, Barziy and Chlebus (2020) conducted an evaluation of 32 ETFs spanning US, Asian, and European markets using high-frequency, 30-minute data, which confirmed that HRP successfully outperformed MVO, IVP, and CLA.
The application of HRP has also rapidly expanded to the volatile cryptocurrency space. For instance, Papenbrock et al. (2021) developed a tree-based HRP model leveraging Adaptive Serial Risk Parity (ASRP), showing that it performed better than the classical HRP using data from the 14 largest cryptocurrencies. Similarly, Jaeger et al. (2021) compared HRP with the Equal Risk Contribution (ERC) model using a comprehensive 2000–2020 dataset, ultimately concluding that HRP generated more favourable outcomes. Additionally, Burggraf (2021) confirmed HRP’s risk-reduction advantage using a large dataset of 61 cryptocurrencies. Outside of crypto, Nourahmadi and Sadeqi (2021) applied HRP to the 50 largest stocks on the Tehran Stock Exchange, identifying performance that was superior to Minimum Variance, equal weighting, and standard Risk Parity portfolios.
Subsequently, several researchers focused on introducing enhanced HRP variations. The upHRP algorithm, proposed by Amor et al. (2022), successfully demonstrated improvements over Minimum Variance, IVP, and the baseline HRP. Likewise, Shahbazi and Byun (2022), analysing 61 cryptocurrencies, identified HRP as the most effective strategy in terms of risk-adjusted returns. Nourahmadi and Sadeqi (2022) revisited the Tehran Stock Exchange, testing HRP against Minimum Variance on 30 stocks, and once again reported stronger performance from the HRP method.
In 2023, Sen and Dutta applied HRP and Eigen Portfolios across seven sectors of the Indian National Stock Exchange, concluding that the HRP approach generated higher performance. A related study by Sen (2023) compared HRP with Reinforcement Learning (RL)–based portfolios, finding that RL portfolios achieved better results based on metrics like returns, risk, and Sharpe ratios. Reis et al. (2023) conducted a critical out-of-sample comparison, evaluating HRP against various traditional allocation methods using pre- and post-pandemic data for 25 Brazilian stocks, where HRP was shown to generally outperform its alternatives. Further methodological improvements came from Uyar and Yavuz (2023), who introduced the FRAKTAL-HRP method, which demonstrated a stronger Sharpe ratio performance than Minimum Variance portfolios when tested on the 30 largest Frankfurt Stock Exchange stocks.
Contemporary contributions continue to evaluate and build upon the HRP framework. Palit and Prybutok (2024) confirmed HRP’s superior performance over MVO using sector-level S,P 500 data. Deković and Šimović (2025) presented methodological enhancements to the HRP algorithm that resulted in significantly increased computational efficiency for large-scale, real-time portfolio management. Through extensive Monte Carlo simulations, Antonov et al. (2025) compared HRP with the classical Markowitz model and successfully validated HRP’s inherent advantage. Arian et al. (2025) addressed HRP’s limitation to a single feature by introducing QHRP and Kernel-based HRP (KHRP), with both variations proving to outperform the original HRP. Finally, Ramirez-Carrillo et al. (2025) applied HRP to the NUAM region (Chile, Colombia, and Peru). While their comparative study showed that the maximum Sharpe ratio portfolio generated the highest returns, HRP was observed to offer a more balanced and favourable risk–return trade-off. A summary of the literature review on the HRP method is presented in Table 1.
Table 1
Studies on HRP and enhanced HRP approaches.
| Study | Objective/problem addressed | Methodology/model | Dataset/area | Key findings | Relevance to this study |
| De Prado (2016) | Overcome limitations of MVO; propose risk-based clustering | HRP (tree clustering, quasi-diagonalization, recursive bisection) | US equities | HRP outperforms MVO and IVP | Foundation of HRP framework |
| Alipour et al. (2016) | Compare classical, quantum-inspired HRP | HRP, IVP, Minimum Variance, QHRP | Futures: equities, bonds, commodities | QHRP performs best | Shows potential for HRP extensions |
| Jothimani (2017) | Improve HRP performance | HRP-GS | Indian market assets | HRP-GS superior to correlation-based HRP | Highlights enhancements to HRP |
| Raffinot (2018) | Reduce chaining issue | HERC (HRP + HCAA) | EU, US stocks; S&P500 | CVaR-HERC yields better diversification | Directly supports using Elbow to resolve chaining |
| Liutov (2018) | Test HRP vs MVO | HRP | DJIA stocks | HRP more attractive for investors | Confirms HRP benefits |
| Jothimani and Bener (2019) | Extend HRP with Gerber statistics | HRP-HC, HRP-GS | Toronto Stock Exchange | HRP-GS outperforms HRP-HC | Shows role of alternative correlation structures |
| Uyar (2019) | Compare HRP with MVO, IVP | HRP, IVP, MinVar | BIST, FTSE, DAX | HRP poor on BIST, FTSE but good on DAX | Shows market-dependent behaviour |
| Bechis (2020) | Create diversified low-risk portfolios | HRP, MVO, IVP, CLA, RWP | DJIA + ETF data | HRP creates well-diversified portfolios | Supports HRP’s diversification strength |
| Barziy and Chlebus (2020) | Test HRP on high-frequency ETFs | HRP, MVO, IVP, CLA | 30-min ETF data | HRP outperforms other strategies | Shows robustness on high-frequency data |
| Papenbrock et al. (2021) | Optimize crypto portfolios | Tree-based HRP + ASRP | 14 cryptocurrencies | Tree-HRP outperforms classical HRP | Shows HRP applicability to volatile assets |
| Jaeger et al. (2021) | Compare ERC and HRP | HRP, ERC | Multi-asset portfolio | HRP superior | Validates HRP against risk parity |
| Burggraf (2021) | Compare HRP with traditional methods | HRP | 61 cryptocurrencies | HRP reduces risk more effectively | Confirms HRP’s risk-reduction role |
| Nourahmadi and Sadeqi (2021) | Test HRP on TSE | HRP vs MinVar, Equal Weighting | 50 TSE stocks | HRP best risk-adjusted returns | Local evidence for HRP strength |
| Amor et al. (2022) | Improve HRP performance | upHRP | ETFs | upHRP outperforms HRP, IVP, MinVar | Supports development of HRP variants |
| Shahbazi and Byun (2022) | Crypto risk mgmt | HRP vs IV, MinVar, MaxDiv | 61 cryptocurrencies | HRP performs best | Confirms HRP suitability in crypto |
| Nourahmadi and Sadeqi (2022) | HRP vs MinVar | HRP | 30 TSE stocks | HRP outperforms MinVar | More evidence for HRP validity |
| Sen and Dutta (2023) | HRP vs Eigen Portfolios | HRP | NSE sectors | HRP superior | Shows HRP works well sector-wise |
| Sen (2023) | HRP vs RL | Reinforcement Learning, HRP | 13 sectors | RL outperforms HRP | Notes limitations of HRP |
| Reis et al. (2023) | Pre-, post-pandemic performance | HRP vs other allocations | Brazilian market | HRP superior | Shows HRP robustness during crises |
| Uyar and Yavuz (2023) | FRAKTAL-HRP proposal | FRAKTAL-HRP | Frankfurt stocks | FRAKTAL-HRP best Sharpe ratio | Supports hybrid clustering designs |
| Palit and Prybutok (2024) | Long-term HRP performance | HRP vs MVO | S&P500 sectors | HRP higher performance | Confirms earlier findings |
| Deković and Šimović (2025) | Improve computation speed | Improved HRP | Large-scale real-time data | Improved efficiency | Demonstrates scalability |
| Antonov et al. (2025) | HRP vs Markowitz | HRP | Monte Carlo simulations | HRP best performance | Confirms HRP validity with simulations |
| Arian et al. (2025) | Kernel, quantum HRP | QHRP, KHRP | Equity data | Both outperform HRP | Shows benefits of nonlinear extensions |
| Ramirez-Carrillo et al. (2025) | HRP in Latin America | HRP vs EW, Sharpe-Max | Chile, Colombia, Peru | HRP best balanced profile | Regional evidence for HRP |
2.2 Literature Review on the MEREC Method
The second stage of the literature review involved synthesizing relevant studies on the MEREC (Method based on the Removal Effects of Criteria) technique, which has demonstrated wide-ranging applicability across a multitude of domains. MEREC has established itself as a versatile tool, successfully addressing complex decision problems in sectors from technology and strategy to sustainability and regional economics.
In the realm of strategic decision-making and technology, MEREC has been instrumental in areas such as cloud service provider selection (Popović et al., 2021), determining effective e-commerce development strategies (Popović et al., 2022), and aiding in the selection of smart buildings (Elsayed, 2024).
The method’s utility extends significantly to energy, materials, and logistics: it has been used for the selection of renewable energy sources (Goswami et al., 2022), in the choice of phase change materials (Nicolalde et al., 2022), for electric car selection (Puška et al., 2023), developing low carbon tourism strategies (Mishra et al., 2022), and in practical logistics applications like transport planning (Simić et al., 2022) and the selection of pallet trucks (Ulutaş et al., 2022) and even a spray-painting robot (Shanmugasundar et al., 2022).
Furthermore, MEREC is frequently employed in performance evaluation and financial analysis. This includes portfolio construction for investment alternatives (Fidan, 2022), hospital location selection (Hadi and Abdullah, 2022), assessing the entrepreneurship and innovation performance of universities (Satıcı, 2022; Yaşar and Ünlü, 2023) and evaluating the vulnerability performance of countries (Altıntaş, 2023).
More recent applications highlight its growing role in macro- and micro-economic analysis: evaluating the macroeconomic performance of OECD countries (Ersoy, 2023), analysing the performance of the Serbian economy (Lukić, 2023), assessing the vulnerability performance of nations (Altıntaş, 2023), and evaluating countries’ innovation performance (Ecer and Ayçin, 2023). Sectoral and financial studies also leverage MEREC, including analyses of Türkiye’s carbon emission profile (Pelit and Avşar, 2025), the sustainable competitive position of Türkiye (Kara et al., 2024a), sustainable industrial development potential (Komasi et al., 2025), and the financial performance of banks in Bosnia and Herzegovina (Mastilo et al., 2024), along with general financial performance evaluation (Oğuz and Satir, 2024) (Table 2).
Table 2
Summary of studies related to the MEREC method.
| Study | Application area | Method | Key findings | Relevance |
| Popović et al. (2021) | Cloud services | MEREC | Stable objective weights | Shows method reliability |
| Popović et al. (2022) | E-commerce strategy | MEREC | Effective objective weighting | Validates MEREC for decisions |
| Mishra et al. (2022) | Sustainability, tourism | MEREC | Objective results | Shows broad applicability |
| Goswami et al. (2022) | Renewable energy | MEREC | Accurate weighting | Demonstrates usefulness |
| Fidan (2022) | Portfolio construction | MEREC | Improves consistency | Directly relevant to finance |
| Shanmugasundar et al. (2022) | Robotics | MEREC | Effective selection tool | General validation |
| Hadi and Abdullah (2022) | Hospital location | MEREC | Clear criteria impact | Shows suitability for critical decisions |
| Simić et al. (2022) | Transportation | MEREC | Accurate prioritization | Confirms robustness |
| Ulutaş et al. (2022) | Pallet trucks | MEREC | Strong discrimination | Confirms reliability |
| Nicolalde et al. (2022) | Materials | MEREC | Effective comparisons | Supports technical decisions |
| Satıcı (2022) | Univ. performance | MEREC | Strong discrimination power | Evaluation context |
| Puška et al. (2023) | Electric car | MEREC | Clear consumer ranking | Application diversity |
| Lukić (2023) | Macroeconomics | MEREC | Accurate country performance | Validates large-scale decision-making |
| Ersoy (2023) | OECD macro performance | MEREC | Objective country ranking | Supports financial usage |
| Altıntaş (2023) | Vulnerability assessment | MEREC | Reliable ranking | Shows robustness |
| Ecer and Ayçin (2023) | Innovation performance | MEREC | Comparative clarity | Suitable for multi-criteria data |
| Yaşar and Ünlü (2023) | Environmental universities | MEREC | Strong separation | Cross-domain strength |
| Oğuz and Satir (2024) | Financial performance | MEREC | Effective weights | Direct relevance |
| Elsayed (2024) | Smart building | MEREC | High objectivity | Supports technical applications |
| Kara et al. (2024a) | Türkiye competitiveness | MEREC | Objective evaluation | Supports economic applications |
| Mastilo et al. (2024) | Banks in Bosnia-Herzegovina | MEREC | Effective financial ranking | Finance-focused validation |
| Komasi et al. (2025) | Sustainable industry | MEREC | Strong multi-criteria capability | Shows robustness |
| Pelit and Avşar (2025) | Carbon emission | MEREC | Accurate classification | Useful for environmental finance |
2.3 Literature Review on the WEDBA Method
The final stage of the literature review involved summarizing the body of work related to the WEDBA (Weighted Euclidean Distance Based Approach) method. This technique has found extensive application across a diverse set of fields. Notable uses include the evaluation of e-learning websites (Garg, 2017), selection of software reliability growth models (Gupta et al., 2018), and the assessment of production system flexibility (Jain and Ajmera, 2019).
WEDBA has also been applied to various machinery and technological selection problems, such as stacker selection (Ulutaş, 2020) and the determination of appropriate blockchain technology (Kaska, 2020), as well as technology selection for vertical farm alternatives (Tolga and Başar, 2022).
Furthermore, the method is a popular tool in financial and performance analysis: it has been used for the evaluation of financial performance (Işık, 2021; Erzurumlu and Gençtürk, 2025), assessing the performance of banks (Keskin and Türkoğlu, 2022; Şimşek, 2022), and the evaluation of companies operating in the private pension system (Tuş and Aytaç Adalı, 2025). Other significant applications include the evaluation of foundation universities (Demir, 2021), analysing the performance of regions concerning information technology use (Ecemiş and Coşkun, 2022), and cloud service provider selection (Arman and Kundakcı, 2023).
On a broader scale, WEDBA has been instrumental in evaluating economic freedom sub-criteria (Karaköy et al., 2023), assessing supply chain performance of countries (Kara et al., 2024b), airport performance (Işıldak et al., 2023), and the academic achievements of Turkish universities (Kara et al., 2024c). Studies related to the WEDBA method were summarized and presented in Table 3.
Table 3
Summary of studies related to the MEREC method.
| Study | Application area | Method | Key Findings | Relevance |
| Garg (2017) | E-learning | WEDBA | Clear ranking | Early usage validation |
| Gupta et al. (2018) | Software reliability | WEDBA | Strong discrimination | Technical validation |
| Jain and Ajmera (2019) | Production flexibility | WEDBA | Effective evaluation | Confirms adaptability |
| Ulutaş (2020) | Stacker selection | WEDBA | Precise rankings | Practical relevance |
| Kaska (2020) | Blockchain tech | WEDBA | Good classification power | Modern tech evaluation |
| Işık (2021) | Financial performance | WEDBA | Clear financial ranking | Direct relevance |
| Demir (2021) | Foundation universities | WEDBA | High discriminative power | Shows flexibility |
| Keskin and Türkoğlu (2022) | Bank performance | WEDBA | Accurate ranking | Finance-specific |
| Tolga and Başar (2022) | Vertical farming | WEDBA | Effective multi-criteria | Supports diverse data |
| Şimşek (2022) | Regional IT usage | WEDBA | Clear regional gaps | Macro-level performance |
| Arman and Kundakcı (2023) | Cloud services | WEDBA | Strong performance differentiation | Coherence with this study |
| Karaköy et al. (2023) | Economic freedom | WEDBA | Effective sub-criteria scoring | Economic relevance |
| Işıldak et al. (2023) | Airport performance | WEDBA | Accurate ranking | Operation-focused usage |
| Kara et al. (2024b) | Supply chain | WEDBA | Country-level ranking | Macro applications |
| Kara et al. (2024c) | University achievements | WEDBA | Strong clarity | Similar to MCDM structures |
| Tuş and Aytaç Adalı (2025) | Private pension firms | WEDBA | Financial clarity | Direct relevance |
The primary justification for selecting the HRP algorithm in this study rests on its capacity to minimize the risk of excessive concentration within portfolios and its ability to generate stable outcomes even when the covariance estimation is prone to errors. Nevertheless, the inherent limitations of HRP, namely the concatenation problem and its inability to accurately define the optimal number of clusters, necessitate a methodological adjustment. To directly address these issues, the Elbow method has been seamlessly integrated into the HRP framework.
The essential reason for incorporating the MEREC and WEDBA methods into the evaluation of HRP-derived portfolios is that these techniques offer objective, multi-criteria, and purely data-driven assessment capabilities. While MEREC provides an objective mechanism for calculating criterion weights, WEDBA ensures a more precise discernment of the performance differences among various investment alternatives. This synergistic combination significantly strengthens both the methodological originality and the practical applicability of the overall HRP-MCDM approach for professional investors.
3 Methodology
This research introduces a novel hybrid portfolio optimization model that integrates the HRP algorithm with MCDM methods for the analysis of stocks listed on the BIST 100 index. The core objective is two-fold: to significantly optimize risk distribution across the resulting portfolios and to evaluate firms’ financial performance, thereby yielding actionable, practical recommendations for investors. This integrated framework proceeds through three sequential, critical phases:
-
• Structural Determination: The first stage involves establishing the most suitable cluster configuration by incorporating the Elbow method directly into the HRP algorithm, which resolves the challenge of determining the optimal number of clusters.
-
• Performance Assessment: Next, an objective, data-driven financial performance evaluation is executed within every cluster established by HRP, utilizing both the MEREC and WEDBA multi-criteria decision methods.
-
• Portfolio Finalization: The third and final stage involves constructing the definitive portfolios by merging the HRP-derived weights (which reflect risk parity) with the MCDM-based rankings (which reflect financial performance).

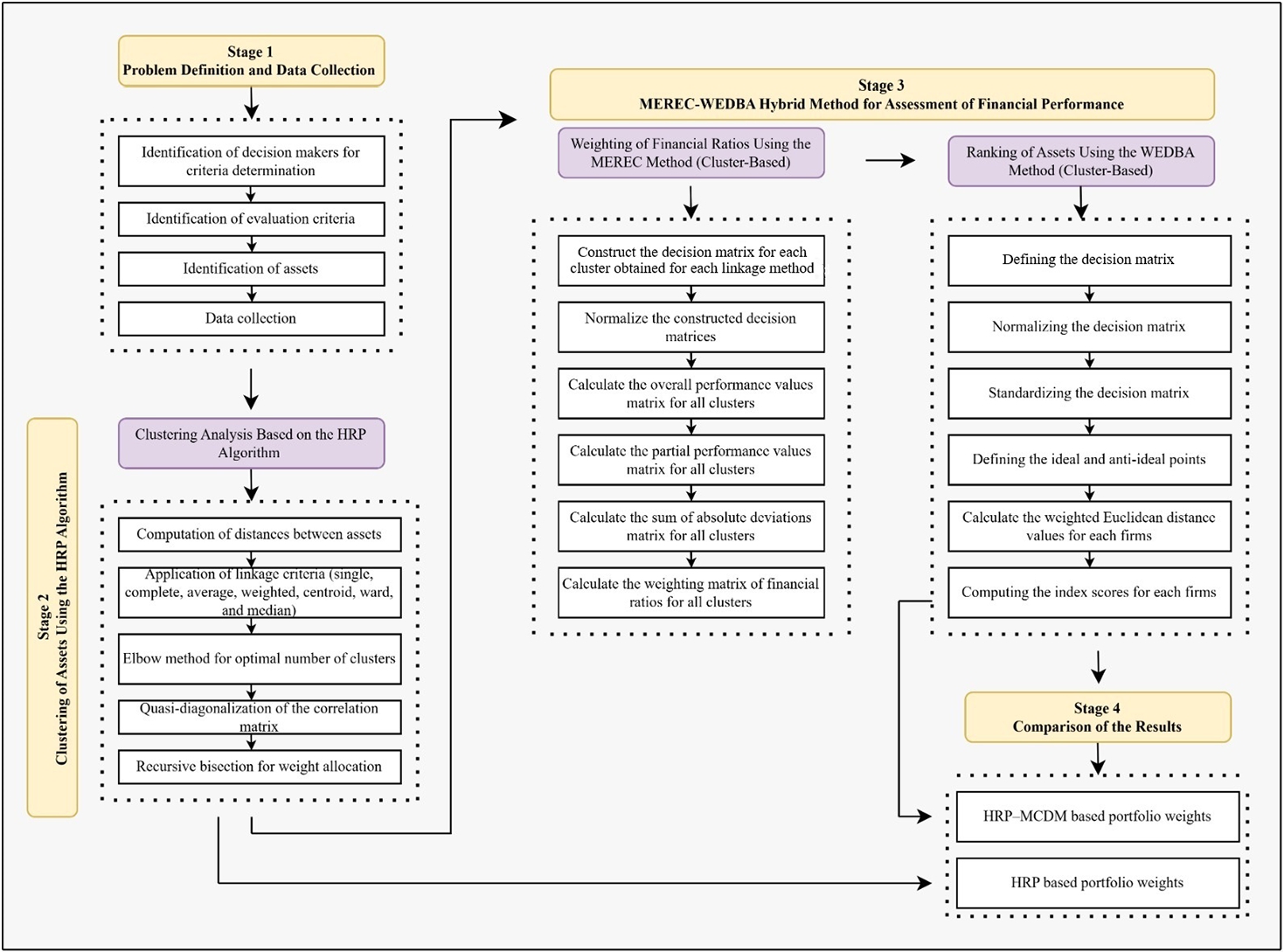

The overall workflow of the proposed methodology is presented in Fig. 2. The proposed model underwent empirical testing using BIST 100 stock data spanning the 2018–2022 period. This analysis utilized seven distinct linkage method to ensure robustness. The process began with the initial phase, where the Elbow method was incorporated into the HRP framework. This direct integration was crucial for effectively mitigating the chaining effect and resolving the difficulty in determining the optimal number of clusters. Consequently, this enhancement allowed the HRP algorithm to construct risk clusters with greater accuracy and proportionality than the standard approach. The methodology then transitioned to the second phase, implementing the HRP-MCDM integrated structure. Here, the optimally structured clusters obtained via HRP were rigourously evaluated using both the MEREC and WEDBA methods. This step was essential for reliably identifying stocks with the highest potential performance within each established risk-based cluster. In the third and concluding phase, a direct comparative assessment was conducted. Portfolios generated using the standalone HRP method were benchmarked against those constructed using the hybrid HRP-MCDM approach. This comparison was designed to evaluate the relative effectiveness and superior performance of the integrated strategy.
Overall, the developed integrated framework successfully empowers investors to manage portfolio risk more effectively while simultaneously improving the quality of their financial performance evaluation. The synergistic combination of HRP’s inherent risk-based clustering capabilities with the multidimensional, objective evaluation features of MCDM methods provides a unique, practical, and valuable contribution to the field of portfolio optimization literature.
3.1 Hierarchical Risk Parity
Research in the field of finance consistently shows that investors fundamentally rely on two core strategies when constructing their portfolios. The first, rooted in traditional financial thought, emphasizes simple diversification. This traditional view operates on the principle that risk can be mitigated merely by ensuring assets are not excessively concentrated within a single group. The second, and more profound, approach originates from Harry Markowitz’s seminal 1952 work, which laid the groundwork for what is commonly known as Modern Portfolio Theory (MPT), the mean-variance framework, or Markowitz portfolio optimization. MPT fundamentally asserts that portfolio risk is best minimized not just by diversifying holdings, but by simultaneously considering the precise interrelationships (correlations) among those assets. Following Markowitz’s pioneering contribution, portfolio optimization problems have conventionally been formulated as quadratic programming models that map the risk–return profiles of various financial instruments (Pfitzinger and Katzke, 2019). Given that this framework became the cornerstone of contemporary portfolio optimization, exhaustive research has been dedicated to mapping the portfolios located on the “efficient frontier”. This frontier represents the optimal set of portfolios that either maximize expected return for a predefined level of risk or minimize risk for a target return level (Nourahmadi and Sadeqi, 2021; Reis et al., 2023). Portfolios situated on this boundary are, by definition, deemed optimal.
Despite its enduring presence and theoretical importance, the practical application of MPT has introduced significant challenges. The concentration problem remains a persistent issue, often manifesting as optimal portfolios that allocate disproportionately large weights to a limited subset of assets. This drawback has prompted numerous studies to propose alternative mitigation strategies. Furthermore, as practitioners integrate an increasing number of assets into portfolios, the escalating complexity of inter-asset correlations necessitates deeper diversification, a process that ironically can lead to unstable solutions. De Prado (2016) famously dubbed this instability and pressure for excessive diversification the “Markowitz Curse” (De Prado, 2016; Uyar, 2019; Kaae et al., 2022).
To bypass the deficiencies linked to quadratic optimization – such as instability, susceptibility to estimation errors, and concentration – De Prado (2016) introduced the Hierarchical Risk Parity (HRP) algorithm. HRP is a heuristic methodology explicitly designed to circumvent the practical limitations of MPT (De Prado, 2016; De Lio Pérego, 2021). It draws on concepts from mathematical modelling, graph theory, and machine learning, relying on hierarchical clustering to mirror the hypothesized layered structure inherent in financial markets. Crucially, HRP departs from the conventional assumption of direct pairwise relationships, acknowledging that many assets are only indirectly connected through a chain of intermediate relationships (De Lio Pérego, 2021).
A substantial benefit of the HRP framework is its ability to eliminate the requirement to invert the covariance matrix. This matrix inversion is one of the primary drivers of estimation error in optimization, making HRP a more stable alternative (Sjöstrand et al., 2020; Reis et al., 2023). By utilizing a hierarchical clustering structure derived from machine learning, HRP successfully addresses the inherent weaknesses of conventional risk-based optimization methods (Jain and Jain, 2019). The algorithm functions by iteratively assigning inverse-volatility weights to clusters of similar assets, recursively subdividing these clusters until each individual asset is isolated. This hierarchical process typically yields more stable portfolios that frequently demonstrate superior performance compared to those produced under MPT (Lagowski, 2022).
HRP offers several clear advantages over the Markowitz model. While Markowitz-based portfolios are prone to assigning heavy weights to a limited number of assets, HRP achieves a more uniform distribution of risk through hierarchical diversification (Sen, 2023). Furthermore, HRP applies inverse-variance weighting only within groups of correlated assets, and by narrowing these groups through recursive subdivision, it assigns weights solely among assets within the same cluster, rather than across the entire portfolio (Pfitzinger and Katzke, 2019; Jain and Jain, 2019; Bechis, 2020). HRP also exhibits greater temporal stability than the Markowitz model, which is highly susceptible to abrupt allocation shifts triggered by minor changes in market conditions. HRP’s foundation in hierarchical structure makes it notably less sensitive to short-term volatility, resulting in smoother and more reliable allocation patterns over time (Sen, 2023).
3.1.1 Tree Clustering
In the first stage of the HRP algorithm, tree clustering is performed. The steps to be performed in tree clustering, which is the first stage of the HRP algorithm, are explained in detail below (De Prado, 2016; Uyar, 2019; Lorenzo and Arroyo, 2023).
In the tree clustering stage, a matrix of size $T\times N$ with N variables over the time period T is first created. For each series, which is determined as N column-vectors, a clustering structure is to be created. For this process, a correlation matrix is first created in the form $\rho ={\{{p_{i,j}}\}_{i,j=1\dots N}}$, $N\times N$ with each element ${\rho _{i,j}}=\rho [{X_{i}},{X_{j}}]$. The correlations are then used to calculate the distance measure between the series using equation (1).
The expression B in this equation refers to the cartesian product of the set $\{1,\dots ,i,\dots ,N\}$. By calculating the distance measure, the distance matrix $X={\{{d_{i,j}}\}_{i,j=1\dots N}}$ of size $N\times N$ is created, which is to be used in the clustering analysis. In the calculations, the X matrix is non-negative $(d[X,Y])$, coincidence $(d[X,Y]=0\Leftrightarrow X=Y)$, symmetrical $(d[X,Y]=d[Y,X])$, sub-additivity $(d[X,Z]=d[X,Y]+d[Y,Z])$.
The second step of tree clustering is to calculate the Euclidean distances between the columns of the matrix. Equation (2) is used for this process.
In this equation, ${d_{i,j}}$ is defined as the elements of the matrix X, while ${\check{d}_{i,j}}$ is defined as the elements of the matrix D.
In the third step of the tree clustering phase, the clustering algorithm is applied. In this step, each pair of columns is paired to ${i^{\ast }}$ and ${j^{\ast }}$ clusters and transformed according to the linkage method to obtain the matrix u [1]. There are seven linkage methods in the literature: single, complete, average, weighted, centroid, Ward and median. These linkage methods are explained below (Uyar, 2019).
The so-called single linkage method was developed by Sneath in 1957 in the Nearest Point Algorithm and is the proximity of the closest elements of two clusters (Rajabi et al., 2020; Nanakorn and Palmgren, 2021). The single linkage method is calculated using equation (3).
In the complete linkage method, which was developed by Sorensen in 1948 and is known as the furthest point or Voor Hess algorithm, the similarity between two clusters is the proximity of the most distant elements of the two clusters, in contrast to the single linkage method (Rajabi et al., 2020). The complete linkage method is calculated using equation (4).
The Unweighted Pair Group Method with Arithmetic mean (UPGMA) algorithm developed by Sokal and Michener in 1958, which is also known as the mean linkage method (average), determines the similarity between two clusters by averaging the distance of all elements in two clusters to the other cluster elements (Rajabi et al., 2020). The average linkage method is calculated using equation (5). The expressions $|{i^{\ast }}|\hspace{2.5pt}\text{and}\hspace{2.5pt}|{j^{\ast }}|$in this equation represent the number of times each cluster belongs to each cluster.
The Weighted Pairwise Grouping Method with Arithmetic Mean (WPGMA), developed by McQuitty in 1966 and also known as the weighted linkage method, is calculated using the following equation (6). The ${i^{\ast }}$cluster in this equation is reconstructed using the s and t clusters and weighted again using this new group of ${j^{\ast }}$ clusters.
The centroid developed by Sokal and Michener in 1958, also known as UPGMC (Unweighted Pair Group Method using Centroids), is calculated using equation (7). In this equation, ${\vec{c}_{i}}$ and ${\vec{c}_{j}}$ represent the centroids of c clusters.
The Ward connectivity method developed by Ward in 1963, also known as the Stepwise Algorithm, is calculated using equation (8).
In 1967, Gower developed the algorithm Weighted Pair Group Method using Centroids (WPGMC), also known as the median connectivity method, which is calculated using equation (9). The expressions ${\overrightarrow{\omega }_{i}}$ and ${\overrightarrow{\omega }_{j}}$ in this equation indicate the median values of ${i^{\ast }}$and ${j^{\ast }}$ clusters.
After the tree clustering process has been carried out, a “linkage matrix” of the size $(N-1)\times 4$ and the form $Y={\{({y_{m,1}},\hspace{2.5pt}{y_{m,2}},\hspace{2.5pt}{y_{m,3}},\hspace{2.5pt}{y_{m,4}})\}_{m=1,\dots ,N-1}}$ is obtained. The resulting linkage matrix $(Y)$ contains four linkage data for each cluster. In the matrix, the “${y_{m,1}},\hspace{2.5pt}{y^{\prime\prime }_{m,2}}$ elements represent the component data; the ${y_{m,3}}$ element represents the distance between the components $({y_{m,3}}={\tilde{d}_{{y_{m,1}},{y_{m,2}}}})$; ${y_{m,4}}$ and other elements $({y_{m,4}}\leqslant N)$ represent the original number of connected elements (Uyar, 2019).
3.1.2 Quasi-Diagonalization
The second stage of the HRP algorithm is quasi-diagonalization. In quasi-diagonalization, the largest values in the rows and columns of the covariance matrix are arranged along the diagonal. In this process, assets with high covariance are placed together, while assets with low covariance are placed far apart. The process to be performed in the semi-diagonalization phase groups all elements of the link matrix as recursive ${y_{N-1,1}}$, ${y_{N-1,2}}$ (De Prado, 2016).

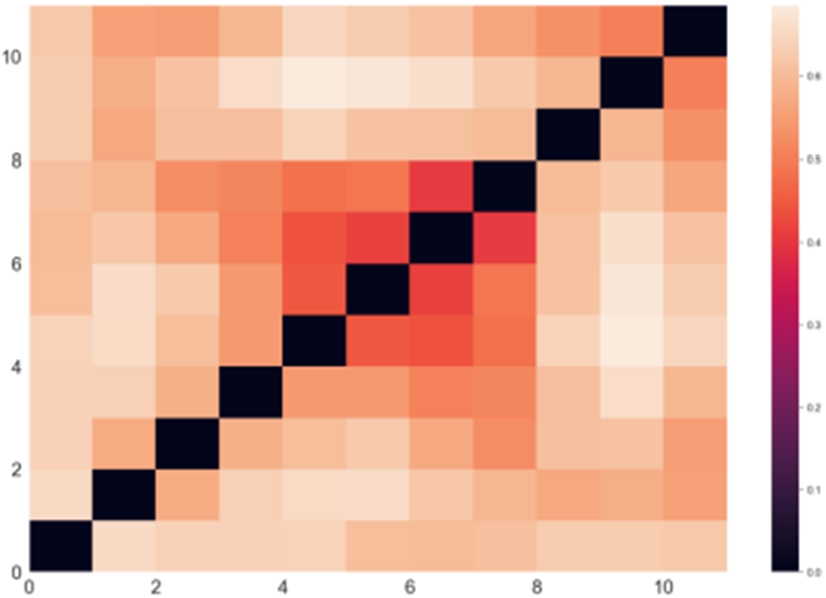

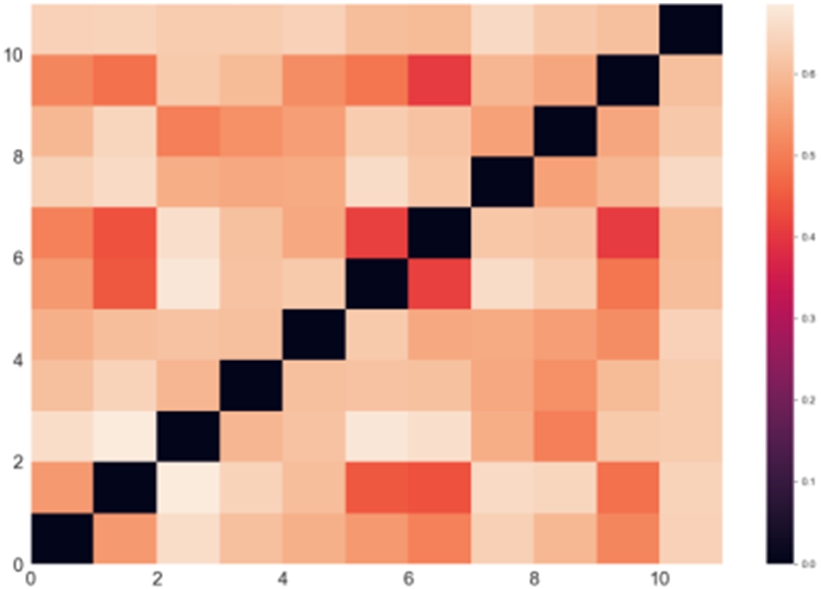

Fig. 3 shows the state of the entities before the quasi-diagonalization process. Fig. 4 shows the state of the covariance matrices after the second step of the HRP algorithm, quasi-diagonalization. The colours in both matrices represent high and low covariances. Since the darker colours here have higher covariances, these units are concentrated around the diagonal.
3.1.3 Recursive Bisection
Recursive bisection is the last stage of the HRP algorithm. This stage is extremely important, as it is the stage where the final weights of the securities in the portfolio are determined (Bechis, 2020). In this stage, the weights of the securities are determined using a tree structure and inverse variance (Nanakorn and Palmgren, 2021). The steps to be followed in the recursive bisection phase can be listed as follows (De Prado, 2016):
-
1) Before starting to the algorithm, some definitions can be made as:
-
2) If $|{L_{i}}|=1,\hspace{2.5pt}\forall {L_{i}}\in L$, then stop.
-
3) For each $\forall {L_{i}}\in L$ such that $|{L_{i}}|\gt 1$:
-
a) ${L_{i}}$ is bisected into two subsets, ${L_{i}^{(1)}}\cup {L_{i}^{(2)}}={L_{i}}$, here $|{L_{i}^{(1)}}|=\operatorname{int}\big[\frac{1}{2}|{L_{i}^{(1)}}|\big]$, and the order is maintained.
-
b) The variance of ${L_{i}^{(j)}}$, $j=(1,2)$ is defined, as the quadratic form ${\tilde{V}_{i}^{(j)}}\equiv {\tilde{w}_{i}^{{(j)^{\prime }}}}{V_{i}^{(j)}}{\tilde{w}_{i}^{(j)}}$, where ${\tilde{V}_{i}^{(j)}}$ is the covariance matrix between the constituents of the ${L_{i}^{(j)}}$ bisection, and ${\tilde{w}_{i}^{(j)}}=\text{diag}{[{V_{i}^{(j)}}]^{-1}}\frac{1}{\text{tr}[\text{diag}{({V_{i}^{(j)}})^{-1}}]}$ where $\text{diag}[.]$ and $\operatorname{tr}[.]$ are the diagonal and trace operators.
-
c) Compute the split factor: ${\alpha _{i}}=1-\frac{{\tilde{V}_{i}^{(1)}}}{{\tilde{V}_{i}^{(1)}}+{\tilde{V}_{i}^{(2)}}}$, so that $(0\leqslant \alpha \leqslant 1)$.
-
d) ${w_{n}}$ allocations are re-scaled by a factor of ${\alpha _{i}}$, $\forall n\in {L_{i}^{(1)}}$.
-
e) ${w_{n}}$ allocations are re-scaled by a factor of $(1-{\alpha _{i}})$, $\forall n\in {L_{i}^{(2)}}$.
-
-
4) Loop to step 2.
In the subsequent phase of recursive bisection, the last phase of the HRP algorithm, the portfolio weights obtained from the previous phase are divided into two separate parts, where these weights must be between zero and one $(0\leqslant {w_{i}}\leqslant 1)$ and the sum of the weights must equal one ($\forall i=1,\dots ,N$ ve ${\textstyle\sum _{i=1}^{N}}{w_{i}}=1$) (De Prado, 2016; Uyar, 2019). In the third and final step of the quasi-diagonalization phase, the weighting values are determined for all assets that the investor has included in his portfolio.
De Prado (2016) attempts to close the gap in the literature by solving the problems of the Markowitz model such as instability, concentration problems and underperformance with the HRP algorithm and creating portfolios that can outperform traditional risk-based portfolio strategies. However, the HRP algorithm also has some drawbacks. These disadvantages can be explained as follows Sen (2023):
-
• With a large number of entities, the hierarchical clustering algorithm used by the HRP algorithm can be very time-consuming.
-
• The HRP algorithm does not explicitly consider the expected return on assets. The HRP algorithm merely attempts to balance the risk across all assets in the portfolio. This leads to lower expected returns than with other portfolio optimization methods.
-
• The HRP algorithm assumes that the returns of the assets follow a normal distribution. Since asset returns are not normally distributed in real life, this can affect the accuracy of the HRP algorithm.
-
• Since the HRP algorithm is a relatively new method, portfolio performance has not been comprehensively tested over a long period of time. Therefore, the HRP algorithm may lead to unforeseen risks and limitations.
3.2 Elbow Method
The Elbow method is a commonly recognized heuristic for determining the optimal number of clusters (k) within a given dataset. The fundamental principle underpinning this technique is that the ideal cluster count corresponds to the point where introducing further clusters results in only a marginal, negligible improvement in the model’s performance or the variance explained by the clustering structure.
This methodology relies heavily on a graphical interpretation of the results. To apply it, the proportion of variance accounted for by the clustering is plotted against different values for k. Initial clusters naturally capture a significant amount of the dataset’s inherent information. However, as k continues to increase, the incremental benefit—the addition to the explained variance—experiences a sharp decline, creating a distinct “elbow” shape on the graph. This inflection point is interpreted as the most appropriate number of clusters, signifying the optimal value for k.
Implementation of the Elbow method is systematic: the value of k is typically initiated at two and is increased sequentially. At each step, clusters are computed, and a corresponding cost metric (often a measure of within-cluster variance) is calculated. While this cost metric decreases substantially for lower k values, it inevitably reaches a plateau as k continues to rise. The point at which this levelling-off begins effectively signals the optimal cluster size; beyond this threshold, additional clusters offer diminishing returns, as they become increasingly similar to existing ones, thus contributing little to the overall model’s explanatory power.
The Elbow method is a widely used approach for identifying the optimal number of clusters or groups within a dataset (Kodinariya and Makwana, 2013; Bholowalia and Kumar, 2014; Abrar et al., 2023). The fundamental principle of this method is that the ideal number of clusters corresponds to the point beyond which adding an additional cluster yields only marginal improvement in model performance (Bholowalia and Kumar, 2014).
3.3 MEREC Method
The MEREC method is one of the objective methods for criteria weighting developed by Keshavarz-Ghorabaee et al. (2021). In contrast to other criteria weighting methods, the MEREC method focuses on the changes in the overall weighting of the criteria by excluding the relevant criterion when calculating the importance of each criterion (Keshavarz-Ghorabaee et al., 2021).
The implementation steps of the MEREC method are shown in equations (10)–(18) (Keshavarz-Ghorabaee et al., 2021; Keshavarz-Ghorabaee, 2021).
Step 1: The first step of the MEREC method is to create the decision matrix. The decision matrix, which consists of m alternatives and n criteria, is created using equation (10).
(10)
\[ X=\left[\begin{array}{c@{\hskip4.0pt}c@{\hskip4.0pt}c@{\hskip4.0pt}c}{x_{11}}\hspace{1em}& {x_{12}}\hspace{1em}& \dots \hspace{1em}& {x_{1n}}\\ {} {x_{21}}\hspace{1em}& {x_{22}}\hspace{1em}& \dots \hspace{1em}& {x_{2n}}\\ {} \vdots \hspace{1em}& \vdots \hspace{1em}& \vdots \hspace{1em}& \vdots \\ {} {x_{m1}}\hspace{1em}& {x_{m2}}\hspace{1em}& \dots \hspace{1em}& {x_{mn}}\end{array}\right].\]In the decision matrix in equation (10), ${x_{ij}}$ shows the value of alternative i in relation to criterion j. This value should be greater than zero. If there is a negative value ${x_{ij}}$ in the decision matrix, it should be converted to a positive value using appropriate methods. In this study, negative values were converted to positive values using the Z-score standardization transformation. Equation (11) and equation (12) were used for the Z-score standardization transformation (Zhang et al., 2014; Ayçin and Güçlü, 2020; Kundakcı and Arman, 2023).
In equation (12), the value of $A\hspace{2.5pt}\text{stands for}\hspace{2.5pt}\gt |\min {z_{ij}}|$.
Step 2: The decision matrix is normalized using equation (13) for benefit criteria and equation (14) for cost criteria.
The normalization process is similar to the process used in methods such as WASPAS but differs in that it switches between formulas for benefit and cost criteria. In contrast to many other studies, the MEREC method converts all criteria into minimization-type criteria (Keshavarz-Ghorabaee et al., 2021).

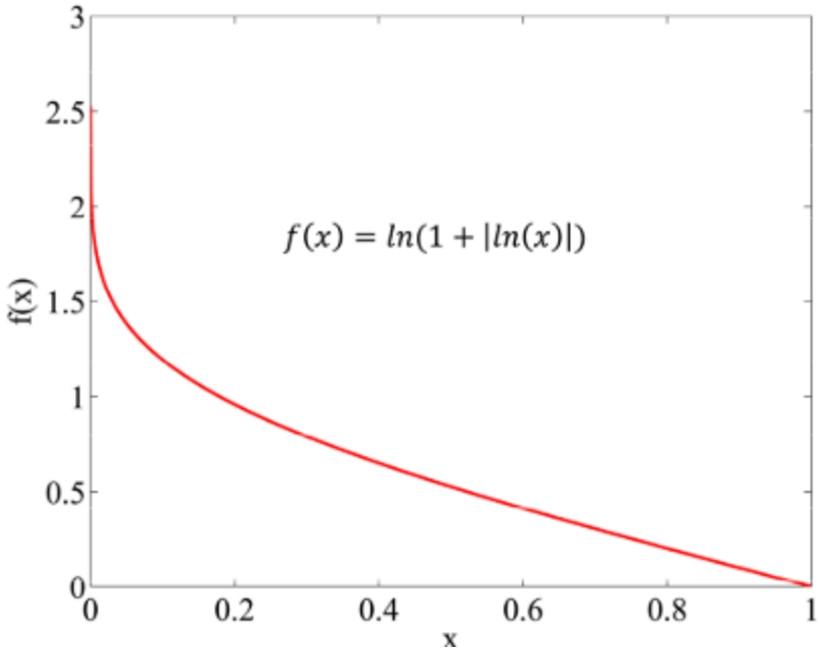

Step 3: A logarithmic measure with equal criteria weighting is used to determine the overall performance values of the alternatives. This logarithmic measure is based on a non-linear function shown in Fig. 5.
Using the values obtained with the normalization matrix, it can be ensured that smaller values of ${x_{ij}^{\ast }}$ result in a larger overall performance value. This value is calculated using equation (15).
Step 4: As with the determination of the overall performance value of the alternatives, a logarithmic criterion is also used in this step. In contrast to the previous step, in this step the performance values of the alternatives are calculated by subtracting them individually for each criterion. These values are calculated using equation (16).
3.4 WEDBA Method
The WEDBA method, introduced by Rao and Singh (2012), is an MCDM technique grounded in the principle that the most favourable alternative is the one with the shortest Euclidean distance to the ideal solution, whereas the least desirable alternative is the farthest from the non-ideal solution (Rao and Singh, 2012). In this framework, the overall performance index of each alternative is computed based on its Euclidean distance to both the ideal and all non-ideal reference points. This structure ensures that alternatives are evaluated relative to ideal and non-ideal benchmarks rather than being compared directly with one another, thereby necessitating the use of Euclidean distance as the primary measure (Rao and Singh, 2012).
The procedural steps of the WEDBA method are presented in equations (19)–(28) (Rao and Singh, 2012; Işık, 2021).
Step 1: The first step of the WEDBA method is to construct the decision matrix. The decision matrix is created using equation (10).
Step 2: The decision matrix is normalized using equation (19) for benefit criteria and equation (20) for cost criteria.
Step 3: The normalized values obtained by equation (19) and equation (20) are standardized by equation (21).
The expressions ${\mu _{j}}$ and ${\sigma _{j}}$ in equation (21) indicate the mean and standard deviation of criterion j. respectively. The value of ${\mu _{j}}$ is calculated using equation (22) and ${\sigma _{j}}$ is calculated using equation (23).
Step 5: The weighted Euclidean distances of the alternatives to the ideal points are calculated with the help of equation (26) and the weighted Euclidean distances to the non-ideal points are calculated by using equation (27).
Step 6: Equation (28) is used to calculate the index score, which is the last step of the WEDBA method.
An increase in an alternative’s index value indicates that it is closer to the ideal solution. Therefore, the alternative with the highest index value is the best in terms of performance, while the one with the lowest index value is the weakest alternative.
3.5 Portfolio Performance Evaluation Criteria
To compare the portfolios created using the HRP algorithm and the MCDM methods, evaluation criteria are needed. Although there are many alternatives in the literature for comparing portfolio performance, the Sharpe ratio, also known as the reward to volatility ratio based on standard deviation, is preferred in this study. The Sharpe ratio, which helps investors understand how well their investments are compensated for the risk they bear, is calculated using equation (29) (Samarakoon and Hasan, 2006; Bechis, 2020).
${S_{p}}$: Sharpe ratio,
${r_{p}}$: Portfolio return,
${r_{f}}$: Risk-free interest rate,
${\sigma _{p}}$: Represents the standard deviation of the portfolio.
Diversifying the portfolio with securities with low or negative correlation increases the Sharpe ratio as it reduces the risk of the portfolio in general (Srivastava and Mazhar, 2018). In other words, a high portfolio return, and a low standard deviation increase the Sharpe ratio, while a low portfolio return and a high standard deviation decrease the Sharpe ratio. Therefore, among alternative investment portfolio strategies, investors should favour the portfolio with a high Sharpe ratio.
4 Application
The primary objective of this research is to evaluate firms’ financial performance and generate actionable insights for investors by leveraging the Hierarchical Risk Parity (HRP) algorithm—a machine learning-based portfolio optimization technique introduced by De Prado (2016)—in conjunction with Multi-Criteria Decision-Making (MCDM) methods.
To facilitate this analysis, we obtained the daily closing prices for all companies listed on the BIST 100 index, covering the 2018–2022 period, with data retrieved from the Bloomberg Terminal. The BIST 100 was specifically chosen because it encapsulates Turkey’s 100 largest corporations in terms of both market capitalization and trading volume. Furthermore, it functions as the central barometer for overall market dynamics in the Turkish economy, serving as the benchmark index for the BIST Equity Market and the foundation for the international MSCI Türkiye Index. Appendix A provides a complete list of the companies included in the analysis and their respective BIST 100 codes (Table A1).
Following the definition of the dataset and research scope, the empirical analysis was structured and executed in three distinct stages:
Stage 1: HRP Implementation. Portfolio optimization was initially conducted using the standalone HRP algorithm, applied to the daily closing price data of the BIST 100 stocks. The algorithm was implemented using Python, and seven distinct linkage method—namely Ward, single, complete, average, weighted, centroid, and median—were employed throughout the clustering process.
Stage 2: Integrated HRP–MCDM Framework. This stage represents one of the study’s core novel contributions: the application of the integrated HRP–MCDM framework. To ensure a robust and transparent financial performance evaluation, the criteria themselves were established using the Delphi method. This was done through consultation with five portfolio management experts, triangulated with evidence drawn from the existing literature and relevant reports published by the Central Bank of the Republic of Türkiye (TCMB). This systematic and expert-informed selection process is intended to yield a meaningful contribution to current research. The specific criteria utilized in this evaluation are summarized in Table 4.
Table 4
Criteria used in the study.
| Criteria | Method of calculation | Criteria type | References |
| Current Ratio | Current assets/current liabilities | Benefit | Katrancı et al. (2025), Ertuğrul and Karakaşoğlu (2009) |
| Liquidity Ratio | (Current assets-inventories)/current liabilities | Benefit | Ertuğrul and Karakaşoğlu (2009) |
| Leverage Ratio | (Long-term liabilities-current liabilities)/total assets | Cost | (Farrokh et al., 2016) |
| Inventory Turnover Ratio | Cost of goods sold/average inventory | Benefit | Moghimi and Anvari (2014); Katrancı et al. (2025) |
| Receivables Turnover Ratio | Total net sales/accounts receivables | Cost | Moghimi and Anvari (2014); Katrancı et al. (2025) |
| Return on Equity (ROE) | Net income/common equity | Benefit | Baydaş and Pamucar (2022) |
| Return on Assets (ROA) | Net income/total assets | Benefit | Karadeniz and İskenderoğlu (2011) |
The financial assessment relies on several critical ratios, each offering a distinct perspective on a firm’s operational efficiency, solvency, and profitability.
The Current Ratio is a foundational measure of a firm’s capacity to satisfy its short-term financial obligations, thus acting as a central indicator of working capital adequacy. It is calculated simply by dividing current assets by current liabilities. Companies whose current ratios align closely with the relevant industry benchmark are typically perceived as financially robust, whereas lower ratios signal a potentially increased liquidity risk.
The Liquidity Ratio, often known interchangeably as the acid-test ratio or quick ratio, offers a more immediate view of a company’s solvency position and overall financial resilience. This ratio specifically measures the firm’s ability to cover all its short-term liabilities using only its most liquid assets. The calculation is performed by deducting inventories from current assets and then dividing the remainder by current liabilities.
The Leverage Ratio quantifies the extent to which a company’s total assets are financed through external debt. Consequently, it reflects the firm’s capacity to service both its short-term and long-term financial obligations. It is derived by dividing total liabilities (encompassing both current and non-current debt) by total assets. A higher ratio suggests that a greater proportion of the firm’s asset base is reliant on debt funding.
The Inventory Turnover Ratio is a key indicator of supply chain and operational efficiency, showing how frequently a firm manages to replenish and sell off its inventories over a specified reporting period. It is obtained by dividing the cost of goods sold by the average inventory balance. In most cases, higher turnover rates imply effective inventory management and a relatively rapid conversion cycle from stock to sales.
The Receivables Turnover Ratio is a critical metric for evaluating the effectiveness of a company’s credit collection processes. It measures how efficiently a company collects revenue from its credit sales within a defined time frame. The ratio is computed by dividing net sales by the average balance of trade receivables. A high turnover rate—which should always be interpreted in light of the firm’s specific credit policies—suggests strong collection performance, while consistently lower values may signal collection inefficiencies or potential credit risk issues.
Return on Equity (ROE) directly reflects the profitability generated for shareholders relative to the capital they have invested in the firm. Calculated by dividing net profit by total equity, ROE is a vital metric for current and prospective investors, as well as for corporate strategists. Significantly higher ROE values are typically interpreted as signaling robust value creation, thereby enhancing the firm’s overall attractiveness for investment.
Return on Assets (ROA) assesses the efficiency with which a company utilizes its entire asset base to generate earnings. This profitability measure is calculated by dividing net profit after tax by the average total assets for the corresponding fiscal period. A high ROA value indicates a superior and more efficient use of the company’s assets in generating profit.
Stage 3: The comparative performance of portfolios constructed using both the standalone HRP algorithm and the hybrid HRP-MCDM framework was meticulously assessed through the calculation and analysis of Sharpe ratios.
4.1 Clustering with HRP
In this study, portfolios were systematically constructed based on the Ward, single, complete, average, weighted, centroid, and median linkage methods within the HRP algorithm. The analysis utilized the daily closing prices of stocks listed in the BIST 100 Index for the period spanning January 2018 to December 2022. The dataset used in this study consists of the daily closing prices of BIST 100 Index stocks and is available for open access at https://zenodo.org/records/18140067.
The data acquisition and initial processing were conducted using the Python programming language. Yahoo Finance was selected as the primary data source due to its extensive coverage of major global indices (such as the Dow Jones, NASDAQ, and S&P 500) and its proven reliability for empirical finance research. However, because comprehensive historical data for all 100 BIST constituents were not fully available throughout the 2018–2022 period, the final, clean dataset was limited to 72 stocks for which complete information could be retrieved.
In strict adherence to the HRP framework, portfolio weights were precisely calculated using the following equations for each linkage method: equation (3) for the single linkage method, equation (4) for the complete linkage method, equation (5) for the average linkage method, equation (6) for the weighted linkage method, equation (7) for the centroid linkage method, equation (8) for the Ward linkage method, and equation (9) for the median linkage method. The resulting final portfolio allocations are comprehensively detailed in Table 5.
Table 5
Portfolio results according to HRP algorithm.
| Average return | Maximum return | Minimum return | Range | Standard deviation | Skewness | Kurtosis | Sharpe ratio | |
| Single | 0.001601 | 0.062471 | −0.102362 | 0.164833 | 0.015062 | −1.624831 | 8.214356 | %10.63 |
| Complete | 0.001566 | 0.061674 | −0.102188 | 0.163861 | 0.015050 | −1.629962 | 8.228505 | %10.41 |
| Average | 0.001574 | 0.061440 | −0.102709 | 0.164149 | 0.014969 | −1.632317 | 8.374082 | %10.51 |
| Centroid | 0.001582 | 0.061115 | −0.102220 | 0.163335 | 0.014852 | −1.629135 | 8.260917 | %10.65 |
| Median | 0.001576 | 0.061519 | −0.102424 | 0.163943 | 0.014940 | −1.645647 | 8.352952 | %10.55 |
| Weighted | 0.001592 | 0.062312 | −0.102403 | 0.164715 | 0.015051 | −1.615115 | 8.159211 | %10.58 |
| Ward | 0.001562 | 0.063521 | −0.102474 | 0.165994 | 0.015076 | −1.601175 | 8.074427 | %10.36 |
Table 5 presents a comprehensive overview of the portfolio outcomes generated by applying the standalone HRP algorithm to the BIST 100 Index data.
An initial review of the results reveals that portfolios constructed using the single and centroid linkage methods exhibited the most robust performance, delivering the strongest results in terms of both average returns and Sharpe ratios (a key risk-adjusted performance metric).
When the portfolios are assessed solely based on risk, as measured by standard deviation, the Ward linkage method resulted in the highest recorded level of volatility. Conversely, the centroid linkage method was the most effective in reducing risk, producing the lowest volatility across all tested criteria.
Further examination of the return distribution statistics indicates that the skewness values for all linkage approaches are left-skewed relative to a standard normal distribution. This finding suggests a financial reality where there is a greater concentration and frequency of negative returns than positive ones. Regarding kurtosis (a measure of the”tailedness” of the distribution), the highest values were observed in portfolios formed using the average and median linkage methods. The lowest kurtosis values, however, were associated with the weighted and Ward linkage approaches. These results imply that portfolios constructed with the weighted and Ward linkage methods exhibit a higher probability of experiencing extreme price fluctuations (both large gains and large losses) compared to those created using the other clustering criteria.
4.2 Determining the Number of Clusters with Elbow
Since the introduction of the HRP algorithm by De Prado (2016), various researchers have successfully identified several inherent shortcomings and weaknesses. The most significant of these practical issues are the concatenation problem and the algorithm’s inability to determine the optimal number of clusters.
The chaining problem stems from the sensitivity of HRP’s linking methods to specific data values. This sensitivity can cause clusters to become unduly long, distributed, and heterogeneous, resulting in groupings that contain assets which, based on their risk profile, should not logically be clustered together. This situation is highly undesirable for both researchers and investors, as the addition of a seemingly minor asset can disproportionately alter a cluster’s variance. Such structural instability leads to distorted asset weighting and potentially erroneous investment decisions.
The second major issue arises when the optimal number of clusters cannot be determined accurately. In this scenario, the algorithm may treat every individual entity as a separate cluster, effectively failing to recognize the relevant underlying structure of the data. This failure can be characterized as a form of overfitting, which carries potentially detrimental consequences. Overfitting occurs when a model is so closely tailored to specific, potentially noisy, historical observations that it fails to capture the true, general structure of the market. Attempting to fit the model too tightly to these slightly erroneous data points can introduce significant biases and substantially diminish the model’s predictive power.
To effectively eliminate the structural problems caused by the HRP algorithm and to establish the necessary framework for the Multi-Criteria Decision-Making (MCDM) methods, the popular Elbow method has been integrated into the HRP algorithm.
This integration was performed specifically to determine the optimal number of clusters. The first practical step of this enhanced HRP algorithm was to partition the assets—based on the daily closing data of companies traded in the BIST 100 Index—into distinct clusters according to the predefined linkage methods.

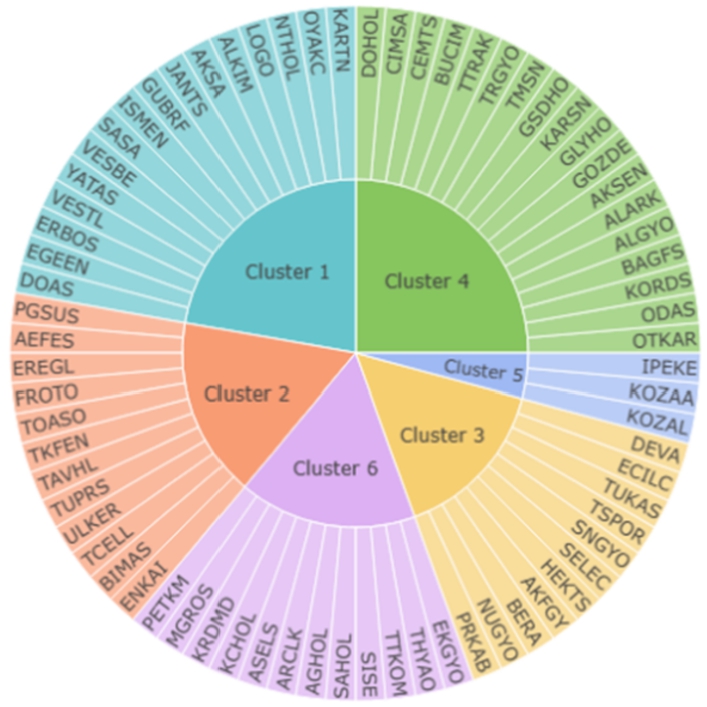

Based on the single linkage method, companies listed on the BIST 100 Index are grouped into six clusters, as shown in Fig. 6.

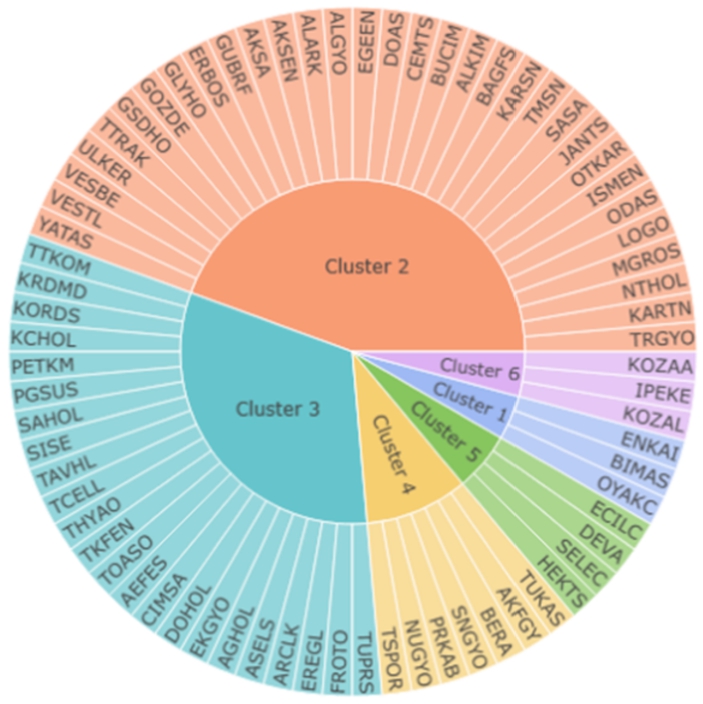

Based on the complete linkage method, companies listed on the BIST 100 Index are grouped into six clusters, as shown in Fig. 7.

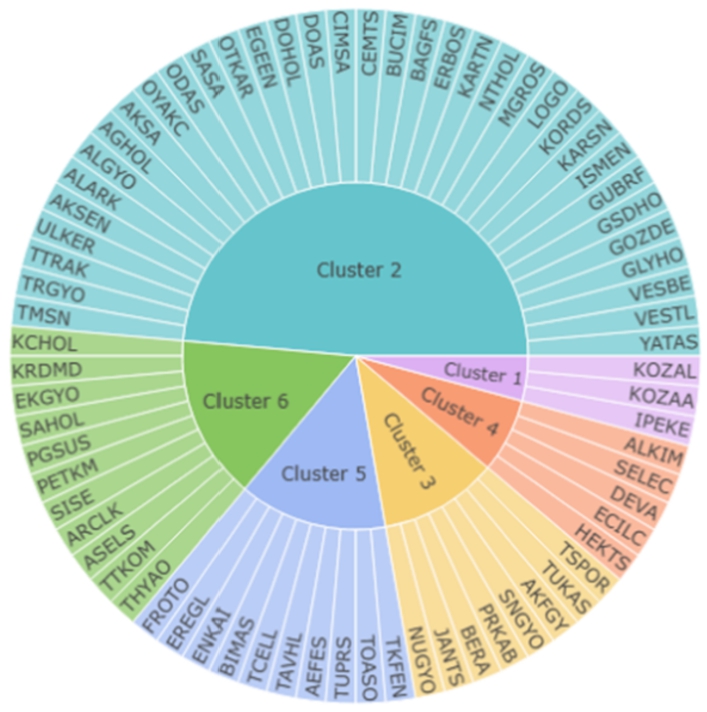

Based on the average linkage method, companies listed on the BIST 100 Index are grouped into six clusters, as shown in Fig. 8.

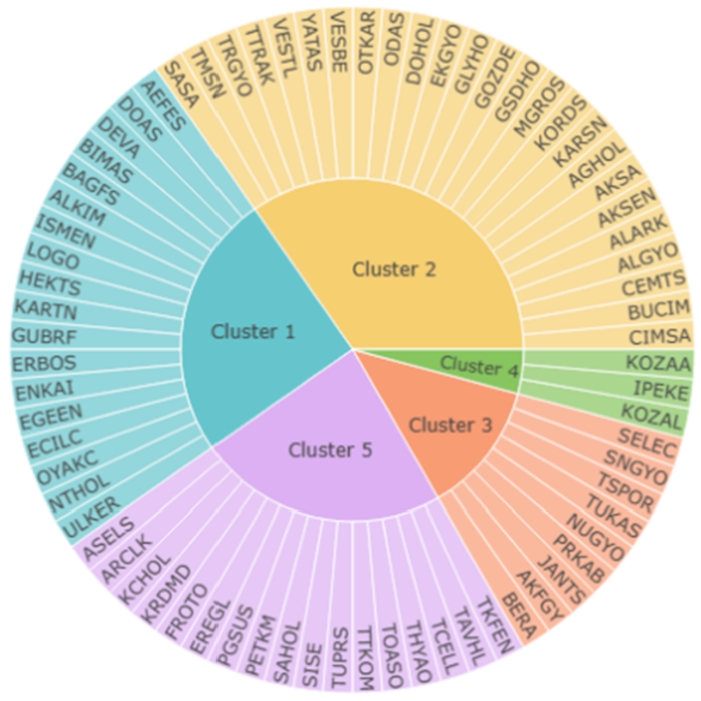

Based on the centroid linkage method, companies listed on the BIST 100 Index are grouped into six clusters, as shown in Fig. 9.

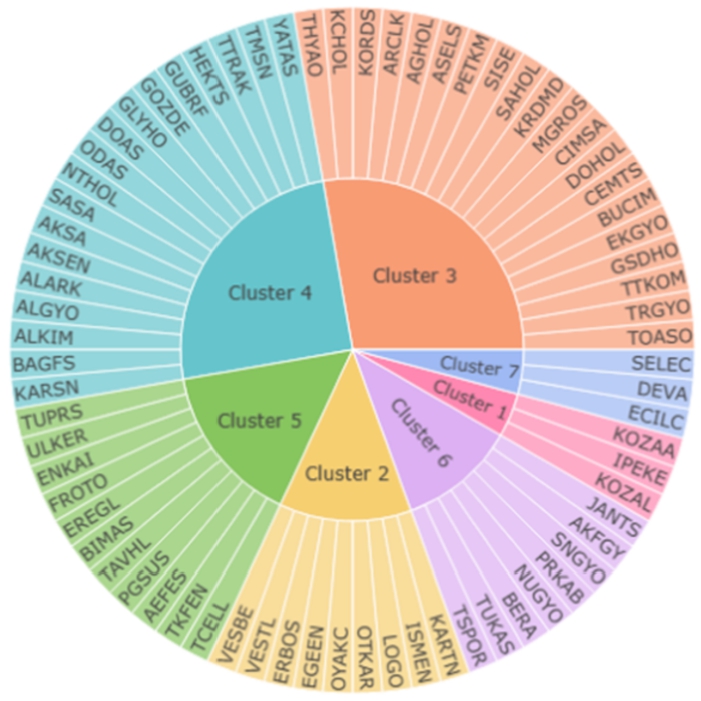

Based on the median linkage method, companies listed on the BIST 100 Index are grouped into seven clusters, as shown in Fig. 10.

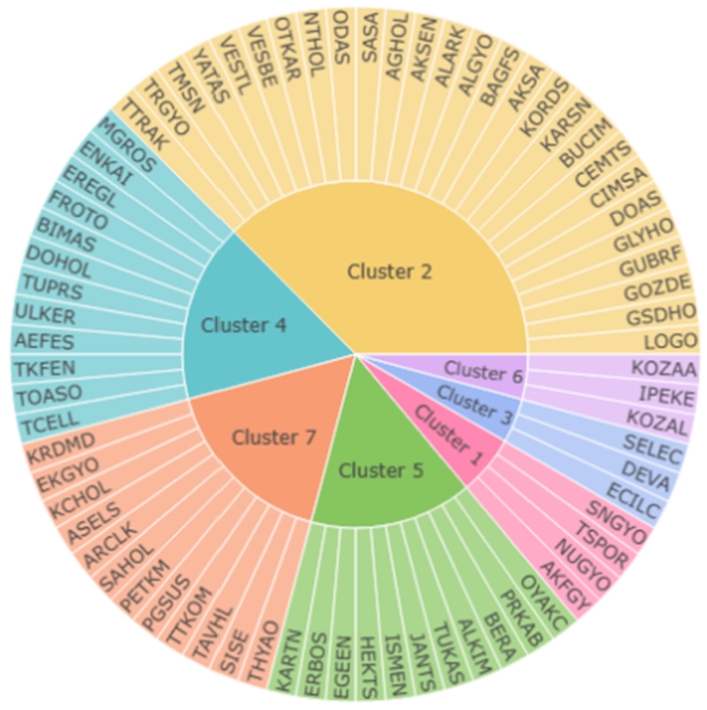

Based on the weighted linkage method, companies listed on the BIST 100 Index are grouped into seven clusters, as shown in Fig. 11.

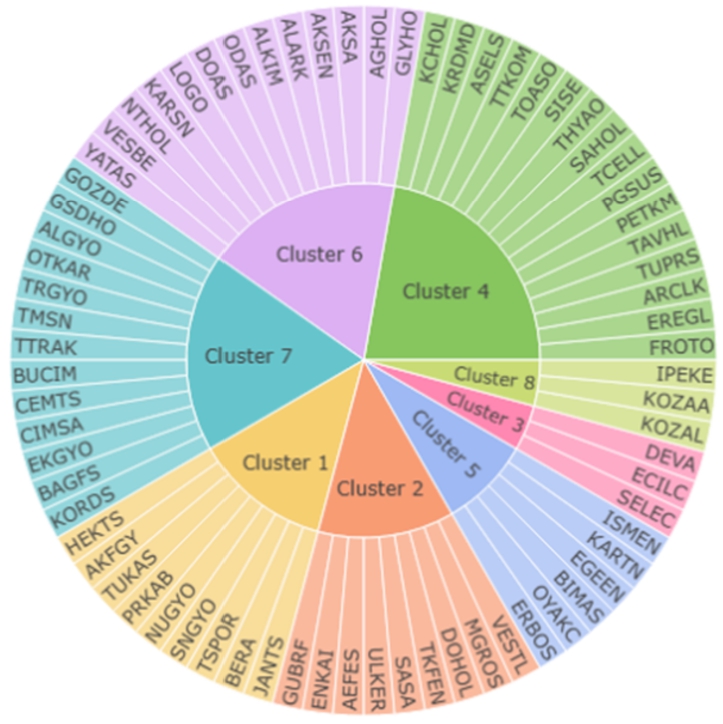

Based on the Ward linkage method, companies listed on the BIST 100 Index are grouped into eight clusters, as shown in Fig. 12.
4.3 Portfolio Transactions with HRP-MCDM Approach
The distinct cluster structures derived from the enhanced HRP algorithm—integrated with the Elbow method—are presented across the various linkage methods as follows: Fig. 5 illustrates the clusters generated using single linkage, Fig. 6 depicts those obtained via complete linkage, Fig. 7 shows the results for average linkage, Fig. 8 for centroid linkage, Fig. 9 for median linkage, Fig. 11 for weighted linkage, and Fig. 12 for Ward linkage.
Following this robust clustering phase, a separate MCDM procedure was applied to the asset sets produced under each linkage method. Within this hybrid framework, the assignment of criterion weights is a critical step, as it has a direct and substantial influence on the final portfolio outcomes. For this reason, the necessary criterion weights corresponding to each specific cluster were computed independently using the MEREC method, an objective weighting technique.
The MEREC method was selected for several strategic reasons: it is a relatively recent addition to the literature, has only been utilized in a limited number of financial studies, and its characteristics align well with the BIST 100 dataset used in this research. Methodologically, MEREC offers notable advantages: it possesses a solid mathematical foundation, avoids unnecessary computational complexity, operates entirely without subjective input from decision makers, and has been applied in conjunction with the WEDBA method in a small number of prior studies. Crucially, its integration with the HRP algorithm is novel, further validating its use in this research.
Once the criterion weights for every cluster were objectively determined, the financial performance of the firms within each cluster was rigourously assessed using the WEDBA method. WEDBA was chosen because, despite being one of the earlier techniques in the MCDM literature, it remains underutilized in practical financial decision-making applications. It has appeared in only a few finance-related studies—often in combination with MEREC—and, like MEREC, has not been previously employed alongside the HRP algorithm. Additionally, its established computational structure is highly suitable for analysing the characteristics of the specific dataset used in this study.
The final portfolio outcomes produced through the integrated HRP-MCDM framework—using the Ward, single, complete, average, weighted, centroid, and median linkage methods—are concisely summarized in Table 6. In addition, the application steps for the MEREC and WEDBA methods are available for open access at https://zenodo.org/records/18140067 for the clusters obtained under each linkage criterion.
Table 6
Portfolio results according to HRP-MCDM approach.
| Average return | Maximum return | Minimum return | Range | Standard deviation | Skewness | Kurtosis | Sharpe ratio | |
| Single | 0.001752 | 0.067922 | −0.106825 | 0.174746 | 0.015754 | −1.574484 | 7.912521 | %11.12 |
| Complete | 0.001654 | 0.070020 | −0.103507 | 0.173527 | 0.015485 | −1.513177 | 7.551657 | %10.68 |
| Average | 0.001602 | 0.067084 | −0.109381 | 0.176465 | 0.015970 | −1.516512 | 7.653730 | %10.03 |
| Centroid | 0.001682 | 0.068849 | −0.103575 | 0.172424 | 0.015659 | −1.531529 | 7.662994 | %10.47 |
| Median | 0.001650 | 0.068843 | −0.103370 | 0.172213 | 0.015610 | −1.579865 | 7.985782 | %10.57 |
| Weighted | 0.001565 | 0.066707 | −0.102828 | 0.169534 | 0.015265 | −1.553718 | 7.988663 | %10.25 |
| Ward | 0.001728 | 0.070793 | −0.102738 | 0.173531 | 0.015478 | −1.544393 | 7.992812 | %11.17 |
| MCDM | 0.001630 | 0.068443 | −0.103784 | 0.172228 | 0.015673 | −1.609712 | 8.070063 | %10.40 |
Table 6 provides the detailed performance outcomes for the portfolios constructed under the hybrid HRP-MCDM framework using the stocks listed in the BIST 100 Index.
A meticulous inspection of these results reveals that the portfolios generated using the single and Ward linkage methods delivered the most robust overall performance, particularly in relation to both mean return and the crucial Sharpe ratio.
When the portfolios are comparatively assessed based on risk (standard deviation), the average-linkage portfolios exhibited the highest recorded volatility. Conversely, the weighted-linkage portfolios successfully displayed the lowest risk levels.
In terms of distribution characteristics, the skewness values consistently suggest that the return distributions across all linkage methods are negatively skewed relative to the standard normal distribution, implying a tendency toward larger negative return events. Concerning kurtosis, the single and Ward linkage portfolios demonstrated the most pronounced “heavy-tail” behaviour (leptokurtosis), while the complete and average linkage portfolios showed the lowest values. These findings suggest that the complete and average linkage methods are associated with a greater likelihood of extreme return fluctuations compared to other methods.
Finally, following the implementation of portfolio optimization using the traditional MEREC and WEDBA MCDM methods alone, a key finding emerged: a comparative analysis of the results in Table 6 indicates that the hybrid HRP-MCDM portfolios generally outperform those created exclusively through traditional, standalone MCDM procedures.
Beyond this general performance comparison, a more nuanced evaluation yields several additional insights into the structural behaviour of the proposed hybrid model. The consistent increase in Sharpe ratios—most prominently observed for the single and Ward linkage strategies—demonstrates that augmenting HRP with objective MCDM-based evaluation effectively reduces the algorithm’s sensitivity to clustering noise and substantially enhances the overall risk–return alignment.
The empirical evidence also suggests that linkage techniques which inherently produce more homogeneous or economically meaningful clusters benefit disproportionately from the MCDM integration. This indicates that cluster quality directly mediates the effectiveness of the hybrid model. Although the HRP-MCDM approach might marginally increase volatility for some specific linkage configurations, this is typically offset by a corresponding increase in average returns, which ultimately strengthens the risk-adjusted performance. This observed pattern confirms that the combination of MEREC-based weighting and WEDBA-based ranking systematically shifts allocations toward financially stronger firms within each HRP-generated cluster.
Overall, the empirical results decisively demonstrate that the hybrid model not only optimizes weight reallocation but also systematically mitigates structural weaknesses inherent in the original HRP algorithm—particularly its tendency to over-allocate to underperforming assets in elongated cluster structures—thereby establishing a more resilient, balanced, and superior portfolio optimization procedure.
5 Conclusions and Recommendations
One of the most complex challenges facing both individual and institutional investors is the identification of securities capable of delivering sustained superior returns. In response to this need, Markowitz (1952) established the foundation for modern finance with the Mean-Variance Optimization (MVO) model, designed to maximize expected return for a given risk level. Despite its historical significance, the MVO framework has attracted widespread criticism, primarily for its persistent tendency to yield highly concentrated portfolios comprising only a limited selection of assets—a structural flaw that has resisted resolution through conventional methodological advances.
In light of these practical constraints, the field has transitioned toward alternative models. The technological explosion of financial data has strained the scalability of traditional optimization, accelerating the adoption of artificial intelligence–based techniques. Among these, the Hierarchical Risk Parity (HRP) algorithm—rooted in graph theory and machine learning—has emerged as a powerful countermeasure to the concentration problem. However, HRP’s performance superiority over MVO often remains constrained. Therefore, this study advanced the HRP algorithm by integrating MCDM methods—specifically MEREC and WEDBA—to create a novel hybrid portfolio framework capable of offering more comprehensive and robust investment recommendations. Using real market data from the BIST 100 Index, the hybrid construction was carried out in two principal phases.
The analysis first involved portfolio weighting via the HRP algorithm across seven distinct linkage methods (Ward, single, complete, average, weighted, centroid, and median). This was enhanced in the second phase by incorporating the Elbow method into HRP, which successfully identified the optimal number of clusters for refinement (e.g., eight clusters under Ward, six under single, etc.). Following clustering, each configuration was analysed using the MEREC method for objective criterion weighting (based on financial criteria such as current ratio, ROE, and leverage) and the WEDBA method for asset ranking.
A rigourous evaluation of the findings yielded the following critical observations:
Mean Return Dominance: The HRP-MCDM portfolios successfully yielded the highest mean returns under six of the seven linkage methods (Ward, single, complete, average, centroid, and median). The original HRP algorithm proved marginally superior only under the weighted linkage configuration.
Risk and Distribution: The HRP-MCDM approach demonstrated higher volatility (standard deviation) across all linkage types when compared against the baseline HRP. However, the return distributions for both the HRP and HRP-MCDM portfolios were consistently left-skewed (negatively skewed), and both approaches exhibited relatively heavy tails (high kurtosis), indicating a consistent, heightened probability of extreme market movements.
Sharpe Ratio Superiority: The most critical finding emerged from the risk-adjusted comparison: HRP-MCDM significantly outperformed HRP based on the Sharpe ratio under the Ward, single, complete, and median linkage methods. Conversely, HRP produced superior Sharpe ratios under the average, centroid, and weighted linkage methods.
Overall, the empirical evidence overwhelmingly suggests that investors seeking to enhance risk-adjusted portfolio performance and increase capital value should strategically consider adopting the HRP-MCDM approach, particularly when utilizing linkage methods that favour cluster homogeneity (like Ward and single linkage).
There are several directions that future research could take to further refine and broaden the scope of this study. To begin with, both investors and researchers who intend to apply the extended HRP–MCDM framework may obtain more meaningful insights by working with datasets that include a wider range of asset classes and cover different market environments. Expanding the data in this way would offer a clearer view of how the model behaves under varying economic conditions. Another line of inquiry could involve comparing the proposed HRP–MCDM approach with more traditional optimization techniques, such as the classic Mean–Variance Optimization (MVO). Such comparisons would help reveal whether the extended framework provides noticeable improvements in terms of risk management or portfolio stability. It may also be worthwhile to explore hybrid designs in future studies. Integrating alternative distance metrics or incorporating other MCDM methods into the HRP–MCDM structure could make the model more versatile and adaptable to different decision-making settings. Finally, developing a practical coding framework that can automatically retrieve up-to-date market data and present it to users would greatly enhance the applicability of the approach, particularly for investors who rely on timely information.
Disclosure statement No potential conflict of interest was reported by the author(s).
Funding No funding was received for this research.
