Accurate and precise experimentation is critical when comparing evolutionary algorithms, ensuring validity for both researchers and practitioners. Such comparisons are supported by established benchmarking guidelines (Bartz-Beielstein et al., 2020; Eiben and Jelasity, 2002; LaTorre et al., 2020; Črepinšek et al., 2014; Ravber et al., 2016, 2022b). Numerous open-source metaheuristic frameworks have been developed to support research efforts. These provide widely used algorithms and standard test problems, and are implemented in various programming languages to facilitate rapid development and comparison (Molina et al., 2020; Silva et al., 2018; Parejo et al., 2012; Dzalbs, 2021; Osaba et al., 2021). Consequently, such frameworks have gained significant popularity within the research community.

Framework selection is often driven by the user’s preferred programming language (Oztas and Erdem, 2021). However, beyond language, the correctness of algorithm implementations and other framework components is crucial. Variations in implementation can lead to significant differences in performance, even when using identical parameters.

This study addresses the research question: To what extent does the implementation of a metaheuristic affect its problem-solving performance? We investigate this by focusing exclusively on the quality of solutions across multiple frameworks. Computational performance and resource usage have already been examined in prior work (Merelo-Guervós et al., 2016a; Villalobos et al., 2018). Our analysis includes reviewing the algorithm source codes within each framework to identify deviations from the original implementations, and evaluate whether the observed performance aligns with the intentions of the original algorithm authors. The primary objectives of this work are: We selected 13 diverse metaheuristic frameworks (DEAP, EARS, jMetal, MEALPY, MOEA, NiaPY, pagmo2, PlatEMO, YPEA, Nevergrad, metaheuristicOpt, EvoloPy, and pymoo) for comparison, chosen based on their widespread use, as indicated by citations and repository stars. We compared six single-objective algorithms, which were implemented widely across the selected frameworks: Artificial Bee Colony (ABC) (Karaboga and Basturk, 2007), Differential Evolution (DE) (Storn and Price, 1997), Genetic Algorithm (GA) (Holland, 1992), Grey Wolf Optimizer (GWO) (Mirjalili et al., 2014), Particle Swarm Optimization (PSO) (Kennedy and Eberhart, 1995), and Covariance Matrix Adaptation Evolution Strategy (CMA-ES) (Hansen and Ostermeier, 2001). Notably, these algorithms are among the most widely recognized and utilized within the evolutionary computation community, as evidenced by the numerous citations of their original works (Ma et al., 2023; Wang et al., 2021; Dokeroglu et al., 2019; Darwish, 2018; Tzanetos and Dounias, 2020; Molina et al., 2020; Wang et al., 2025). Additionally, many new metaheuristics are based on these algorithms (Velasco et al., 2024). When possible, we included original implementations published by the algorithm authors; however, for GA and PSO, such official source code was not available.

To ensure fairness in comparison, we validated the implementation of all test problems carefully across all frameworks. A statistical analysis was conducted using the EARS framework, which supports reproducible and unbiased evaluation. We adopted the Chess Rating System for Evolutionary Algorithms (CRS4EAs) (Veček et al., 2014), for performance comparison. Additionally, the Comparing Continuous Optimizers (COCO) platform (Hansen et al., 2021) was used to plot runtime profiles, specifically, Empirical Cumulative Distribution Functions (ECDF), to analyse algorithm performance further. The main contributions of this work are: The remainder of this paper is organized as follows. Section 2 provides a literature review on comparative studies of metaheuristic frameworks. Section 3 introduces the selected frameworks. Section 4 outlines the experimental design. The results and analysis are presented in Section 5. Section 6 concludes the paper and suggests directions for future work.

Several studies have explored the characteristics of metaheuristic frameworks, focusing on aspects such as code understandability, supported algorithms, parallelization capabilities, platform compatibility, visualization support, tuning options, solution representation, statistical analysis, programming language, and execution speed (Dzalbs, 2021; Osaba et al., 2021; Parejo et al., 2012; Silva et al., 2018; Ramírez et al., 2023). While these works provide valuable insights into the features and design of metaheuristic frameworks, they do not directly address the performance implications of different algorithm implementations within these frameworks. To address this gap, our study compares implementations of metaheuristic algorithms across multiple frameworks, and the following papers are some of the most relevant to our work.

In Biedrzycki (2021), Biedrzycki compared official implementations of the CMA-ES algorithm, sourced from the author’s homepage, revealing substantial performance differences between versions. These findings highlight that the choice of implementation can impact research outcomes significantly. To enhance research credibility, the study proposes guidelines to improve publication quality and reduce erroneous claims of algorithm superiority. Unlike Biedrzycki’s focus on a single algorithm (CMA-ES) and its versions, our work examines discrepancies in the implementations of six algorithms, including CMA-ES, across 13 metaheuristic frameworks. By comparing CMA-ES implementations across diverse frameworks, we anticipate similar, or even greater performance variations, due to the broader scope of the framework-specific differences, providing a more comprehensive analysis of the implementation impacts.

In the paper Merelo-Guervós et al. (2016a), the authors compared the performance of various programming languages in implementing basic evolutionary algorithm operations. Typically, compiled languages like Java or C/C++ are favoured for such tasks, but this research explored the speed of both popular and less common languages. The results show that compiled languages generally perform better, but languages like Go and Python can also be fast enough for most purposes. The choice of data structures and code layout impacts performance significantly. There is no one-size-fits-all language, but Java with BitSets or C# tends to perform well. The study suggests exploring hybrid architectures combining languages for optimal performance and prototyping benefits, fostering future research in this direction. The paper emphasizes primarily the execution speed of the algorithms, whereas our article focuses on examining the implementation differences that impact the algorithm’s performance on benchmark problems.

In the paper Merelo-Guervós et al. (2016b), the authors evaluated the performance of various programming languages in implementing three common genetic algorithm operations: two genetic operators (mutation and crossover) and OneMax, a benchmark used in both practical and theoretical approaches to genetic algorithms. Their aim was to provide insights for practitioners in choosing languages for evolutionary algorithm implementations. Java was generally considered the fastest, but Clojure was able to surpass it in some functions. Functional languages showed remarkable performance, despite their limited popularity in the evolutionary algorithm community. Using a vector of bits instead of bit strings or lists generally yielded better performance, and immutable data structures, common in functional languages, are faster when available. The study suggested future research directions, including hybrid language architectures for improved performance and a multi-language framework. The focus of the paper lies on evaluating programming languages for genetic algorithm operations, shedding light on the language choice for evolutionary algorithm implementations and how it affects efficiency, whereas our work centres on comparing the performance of the same algorithms implemented in different frameworks.

In the paper Alba et al. (2007), the authors examined the impact of different Java data structure implementations on the performance of an evolutionary algorithm. While most evolutionary algorithm studies focus on abstract data representations, this research delved into how these representations were implemented in programming languages, specifically Java. The study compared six implementations of a steady-state genetic algorithm, divided into two groups, based on population representation (array or vector) and individual representation. The results have shown that the choice of data structure for population representation affects the implementation time significantly, while the gene type had minimal impact. The study emphasized the importance of considering data implementation in EA research, and suggests further exploration in this area. However, the study only considered the efficiency of evolutionary algorithms, which differs from our paper’s primary focus on evaluating their impact on performance.

In the paper Merelo et al. (2011), the authors highlighted the significance of efficient implementation in evolutionary algorithms, emphasizing that improvements in implementation often have a more substantial impact on performance than changes to the algorithm itself. The study applied standard methodologies for performance enhancement to EAs, and identified implementation options that yielded the best results for specific problem configurations, especially when factors like population or chromosome size increased. The findings demonstrated that applying profilers to identify bottlenecks in EA implementations and then optimizing those code segments through informed programming, can enhance running times significantly without sacrificing algorithmic performance. Additionally, various techniques, like multithreading (Kovačević et al., 2022), and message passing, can improve EA performance further, expanding their applicability. The study highlighted the significance of efficient implementation in evolutionary algorithms, concentrating on optimizing the implementation for specific problem configurations, which differs from our paper’s primary objective of benchmarking different implementations on various problems.

This section presents the characteristics of the frameworks included in our comparison. We reviewed frameworks supporting continuous single-objective optimization problems. Due to the numerous available frameworks, we limited our study to 13 widely used frameworks with publicly available source codes. The selected frameworks and their characteristics, current as of July 2025, are detailed in Table 1. The table includes the latest release, repository stars, number of citations of the associated paper (as reported by Google Scholar), number of implemented algorithms (both single- and multi-objective), programming language, and the official publication. When evaluating the popularity of the frameworks, the citation count revealed that the three most well-received frameworks (DEAP, pymoo, and PlatEMO) were featured in the comparative analysis. Furthermore, DEAP, Nevergrad, and pymoo were ranked first, second, and third, respectively, in terms of popularity based on the repository stars.

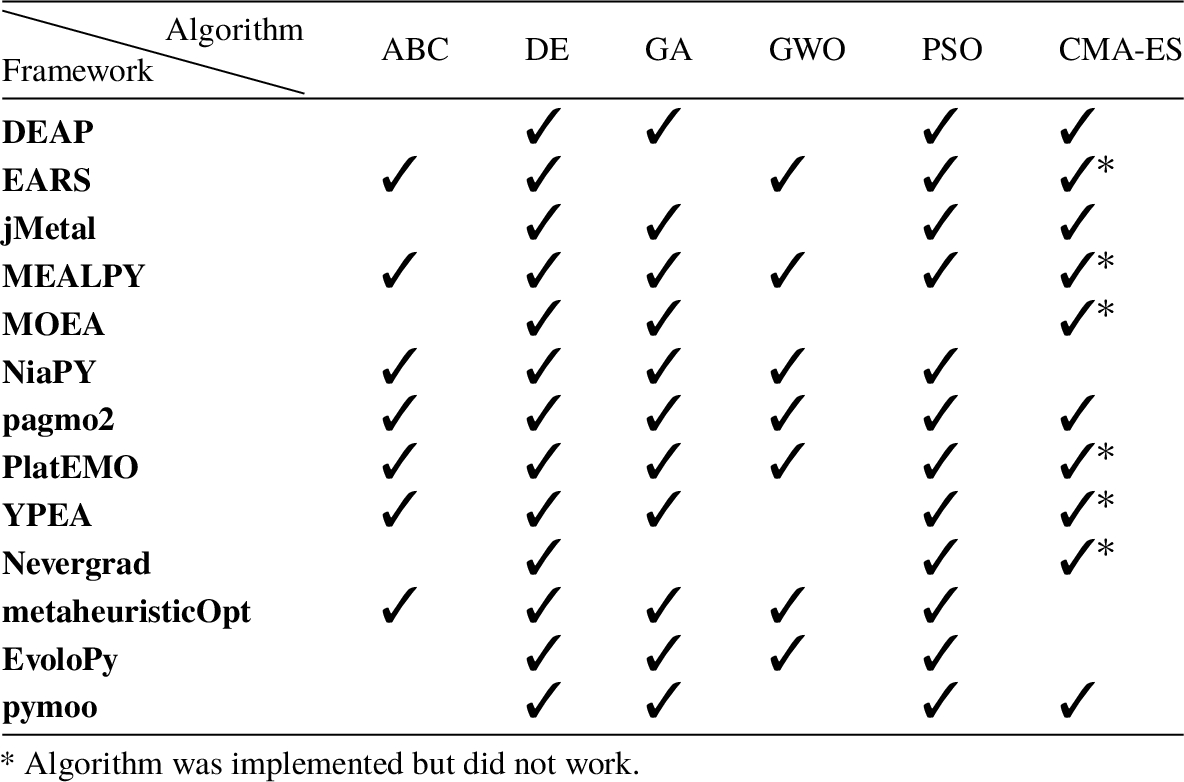

The algorithms selected for comparison are shown in Table 2. Differential Evolution was implemented in all 13 frameworks, whereas the other algorithms varied in availability. Notably, CMA-ES implementations in several frameworks contained errors, such as infinite loops or crashes, likely due to the algorithm’s complexity. Consequently, these flawed CMA-ES implementations were excluded from the comparison.

In the experiments, the algorithms shared the same control parameters, as listed in Table 3. These control parameters were set based on the authors’ recommendations, and were not subject to optimization. Importantly, the parameter settings were standardized across all the algorithms to ensure that they did not impact the comparison.

The DE strategy employed in our study was rand/1/bin. In contrast, GAs lack a standardized strategy but offer flexibility in choosing operators for selection, mutation, and crossover. Not all frameworks supported the same operators. For our comparison, we selected tournament selection, Polynomial Mutation (PM) (Deb and Deb, 2014), and Simulated Binary Crossover (SBX) (Deb et al., 1995), as they were the most prevalent across the selected frameworks. We omitted five of the 11 frameworks that did not support all chosen operators, as their GA implementations differed significantly and did not represent the same method. These choices were made to try to ensure a consistent and standardized comparison of algorithms across the different frameworks.

During the experiments, we used a set of 12 continuous single-objective problems, detailed in Table 4, which are widely recognized benchmarks for evaluating optimization algorithm performance. To ensure sufficient challenge, we employed shifted versions of some problems, to address the centre bias in algorithms like GWO (Morales-Castañeda et al., 2025; Camacho Villalón et al., 2020; Niu et al., 2019).

Appropriate stopping criteria lack specific guidelines and depend on problem complexity and desired solution quality. The studies (Sahin and Akay, 2016; Lee et al., 2020; Ezugwu et al., 2020), showed varied approaches, with evaluation counts ranging from 5,000 to 500,000. We applied a uniform stopping criterion of 15,000 evaluations across all problems. However, it is important to note that some of the authors’ implementations, as well as the DEAP, MOEA, pagmo2, metaheuristicOpt and EvoloPy frameworks, do not support the use of the maximum number of evaluations inherently as the stopping criterion. Instead, they offer the option to set the maximum number of generations or iterations, which is not recommended, due to variations in the number of evaluations consumed per generation by different algorithms (Ravber et al., 2022b; Mernik et al., 2015). To address this and ensure a fair comparison, we integrated a custom evaluation counter into each framework, to monitor the exact number of evaluations performed, and detect any instances where the limit was exceeded and by how much.

Once all the results were collected, we conducted the statistical analysis using the EARS framework. EARS is a specialized framework developed specifically for benchmarking evolutionary algorithms (EARS, 2019). It offers a comprehensive suite of tools and utilities that facilitate the setup and execution of benchmarks, as well as the collection and analysis of results. Designed with the goal of ensuring fairness in comparisons between evolutionary algorithms, EARS provides researchers with a reliable and standardized platform for conducting rigorous evaluations. All algorithms in EARS are based on the authors’ source codes, except CMA-ES, which uses the MOEA Framework implementation.

To analyse the runtime performance of each algorithm, we tracked their solution quality improvements throughout their runs across the 12 benchmark problems. We utilized cocoviz,1 a minimalist visualization toolkit provided by the COCO platform (Hansen et al., 2021), to generate Empirical Cumulative Distribution Functions. These ECDF plots illustrate the proportion of runs achieving specified target values within the given evaluation budgets, enabling detection of performance differences per problem, and highlighting framework-specific variations in algorithm efficiency.

EARS utilizes a novel method called CRS4EAs to facilitate the comparison of evolutionary algorithms. The chess rating system employed in CRS4EAs is Glicko-2 (Glickman, 2012). In a study by Veček et al. (2017), CRS4EAs was shown to be comparable to statistical tests like the Friedman test followed by the Nemenyi test. In another research paper by Eftimov and Korošec (2019), they established that the CRS4EAs approach was also comparable to the pDSC (Practical Deep Statistical Comparison) method. These studies provided evidence of the effectiveness and reliability of CRS4EAs in facilitating accurate and robust comparisons of evolutionary algorithms.

In the CRS4EAs approach, the algorithms are represented as chess players who participate in a tournament. In this tournament, the algorithms compete against each other in pairs, with each algorithm playing multiple games (N times) against all the other algorithms for a given problem. To ensure robust and reproducible results, we conducted 50 games (independent runs) per algorithm for each problem, a conservative choice exceeding the typical 15–30 runs used in metaheuristics research (Hansen et al., 2010; LaTorre et al., 2020; Ezugwu et al., 2020). The CRS4EAs approach, which does not assume normality in the performance data, further enhances reliability, as it produces consistent rankings even with fewer runs (Veček et al., 2017). All the games were conducted under identical conditions, with the same stopping criterion applied to each algorithm. The objective for each algorithm was to obtain the best possible solution for the given problem. Following the games, the solutions were compared to determine the game outcomes, which could be a win, a loss, or a draw for each algorithm. Specifically, for each problem instance, the outcome of a game between two algorithms was determined by comparing their fitness values (e.g. objective function values). A win was assigned to the algorithm with the better fitness value, a loss to the algorithm with the worse fitness value, and a draw was declared if the absolute difference between their fitness values was less than a predefined threshold (draw limit), $\epsilon ={10^{-8}}$. This threshold, consistent with the precision used in CEC competitions and in COCO (Hansen et al., 2021), ensures that negligible differences in fitness values are treated as draws, avoiding overemphasis on numerically insignificant variations due to floating-point precision or problem-specific tolerances. After the tournament, the results were utilized to calculate the Rating (R), Rating Deviation (RD), and Rating Interval (RI) for each algorithm. The final outcome was a ranking of algorithms based on their ratings, with higher ratings indicating better performance, reflecting the algorithm’s relative strength. The rating deviation indicates the reliability of an algorithm’s rating. Rating intervals, calculated as [R – 2RD, R + 2RD], provide a 95% confidence level that the true rating lies within this interval, based on the empirical 68–95–99.7 rule, assuming a normal distribution for rating deviations, as standard in the Glickman rating system (Glickman, 1999). The 95% confidence level $(\alpha =0.05)$ was chosen for its balance between statistical rigour and interpretability, as it is a common standard in significance testing, unlike the more conservative 99.7% level $(\alpha =0.01)$. Statistical significance was determined by evaluating whether the rating intervals of the compared algorithms overlapped. Non-overlapping intervals indicate significant performance differences between implementations. This approach ensures robust and statistically significant conclusions in comparing evolutionary algorithms using the CRS4EAs method.

As mentioned previously, the rating intervals were computed using the EARS framework. Each algorithm participated in a tournament, resulting in six rating charts containing the rating intervals.

It is important to note that the charts depicting the rating intervals may contain a different number of algorithms, as not every framework included all of the selected algorithms. Additionally, the absence of the authors’ versions of GA and PSO contributed further to variations in the chart compositions. The remaining algorithms, namely, ABC, DE, GWO, and CMA-ES, have their source code accessible on the authors’ official websites, and they are available in different programming languages. However, in the comparison, we included only one version (one programming language) of each algorithm from the authors’ implementations. We chose the canonical version of each algorithm without modifications, because the specific implementation choice can affect the results significantly (Biedrzycki, 2021). For ABC, we utilized the Matlab version, as it was the first version available on the authors’ homepage and bears the authors’ signature in the code. Similarly, for DE, we selected the Java version, since, from the comments in the code, it is evident that this version was written by one of the original authors. Regarding GWO, the authors’ homepage offers links for GWO implementations in seven different languages. Nevertheless, we chose to use the Matlab version, as it was the one written by the original author. For CMA-ES, there were also implementations available in multiple languages on the author’s homepage. We selected the Python implementation, as it is maintained actively by the authors (Hansen et al., 2019).

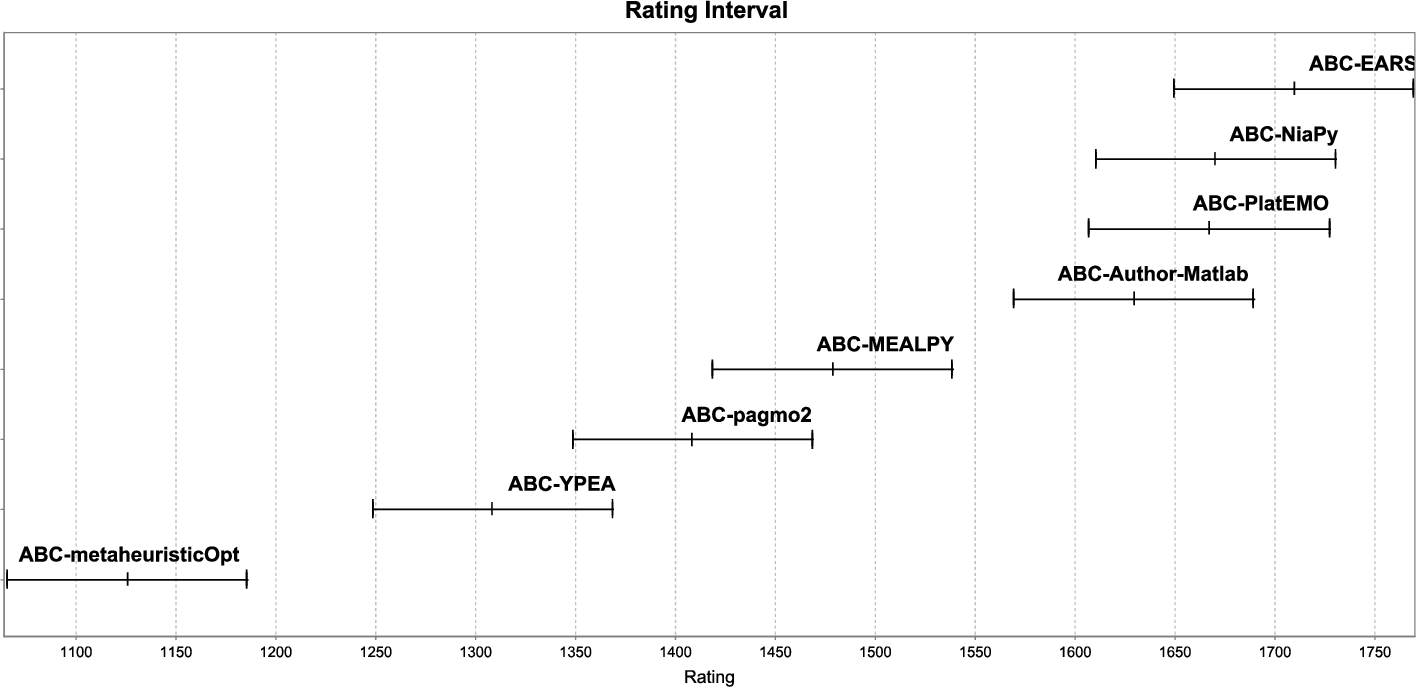

Figure 1 illustrates the rating and rating intervals for ABC implementations in seven different frameworks, as well as the author’s implementation in Matlab (ABC-Author-Matlab). The concept of rating intervals and how they were calculated is explained in the Experimental Methodology (Section 4). For clarity, the same methodology was applied to all the algorithms, and their rating intervals are presented in subsequent figures. The implementations are ranked based on their ratings, with the best performing implementation placed in the top right corner, and the worst performing in the bottom left corner. From the chart, we can determine that the implementation in the EARS framework (ABC-EARS) achieved the highest rating, indicating superior performance, while the implementation in the metaheuristicOpt framework (ABC-metaheuristicOpt) obtained the lowest rating.

A comprehensive comparison of algorithms considers both their ratings and rating intervals. Non-overlapping rating intervals indicate statistically significant performance differences at the 95% confidence level. In Fig. 1, ABC-EARS, ABC-NiaPY, ABC-PlatEMO, and ABC-Author-Matlab significantly outperform ABC-MEALPY, ABC-pagmo2, ABC-YPEA, and ABC-metaheuristicOpt. ABC-MEALPY is significantly better than ABC-YPEA and ABC-metaheuristicOpt. Additionally, ABC-pagmo2 and ABC-YPEA are significantly better than ABC-metaheuristicOpt. However, partial overlap in rating intervals, such as between ABC-EARS and ABC-NiaPy, suggests smaller performance differences that may not always be statistically significant. For a detailed analysis of such cases, the ECDF plots provide further insights into performance variations.

It is important to recognize that, in stochastic algorithms, the ranking of similarly performing algorithms could vary if the experiment is rerun. The degree of overlap in the rating intervals affects the likelihood of this variability occurring. The more the intervals overlap, the smaller the observed differences in performance, and the higher the possibility of changes in the ranking upon rerunning the experiment. For example, when we examined the rating intervals of ABC-NiaPY and ABC-PlatEMO, we noticed that they had a large overlap of intervals, suggesting that their rankings could vary if the experiment were to be repeated. In contrast, when we considered the rating intervals of ABC-pagmo2 and ABC-YPEA, we observed much less overlap, indicating that their rankings are less likely to change.

For a more detailed analysis of the performance of different implementations, we plotted runtime profiles for each problem individually using cocoviz. The x-axis in the figures represents the budget, defined as the number of function evaluations, while the y-axis shows the fraction of target values reached. For each problem, the target value corresponded to its global optimum; therefore, reaching the target value indicates that the implementation found the global optimum.

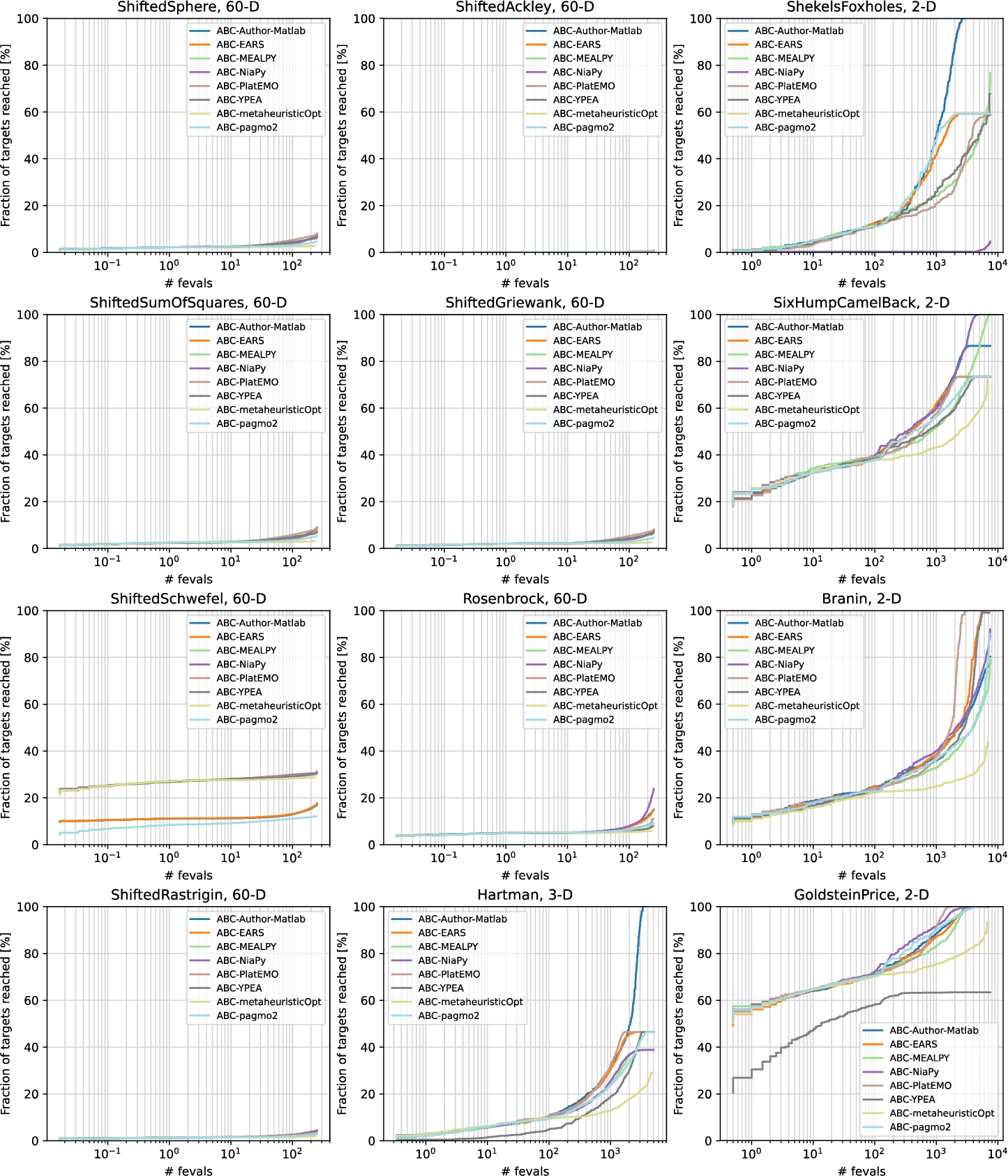

The runtime profiles for all 12 problems for ABC are shown in Fig. 2. The 60-dimensional (60D) problems proved to be particularly challenging, as none of the implementations reached the global optimum. Among them, the Shifted Ackley problem was the most difficult. In contrast, the 2-dimensional (2D) Goldstein–Price problem was the least challenging: six out of the eight implementations found the global optimum, with PlatEMO converging the fastest. Interestingly, for the Shekel’s Foxholes and Hartman problems, only the authors’ implementation reached the global optimum. Among the 60D problems, the best performance was observed on the Shifted Schwefel problem, although the EARS, pagmo2, and the authors’ implementations performed slightly worse than the others.

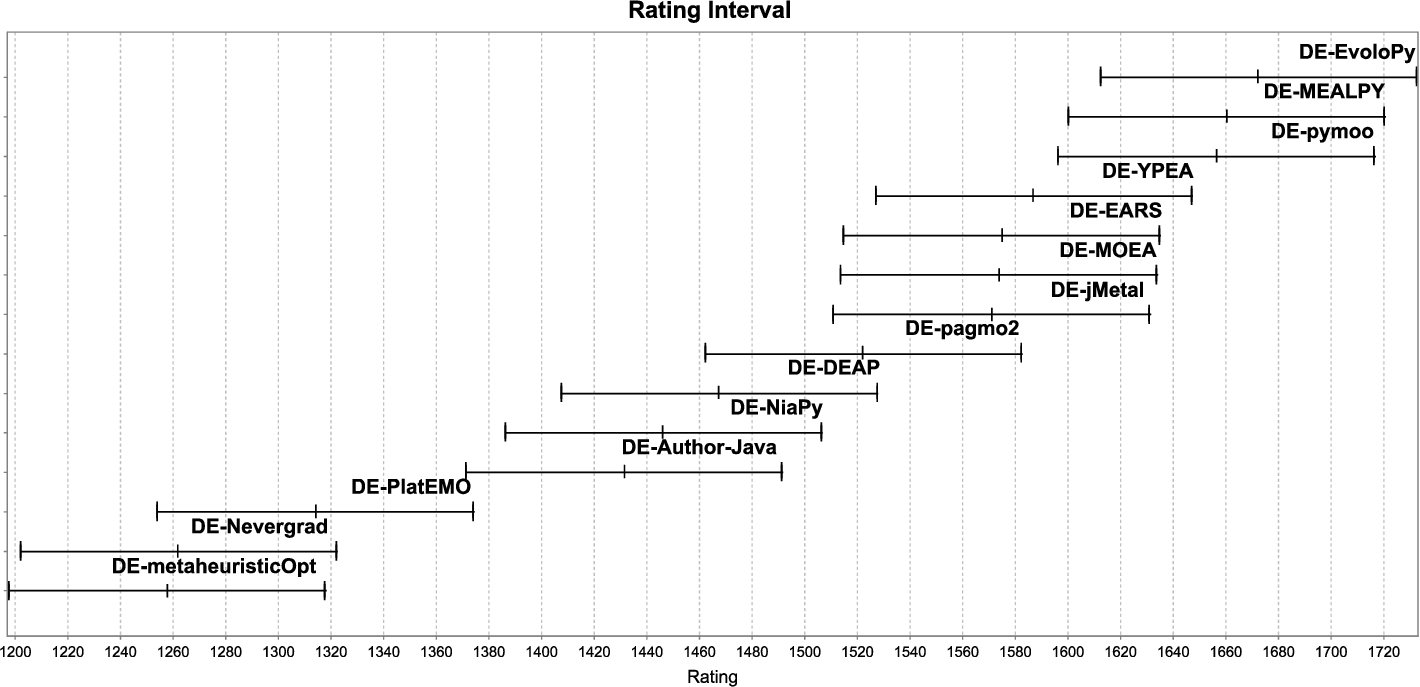

Figure 3 illustrates the rating intervals for DE across all 13 frameworks, including the authors’ Java implementation (DE-Author-Java). The rating interval of the author’s implementation overlaps with only four other implementations: PlatEMO, NiaPy, DEAP, and pagmo2. Among these, NiaPy showed the greatest degree of overlap, suggesting minimal deviation from the authors’ code. In contrast, although PlatEMO and the authors’ implementation were not significantly different in performance, their intervals barely overlapped, indicating greater deviation. The rating intervals of nine implementations did not overlap with the author’s implementation at all, indicating substantial differences. The top three ranked implementations stood out the most, outperforming six other implementations as well as the authors’ version.

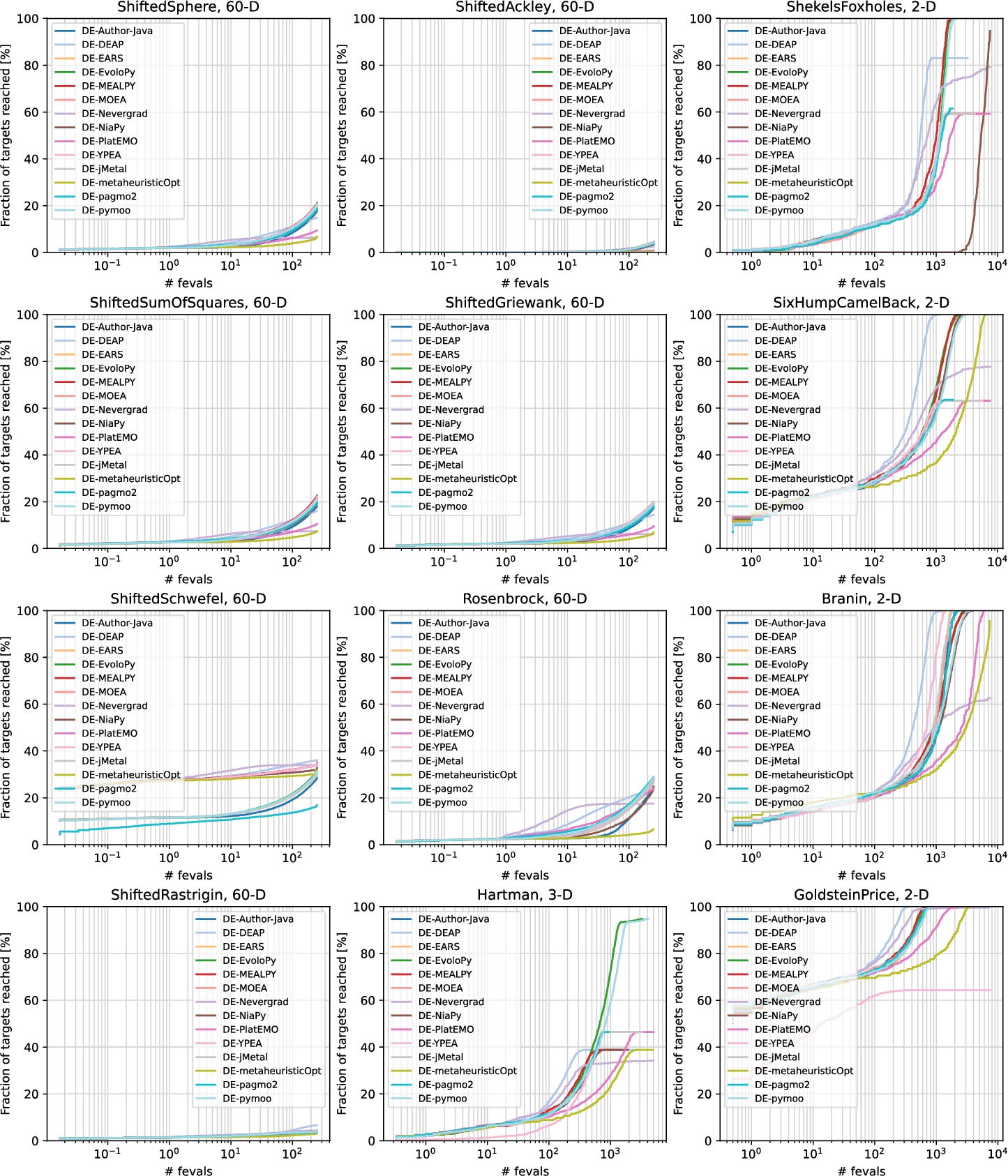

The runtime profiles for DE are presented in Fig. 4. Compared to the ABC implementations, the DE implementations performed better overall. However, no implementation was able to find the global optimum for any of the 60D problems. Among the 2D problems, only YPEA failed to find the global optimum for Goldstein–Price, and only Nevergrad and metaheuristicOpt failed to do so for Branin. For the Six-Hump Camel problem, six out of the 14 implementations reached the optimum. For Shekel’s Foxholes, only three implementations reached the optimum. NiaPy came close, but had very slow convergence. Interestingly, for the 3D Hartman problem, none of the implementations found the optimum. Among the 60D problems, the largest performance differences were observed on the Shifted Schwefel problem. The implementations can be divided roughly into two groups: those with faster convergence, and those with slower convergence. The only outlier was pagmo2, which did not belong to either group, and had the worst performance.

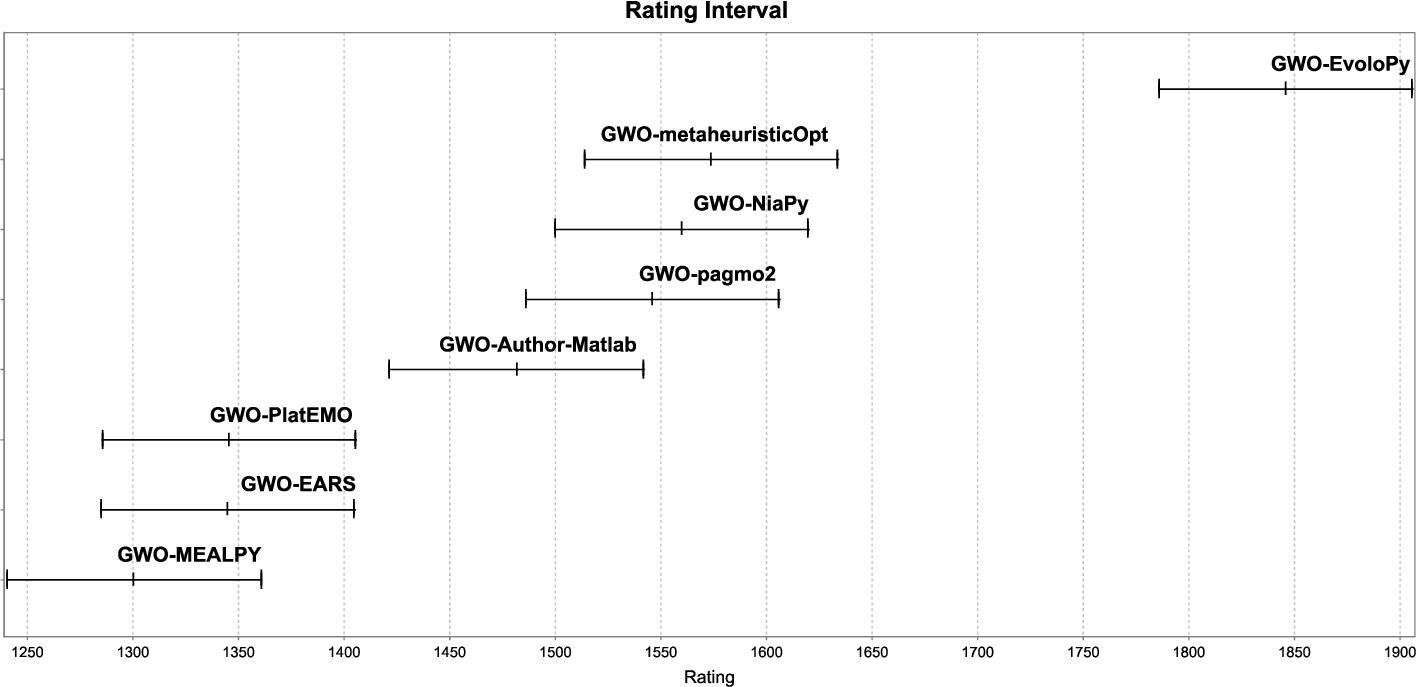

In Fig. 5, we can observe the rating intervals for the authors’ implementation of GWO, along with implementations in seven different frameworks. None of the implementations have a high degree of overlap with the authors’ implementation, there is, however, at least some overlap with three implementations (metaheuristicOpt, NiaPy, and pagmo2). The implementation in EvoloPy outperformed all of the other implementations significantly, indicating the biggest deviation in its implementation. The worst-performing implementation was by MEALPY. It was outperformed by the authors’ implementation, as well as four other implementations.

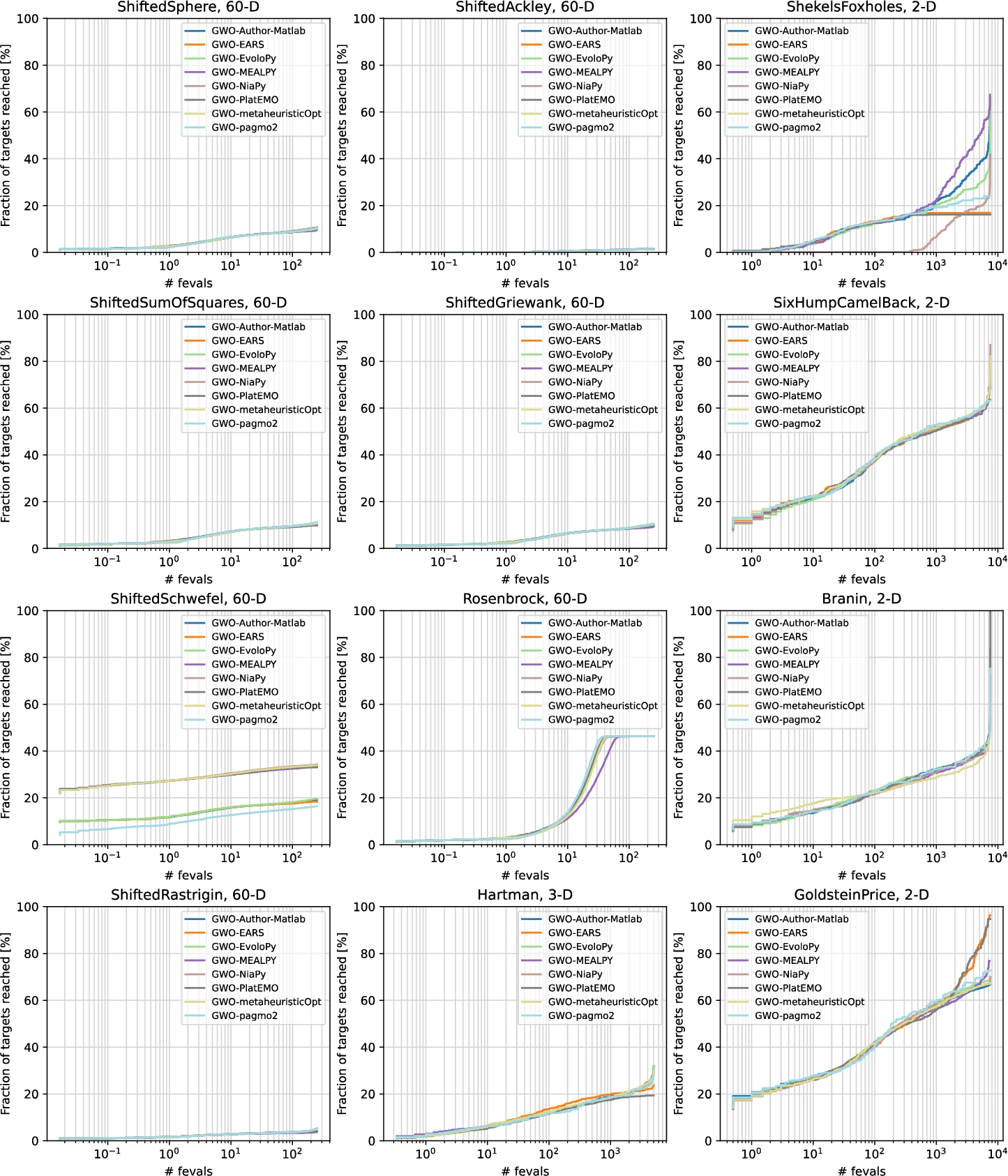

The runtime profiles for GWO are presented in Fig. 6. Among the 60D problems, all the implementations performed best on Rosenbrock, the only non-shifted problem in this group. This supports the claim that GWO has a centre bias (Camacho Villalón et al., 2020; Niu et al., 2019). Interestingly, all the implementations converged to a very similar local optimum at a comparable rate, except for MEALPY, which lagged behind slightly. Similar to DE and ABC, the GWO implementations can be divided into two groups on the Shifted Schwefel problem. The implementations did not perform much better on the 3D Hartman problem. Only PlatEMO reached the global optimum on the Branin problem. The largest differences between implementations were observed on Shekel’s Foxholes.

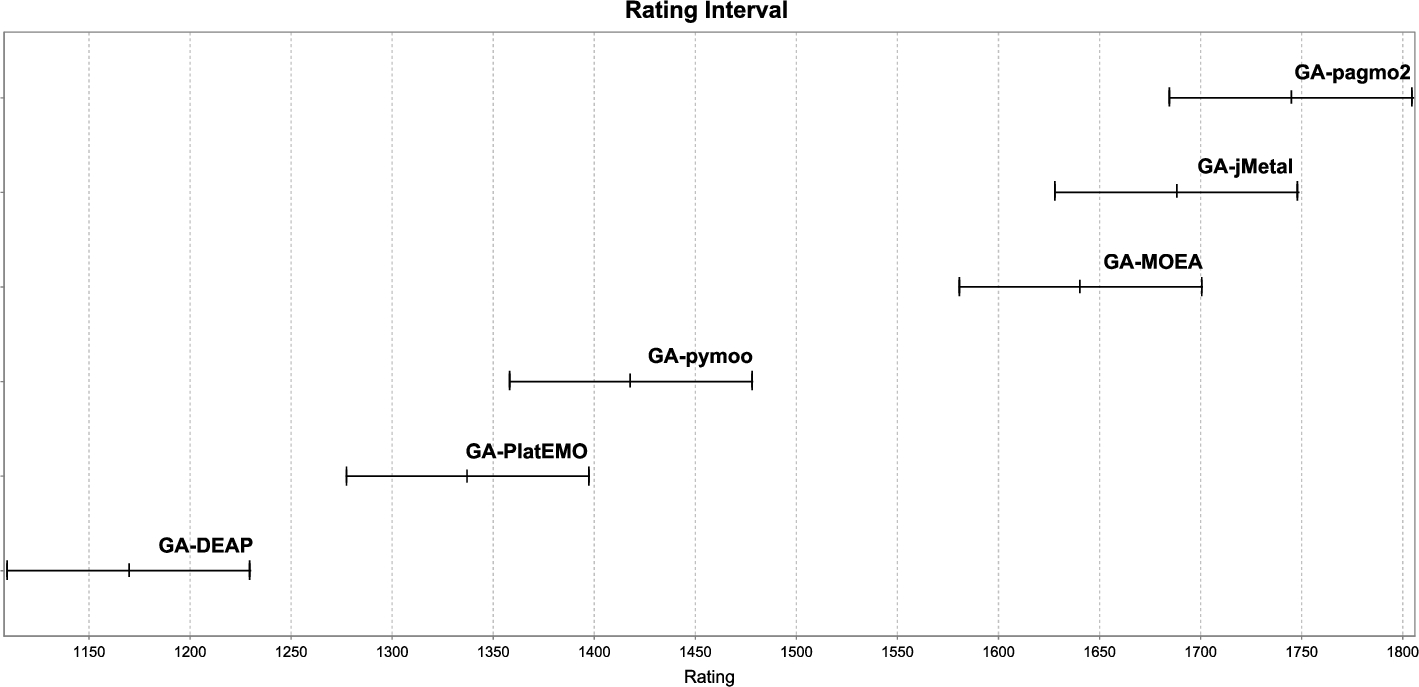

In Fig. 7, we present the rating intervals for GA implementations across six frameworks. Despite the absence of an official reference implementation, the results reveal notable variability, even with consistent genetic operators. The pagmo2 implementation performed best, significantly outperforming pymoo, PlatEMO, and DEAP. Conversely, DEAP performed worst, significantly outperformed by all others. The implementations form three distinct groups with non-overlapping rating intervals between groups: pagmo2, jMetal, and MOEA in the first group; pymoo and PlatEMO in the second; and DEAP alone in the third. These results highlight significant performance differences among implementations, even with identical operators, underscoring the impact of implementation-specific details.

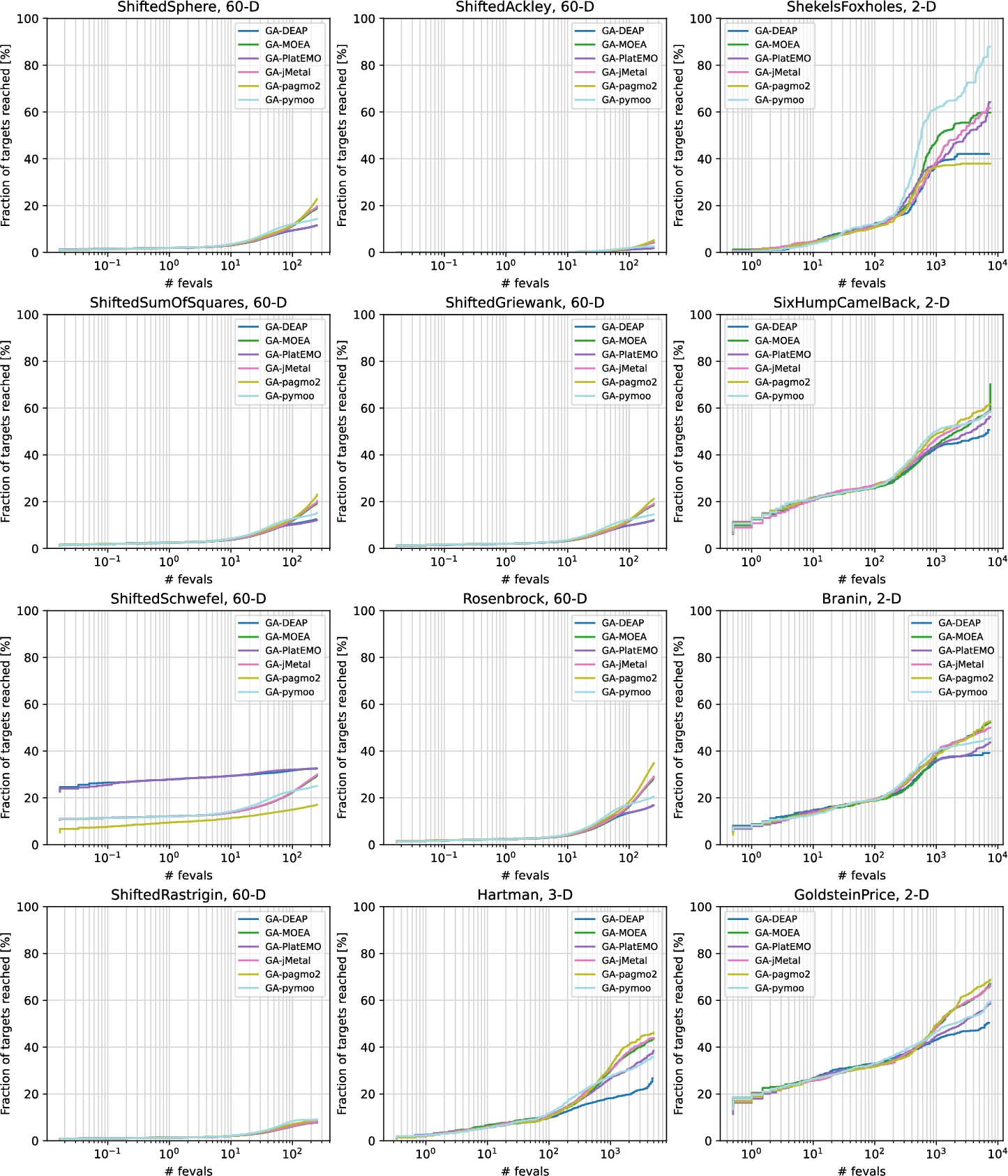

The runtime profiles for GA are presented in Fig. 8. Similar patterns were observed across most 60D problems, except for Rosenbrock and Shifted Schwefel, where the behaviour differed. The implementations performed slightly better on the 3D Hartman problem, but the improvement was minimal. They performed significantly better on the 2D problems, although none reached the global optimum. The largest differences among implementations were observed on Shekel’s Foxholes, where pymoo emerged as the clear winner, approaching the global optimum.

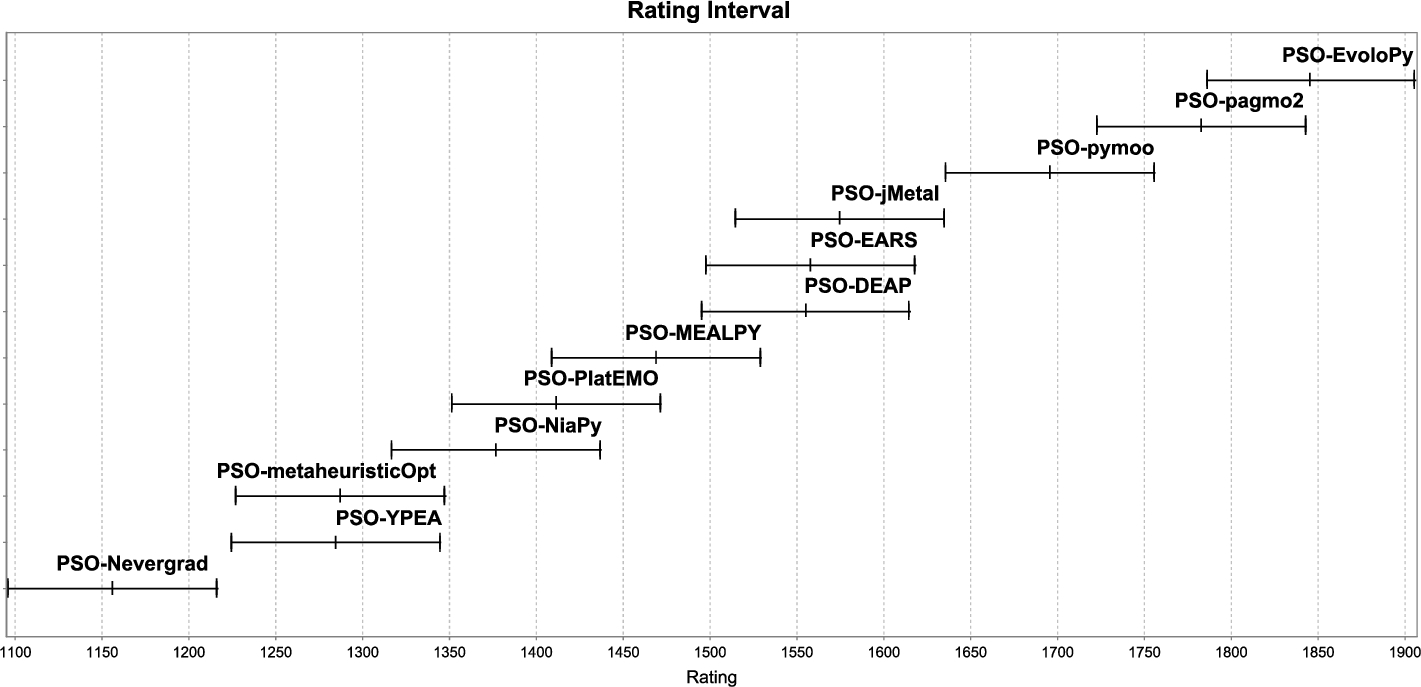

In Fig. 9, we examine the rating intervals for PSO implemented in twelve different frameworks. Similar to GA, an official author’s source code was unavailable for reference, leading to notable differences in the performance of these implementations. The resulting graph resembles a staircase, with mostly overlapping rating intervals and only a few instances of clear separation. Among the implementations, PSO-Nevergrad performed the least effectively, being outperformed by every implementation, while PSO-EvoloPy stood out as the top performer, outperforming all the others except for pagmo2. This performance gap raises questions about the potential significant differences between PSO-EvoloPy’s and PSO-Nevergrad’s implementations. Interestingly, there are two groups of implementations with similar performance. The first group includes PSO-jMetal, PSO-EARS, and PSO-DEAP, while the second group comprises PSO-metaheuristicOpt and PSO-YPEA. These variations in performance emphasize the need for an official source code as a reference point. In summary, the differences in implementation performance underscore the importance of providing a detailed implementation overview for reliable comparisons and evaluations of PSO algorithms in the absence of an official source code.

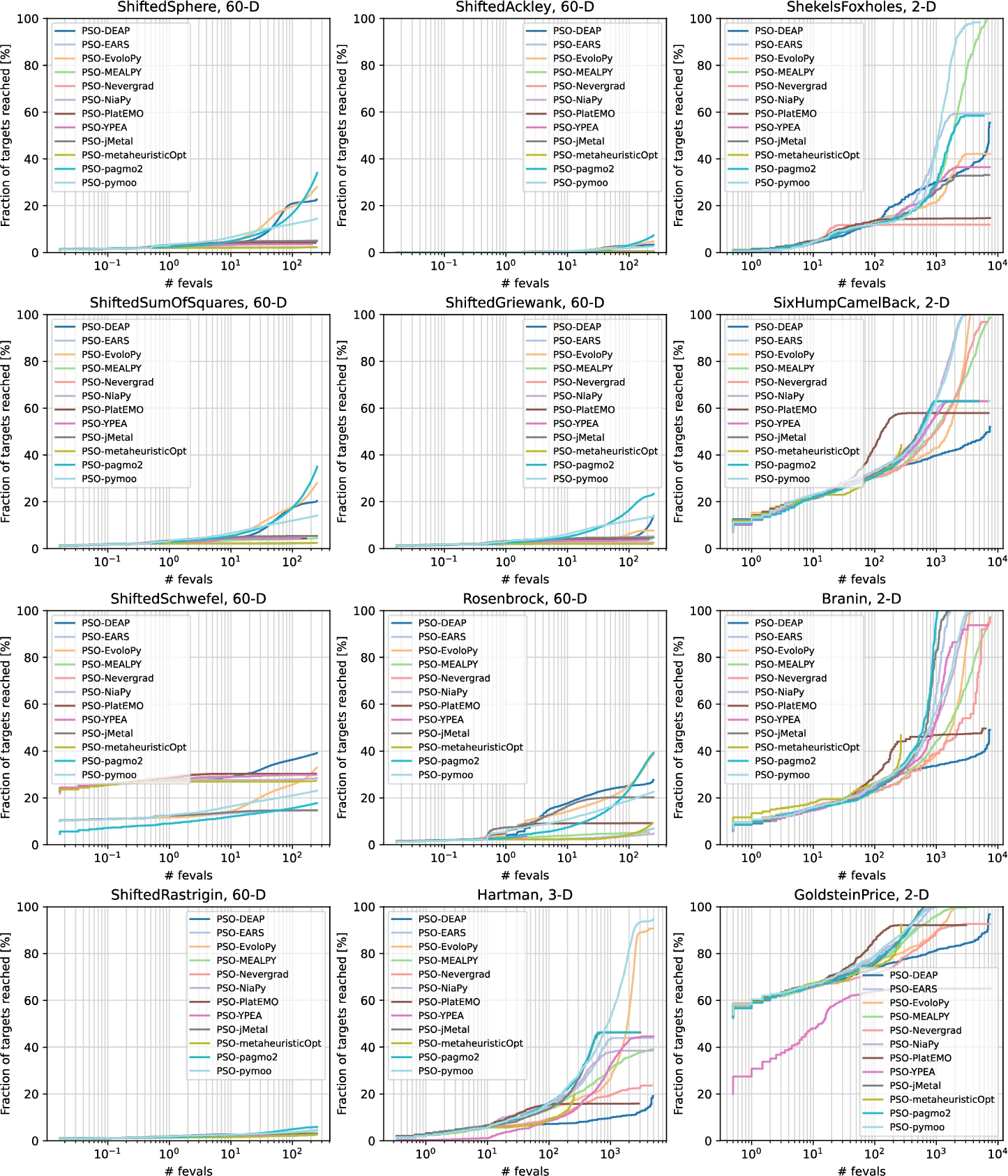

The runtime profiles for PSO are presented in Fig. 10. On the 60D problems, pagmo2 outperformed the others consistently, except on the Shifted Schwefel problem, where DEAP had the best performance. In most of the 60D cases, the implementations in pagmo2, EvoloPy, DEAP, and pymoo stood out. On the 3D Hartman problem, pymoo and EvoloPy were the clear winners, coming close to the global optimum. On the 2D problems, only some implementations reached the global optimum, though many came very close. Based on the proximity to the optimum, Goldstein–Price appeared to be the least challenging problem. Interestingly, similar to GA, the poorest performance on the Goldstein–Price problem was exhibited by the implementation in YPEA.

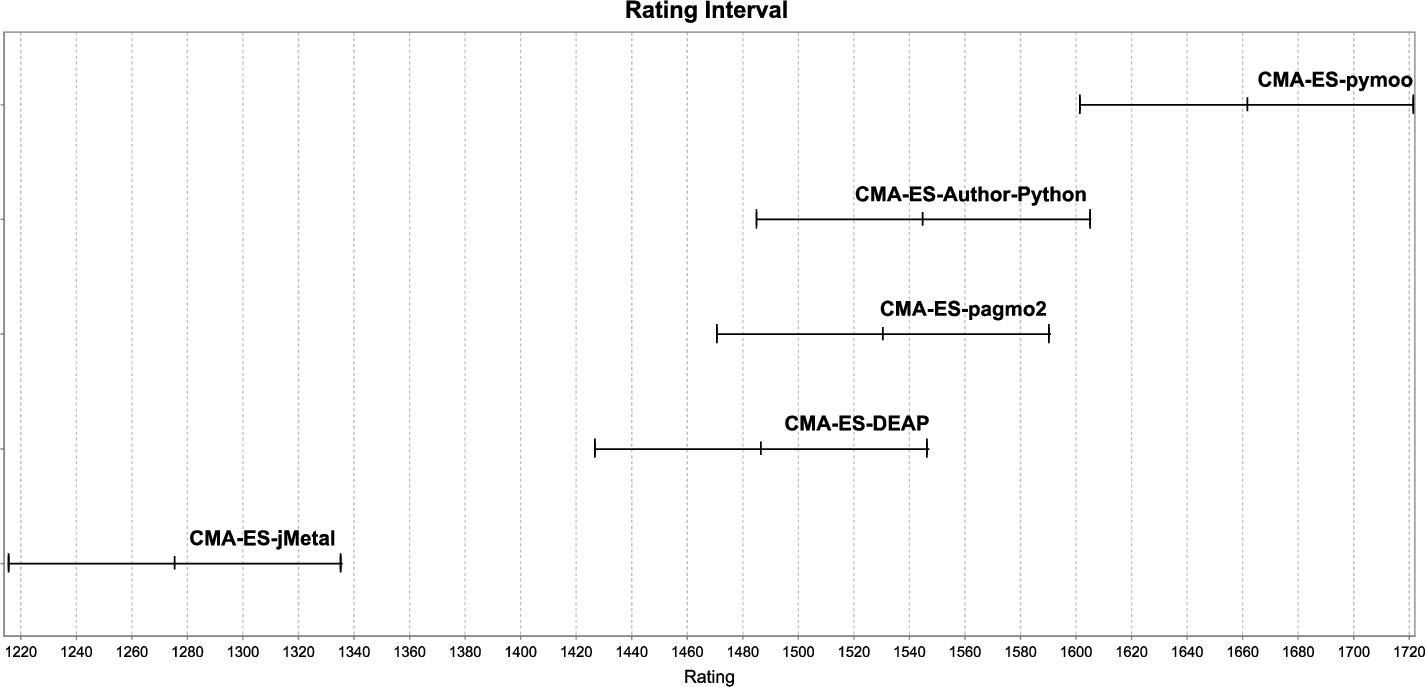

Figure 11 displays the rating intervals for the authors’ implementation of CMA-ES (CMA-ES-Author-Python), along with implementations in four different frameworks. The implementation in pagmo2 performed almost identically to the author’s, as indicated by their overlapping rating intervals. DEAP performed slightly worse, but its interval still overlaps a lot with the authors’ code. The implementation in pymoo performed the best, outperforming all of the other implementations significantly except the authors’. On the other hand, the implementation in jMetal performed the worst, being significantly outperformed by every other implementation, indicating a greater divergence in its implementation from the rest.

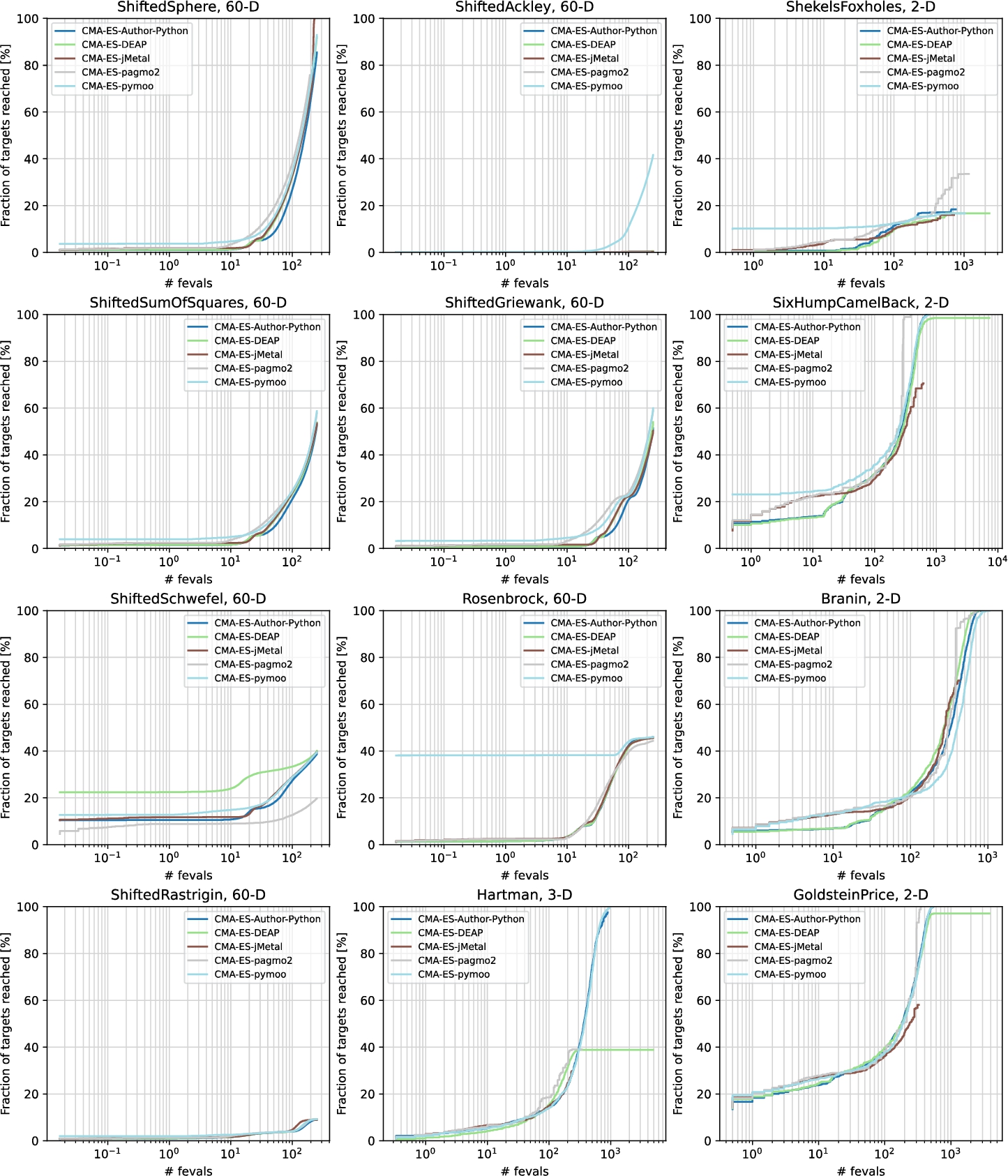

The runtime profiles for CMA-ES are presented in Fig. 12. Among all the algorithms, CMA-ES showed the best performance on the 60D problems, with the jMetal implementation even finding the global optimum on the Shifted Sphere problem. The implementation in pymoo also stood out on the most challenging problem for all implementations (Shifted Ackley), where it came closest to the global optimum. On many 60D problems, the implementations had very similar performance. On the 3D Hartman problem, the pymoo implementation found the global optimum, while the author’s implementation came very close. Once again, the highest number of global optima was reached on the 2D problems. The jMetal implementation performed the worst overall, lagging far behind the others. The most surprising results were observed on the Shekel’s Foxholes problem, where all the implementations performed very poorly.

In conclusion, when proposing a new evolutionary algorithm, it is important to compare it thoroughly with existing state-of-the-art algorithms. Replication experiments are necessary to address the limitations of directly comparing results from different studies. Metaheuristic frameworks make these experiments easier by providing pre-implemented algorithms. Our study reviewed the source codes and found differences between the implementations and the original authors’ versions. Comparing performance across various frameworks, both with and without the authors’ source code, showed significant differences with the same settings. While it is expected that algorithms implemented in different frameworks will exhibit varying performances, the extent of these differences was unexpectedly significant. These findings raise concerns about the reliability of previous studies that used these frameworks for comparisons. Although we compared only a handful of metaheuristics, we can claim confidently that the same findings apply to any other metaheuristic.

To improve the fairness and legitimacy of future experiments, researchers should validate the code they use. This would not only ensure accuracy and consistency, but also benefit the research community by promoting the use of correct implementations and enhancing the overall quality of scientific studies. When authors don’t use frameworks and either write the code themselves or get it from unofficial sources, even bigger problems can arise. Our study found significant differences across six evolutionary algorithms in different frameworks, caused solely by the framework implementations. These differences ranged from small to large, showing how even tiny changes can affect algorithm performance, and, to our surprise were not attributed only to the programming language used. We highlight the importance of making sure framework implementations match the original authors’ versions as closely as possible. If this is not possible, it is important to disclose any differences clearly and explain why they exist. Metaheuristic frameworks should state clearly which version of the algorithm they implement, and provide proper references to the original or modified formulations. Researchers must provide detailed information on algorithm parameters, operators, and strategies, including any deviations from the original version, and cite the exact source of the implementation if it was obtained from a specific framework, website, or repository. To enhance transparency and usability, frameworks should offer users the option to configure all the available control parameters, ensuring awareness of these settings, as not all users possess the expertise to modify source code, which also may not always be accessible. Furthermore, every framework should support setting the stopping criterion as the maximum number of function evaluations, as iteration-based criteria can be algorithm-dependent, and may fail to account for additional or unintended evaluations, such as those occurring in the ABC algorithm (Ravber et al., 2022b). Using function evaluations as the stopping criterion also facilitates the detection of such unintended evaluations, thereby ensuring consistent and comparable performance assessments across diverse algorithms.

Despite these limitations, metaheuristic frameworks remain an essential tool for developing and evaluating new optimization algorithms. They reduce implementation effort by offering pre-implemented and debugged metaheuristics, support fair comparisons, and simplify the integration of new methods. Frameworks facilitate reuse, hybridization, and monitoring, often providing tools for visualization, parameter tuning, and even parallel or distributed computing. Their structured design allows researchers to focus on solving the actual optimization problem rather than dealing with implementation details. Moreover, using an existing framework encourages reproducibility and transparency, particularly when the newly proposed method is integrated directly into the same framework. This practice strengthens the contribution to the broader research community. While no framework is flawless, their use should be encouraged, provided researchers remain mindful of their limitations and clearly document any deviations (Molina et al., 2020; Silva et al., 2018; Parejo et al., 2012; Dzalbs, 2021; Osaba et al., 2021).

Promoting Open Science practices, such as sharing source code publicly, ensures that evaluations are robust and transparent. This openness helps the scientific community draw valid conclusions from comparative studies, and fosters a collaborative environment where knowledge and resources are freely accessible. By embracing Open Science, we can enhance the reliability, reproducibility, and overall quality of research in the field of evolutionary computation.
