1 Introduction
The idea of intuitionistic fuzzy sets (IFSs) was initially developed by Atanassov (1986) to generalize the notion of fuzzy set (Zadeh, 1965). Zhou et al. (2019) defined the normalized weighted Bonferroni Harmonic mean-based intuitionistic fuzzy operators for sustainable selection of search and rescue robots. There were two described variables in IFSs, including the degrees of membership and non-membership. In terms of IFSs, Atanassov and Gargov (1989) and Atanassov (1994) gave the theory of interval-valued intuitionistic fuzzy sets (IVIFSs) which can describe fuzzy numbers more exactly and reasonably. Lu and Wei (2019) designed the TODIM method for performance appraisal on social-integration-based rural reconstruction under IVIFSs. Wu et al. (2019a) gave the VIKOR method for financing risk assessment of rural tourism projects under IVIFSs. Wu et al. (2020) proposed some interval-valued intuitionistic fuzzy Dombi Heronian mean operators for evaluating the ecological value of forest ecological tourism demonstration areas. Wu et al. (2019b) designed the algorithms for competitiveness evaluation of tourist destination with some interval-valued intuitionistic fuzzy Hamy mean operators. However, in reality, there exist some particular situations when the neutral membership degree is needed to be calculated independently. Thus, to conquer this defect and obtain more rigorous information, Cuong and Kreinovich (2015) initiated the theory of picture fuzzy sets (PFSs) which took another described variable (neutral membership) into consideration. There are three described variables in PFSs which are the degrees of membership, neutral membership and non-membership. The only condition that must be fulfilled is that the three described variables’ sum cannot exceed 1. As a powerful tool, PFSs deliver more comprehensive information which the application of some particular situations required more answer types of human ideas: yes, abstain, no, refusal. Cuong et al. (2015) found PFSs’ main logic operators and developed the main operations of reasoning process in PFSs by linking the triple picture fuzzy operators of De Morgan. Garg (2017) investigated several PFSs’ aggregation operators, including PFWA, PFOWA and PFMA aggregation operators. Xu et al. (2018) combined Muirhead mean (MM) operator with PFSs to develop PFMM operator and created a novel method which can be widely applied in attribute values to address MADM issues. Zhang et al. (2018a) found several novel operational rules of PFSs relying on Dombi t-conorm and t-norm (DTT) and made use of the information aggregation technology of Heronian mean (HM) to integrate PFNs. Jana et al. (2018) put forward a model which was related to picture fuzzy Dombi aggregation operators to address MADM issues in an updated way. Wei (2016) gave the notion about picture fuzzy cross entropy and established the entropy of the alternative attribute value of PFNs. Joshi and Kumar (2018) pointed out an approach for MADM issues derived from the Dice similarity and weighted Dice similarity measures for PFSs. Son (2017) extended the fundamental distance measure in PFSs to the generalized picture distance measures and picture association measures. Liu et al. (2019) explored some distance measures for PFSs and proposed Picture fuzzy ordered weighted distance measure and Picture fuzzy hybrid weighted distance measure for MAGDM method in an updated way. Singh (2015) presented the concept about the PFSs’ geometrical interpretation and made a correlation coefficient of PFSs. Son (2015) found DPFCM method which was an innovative distributed picture fuzzy clustering method. Thong and Son (2015) put forward a novel hybrid model which was an application of medical diagnosis on the basis of picture fuzzy clustering and intuitionistic fuzzy recommender systems. Wang et al. (2018a) utilized picture fuzzy information to formulate a framework which was related to hybrid fuzzy MADM to sort the EPC projects’ risk factors. Wang et al. (2018b) integrated the PFNP model with VIKOR method to create a method called picture fuzzy normalized projection-based VIKOR. Liang et al. (2018) integrated EDAS method with ELECTRE module in PFSs to infer the level of cleaner production. Ashraf et al. (2018) made a discussion about the weighted geometric aggregation operator’s generalized form in PFSs and proposed TOPSIS method to aggregate PFNs. Ju et al. (2018) extended the classical GRP approach to PFSs and calculated each EVCS site’s relative grey relational projection. Wei et al. (2019b) defined an extended bidirectional projection algorithms for picture fuzzy MAGDM issue for safety assessment of construction project. Furthermore, Wei et al. (2018) put forward the concept of P2TLSs on the basis of PFSs and 2-tuple linguistic term sets. Wei (2017) developed the P2TLWBM operator and the P2TLWGBM operator on the basis of Bonferroni mean. Zhang et al. (2018b) presented P2TLNs’ novel operational laws which can conquer the limitation of existing operations relating to PFNs and P2TLNs. Zhang et al. (2019b) designed the MABAC method for MAGDM issue under P2TLSs.
With the continuous destruction of the human environment and the shortage of earth resources, the traditional supply chain has gradually failed to adapt to the current era and the needs of society, thus introducing the concept of green supply chain. The establishment of green supply chain has become the main challenge and trend for enterprises to provide green products and move towards a sustainable development society. Among them, the important link and core content of implementing green supply chain is the evaluation and selection of green suppliers, especially those with sustainable development who meet the requirements of green environmental protection. Because supplier selection plays an important role in green supply chain management, it directly determines the optimization of the whole chain and the core competitiveness of the enterprise. Therefore, how to efficiently determine the required suppliers from a large number of suppliers is the key problem to be solved in modern green supply chain management. The green supplier selection problem is based on multiple attributes and many experts, as it is not a single-attribute problem (He et al., 2019b; Hu et al., 2016; Lei et al., 2019; Li et al., 2020; Wang et al., 2019c; Wang P. et al., 2019a, 2019b). In this respect, multiple attribute group decision making (MAGDM) techniques or tools can be used to investigate this problem in a better way (Deng and Gao, 2019; Gao et al., 2019; Li and Lu, 2019; Wang et al., 2019a; Wang, 2019). MAGDM methods are used to rank suppliers or to choose the most appropriate and favourable supplier on the basis of multiple attributes and many experts (Mohammadi et al., 2017; Paydar and Saidi-Mehrabad, 2017). Many researchers have employed different techniques to select green suppliers. Gao et al. (2020) developed the VIKOR method for MAGDM based on q-rung interval-valued orthopair fuzzy information for supplier selection of medical consumption products. Hashemi et al. (2015) defined an integrated green supplier selection approach with analytic network process and improved Grey relational analysis. Awasthi and Kannan (2016) designed the green supplier development program selection by using NGT and VIKOR under fuzzy environment. Liou et al. (2016) developed a new hybrid COPRAS-G MADM model for improving and selecting suppliers in green supply chain management. Wei et al. (2019a) proposed the supplier selection of medical consumption products with the probabilistic linguistic MABAC method. In Wang et al. (2019b), the q-rung orthopair hesitant fuzzy weighted power generalized Heronian mean (q-ROHFWPGHM) operator and the q-rung orthopair hesitant fuzzy weighted power generalized geometric Heronian mean (q-ROHFWPGGHM) operator are applied to deal with green supplier selection in supply chain management. Liu and Wang (2018) designed some interval-valued intuitionistic fuzzy Schweizer–Sklar power aggregation operators for supplier selection. Kannan et al. (2013) integrated fuzzy multi criteria decision making method and multi-objective programming approach for supplier selection and order allocation in a green supply chain.
CODAS (Combinative Distance-based Assessment) method was initially developed by Ghorabaee et al. (2017) to tackle the multi-criteria decision making issues. In recent years, there existed various related extensions to enrich this method. Bolturk (2018) integrated CODAS method with Pythagorean fuzzy environment. Ghorabaee et al. (2016) utilized linguistic variables and trapezoidal fuzzy numbers to extend the CODAS method. Badi et al. (2017) made use of a novel CODAS method to address MCDM issues for a steelmaking company in Libya. Pamucar et al. (2018) presented an original MCDM Pairwise-CODAS method which was the modification of the classical CODAS method. Roy et al. (2019) built an assessment framework for addressing MCDM issues by extending CODAS method with interval-valued intuitionistic fuzzy numbers. So far, we have failed to find the work of the CODAS method with P2TLNs in the existing literature. Thus, investigating the CODAS method with P2TLNs is essential. The fundamental objective of our research is to develop an original method which can be more effective to address some MAGDM issues within the CODAS method and P2TLSs. Hence, the highlights of this essay are illustrated subsequently. Above all, we intend to extend the CODAS method to the picture 2-tuple linguistic environment. In addition, since the DMs are restrained by their knowledge, it is tricky to assign the criteria weights directly. Hence, CRITIC method is utilized to decide each attribute’s weight. Last but not least, an empirical application is offered to demonstrate this novel approach and several comparative analysis between the CODAS method with P2TLNs and other methods are also offered to further demonstrate the merits of the novel approach.
The reminder of our essay proceeds as follows. Some fundamental knowledge of PFSs and P2TLSs is concisely reviewed in Section 2. Several aggregation operators of P2TLNs are presented in Section 3. The CODAS approach is integrated with P2TLNs and the calculating procedures are simply depicted in Section 4. An empirical application of green supplier selection is given to show the merits of this approach and some comparative analysis is also offered to further prove the merits of this method in Section 5. At last, we make an overall conclusion of our work in Section 6.
2 Preliminaries
2.1 2-Tuple Linguistic Term Sets
Let $S=\{{s_{i}}\hspace{0.1667em}|\hspace{0.1667em}i=0,1,\dots ,t\}$ be a linguistic term set with odd cardinality. Any label ${s_{i}}$ represents a possible value for a linguistic variable, and it should satisfy the following characteristics (Herrera and Martinez, 2000):
(1) The set is ordered: ${s_{i}}>{s_{j}}$, if $i>j$; (2) Max operator: $\max ({s_{i}},{s_{j}})={s_{i}}$, if ${s_{i}}\geqslant {s_{j}}$; (3) Min operator: $\min ({s_{i}},{s_{j}})={s_{i}}$, if ${s_{i}}\leqslant {s_{j}}$. For example, S can be defined as
\[\begin{aligned}{}S& =\{{s_{0}}=\mathit{extremely}\hspace{2.5pt}\mathit{poor},{s_{1}}=\mathit{very}\hspace{2.5pt}\mathit{poor},{s_{2}}=\mathit{poor},{s_{3}}=\mathit{medium},\\ {} & \hspace{2em}{s_{4}}=\mathit{good},{s_{5}}=\mathit{very}\hspace{2.5pt}\mathit{good},{s_{6}}=\mathit{extremely}\hspace{2.5pt}\mathit{good}\}.\end{aligned}\]
Herrera and Martínez (2001) developed the 2-tuple fuzzy linguistic representation model on the basis of the concept of symbolic translation. It is used for representing the linguistic assessment information by means of a 2-tuple $({s_{i}},{\ell _{i}})$, where ${s_{i}}$ is a linguistic label from predefined linguistic term set S and ${\ell _{i}}$ is the value of symbolic translation, and ${\ell _{i}}\in [-0.5,0.5)$.
2.2 Picture Fuzzy Sets
Definition 1 (See Cuong, 2014).
A picture fuzzy set (PFS) on the universe X is an object of the form
where ${\mu _{P}}(x)\in [0,1]$ represents the “positive membership degree of P”, ${\eta _{P}}(x)\in [0,1]$ represents the “neutral membership degree of P” and ${\nu _{P}}(x)\in [0,1]$ represents the “negative membership degree of P”, and ${\mu _{P}}(x)$, ${\eta _{P}}(x)$, ${\nu _{P}}(x)$ must meet the only condition: $0\leqslant {\mu _{P}}(x)+{\eta _{P}}(x)+{\nu _{P}}(x)\leqslant 1$, $\forall x\in X$. Then for $x\in X$, ${\pi _{P}}(x)=1-({\mu _{P}}(x)+{\eta _{P}}(x)+{\nu _{P}}(x))$ the refusal membership degree of x in P could be represented.
(1)
\[ P=\big\{\big\langle x,{\mu _{P}}(x),{\eta _{P}}(x),{\nu _{P}}(x)\big\rangle \hspace{0.1667em}\big|\hspace{0.1667em}x\in X\big\},\]Definition 2 (See Wang et al., 2017).
Let ${p_{1}}=({\mu _{1}},{\eta _{1}},{\nu _{1}})$ and ${p_{2}}=({\mu _{2}},{\eta _{2}},{\nu _{2}})$ be any two picture fuzzy numbers (PFNs), the operation formula of them can be defined:
(2)
\[\begin{aligned}{}& {p_{1}}\oplus {p_{2}}=\big(1-(1-{\mu _{1}})(1-{\mu _{2}}),{\eta _{1}}{\eta _{2}},({\nu _{1}}+{\eta _{1}})({\nu _{2}}+{\eta _{2}})-{\eta _{1}}{\eta _{2}}\big),\end{aligned}\](3)
\[\begin{aligned}{}& {p_{1}}\otimes {p_{2}}=\big(({\mu _{1}}+{\eta _{1}})({\mu _{2}}+{\eta _{2}})-{\eta _{1}}{\eta _{2}},{\eta _{1}}{\eta _{2}},1-(1-{\nu _{1}})(1-{\nu _{2}})\big),\end{aligned}\]Derived from the Definition 2, the properties of the operation laws are shown as follows:
\[\begin{aligned}{}& (1)\hspace{2.5pt}{p_{1}}\oplus {p_{2}}={p_{2}}\oplus {p_{1}},\hspace{2em}{p_{1}}\otimes {p_{2}}={p_{2}}\otimes {p_{1}},\hspace{2em}{\big({({p_{1}})^{{\lambda _{1}}}}\big)^{{\lambda _{2}}}}={({p_{1}})^{{\lambda _{1}}{\lambda _{2}}}};\\ {} & (2)\hspace{2.5pt}\lambda ({p_{1}}\oplus {p_{2}})=\lambda {p_{1}}\oplus \lambda {p_{2}},\hspace{2em}{({p_{1}}\otimes {p_{2}})^{\lambda }}={({p_{1}})^{\lambda }}\otimes {({p_{2}})^{\lambda }};\\ {} & (3)\hspace{2.5pt}{\lambda _{1}}{p_{1}}\oplus {\lambda _{2}}{p_{1}}=({\lambda _{1}}+{\lambda _{2}}){p_{1}},\hspace{2em}{({p_{1}})^{{\lambda _{1}}}}\otimes {({p_{1}})^{{\lambda _{2}}}}={({p_{1}})^{({\lambda _{1}}+{\lambda _{2}})}}.\end{aligned}\]
2.3 Picture 2-Tuple Linguistic Sets
Definition 3 (See Wei et al., 2018).
A picture 2-tuple linguistic set on the universe X is an object of the form
where $({s_{\xi (x)}},\ell )\in S$, $\ell \in [-0.5,0.5)$, ${u_{P}}(x)\in [0,1]$, ${\eta _{P}}(x)\in [0,1]$ and ${v_{P}}(x)\in [0,1]$, with the condition $0\leqslant {u_{P}}(x)+{\eta _{P}}(x)+{v_{P}}(x)\leqslant 1$, $\forall x\in X$, ${s_{\xi (x)}}\in S$ and $\ell \in [-0.5,0.5)$. ${\mu _{P}}(x)$, ${\eta _{P}}(x)$, ${\nu _{P}}(x)$ denote the degree of positive membership, neutral membership and negative membership of the element x to linguistic variable $({s_{\xi (x)}},\ell )$, respectively. Then for $x\in X$, ${\pi _{P}}(x)=1-({\mu _{P}}(x)+{\eta _{P}}(x)+{\nu _{P}}(x))$ could be called the degree of refusal membership of the element x to linguistic variable $({s_{\xi (x)}},\ell )$.
(6)
\[ P=\big\{({s_{\xi (x)}},\ell ),\big({\mu _{P}}(x),{\eta _{P}}(x),{\nu _{P}}(x)\big),x\in X\big\},\]For convenience, we call $\hat{p}=\langle ({s_{\xi (p)}},\ell ),(u(p),\eta (p),v(p))\rangle $ a picture 2-tuple linguistic number (P2TLN), where ${\mu _{p}}\in [0,1],{\eta _{p}}\in [0,1],{\nu _{p}}\in [0,1]$, ${\mu _{p}}+{\eta _{p}}+{\nu _{p}}\leqslant 1$, ${s_{\xi (p)}}\in S$ and $\ell \in [-0.5,0.5)$.
Definition 4 (See Wei et al., 2018).
Let $\hat{p}=\langle ({s_{\xi (p)}},\ell ),(u(p),\eta (p),v(p))\rangle $ be a P2TLN, a score function p of P2TLN can be represented as follows:
Definition 5 (See Wei et al., 2018).
Let $\hat{p}=\langle ({s_{\xi (p)}},\ell ),(u(p),\eta (p),v(p))\rangle $ be a P2TLN, an accuracy function H of P2TLN can be represented as follows:
To evaluate the degree of accuracy of P2TLN $\hat{p}=\langle ({s_{\xi (p)}},\ell ),(u(p),\eta (p),v(p))\rangle $, where ${\Delta ^{-1}}(H(\hat{p}))\in [0,t]$. The larger the value of $H(\hat{p})$, the more the degree of accuracy of the P2TLN $\hat{p}$.
(8)
\[ H(\hat{p})=\Delta \bigg({\Delta ^{-1}}({s_{\xi (p)}},\ell )\cdot \frac{{\mu _{p}}+{\eta _{p}}+{\nu _{p}}}{2}\bigg),\hspace{1em}{\Delta ^{-1}}\big(H(\hat{p})\big)\in [0,t].\]In terms of the score function S and the accuracy function H, after that, an order relation between two P2TLNs should be given, which is defined as follows:
Definition 6 (See Wei et al., 2018).
Let ${\hat{p}_{1}}=\langle ({s_{\xi ({p_{1}})}},{\ell _{1}}),(u({p_{1}}),\eta ({p_{1}}),v({p_{1}}))\rangle $ and ${\hat{p}_{2}}=\langle ({s_{\xi ({p_{2}})}},{\ell _{2}}),(u({p_{2}}),\eta ({p_{2}}),v({p_{2}}))\rangle $ be two P2TLNs, $S({\hat{p}_{1}})=\Delta ({\Delta ^{-1}}({s_{\xi ({p_{1}})}},{\ell _{1}})\cdot \frac{1+{\mu _{{p_{1}}}}-{\nu _{{p_{1}}}}}{2})$ and $S({\hat{p}_{2}})=\Delta ({\Delta ^{-1}}({s_{\xi ({p_{2}})}},{\ell _{2}})\cdot \frac{1+{\mu _{{p_{2}}}}-{\nu _{{p_{2}}}}}{2})$ be the scores of ${\hat{p}_{1}}$ and ${\hat{p}_{2}}$, respectively, and let $H({\hat{p}_{1}})=\Delta ({\Delta ^{-1}}({s_{\xi ({p_{1}})}},{\ell _{1}})\cdot \frac{{\mu _{{p_{1}}}}+{\eta _{{p_{1}}}}+{\nu _{{p_{1}}}}}{2})$ and $H({\hat{p}_{2}})=\Delta ({\Delta ^{-1}}({s_{\xi ({p_{2}})}},{\ell _{2}})\cdot \frac{{\mu _{{p_{2}}}}+{\eta _{{p_{2}}}}+{\nu _{{p_{2}}}}}{2})$ be the accuracy degrees of ${\hat{p}_{1}}$ and ${\hat{p}_{2}}$, respectively. Then if $S({\hat{p}_{1}})<S({\hat{p}_{2}})$, then ${\hat{p}_{1}}$ is smaller than ${\hat{p}_{2}}$, denoted by ${\hat{p}_{1}}<{\hat{p}_{2}}$; if $S({\hat{p}_{1}})=S({\hat{p}_{2}})$, then:
Motivated by the operations of 2-tuple linguistic, after that, several operational laws of P2TLNs will be defined.
Definition 7 (See Wei et al., 2018).
Let ${\hat{p}_{1}}=\langle ({s_{\xi ({p_{1}})}},{\ell _{1}}),(u({p_{1}}),\eta ({p_{1}}),v({p_{1}}))\rangle $ and ${\hat{p}_{2}}=\langle ({s_{\xi ({p_{2}})}},{\ell _{2}}),(u({p_{2}}),\eta ({p_{2}}),v({p_{2}}))\rangle $ be two P2TLNs, then
\[\begin{aligned}{}& {\hat{p}_{1}}\oplus {\hat{p}_{2}}=\big\langle \Delta \big({\Delta ^{-1}}({s_{\xi ({p_{1}})}},{\ell _{1}})+{\Delta ^{-1}}({s_{\xi ({p_{2}})}},{\ell _{2}})\big),\\ {} & \phantom{{\hat{p}_{1}}\oplus {\hat{p}_{2}}=}\big(1-(1-{\mu _{{p_{1}}}})(1-{\mu _{{p_{2}}}}),{\eta _{{p_{1}}}}{\eta _{{p_{2}}}},({\nu _{{p_{1}}}}+{\eta _{{p_{1}}}})({\nu _{{p_{2}}}}+{\eta _{{p_{2}}}})-{\eta _{{p_{1}}}}{\eta _{{p_{2}}}}\big)\big\rangle ;\\ {} & {\hat{p}_{1}}\otimes {\hat{p}_{2}}=\big\langle \Delta \big({\Delta ^{-1}}({s_{\xi ({p_{1}})}},{\ell _{1}})\cdot {\Delta ^{-1}}({s_{\xi ({p_{2}})}},{\ell _{2}})\big),\\ {} & \phantom{{\hat{p}_{1}}\otimes {\hat{p}_{2}}=}\big(({\mu _{{p_{1}}}}+{\eta _{{p_{1}}}})({\mu _{{p_{2}}}}+{\eta _{{p_{2}}}})-{\eta _{{p_{1}}}}{\eta _{{p_{2}}}},{\eta _{{p_{1}}}}{\eta _{{p_{2}}}},1-(1-{\nu _{{p_{1}}}})(1-{\nu _{{p_{2}}}})\big)\big\rangle ;\\ {} & \lambda {\hat{p}_{1}}=\big\langle \Delta \big(\lambda {\Delta ^{-1}}({s_{\xi ({p_{1}})}},{\ell _{1}})\big),\big(1-{(1-{\mu _{{p_{1}}}})^{\lambda }},{\eta _{{p_{1}}}^{\lambda }},{({\nu _{{p_{1}}}}+{\eta _{{p_{1}}}})^{\lambda }}-{\eta _{{p_{1}}}^{\lambda }}\big)\big\rangle ;\\ {} & {({\hat{p}_{1}})^{\lambda }}=\big\langle \Delta \big({\big({\Delta ^{-1}}({s_{\xi ({p_{1}})}},{\ell _{1}})\big)^{\lambda }}\big),\big({({\mu _{{p_{1}}}}+{\eta _{{p_{1}}}})^{\lambda }}-{\eta _{{p_{1}}}^{\lambda }},{\eta _{{p_{1}}}^{\lambda }},1-{(1-{\nu _{{p_{1}}}})^{\lambda }}\big)\big\rangle .\end{aligned}\]
Derived from the Definition 7, the properties of the calculation rules are shown as follows:
-
(1) ${\hat{p}_{1}}\oplus {\hat{p}_{2}}={\hat{p}_{2}}\oplus {\hat{p}_{1}}$, ${\hat{p}_{1}}\otimes {\hat{p}_{2}}={\hat{p}_{2}}\otimes {\hat{p}_{1}}$, $\lambda ({\hat{p}_{1}}\oplus {\hat{p}_{2}})=\lambda {\hat{p}_{1}}\oplus \lambda {\hat{p}_{2}}$, $0\leqslant \lambda \leqslant 1$;
-
(2) ${\lambda _{1}}{\hat{p}_{1}}\oplus {\lambda _{2}}{\hat{p}_{1}}=({\lambda _{1}}\oplus {\lambda _{2}}){\hat{p}_{1}}$, ${\hat{p}_{1}^{{\lambda _{1}}}}\otimes {\hat{p}_{1}^{{\lambda _{2}}}}={({\hat{p}_{1}})^{{\lambda _{1}}+{\lambda _{2}}}}$, $0\leqslant {\lambda _{1}},{\lambda _{2}}$, ${\lambda _{1}}+{\lambda _{2}}\leqslant 1$;
-
(3) ${\hat{p}_{1}^{{\lambda _{1}}}}\otimes {\hat{p}_{2}^{{\lambda _{1}}}}={({\hat{p}_{1}}\otimes {\hat{p}_{2}})^{{\lambda _{1}}}}$, ${\lambda _{1}}\geqslant 0$; ${\big({\hat{p}^{{\lambda _{1}}}}\big)^{{\lambda _{2}}}}={\hat{p}^{{\lambda _{1}}{\lambda _{2}}}}$.
Definition 8.
Let ${\hat{p}_{1}}=\langle ({s_{\xi ({p_{1}})}},{\ell _{1}}),(u({p_{1}}),\eta ({p_{1}}),v({p_{1}}))\rangle $ and ${\hat{p}_{2}}=\langle ({s_{\xi ({p_{2}})}},{\ell _{2}}),(u({p_{2}}),\eta ({p_{2}}),v({p_{2}}))\rangle $ be two P2TLNs, then the normalized Hamming distance and the normalized Euclidean distance between ${\hat{p}_{1}}=\langle ({s_{\xi ({p_{1}})}},{\ell _{1}}),(u({p_{1}}),\eta ({p_{1}}),v({p_{1}}))\rangle $ and ${\hat{p}_{2}}=\langle ({s_{\xi ({p_{2}})}},{\ell _{2}}),(u({p_{2}}),\eta ({p_{2}}),v({p_{2}}))\rangle $ are defined as follows:
(9)
\[\begin{aligned}{}& {d_{H}}({\hat{p}_{1}},{\hat{p}_{2}})=\frac{|{\mu _{{p_{1}}}}-{\mu _{{p_{2}}}}|+|{\eta _{{p_{1}}}}-{\eta _{{p_{2}}}}|+|{\nu _{{p_{1}}}}-{\nu _{{p_{2}}}}|}{4}\\ {} & \phantom{{d_{H}}({\hat{p}_{1}},{\hat{p}_{2}})=}+\frac{|{\Delta ^{-1}}({s_{{\xi _{1}}}},{\ell _{1}})-{\Delta ^{-1}}({s_{{\xi _{2}}}},{\ell _{2}})|}{2T},\end{aligned}\](10)
\[\begin{aligned}{}& {d_{E}}({\hat{p}_{1}},{\hat{p}_{2}})=\sqrt{\begin{array}{l}\frac{|{\mu _{{p_{1}}}}-{\mu _{{p_{2}}}}{|^{2}}+|{\eta _{{p_{1}}}}-{\eta _{{p_{2}}}}{|^{2}}+|{\nu _{{p_{1}}}}-{\nu _{{p_{2}}}}{|^{2}}}{4}\\ {} \hspace{1em}+\frac{|{\Delta ^{-1}}({s_{{\xi _{1}}}},{\ell _{1}})-{\Delta ^{-1}}({s_{{\xi _{2}}}},{\ell _{2}}){|^{2}}}{2T}.\end{array}}\end{aligned}\]3 Picture 2-Tuple Linguistic Arithmetic Aggregation Operators
In this chapter, under the picture 2-tuple linguistic environment, some arithmetic aggregation operators are introduced, including picture 2-tuple linguistic weighted averaging (P2TLWA) operator and picture 2-tuple linguistic weighted geometric (P2TLWG) operator.
Definition 9 (See Wei et al., 2018).
Let ${\hat{p}_{j}}=\langle ({s_{j}},{\ell _{j}}),({\mu _{{p_{j}}}},{\eta _{{p_{j}}}},{\nu _{{p_{j}}}})\rangle $ $(j=1,2,\dots ,n)$ be a sort of P2TLNs. The picture 2-tuple linguistic weighted averaging (P2TLWA) operator can be defined as:
where $\omega ={({\omega _{1}},{\omega _{2}},\dots ,{\omega _{n}})^{T}}$ is the weight vector of ${\hat{p}_{j}}$ $(j=1,2,\dots ,n)$ and ${\omega _{j}}>0$, ${\textstyle\sum _{j=1}^{n}}{\omega _{j}}=1$.
(11)
\[ {\text{P2TLWA}_{\omega }}({\hat{p}_{1}},{\hat{p}_{2}},\dots ,{\hat{p}_{n}})={\underset{j=1}{\overset{n}{\bigoplus }}}({\omega _{j}}{\hat{p}_{j}}),\]Derived from the Definition 9, the subsequent result can be easily acquired:
Theorem 1.
The aggregated value by utilizing P2TLWA operator is also a P2TLN, where
where $\omega ={({\omega _{1}},{\omega _{2}},\dots ,{\omega _{n}})^{T}}$ is the weight vector of ${\hat{p}_{j}}$ $(j=1,2,\dots ,n)$ and ${\omega _{j}}>0$, ${\textstyle\sum _{j=1}^{n}}{\omega _{j}}=1$.
(12)
\[\begin{aligned}{}& {P2TLWA_{\omega }}({\hat{p}_{1}},{\hat{p}_{2}},\dots ,{\hat{p}_{n}})\\ {} & \hspace{1em}={\underset{j=1}{\overset{n}{\bigoplus }}}({\omega _{j}}{\hat{p}_{j}})=\Bigg\langle \Delta \Bigg({\sum \limits_{j=1}^{n}}{\omega _{j}}{\Delta ^{-1}}({s_{j}},{\ell _{j}})\Bigg),\\ {} & \hspace{2em}\Bigg(1-{\prod \limits_{j=1}^{n}}{(1-{\mu _{j}})^{{\omega _{j}}}},{\prod \limits_{j=1}^{n}}{({\eta _{j}})^{{\omega _{j}}}},{\prod \limits_{j=1}^{n}}{({\nu _{j}}+{\eta _{j}})^{{\omega _{j}}}}-{\prod \limits_{j=1}^{n}}{({\eta _{j}})^{{\omega _{j}}}}\Bigg)\Bigg\rangle ,\end{aligned}\]Definition 10 (See Wei et al., 2018).
Let ${\hat{p}_{j}}$ $(j=1,2,\dots ,n)$ be a sort of P2TLNs. The picture 2-tuple linguistic weighted geometric (P2TLWG) operator can be defined as:
where $\omega ={({\omega _{1}},{\omega _{2}},\dots ,{\omega _{n}})^{T}}$ is the weight vector of ${\hat{p}_{j}}$ $(j=1,2,\dots ,n)$ and ${\omega _{j}}>0$, ${\textstyle\sum _{j=1}^{n}}{\omega _{j}}=1$.
(13)
\[ {P2TLWG_{\omega }}({\hat{p}_{1}},{\hat{p}_{2}},\dots ,{\hat{p}_{n}})={\underset{j=1}{\overset{n}{\bigotimes }}}{({\hat{p}_{j}})^{{\omega _{j}}}},\]Derived from the Definition 10, the subsequent result can be easily acquired:
Theorem 2.
The aggregated value by utilizing P2TLWG operator is also a P2TLN, where
where $\omega ={({\omega _{1}},{\omega _{2}},\dots ,{\omega _{n}})^{T}}$ is the weight vector of ${\hat{p}_{j}}$ $(j=1,2,\dots ,n)$ and ${\omega _{j}}>0$, ${\textstyle\sum _{j=1}^{n}}{\omega _{j}}=1$.
(14)
\[\begin{aligned}{}& \mathrm{P}2{\mathrm{TLWG}_{\omega }}({\hat{p}_{1}},{\hat{p}_{2}},\dots ,{\hat{p}_{n}})\\ {} & \hspace{1em}={\underset{j=1}{\overset{n}{\bigotimes }}}{({\hat{p}_{j}})^{{\omega _{j}}}}=\Bigg\langle \Delta \Bigg({\prod \limits_{j=1}^{n}}\big({\Delta ^{-1}}{({s_{j}},{\ell _{j}})^{{\omega _{j}}}}\big)\Bigg),\\ {} & \hspace{2em}\Bigg({\prod \limits_{j=1}^{n}}{({\mu _{j}}+{\eta _{j}})^{{\omega _{j}}}}-{\prod \limits_{j=1}^{n}}{({\eta _{j}})^{{\omega _{j}}}},{\prod \limits_{j=1}^{n}}{({\eta _{j}})^{{\omega _{j}}}},1-{\prod \limits_{j=1}^{n}}{(1-{\nu _{j}})^{{\omega _{j}}}}\Bigg)\Bigg\rangle ,\end{aligned}\]4 The CODAS Method with P2TLNs for MAGDM Issues
In this chapter, the CODAS method will be integrated with P2TLNs, which can be utilized to conquer the limitations of the existing multi-attribute value method.
Let $C=\{{C_{1}},{C_{2}},\dots ,{C_{n}}\}$ be the collection of attributes, $c=\{{c_{1}},{c_{2}},\dots ,{c_{n}}\}$ be the weight vector of attributes ${C_{j}}$, where ${c_{j}}\in [0,1]$, $j=1,2,\dots ,n$, ${\textstyle\sum _{j=1}^{n}}{c_{j}}=1$. Assume $L=\{{L_{1}},{L_{2}},\dots ,{L_{r}}\}$ is a collection of decision makers that have significant degree of $l=\{{l_{1}},{l_{2}},\dots ,{l_{r}}\}$, where ${l_{k}}\in [0,1]$, $k=1,2,\dots ,r$. ${\textstyle\sum _{k=1}^{r}}{l_{k}}=1$. Let $\kappa =\{{\kappa _{1}},{\kappa _{2}},\dots ,{\kappa _{m}}\}$ be a discrete collection of alternatives. And $G={({g_{ij}})_{m\times n}}$ is the comprehensive picture 2-tuple linguistic decision matrix, ${g_{ij}}$ means the value of alternative ${\kappa _{i}}$ regarding the attribute ${C_{j}}$.

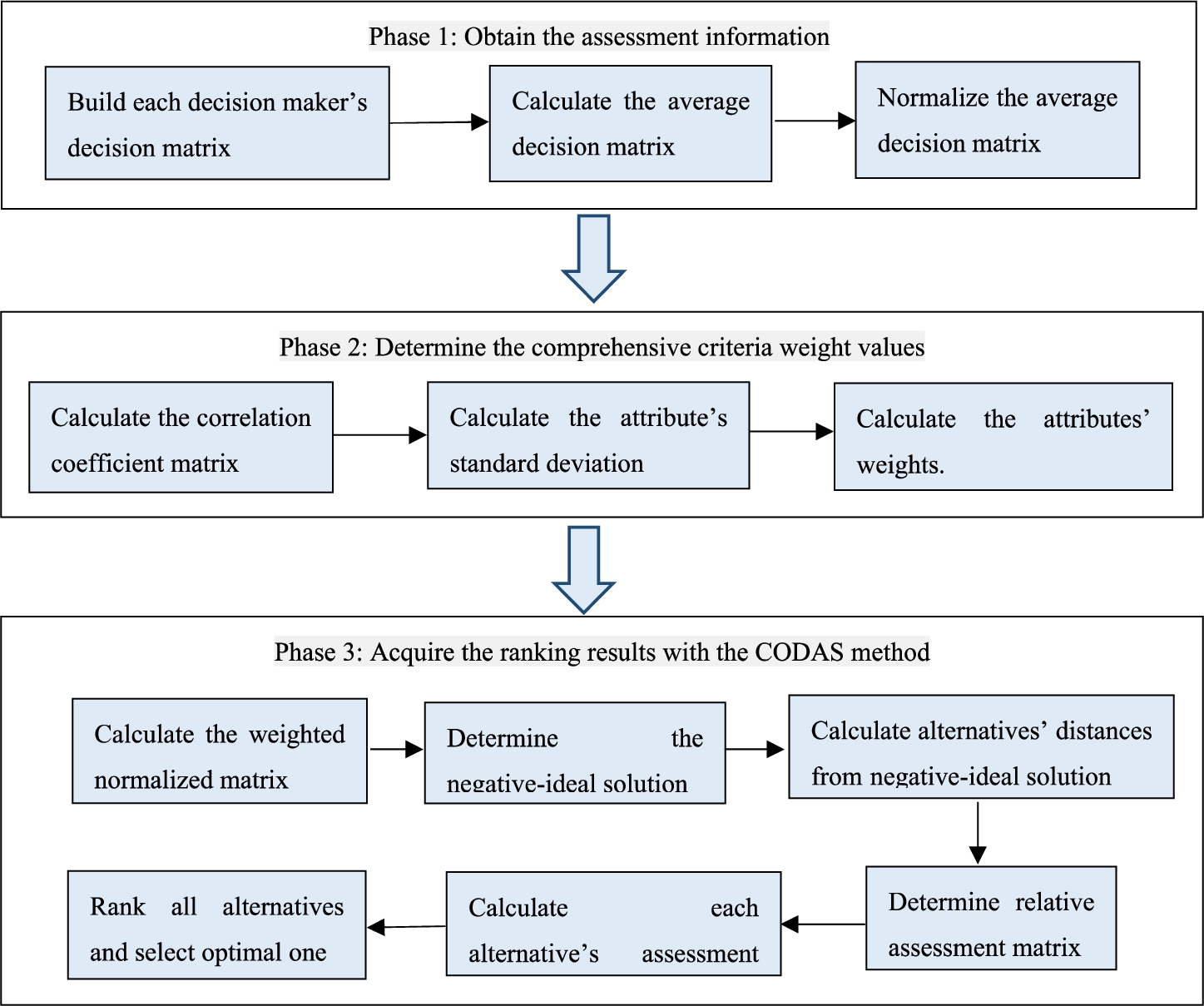

After that, the specific calculation procedures will be depicted in Fig. 1.
(I) Phase 1: Obtain the assessment information
Step 1. Build each decision maker’s picture 2-tuple linguistic decision matrix ${G^{k}}={({g_{ij}^{k}})_{m\times n}}$ and then calculate the comprehensive picture 2-tuple linguistic decision matrix $G={({g_{ij}})_{m\times n}}$.
where ${g_{ij}^{k}}$ is the assessment value of the alternative ${\kappa _{i}}$ $(i=1,2,\dots ,m)$ on the basis of the attribute ${C_{j}}$ $(j=1,2,\dots ,n)$ and the decision maker ${L_{k}}$ $(k=1,2,\dots ,r)$.
(15)
\[\begin{aligned}{}& {G^{(k)}}={\big[{g_{ij}^{k}}\big]_{m\times n}}=\left[\begin{array}{c@{\hskip4.0pt}c@{\hskip4.0pt}c@{\hskip4.0pt}c}{g_{11}^{k}}\hspace{1em}& {g_{12}^{k}}\hspace{1em}& \dots \hspace{1em}& {g_{1n}^{k}}\\ {} {g_{21}^{k}}\hspace{1em}& {g_{22}^{k}}\hspace{1em}& \dots \hspace{1em}& {g_{2n}^{k}}\\ {} \vdots \hspace{1em}& \vdots \hspace{1em}& \vdots \hspace{1em}& \vdots \\ {} {g_{m1}^{k}}\hspace{1em}& {g_{m2}^{k}}\hspace{1em}& \dots \hspace{1em}& {g_{mn}^{k}}\end{array}\right],\end{aligned}\](16)
\[\begin{aligned}{}& G={[{g_{ij}}]_{m\times n}}=\left[\begin{array}{c@{\hskip4.0pt}c@{\hskip4.0pt}c@{\hskip4.0pt}c}{g_{11}}\hspace{1em}& {g_{12}}\hspace{1em}& \dots \hspace{1em}& {g_{1n}}\\ {} {g_{21}}\hspace{1em}& {g_{22}}\hspace{1em}& \dots \hspace{1em}& {g_{2n}}\\ {} \vdots \hspace{1em}& \vdots \hspace{1em}& \vdots \hspace{1em}& \vdots \\ {} {g_{m1}}\hspace{1em}& {g_{m2}}\hspace{1em}& \dots \hspace{1em}& {g_{mn}}\end{array}\right],\end{aligned}\](17)
\[\begin{aligned}{}& {g_{ij}}=\Bigg\langle \Delta \Bigg(\hspace{0.1667em}{\sum \limits_{k=1}^{r}}{l_{k}}{\Delta ^{-1}}\big({s_{ij}^{k}},{\ell _{ij}^{k}}\big)\Bigg),\\ {} & \phantom{{g_{ij}}=}\Bigg(1-{\prod \limits_{k=1}^{r}}{\big(1-{\mu _{ij}^{k}}\big)^{{l_{k}}}},{\prod \limits_{k=1}^{r}}{\big({\eta _{ij}^{k}}\big)^{{l_{k}}}},{\prod \limits_{k=1}^{r}}{\big({\nu _{ij}^{k}}+{\eta _{ij}^{k}}\big)^{{l_{k}}}}-{\prod \limits_{k=1}^{r}}{\big({\eta _{ij}^{k}}\big)^{{l_{k}}}}\Bigg)\Bigg\rangle ,\end{aligned}\]
Step 2. Normalize the comprehensive picture 2-tuple linguistic decision matrix by utilizing the following Eq. (18).
(18)
\[ {G^{N}}={\big({g_{ij}^{N}}\big)_{m\times n}}=\left\{\begin{array}{l@{\hskip4.0pt}l}\langle ({s_{ij}},{\ell _{ij}}),({\mu _{ij}},{\eta _{ij}},{\nu _{ij}})\rangle ,\hspace{1em}& {C_{j}}\text{is a benefit criterion},\\ {} \langle \Delta (T-{\Delta ^{-1}}({s_{ij}},{\ell _{ij}})),({\nu _{ij}},{\eta _{ij}},{\mu _{ij}})\rangle ,\hspace{1em}& {C_{j}}\text{is a benefit criterion}.\end{array}\right.\](II) Phase 2: Determine the comprehensive criteria weight values
Step 3. Determine the criterion’s weighting matrix by utilizing CRITIC method.
CRITIC (CRiteria Importance Through Intercriteria Correlation) method will be proposed in this part which is utilized to decide attributes’ weights. This method was initially put forward by Diakoulaki et al. (1995) which took the correlations between attributes into consideration. Subsequently, the calculation procedures of this method will be presented.
(1) Depending on the comprehensive picture 2-tuple linguistic decision matrix ${G^{N}}={({g_{ij}^{N}})_{m\times n}}$, the correlation coefficient matrix $\vartheta ={({\iota _{jt}})_{n\times n}}$ is built by calculating the correlation coefficient between attributes.
where $S({g_{j}^{N}})=\frac{1}{m}{\textstyle\sum _{i=1}^{m}}S({g_{ij}^{N}})$ and $S({g_{t}^{N}})=\frac{1}{m}{\textstyle\sum _{i=1}^{m}}S({g_{it}^{N}})$.
(19)
\[ {\iota _{jt}}=\frac{{\textstyle\textstyle\sum _{i=1}^{m}}(S({g_{ij}^{N}})-S({g_{j}^{N}}))(S({g_{it}^{N}})-S({g_{t}^{N}}))}{\sqrt{{\textstyle\textstyle\sum _{i=1}^{m}}{(S({g_{ij}^{N}})-S({g_{j}^{N}}))^{2}}}\sqrt{{\textstyle\textstyle\sum _{i=1}^{m}}{(S({g_{it}^{N}})-S({g_{t}^{N}}))^{2}}}},\hspace{1em}j,t=1,2,\dots ,n,\]
(2) Calculate attribute’s standard deviation.
where $S({g_{j}^{N}})=\frac{1}{m}{\textstyle\sum _{i=1}^{m}}S({g_{ij}^{N}})$.
(20)
\[ S{D_{j}}=\sqrt{\frac{1}{m}{\sum \limits_{i=1}^{m}}{\big(S\big({g_{ij}^{N}}\big)-S\big({g_{j}^{N}}\big)\big)^{2}}},\hspace{1em}j=1,2,\dots ,n,\]
(3) Calculate attributes’ weights.
where ${c_{j}}\in [0,1]$ and ${\textstyle\sum _{j=1}^{n}}{c_{j}}=1$.
(21)
\[ {c_{j}}=\frac{S{D_{j}}{\textstyle\textstyle\sum _{t=1}^{n}}(1-{\iota _{jt}})}{{\textstyle\textstyle\sum _{j=1}^{n}}(S{D_{j}}{\textstyle\textstyle\sum _{t=1}^{n}}(1-{\iota _{jt}}))},\hspace{1em}j=1,2\dots ,n,\](III) Phase 3: Acquire the ranking results with the CODAS method
Step 4. Calculate the weighted normalized matrix. The weighted normalized performance values $({\tilde{g}_{ij}})$ are calculated as in Eqs. (22) and (23):
where ${c_{j}}$ denotes the weights of the jth criterion.
Step 5. The negative-ideal solution is defined using Eqs. (24) and (25):
where ${\min _{i}}{\tilde{g}_{ij}}=\{{\tilde{g}_{hj}}|S({\tilde{g}_{hj}})={\min _{i}}(S({\tilde{g}_{hj}})),\hspace{0.1667em}h\in \{1,2,\dots ,n\}\}$.
Step 6. Calculate alternatives’ weighted Euclidean (${\mathit{ED}_{i}}$) and weighted Hamming (${\mathit{HD}_{i}}$) distances from the negative-ideal solution as in Eqs. (26) and (27):
Step 7. Determine relative assessment matrix (RA) as in Eqs. (28) and (29):
where $h\in \{1,2,\dots ,n\}$ and t is a threshold function that is defined in Eq. (30):
In this function, θ is the threshold parameter of this function that can be set by decision maker. In this study, $\theta =0.05$ is taken for the calculations.
(30)
\[ t(x)=\left\{\begin{array}{l@{\hskip4.0pt}l}1\hspace{1em}& \text{if}\hspace{2.5pt}|x|\geqslant \theta ,\\ {} 0\hspace{1em}& \text{if}\hspace{2.5pt}|x|<\theta .\end{array}\right.\]
Step 8. Calculate each alternative’s assessment score (${\mathit{AS}_{i}}$) as in Eq. (31):
Step 9. Depending on the calculation results of $\mathit{AS}$, all the alternatives can be ranked. The higher the value of $AS$ is, the more optimal alternative will be selected.
5 An Empirical Example and Comparative Analysis
5.1 An Empirical Example for P2TLNs MAGDM Issues
With the rapid development of economic globalization, resources and the environment are facing enormous challenges. In this situation, green supply chain management is particularly significant, and there are a lot of challenges in evaluating green suppliers for enterprises. Green supplier selection is a classical MAGDM problem (He et al., 2019a; Lei et al., 2020; Lu et al., 2020; Wang et al., 2020; Wang P. et al., 2020; Wei et al., 2020). Thus, in this section, an application of selecting the optimal green supplier will be provided by making use of the CODAS method with P2TLNs, which can offer an effective solution for selecting green suppliers. Taking its own business development into consideration, a manufacturing company wants to choose a green supplier for a long-term cooperation. There are four potential green suppliers ${\kappa _{i}}$ $(i=1,2,3,4,5)$. In order to select the most appropriate supplier, the company invites three experts $L=\{{L_{1}},{L_{2}},{L_{3}}\}$ (expert’s weight $l=(0.42,0.35,0.23)$ to assess these suppliers. All experts give their assessment information relying on the four subsequently attributes: ① ${C_{1}}$ is supply capacity; ② ${C_{2}}$ is product cost; ③ ${C_{3}}$ is the ability of external environmental management; ④ ${C_{4}}$ is product ecological design. Evidently, ${C_{2}}$ is the cost attributes, while the others are the benefit attributes. To make this evaluation, the decision-makers express their assessments using linguistic variables. The linguistics variables for rating alternatives are shown in Table 1.
(I) Phase 1: Obtain the assessment information
Table 1
Linguistic scale for ratings of alternatives.
| Linguistic term | P2TLNs |
| Very Low – VL | $\langle ({s_{0}},0),(0.05,0.45,0.50)\rangle $ |
| Low – L | $\langle ({s_{1}},0),(0.10,0.40,0.45)\rangle $ |
| Below Medium – BM | $\langle ({s_{2}},0),(0.15,0.35,0.40)\rangle $ |
| Exactly Equal – EE | $\langle ({s_{3}},0),(0.30,0.35,0.35)\rangle $ |
| Above Medium – AM | $\langle ({s_{4}},0),(0.40,0.20,0.15)\rangle $ |
| High – H | $\langle ({s_{5}},0),(0.45,0.15,0.10)\rangle $ |
| Very High – VH | $\langle ({s_{6}},0),(0.50,0.10,0.05)\rangle $ |
Step 1. Set up each decision-maker’s evaluation matrix ${G^{(k)}}={({g_{ij}^{k}})_{m\times n}}$ ($i=1,2,\dots ,m$, $j=1,2,\dots ,n$) as in Tables 2–4. Derived from these tables and Eq. (15) to (17), the comprehensive picture 2-tuple linguistic decision matrix can be calculated. The results are recorded in Table 5.
Table 2
Ratings of the alternatives on each criterion by DM${_{1}}$.
| ${C_{1}}$ | ${C_{2}}$ | ${C_{3}}$ | ${C_{4}}$ | |
| ${\kappa _{1}}$ | H | EE | L | AM |
| ${\kappa _{2}}$ | AM | EE | VH | H |
| ${\kappa _{3}}$ | VL | BM | AM | L |
| ${\kappa _{4}}$ | BM | L | H | EE |
| ${\kappa _{5}}$ | EE | H | AM | BM |
Table 3
Ratings of the alternatives on each criterion by DM${_{2}}$.
| ${C_{1}}$ | ${C_{2}}$ | ${C_{3}}$ | ${C_{4}}$ | |
| ${\kappa _{1}}$ | VH | AM | EE | BM |
| ${\kappa _{2}}$ | H | H | AM | VH |
| ${\kappa _{3}}$ | AM | VL | L | EE |
| ${\kappa _{4}}$ | L | EE | BM | AM |
| ${\kappa _{5}}$ | AM | L | EE | EE |
Table 4
Ratings of the alternatives on each criterion by DM${_{3}}$.
| ${C_{1}}$ | ${C_{2}}$ | ${C_{3}}$ | ${C_{4}}$ | |
| ${\kappa _{1}}$ | VH | L | EE | H |
| ${\kappa _{2}}$ | H | BM | VH | EE |
| ${\kappa _{3}}$ | L | BM | AM | VL |
| ${\kappa _{4}}$ | BM | VL | EE | AM |
| ${\kappa _{5}}$ | AM | EE | BM | L |
Step 2. Normalize the comprehensive picture 2-tuple linguistic decision matrix by utilizing Eq. (18) and the calculation results are presented in Table 6.
Table 5
Comprehensive picture 2-tuple linguistic decision matrix.
| ${C_{1}}$ | ${C_{2}}$ | |
| ${\kappa _{1}}$ | $\langle ({s_{6}},-0.4),(0.4796,0.1186,0.0673)\rangle $ | $\langle ({s_{3}},-0.1),(0.2973,0.2967,0.2776)\rangle $ |
| ${\kappa _{2}}$ | $\langle ({s_{5}},-0.4),(0.4295,0.1693,0.1187)\rangle $ | $\langle ({s_{4}},-0.5),(0.3273,0.2602,0.2358)\rangle $ |
| ${\kappa _{3}}$ | $\langle ({s_{2}},-0.4),(0.2011,0.3297,0.3231)\rangle $ | $\langle ({s_{1}},0.3),(0.1163,0.3822,0.4325)\rangle $ |
| ${\kappa _{4}}$ | $\langle ({s_{2}},0),(0.1500,0.3500,0.4000)\rangle $ | $\langle ({s_{2}},-0.5),(0.1655,0.3922,0.4225)\rangle $ |
| ${\kappa _{5}}$ | $\langle ({s_{4}},-0.4),(0.3599,0.2530,0.2153)\rangle $ | $\langle ({s_{3}},0.1),(0.3093,0.2569,0.2293)\rangle $ |
| ${C_{3}}$ | ${C_{4}}$ | |
| ${\kappa _{1}}$ | $\langle ({s_{2}},0.2),(0.2221,0.3702,0.3893)\rangle $ | $\langle ({s_{4}},-0.5),(0.3356,0.2277,0.1953)\rangle $ |
| ${\kappa _{2}}$ | $\langle ({s_{5}},0.3),(0.4671,0.1275,0.0743)\rangle $ | $\langle ({s_{5}},-0.1),(0.4377,0.1582,0.1068)\rangle $ |
| ${\kappa _{3}}$ | $\langle ({s_{3}},0),(0.3085,0.2549,0.2226)\rangle $ | $\langle ({s_{2}},-0.5),(0.1655,0.3922,0.4225)\rangle $ |
| ${\kappa _{4}}$ | $\langle ({s_{4}},-0.5),(0.3229,0.2452,0.2202)\rangle $ | $\langle ({s_{4}},-0.4)(0.3599,0.2530,0.2153)\rangle $ |
| ${\kappa _{5}}$ | $\langle ({s_{3}},0.2),(0.3139,0.2767,0.2549)\rangle $ | $\langle ({s_{2}},0.1),(0.1953,0.3609,0.3926)\rangle $ |
(II) Phase 2: Determine the comprehensive criteria weight values
Table 6
Normalized comprehensive picture fuzzy decision matrix.
| ${C_{1}}$ | ${C_{2}}$ | |
| ${\kappa _{1}}$ | $\langle ({s_{6}},-0.4),(0.4796,0.1186,0.0673)\rangle $ | $\langle ({s_{3}},0.1),(0.2776,0.2967,0.2973)\rangle $ |
| ${\kappa _{2}}$ | $\langle ({s_{5}},-0.4),(0.4295,0.1693,0.1187)\rangle $ | $\langle ({s_{3}},-0.5),(0.2358,0.2602,0.3273)\rangle $ |
| ${\kappa _{3}}$ | $\langle ({s_{2}},-0.4),(0.2011,0.3297,0.3231)\rangle $ | $\langle ({s_{5}},-0.3),(0.4325,0.3822,0.1163)\rangle $ |
| ${\kappa _{4}}$ | $\langle ({s_{2}},0),(0.1500,0.3500,0.4000)\rangle $ | $\langle ({s_{5}},-0.5),(0.4225,0.3922,0.1655)\rangle $ |
| ${\kappa _{5}}$ | $\langle ({s_{4}},-0.4),(0.3599,0.2530,0.2153)\rangle $ | $\langle ({s_{3}},-0.1),(0.2293,0.2569,0.3093)\rangle $ |
| ${C_{3}}$ | ${C_{4}}$ | |
| ${\kappa _{1}}$ | $\langle ({s_{2}},0.2),(0.2221,0.3702,0.3893)\rangle $ | $\langle ({s_{4}},-0.5),(0.3356,0.2277,0.1953)\rangle $ |
| ${\kappa _{2}}$ | $\langle ({s_{5}},0.3),(0.4671,0.1275,0.0743)\rangle $ | $\langle ({s_{5}},-0.1),(0.4377,0.1582,0.1068)\rangle $ |
| ${\kappa _{3}}$ | $\langle ({s_{3}},0),(0.3085,0.2549,0.2226)\rangle $ | $\langle ({s_{2}},-0.5),(0.1655,0.3922,0.4225)\rangle $ |
| ${\kappa _{4}}$ | $\langle ({s_{4}},-0.5),(0.3229,0.2452,0.2202)\rangle $ | $\langle ({s_{4}},-0.4)(0.3599,0.2530,0.2153)\rangle $ |
| ${\kappa _{5}}$ | $\langle ({s_{3}},0.2),(0.3139,0.2767,0.2549)\rangle $ | $\langle ({s_{2}},0.1),(0.1953,0.3609,0.3926)\rangle $ |
Step 3. Decide the attribute weights ${c_{j}}$ $(j=1,2,\dots ,n)$ by making use of CRITIC method as presented in Table 7.
(III) Phase 3: Acquire the ranking results with the CODAS method
Table 7
The attributes weights ${c_{j}}$.
| ${_{{C_{1}}}}$ | ${_{{C_{2}}}}$ | ${_{{C_{3}}}}$ | ${_{{C_{4}}}}$ | |
| ${c_{j}}$ | 0.3295 | 0.3000 | 0.1943 | 0.1762 |
Step 4. Calculate the weighted normalized matrix. The weighted normalized performance values ${\tilde{g}_{ij}}$ are calculated as in Table 8.
Step 5. Determine the negative-ideal solution depending on Table 8 and the results are presented in Table 9.
Table 8
The weighted normalized performance values of alternatives.
| ${C_{1}}$ | ${C_{2}}$ | |
| ${\kappa _{1}}$ | $\langle ({s_{2}},-0.1612),(0.1936,0.4953,0.0791)\rangle $ | $\langle ({s_{1}},-0.0671),(0.0929,0.6946,0.1608)\rangle $ |
| ${\kappa _{2}}$ | $\langle ({s_{1}},-0.4907),(0.1689,0.5569,0.1066)\rangle $ | $\langle ({s_{1}},-0.2411),(0.0775,0.6677,0.1848)\rangle $ |
| ${\kappa _{3}}$ | $\langle ({s_{1}},-0.4629),(0.0713,0.6938,0.1751)\rangle $ | $\langle ({s_{1}},0.4098),(0.1563,0.7494,0.0621)\rangle $ |
| ${\kappa _{4}}$ | $\langle ({s_{1}},-0.3409),(0.0521,0.7075,0.2020)\rangle $ | $\langle ({s_{1}},0.3588),(0.1518,0.7552,0.0841)\rangle $ |
| ${\kappa _{5}}$ | $\langle ({s_{1}},0.1797),(0.1367,0.6358,0.1430)\rangle $ | $\langle ({s_{1}},-0.1421),(0.0751,0.6652,0.1779)\rangle $ |
| ${C_{3}}$ | ${C_{4}}$ | |
| ${\kappa _{1}}$ | $\langle ({s_{0}},0.4197),(0.0476,0.8244,0.1235)\rangle $ | $\langle ({s_{1}},-0.3779),(0.0695,0.7705,0.0888)\rangle $ |
| ${\kappa _{2}}$ | $\langle ({s_{1}},0.0297),(0.1151,0.6702,0.0626)\rangle $ | $\langle ({s_{1}},-0.1383),(0.0965,0.7225,0.0688)\rangle $ |
| ${\kappa _{3}}$ | $\langle ({s_{1}},-0.4269),(0.0692,0.7668,0.0994)\rangle $ | $\langle ({s_{0}},0.2590),(0.0314,0.8480,0.1166)\rangle $ |
| ${\kappa _{4}}$ | $\langle ({s_{1}},-0.3219),(0.0730,0.7610,0.1009)\rangle $ | $\langle ({s_{1}},-0.3691),(0.0756,0.7849,0.0900)\rangle $ |
| ${\kappa _{5}}$ | $\langle ({s_{1}},-0.3802),(0.0706,0.7791,0.1054)\rangle $ | $\langle ({s_{0}},0.3736),(0.0376,0.8356,0.1157)\rangle $ |
Step 6. Calculate alternatives’ weighted Euclidean (${\mathit{ED}_{i}}$) and weighted Hamming (${\mathit{HD}_{i}}$) distances from the negative-ideal solution and the results are presented in Table 10.
Table 9
The negative-ideal solution.
| Minimum value | |
| ${C_{1}}$ | $\langle ({s_{1}},-0.4629),(0.0521,0.7075,0.2020)\rangle $ |
| ${C_{2}}$ | $\langle ({s_{1}},-0.2411),(0.0751,0.7552,0.1848)\rangle $ |
| ${C_{3}}$ | $\langle ({s_{0}},0.4197),(0.0476,0.8244,0.1235)\rangle $ |
| ${C_{4}}$ | $\langle ({s_{0}},0.2590),(0.0314,0.8480,0.1166)\rangle $ |
Step 7. Obtain the relative assessment matrix ($\mathit{RA}$) and the results are presented in Table 11.
Table 10
Euclidean and Hamming distances of alternatives.
| Euclidean distance | Hamming distance | |
| ${\kappa _{1}}$ | 0.3338 | 0.9345 |
| ${\kappa _{2}}$ | 0.6988 | 1.2442 |
| ${\kappa _{3}}$ | 0.4130 | 0.6454 |
| ${\kappa _{4}}$ | 0.4850 | 0.8841 |
| ${\kappa _{5}}$ | 0.4611 | 0.8235 |
Step 8. Calculate each alternative’s assessment score (${\mathit{AS}_{i}}$) and the results are presented in Table 12.
Table 11
Relative assessment matrix.
| ${p_{ik}}$ | ${p_{ik}}$ | ${p_{ik}}$ | ${p_{ik}}$ | ${p_{ik}}$ | |||||
| ${\kappa _{1}}-{\kappa _{2}}$ | −0.2519 | ${\kappa _{2}}-{\kappa _{1}}$ | 0.4469 | ${\kappa _{3}}-{\kappa _{1}}$ | 0.3338 | ${\kappa _{4}}-{\kappa _{1}}$ | 0.3338 | ${\kappa _{5}}-{\kappa _{1}}$ | 0.3338 |
| ${\kappa _{1}}-{\kappa _{3}}$ | −0.0792 | ${\kappa _{2}}-{\kappa _{3}}$ | 0.5050 | ${\kappa _{3}}-{\kappa _{2}}$ | 0.5050 | ${\kappa _{4}}-{\kappa _{2}}$ | 0.4108 | ${\kappa _{5}}-{\kappa _{2}}$ | 0.4338 |
| ${\kappa _{1}}-{\kappa _{4}}$ | −0.1512 | ${\kappa _{2}}-{\kappa _{4}}$ | 0.4108 | ${\kappa _{3}}-{\kappa _{4}}$ | 0.3338 | ${\kappa _{4}}-{\kappa _{3}}$ | 0.3338 | ${\kappa _{5}}-{\kappa _{3}}$ | 0.3338 |
| ${\kappa _{1}}-{\kappa _{5}}$ | −0.1273 | ${\kappa _{2}}-{\kappa _{5}}$ | 0.4338 | ${\kappa _{3}}-{\kappa _{5}}$ | 0.3338 | ${\kappa _{4}}-{\kappa _{5}}$ | 0.3338 | ${\kappa _{5}}-{\kappa _{4}}$ | 0.3338 |
Step 9. Depending on the calculating result from the Step 8, all alternatives can be ranked. The ranking order of these potential suppliers is ${\kappa _{2}}>{\kappa _{3}}>{\kappa _{5}}>{\kappa _{4}}>{\kappa _{1}}$. Hence, the optimal supplier is ${\kappa _{2}}$.
5.2 Comparative Analysis
In this chapter, our developed CODAS method with P2TLNs is compared with several methods to illustrate its superiority.
First of all, our presented method is compared with P2TLWA and P2TLWG operators (Wei et al., 2018). For the P2TLWA operator, the calculation result is $S({\kappa _{1}})=({s_{2}},0.2311)$, $S({\kappa _{2}})=({s_{3}},-0.4229)$, $S({\kappa _{3}})=({s_{1}},0.4485)$, $S({\kappa _{4}})=({s_{2}},-0.2457)$, $S({\kappa _{5}})=({s_{2}},-0.4714)$. Thus, the ranking order is ${\kappa _{2}}>{\kappa _{1}}>{\kappa _{4}}>{\kappa _{5}}>{\kappa _{3}}$. For the P2TLWG operator, the calculation values are $S({\kappa _{1}})=({s_{2}},0.0365)$, $S({\kappa _{2}})=({s_{2}},0.4075)$, $S({\kappa _{3}})=({s_{1}},0.2467)$, $S({\kappa _{4}})=({s_{2}},-0.3801)$, $S({\kappa _{5}})=({s_{2}},0.4881)$. So the ranking order is ${\kappa _{2}}>{\kappa _{1}}>{\kappa _{4}}>{\kappa _{5}}>{\kappa _{3}}$.
What’s more, our presented method is compared with EDAS method with picture 2-tuple linguistic (Zhang et al., 2019a). Then we can obtain the calculation result. The appraisal score values of each alternative are determined as: $A{S_{1}}=0.6225$, $A{S_{2}}=0.8347$, $A{S_{3}}=0.1803$, $A{S_{4}}=0.3987$, $A{S_{5}}=0.2284$. Hence, the ranking order of alternatives is ${\kappa _{2}}>{\kappa _{1}}>{\kappa _{4}}>{\kappa _{5}}>{\kappa _{3}}$.

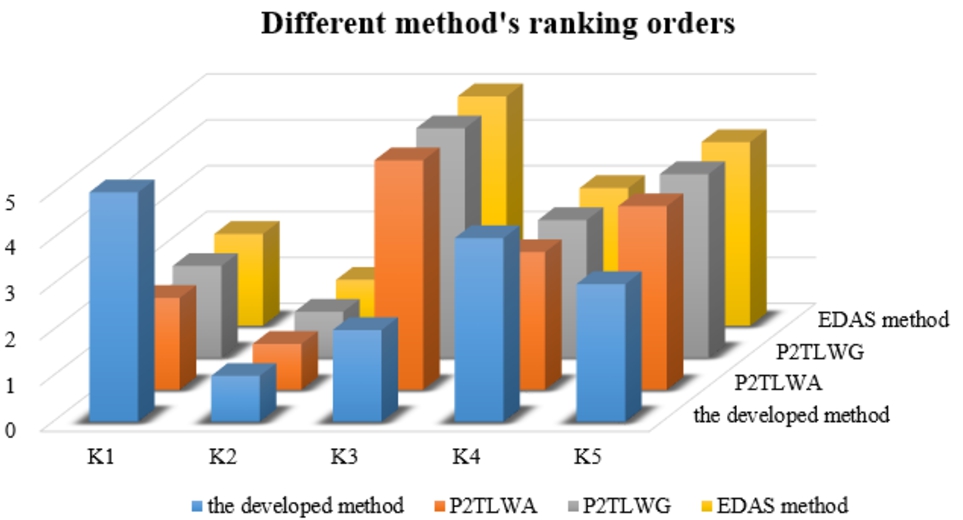

Eventually, the results of these four methods are presented in Table 13.
Table 13
Evaluation results of four methods.
| Methods | Ranking order | The optimal alternative | The worst alternative |
| P2TLWA | ${\kappa _{2}}>{\kappa _{1}}>{\kappa _{4}}>{\kappa _{5}}>{\kappa _{3}}$ | ${\kappa _{2}}$ | ${\kappa _{3}}$ |
| P2TLWG | ${\kappa _{2}}>{\kappa _{1}}>{\kappa _{4}}>{\kappa _{5}}>{\kappa _{3}}$ | ${\kappa _{2}}$ | ${\kappa _{3}}$ |
| EDAS method | ${\kappa _{2}}>{\kappa _{1}}>{\kappa _{4}}>{\kappa _{5}}>{\kappa _{3}}$ | ${\kappa _{2}}$ | ${\kappa _{3}}$ |
| The developed method | ${\kappa _{2}}>{\kappa _{3}}>{\kappa _{5}}>{\kappa _{4}}>{\kappa _{1}}$ | ${\kappa _{2}}$ | ${\kappa _{1}}$ |
Derived from the Table 13, it is evident that the optimal supplier is ${\kappa _{2}}$ in the mentioned methods, while the worst choice is ${\kappa _{3}}$ in most situations. That’s to say, these methods’ ranking results are slightly different. The EDAS method with picture 2-tuple linguistic emphasizes the positive and negative distances from the average solution respectively, while our developed method is more practical and effective, since the decision makers’ bounded rationality can be fully taken into consideration relying on the Euclidean and Hamming distances in terms of the negative-ideal point and its computation procedures are relative simple.
6 Conclusion
In this paper, the CODAS method with P2TLNs is developed to address the MAGDM issues relying on the description of the CODAS method and some fundamental notions of P2TLSs. To begin with, the fundamental information of P2TLSs is simply reviewed. Following that, the P2TLWA and P2TLWG operators are utilized to integrate the P2TLNs. Subsequently, depending on CRITIC method, the attributes’ weights are decided. What’s more, applying the CODAS method to the picture 2-tuple linguistic environment, a novel method is constructed and the calculating procedures are briefly depicted. Eventually, an application of selecting the optimal green supplier has been given to confirm that this novel method is more valid and the comparative analysis between the CODAS method with P2TLNs and several methods are also made to further verify the merits of this method. The contribution of this paper can be highlighted as follows: (1) the CODAS method is modified by P2TLNs; (2) the picture 2-tuple linguistic CODAS (P2TL-CODAS) method is designed to tackle the MAGDM issues with P2TLNs; (3) the CRITIC method is utilized to decide the attributes’ weight; (4) a case study for green supplier selection is designed to prove the developed method; (5) some comparative studies with existing methods are given to verify the rationality of P2TL-CODAS method. In our future research, the proposed methods and algorithm will be needful and meaningful for other real decision making problems and the developed approaches can also be extended to other fuzzy and uncertain information.
