1 Introduction
Suppose you just bought a brand new car – on average you would spend a bit more than $36.000 in the USA (Buehler and Mrasek, 2018) – and when you would like to open the door and start the engine for the first time, the car would ask you to come up with a password – hopefully “unique and hard to crack”; this was the actual advice given to LinkedIn users after the breach (Popkin, 2012). You would be lucky if you got an advice that your password should be at least 8 characters long with mixed lower and upper case letters and at least one number and a symbol. Furthermore, the car would ask each new driver to do so before they first used the car. Every time one would like to drive the car (or even just open the door), he or she would have to enter the password. Clearly, the car’s security would be determined by the weakest password. Luckily, the cars are not protected by passwords, or else much more than nearly $6 billion would be lost to motor vehicle thefts at the rate of 237.4 per 100,000 inhabitants as estimated by FBI (2018), compared to $16,8 billion lost due to identity frauds (Pascual et al., 2018) at the estimated rate of 5,127 per 100,000 inhabitants. The computer industry is sometimes compared to the automobile industry (Gates, 1997), and becomes a source of numerous jokes. Security is no joke, even when such a comparison is made. Weak passwords have led to much more serious breaches, exposing millions of users and/or causing billions in damages, and have sometimes led to deaths (Jones, 2017). The history of password-related problem pre-dates the seminal paper written by Morris and Thompson (1979) – it goes way back to mid-1960s and to the CTSS operating system exposing all the passwords as a daily welcome message (Corbató, 1991).
The following is a historical list of sample breaches that are originating from weak passwords or password management policies. The list is far from being complete; it only gives a glimpse into the variety, scope and damages done by hacking into passwords:
-
• In April 1994, two English teenagers penetrated several systems through the Air Force’s Rome (New York) Laboratory. Among others, they obtained all of data stored on the Korean Atomic Research Institute system and deposited it on Rome Lab’s system. Initially it was unclear whether the Korean systems belonged to North Korea or South Korea. The concern was that if it was North Korea, the North Koreans would think the logical transfer of the storage space was an intrusion by the US Air Force, which could be perceived as an aggressive act of war (USA, 1996).
-
• In November 1998, Robert Morris, Jr., a student at Cornell University created what later became known as the first computer worm distributed via the Internet. It contained a bug that caused it to propagate itself far faster than Morris intended. While no known alteration or destruction of data occurred, the program filled all available memory space on infected computers, bringing them to a grinding halt. The cost of clearing memory space and restarting systems was estimated at US$ 100 million. A key element of the Internet worm involved attempts to discover user passwords. It exploited the tendency of users to choose easy-to-remember passwords and used lists of words, including the standard online dictionary, name lists, and combinations of four-digit numbers, as potential passwords (Seeley, 1989; Spafford, 1989; Zviran and Haga, 1999).
-
• In April 2013, the hackers have obtained personal information of 50 million LivingSocial’s users (Acohido, 2013).
-
• In 2017, the largest U.S. credit bureau, Equifax, suffered a breach that exposed the personal data of 143 million people, including Social Security numbers. It was among the worst breaches on record because of the amount of sensitive information stolen (Gressin, 2017).
A comprehensive list of breaches since 2005 can be found at Privacy Rights Clearinghouse (PRC, 2018).
A typical survey evaluating the generation and use of passwords revealed that users have several password uses and the average password has more than one application. Two thirds of passwords are designed around one’s personal characteristics, with most of the remainder relating to relatives, friends or lovers. Proper names and birthdays are the primary information used in constructing passwords, accounting for about half of all password constructions. Almost all respondents reuse passwords, and about two thirds of password uses are duplications. Passwords have been forgotten by a third of respondents, and over half keep a written record of them (Brown et al., 2004).
It seems that nothing has been learnt and changed in the course of almost 50 years. Most researchers claim that users and their passwords are the weakest link (Adams and Sasse, 1999; Adams et al., 1997; Notoatmodjo, 2007; Sasse et al., 2001; Tam et al., 2009), although the basic and the most relied-upon security mechanism in information systems continues to be the ability to authenticate the identity of a user. The passwords used to be (Loch et al., 1992; Tzong-Chen and Hung-Sung, 1996; Zviran and Haga, 1990) and still are the main method of authentication (Creese et al., 2013; Egelman et al., 2013; Lee et al., 2013), although research continues on more sophisticated methods of authentication, see e.g. Al-Hudhud et al. (2014), Hölbl et al. (2008, 2010, 2012), Jiang et al. (2013), Kuo et al. (2006), Liaojun et al. (2013). Some novel solutions are even improvements of concepts well known to the automobile industry (i.e. car keys) (Grosse and Upadhyay, 2013); others are based asymmetric cyphers (Sakalauskas and Mihalkovich, 2017), on certificateless key encapsulations (Gao et al., 2017; Wu et al., 2018), ID-based cryptography (Meshram et al., 2017), or image-based encryption (Khan et al., 2017).
The most natural question is: why we have so many password-related breaches? The answer is relatively simple: passwords need to be as long and as complex as possible to render guessing, dictionary and brute-force attacks prohibitively expensive and time consuming; yet at the same time passwords need to be memorable and simple to support user experience.
One of the basic principles of security (Stallings, 2006) states: (1) a password scheme is said to be computationally secure if the cost of breaking it exceeds the value of the protected information, or (2) the time required to break the password exceeds the useful lifetime of the information. Today, costs for building a cracking machine are relatively low (in the range of ∼US$1000, see e.g. Gosney, 2018) and thus quite affordable, not to mention the possibility that a rouge individual or organization may have millions of interconnected machines at her disposal.
The time required for breaking the password is all we can count on. Let us assume that the useful lifetime of a stored information is 60 years, which is a typical assumption for medical data (Brumen et al., 2013). Under this assumption, a safe password today would be made of at least nine characters from upper and lowercase letters, numbers and symbols, but it would not be safe in 10 years from now. Thus, 10- or more character passwords are required today to be safe tomorrow as well, confirming findings by Egelman et al. (2013). However, some authors argue, based on the entropy principle, that passwords shall be at least 15 characters long with entropy similar to that of 3DES or AES (StClair et al., 2006); this claim needs to be taken with caution as other authors give evidence that the notion of password entropy does not provide a valid metric for measuring the security of a password (Weir et al., 2010).
When we come to 10 (or more) characters to remember, they constitute a much larger corpus than is the capacity of a human memory, where the well-known 7 ± 2 principle applies (Miller, 1956). Human memory, in addition, is temporally limited (short-term) when it comes to memorizing sequences (Johnson, 1991). For this reason good passwords that are consisting of an abundant number of randomly selected characters are doomed: the users will either forget them (Florencio and Herley, 2007) or write them down (insecurely), or both (Yan et al., 2000, 2004; Zviran and Haga, 1993).
Starting from the findings of first research on users’ role in password security almost two decades ago (Adams and Sasse, 1999; Sasse et al., 2001; Tam et al., 2009) and by misunderstanding the concept of ‘users are weakest link’, administrators and security professionals tried to minimize the impact of the weakest links (users) by trying to force them into using safe, system-assigned passwords. When administrators have been setting the password management policies, they had a notion that users are their enemies (Adams and Sasse, 1999) and that they pose a security threat that needs to be controlled, ignoring warnings that the actual password management needs to balance between convenience and security (Tam et al., 2009).
This work contributes to understanding of the impact of strict password management policies to usability and memorability of such passwords. Namely, previous research has predominantly dealt with memorability and/or usability of user-generated passwords, see e.g. Biddle et al. (2011), Cipresso et al. (2012), De Angeli et al. (2005), Keith et al. (2007), Nelson and Vu (2010), Vu et al. (2007), Wiedenbeck et al. (2005), Woods and Siponen (2018), Yan et al. (2000, 2004).
The rest of the paper is organized as follows: the next sub-section presents the state of the art in the field by review of related works and is followed by a presentation of PsychoPass method; the articulated research question concludes this introductory section. In Section 2, we present the research method and in Section 3, the results. We conclude the papers with discussion and final remarks in Section 4.
1.1 Related Work
User authentication schemes are based on the following principles (or combinations thereof): “what you know”, “what you are” and “what you have” (Pfleeger and Pfleeger, 2003; Stallings, 2006). “What you know” is based on secrecy known only to an authorized user, “what you are” is based on a user’s physical characteristics (e.g. retina image, fingerprint) – also called biometrics, whereas “what you have” is based on possession of an extra token, such as a single/multi-factor cryptographic device, single/multi-factor one-time password device, out-of-band devices or simply look-up secrets. In this paper we study the “what you know” principle-based authentication scheme.
The “what you know” principle-based authentications relies on passwords of two types: textual and graphical ones (Davis et al., 2004; Suo et al., 2005). In this paper we deal with textual passwords and do not take into the account the graphical ones because they require a different user interface (Suo et al., 2005) and hence are not the focus of our study.
The strongest passwords by far are those randomly selected, but they are at the same time the hardest to remember and thus subject to unsafe practices (Pfleeger and Pfleeger, 2003). There are several “what-you-know” alternatives to a (nearly) random long textual password. We briefly list them in Table 1.
Table 1
Textual password creation schemes.
| Principle | Advantages | Disadvantages | Source |
| Personal characteristics, e.g. birthdate, names, pets, addresses, etc. | Easy to remember | Easy to crack, easy to guess | (FIPS, 1985; Morris and Thompson, 1979; Zviran and Haga, 1999) |
| Cognitive, a randomly selected set of personal questions which only an authorized user can answer correctly | High recall rate | Easy to guess by family and friends | (Brostoff, 2004; Kuo et al., 2006) |
| Pass-sentences and pass-phrases | Memorable, cracking resistant | Inappropriate for mobile use, inconvenient, useless for repeated use | (Brostoff, 2004; Spector and Ginzberg, 1994) |
| Randomly generated pronounceable passwords | Memorable, brute force cracking resistant | Vulnerable to a special dictionary attack | (Ganesan et al., 1994; Gasser, 1975) |
| Mnemonic, a memorable phrase (e.g. first letters of a sentence) | Memorable, brute force cracking resistant | Vulnerable to a special dictionary attack | (Kuo et al., 2006; Nelson and Vu, 2010; Zviran and Haga, 1990) |
Orthogonal to the works on different textual password generating and management schemes are contributions that deal with password metrics, principally meters that show users how strong their password might be (Bishop and Klein, 1995; Egelman et al., 2013; Weir et al., 2010). It was shown empirically (Weir et al., 2010) and mathematically (Verheul, 2006) that Shannon entropy value is not useful when determining the strength of a password creation policy, and other policies need to be used. Common advices on minimum password length and character set requirements provide against online attacks (Weir et al., 2010). Yet, by observing these requirements, users tend to forget passwords and/or write them down, usually in an insecure location (Zviran and Haga, 1999). Writing down a password is not a bad practice itself, as pointed out by Bruce Schneier: “$\dots \hspace{0.1667em}$if only users wrote [a password] down on a small piece of paper, and keep it with their other valuable small pieces of paper: in their wallet” (Schneier, 2005).
Complementary to our work are also contributions dealing with users’ compliance to different password creation policies (Adams and Sasse, 1999; Adams et al., 1997; Sasse et al., 2001; Weirich and Sasse, 2001) and how the users can improve the password security and memorability under such policies in place (Vu et al., 2007). General observation is that users tend to choose bad passwords due to inexistent policies or try to comply with them with minimal effort (Dell’Amico et al., 2010; Gehringer, 2002; Tam et al., 2009; Vu et al., 2007; Weir et al., 2010). All users need a sound piece of advice and an explanation why passwords need to be strong and how to achieve it (Cox, 2012; Davinson and Sillence, 2010; Horcher and Tejay, 2009; Sasse et al., 2001; Weigel and Hazen, 2014; Workman et al., 2008).
With respect to password management policies, the U.S. National Institute of Standards and Technology published a draft Guide to enterprise password management, publication NIST 800-118 (Scarfone and Souppaya, 2009), which defines four authentication assurance levels (AAL). For each level, several password management policy elements must be implemented. These elements address a) the required password length, b) required type and number of used character sets (e.g. lower/uppercase letters, numerals, special characters), c) password composition restrictions, d) password change frequency, e) technical password management (related to storing and transmitting of passwords), f) password management restrictions, and g) password origin.
A strict password management policy in the mentioned NIST publication using the above factors could be implemented as follows: (a) a minimum 8 characters; (b) type: at least upper and lower case plus one numeral or a special symbol and at least three of those; (c) composition restrictions: no biographic elements and no dictionary words; (d) frequency: password change frequency (at least every 12 months); (e) technical password management: no stored passwords allowed, only salted hashes, no password transmission over insecure networks; (f) management restrictions: password reuse not allowed, writing down of passwords not allowed, deriving passwords from other passwords is not allowed; and (g) password origin: system-assigned.
We can see many of these requirements nowadays implemented in many web pages and services: a minimum 8-character, mixed upper and lowercase plus numeral plus special character, not in a dictionary password. Most of the elements can be system-controlled by imposing a set of rules and measures, except the element c) where system cannot control if a user has included her biographic elements into the password. The only way to control this is to use the g) element: passwords are generated and assigned by a system. Yet, the element on management restriction (f), the part that prohibits writing down of passwords, completely relies on a user (Scarfone and Souppaya, 2009) and is very hard to implement, despite abundant training of users.
Despite the fact that the NIST 800-118 (Scarfone and Souppaya, 2009) was a draft, it was widely adopted and implemented in authentication schemes. Recent NIST standard 800-63B (Grassi et al., 2017) still has some elements from the previous draft, including the requirement for an 8-character password. However, it has moved away from requiring system-assigned passwords. Nevertheless, many system and/or security administrators implemented strict password management policy by having system-generated passwords for users, believing they have solved the problems of password composition, password reuse and passwords deriving from other passwords.
1.2 PsychoPass Method
Here, we briefly present a hybrid method for generating textual passwords proposed by Cipresso and colleagues (Cipresso et al., 2012). It was improved by authors in Brumen et al. (2013). The method is considered hybrid because it generates string passwords, whereas the underlying principle is graphic (visual) representation of the produced string on a keyboard. While randomly generated textual strings (e.g. ‘aEy|dX%7Tu]6hJ’) and passphrases (e.g. ‘SunNy69sCReen’ are straightforward, we present the PsychoPass method in more detail.
“The idea of PsychoPass is that a password can be created, memorized and recalled by just thinking of an action sequence instead of a word or string of characters” (Cipresso et al., 2012). With PsychoPass method, a user creates a password based on visual location of keys, not the key values themselves. Figure 1 depicts a visual circle and a square (actually a rhombus) on the keyboard using blue numbered dots. The keys that draw the circle are A-W-E-D-X-Y, and the keys that draw the square are 5-6-7-T-U-G-H-J.
However, the improved PsychoPass method requires the use of SHIFT and ALT-GR keys and that the keys that are not always adjacent to each other in the sequence. Suppose that key #1 is pressed without SHIFT or ALT-GR, key #2 is pressed in combination with shift key, and so on, as given in Table 2 (please note that SI-Slovenian keyboard layout is used).
Table 2
Passwordresult of the visual representation from Fig. 1 using PsychoPass.
| Sequence #: | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| Shift (sh)/alt-gr (al) used | Sh | Al | sh | sh | sh | al | sh | |||||||
| Resulting character: | a | E | y | | | d | X | % | 7 | T | u | ] | 6 | h | J |

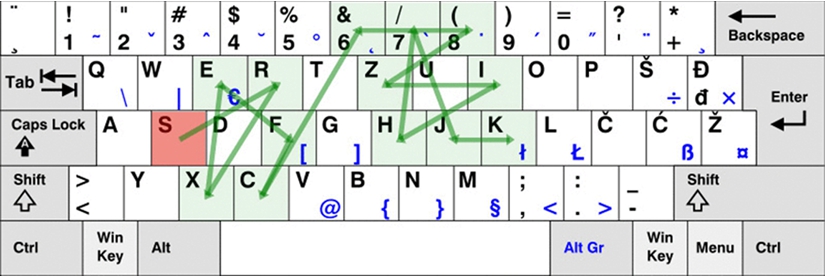

The password representing the circle and the square in Fig. 1 would read »aEy|dX%7Tu]6hJ«. Interestingly, the very same shapes, if shifted one key to the right on a keyboard, would yield another password, namely »sRxefC&8Zih7jK«, as shown in Table 3.
Table 3
Passwordresult of the visual representation from Fig. 1 using PsychoPass, shifted one.
| Sequence #: | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| Shift (sh)/alt-gr (al) used | Sh | Al | sh | sh | sh | al | sh | |||||||
| Resulting character: | s | R | x | E | f | C | & | 8 | Z | i | h | 7 | j | K |

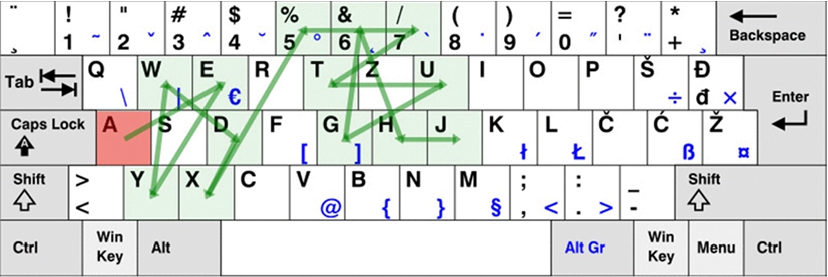

The representations of passwords »aEy|dX%7Tu]6hJ« and »sRxefC&8Zih7jK« are shown in Fig. 2 and Fig. 3, respectively.

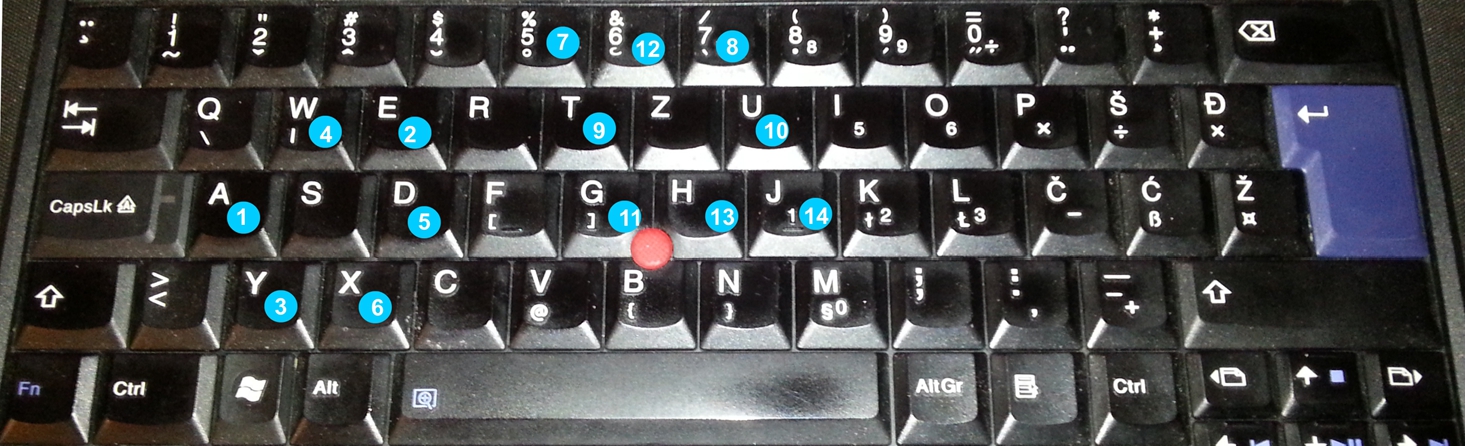

The user thus memorizes a password based on its visual representation (action sequence) and additionally when to press SHIFT or ALT-GR.
It may seem that the password produced (e.g. »aEy|dX%7Tu]6hJ«) is totally random (with 7514 = 178.179.480.135.440.826.416.015.625 = 1,78E+26 different combinations, brute force attack would take some 5, 6E+9 years), but in reality it is not so. The total number of different combinations using the improved PsychoPass method is ${n_{k}}{b^{le-1}}$, where ${n_{k}}$ is the number of different characters on the keyboard from where the sequence can start, b is the number of possible next keys, and $le$ is the length of the produced sequence. At the beginning, we have some 45 keys on a keyboard (${n_{k}}=45$) for selecting the key as the starting point and for the first character of the password (the “A” is chosen in example from Table 2). From there on, each keyboard key has (at most) 8 first neighbours (plus the key itself), so in each step only one out of 9 combinations $(b=9)$ could have been used. However, we can choose any key as the next in the sequence. For the sake of simplicity (and the speed of input), let us suppose we select only the first or the second neighbour (key distance is 1 or 2); that is q, w, s, x, and y are one key distance from “a” on the keyboard whereas 1, 2, 3, e, d, and c are two key distances away. Additionally, each of these keys can be used in combination with SHIFT or ALT-GR, each producing different result. This way the base b is increased from original $b=9$ to $b=54$ (Brumen et al., 2013). All in all, there are ${45^{1}}\cdot {54^{13}}$ (= 1.493.933.931.608.915.411.066.880 = 1,4E+24) different passwords of length 14, although PsychoPass passwords of length 10 are sufficient today (Brumen et al., 2013) and those of length 11 should be sufficiently safe in ten years from now. A detailed discussion on the strength of the psychopass passwords can be found in Brumen and Černezel (2014).
1.3 Research Question
The research question is as follows: what is the impact of a strict password creation policy on the convenience and memorability of different system-assigned passwords? We expect that users will spend less time entering passphrases, followed by random and psychopass. In terms of memorability, we expect that approximately 25% of participants will remember their assigned passwords after one week (Zviran and Haga, 1993).
2 Method
We conducted an experiment where a group of second year computer science students $(n=45)$ at University of Maribor, Faculty of Electrical Engineering and Computer Science (Slovenia, Europe) was using a specially developed web tool, available on-line. The experiment was designed so that each participant was given three different types of passwords. First, a password was system-generated by using eight randomly selected characters from a pool of upper and lowercase letters, numbers and special symbols (hereinafter referred to as random password). The pool consisted of the following characters: »a b c č d e f g h i j k l m n o p q r s š t u v w x y z ž A B C Č D E F G H I J K L M N O P Q R S Š T U V W X Y Z Ž 0 1 2 3 4 5 6 7 8 9 ! $ ? _ -. #«, in total 75. The total number of possible combinations is 758 = 1.001.129.150.390.625 = 1E+15 combinations.
Next, the system created a password by using concatenations of words and symbols and/or numbers (pass-phrase password). Here, each password was created by using a 6-letter word (mixed upper and lowercase letters), concatenated by two digits, and followed again by a 6-letter word, totaling 14 characters. The words were chosen randomly by the system from a custom built dictionary of Slovenian 6-lettered words which were in turn obtained from On-line dictionary of Slovenian Words (SASA, 2013). There are 22.093 different 6-letter words out of total 354.205 different words in the on-line dictionary. Each 6-letter word can appear in 26 = 64 different forms if lower and uppercase letters are used. The total number of possible combinations is thus $22.093\cdot {2^{6}}\cdot {10^{2}}\cdot 22.093\cdot {2^{6}}$ = 199.926.025.830.400 = 1,9E+14 combinations.
Finally, a password was created by the system using the improved PsychoPass method (referred to as a psychopass password). The length of the password ($\mathit{le}=11$ characters) and the base (9 keys combined with shift; $b=18$) were set so that the total number of combinations would be comparable to the previous two, i.e. ${n_{k}}{b^{\mathit{le}-1}}=45\cdot {18^{10}}$ = 160.671.025.198.080 = 1,6E+14 combinations.
It can be noted that the strength of a random password is of one order of magnitude higher than the other two. However, 7-character random password would yield ∼1E+13 combinations, one order of magnitude lower. We decided for the 8-character password to have the length of the password higher and more comparable to 14 and 11 characters in pass-phrase and psychopass passwords, respectively. Additionally, length 8 is typical (Dell’Amico et al., 2010) and also endorsed by recent standards, e.g. NIST 800-63B (Grassi et al., 2017).
Each consenting participant was assigned a username and an initial password that were sent to her or him by email prior to the beginning of the experiment. The experiment itself first took place in a classroom where the participants were explained the outline and the purpose of the experiment. They were also told that the passwords need to be memorized not only for the day of the experiment but for a longer period and that they should not write down the password; for this reason the participants had to put away bags, papers, pens and even mobile devices prior to entering the experiment room and for the entire duration of the experiment. After the presentation phase, the participants moved without their belongings to a computer room. This way we controlled that the participants could not write down or else store their assigned passwords. After the experiment the participants entered a classroom for lectures, further delaying them from access to their belongings for one hour.
When a participant has logged in to the experimental web page, the system has displayed a randomly generated password. If the participant did not like the assigned password, an alternative was offered. This way we emulated a strict password policy which does not allow a user to create her own weak password but may choose from several alternatives offered by the system. Once the password was accepted, the user was re-typing the assigned password back to the system for two minutes for the random and pass-phrase, and for five minutes for the psychopass password. The allowed time for entering the repetitions was determined in the testing phase of the web page. The selected password with additional data was stored in a database with user’s details. The additional data included the measured time needed for typing the password and whether the re-types of the password were successful or not.
The experiment continued in one week. This time it was measured only if a participant had remembered any of the assigned passwords. The participant had a possibility to enter the password correctly three times only (simulating a real-world lockout). If she or he did not remember it, the system had it displayed for the user’s reference, and marked a failure.
2.1 Data Collection and Processing
The data from the experiment and its web page were collected in a database. For each user a login username and password were initially stored. Additionally, the time taken to enter each password was measured for all the participants. The measurement of time started with the first keystroke and ended when the ENTER key was pressed. The data on successful password recall was collected as well.
From the collected data we removed 5 users’ entries because they did not complete all three tests or they did not enter some of the passwords correctly at least once in the first phase. The final dataset contains data from 40 users.
2.2 Hypotheses
First, we checked for the usability of the passwords in terms of the time needed for the input. We compare the times needed to enter the password in the system at two points of the first part of the experiment, the first time entry and last time entry. First time entry was recorded when participants first repeated the system-assigned password, and last time entry was recorded at the end of 2- and 4-minute interval for random/passphrase and psychopass, respectively.
We expect that the mean times needed to enter a password at the beginning and at the end will significantly differ across the groups. At the beginning, we expect that it will be the easiest (shortest times) to enter a passphrase compared to the other two groups. At the end, we expect that cognitive-based methods (psychopass, passphrase) will require less time to enter the password compared to a randomly selected password.
The primary experimental hypotheses are the following:
In case H1a holds (H10 is rejected) we shall test the following hypotheses, which are actually pairwise comparisons to see where the differences are coming from:
In case H2a holds (H20 is rejected) we shall test the following hypotheses, which are actually pairwise comparisons to see where the differences are coming from:
Second, we were interested whether the recall rate at the second stage of the experiment is somehow connected to the password type. Here, the hypothesis is as follows:
Alternative hypothesis 3: H3a: the recall rate depends on the password type.
-
• Hypothesis 1: H10: ${\mu _{\mathrm{D}}}=0$; the mean times for the first time entering a password are the same for random, passphrase and psychopass passwords.
-
• Hypothesis 2: H20: ${\mu _{\mathrm{D}}}=0$; the mean times for the last time entering a password are the same for random, passphrase and psychopass passwords.
-
• Hypothesis 1A-10: ${\mu _{\mathrm{D}}}=0$; the mean times for the first time entering a random and psychopass password are the same.
-
• Hypothesis 1A-20: ${\mu _{\mathrm{D}}}=0$; the mean times for the first time entering a random and passphrase password are the same.
-
• Hypothesis 1A-30: ${\mu _{\mathrm{D}}}=0$; the mean times for the first time entering a passphrase and psychopass password are the same.
-
• Hypothesis 2A-10: the mean times for the last time entering a random and psychopass password are the same.
-
• Hypothesis 2A-20: ${\mu _{\mathrm{D}}}=0$; the mean times for the last time entering a random and passphrase password are the same.
-
• Hypothesis 2A-30: ${\mu _{\mathrm{D}}}=0$; the mean times for the last time entering a passphrase and psychopass password are the same.
2.3 Statistical Analysis
The data sets containing measurements of time needed to enter a password for the first time and for the last time in a given time-frame for three different groups of measurements (group 1: random, group 2: passphrase, group 3: psychopass) were analysed using 3-way ANOVA and independent samples t-test for the differences in means. We considered differences to be significant at the $\alpha <0.05$ level.
We used the Bonferroni correction to counteract the problem of multiple comparisons in t-tests (Abdi, 2007). The correction is based on the idea that if an experimenter is testing n dependent or independent hypotheses on a set of data, then one way of maintaining the family-wise error rate is to test each individual hypothesis at a statistical significance level of $1/n$ times what it would be if only one hypothesis were tested. We would normally reject the null hypothesis if $P<0.05$. However, by performing three pairwise comparisons (passphrase-random, passphrase-psychopass, random-psychopass) Bonferroni correction requires a modified rejection threshold for P, $P<(0.05/3)<0.0167$.
SPSS version 25 (IBM Corporation, Armonk, NY, USA) was used for analysis.
3 Results
3.1 Results Part I
First, we calculated the descriptive statistics for the data obtained. The results are shown in Table 4 where the times are listed in milliseconds.
Table 4
Descriptive statistics for experimental data, time to enter the password.
| N | Mean | Std. deviation | Std. error | 95% Confidence interval for mean | Minimum | Maximum | |||
| Lower bound | Upper bound | ||||||||
| first_time | random | 40 | 17387,25 | 13826,064 | 2186,093 | 12965,46 | 21809,04 | 3481 | 60866 |
| passphrase | 40 | 16894,18 | 10169,751 | 1607,979 | 13641,73 | 20146,62 | 7680 | 67295 | |
| psychopass | 40 | 30327,85 | 14929,805 | 2360,609 | 25553,07 | 35102,63 | 7797 | 83947 | |
| Combined | 120 | 21536,43 | 14443,180 | 1318,476 | 18925,71 | 24147,14 | 3481 | 83947 | |
| last_time | random | 40 | 10010,18 | 16905,091 | 2672,930 | 4603,66 | 15416,69 | 2763 | 112728 |
| passphrase | 40 | 11210,08 | 6557,797 | 1036,879 | 9112,79 | 13307,36 | 3919 | 31178 | |
| psychopass | 40 | 11086,38 | 7549,515 | 1193,683 | 8671,92 | 13500,83 | 3018 | 35659 | |
| Combined | 120 | 10768,88 | 11257,245 | 1027,641 | 8734,04 | 12803,71 | 2763 | 112728 | |
Next, we tested for the differences in means of times needed to enter each password at the beginning and at the end of the experiment (tested for H10 and H20). We used the ANOVA test. The results are shown in Table 5.
Table 5
Results of ANOVA tests.
| Sum of squares | df | Mean square | F | Sig. | ||
| first_time | Between Groups | 4642211670,950 | 2 | 2321105835,475 | 13,456 | 0,000 |
| Within Groups | 20181835238,375 | 117 | 172494318,277 | |||
| Total | 24824046909,325 | 119 | ||||
| last_time | Between Groups | 34843575,200 | 2 | 17421787,600 | 0,135 | 0,873 |
| Within Groups | 15045497409,925 | 117 | 128593994,957 | |||
| Total | 15080340985,125 | 119 |
The results show that the hypothesis H10 needs to be rejected at P = 0,000 (see Table 5, row 1) which is lower than any reasonable threshold. It means that there are significant differences among groups regarding the mean time to enter the password.
On the other hand, the hypothesis H20 cannot be rejected: the mean times to enter any password at the end of the first part of the experiment were not statistically significantly different from each other at P = 0,837 (see Table 5, row 2).
Since H10 was rejected, we tested the additional hypotheses (1A-10, 1A-20, and 1A-30) to see which pairs are comparable. As mentioned, multiple (=3) comparisons were performed, so Bonferroni adjustment was used. The results are given in Table 6.
Table 6
Results of multiple comparisons, Bonferroni adjusted.
| Dependent variable | (I) group | (J) group | Mean difference (I-J) | Std. error | Sig.* | 95% Confidence interval | |
| Lower bound | Upper bound | ||||||
| first_time | random | passphrase | 493,075 | 2936,787 | 1,000 | −6640,05 | 7626,20 |
| psychopass | −12940,600* | 2936,787 | 0,000 | −20073,73 | −5807,47 | ||
| passphrase | random | −493,075 | 2936,787 | 1,000 | −7626,20 | 6640,05 | |
| psychopass | −13433,675* | 2936,787 | 0,000 | −20566,80 | −6300,55 | ||
| psychopass | random | 12940,600* | 2936,787 | 0,000 | 5807,47 | 20073,73 | |
| passphrase | 13433,675* | 2936,787 | 0,000 | 6300,55 | 20566,80 | ||
* The mean difference is significant at the 0,05 (and at Bonferroni adjusted 0,0167) level.
The results show that mean times to enter the first passphrase and psychopass passwords are statistically significantly different at any reasonable threshold. The same holds for the random-psychopass pair. The hypotheses 1A-10 and 1A-30 need to be rejected at P = 0,000 while the hypothesis 1A-20 cannot be rejected.
3.2 Results Part II
The second part of the experiment was implemented after one week from the first part. Here, the participants were asked by the system to enter each of the three previously assigned passwords. The three-times-and-out system policy was enforced, meaning users had to be successful within three trials. The results – how many participants (of total $n=40$) remembered their assigned passwords – are presented in Table 7.
Table 7
The results of the second part of the experiment: remembered vs. not remembered by password type.
| Random | Passphrase | Psychopass | |
| Did not remember | 40 | 40 | 36 |
| Did remember | 0 | 0 | 4 |
| Total | 40 | 40 | 40 |
The results show that 10% of the participants completing both part of the experiment were able to remember their psychopass password after one week, but no one remembered the random or passphrase-based password. Of all those that have remembered, they were successful only on the third try. Our means to control the password write-down were proven successful. Otherwise, if a participant were able to somehow write down the password, she would have entered it correctly on the first try, not on the third.
We have checked whether the better results in remembering the psychopass passwords are due to chance or is there a systematic reason behind the ease of recall. The chi-square (${\chi ^{2}}$) test for independence, also called Pearson’s chi-square test or the chi-square test of association, was used to discover if there is a relationship between the categorical variables describing recall (‘yes/no’) and password type (‘random/passphrase/psychopass’). The result of the test is presented in Table 8.
Table 8
Results of Chi-Square test.
| Value | df | Asymp. sig. (2-sided) | |
| Pearson chi-square | 8,276 | 2 | 0,016 |
| Likelihood ratio | 9,068 | 2 | 0,011 |
| N of valid cases | 120 |
We can see here that ${\chi ^{2}}$ = 8,276, P = 0,016. This tells us that there is a statistically significant association (at α < 0,05 level) between password type and recall; that is, different types of passwords are not equally likely to be remembered and hence, psychopass passwords are easier to remember.
4 Discussion and Conclusion
Passwords are the Achilles’ heel of modern computing as they are mostly at users’ responsibility. The computer community has not made a very much needed shift in password management for almost 40 years. It seems nothing has changed since Robert Morris and Ken Thompson wrote the seminal paper on (UNIX) password security in 1979: the passwords are still the main method of authentication (Creese et al., 2013; Egelman et al., 2013; Lee et al., 2013; Loch et al., 1992; Tzong-Chen and Hung-Sung, 1996; Zviran and Haga, 1990) and the users and their passwords remain the weakest link (Adams and Sasse, 1999; Adams et al., 1997; Notoatmodjo, 2007; Sasse et al., 2001; Tam et al., 2009), and based on the data on numerous breaches, they are still weak and vulnerable to various attacks.
It was observed that most common password creation policies remain vulnerable to off-line attacks and that external password creation policies need to be enforced (Weir et al., 2010), mainly due to a subset of users selecting passwords that (barely) comply with the password policy. For example, a password policy may require the use of mixed uppercase and lowercase letters, at least one symbol and one digit, but the »PassWord!1« is nevertheless a weak one.
System and/or security administrators have tried to avoid weak users’ passwords by introducing very strict password management policies requiring users to pick and use a system-assigned password. This way they have (inadvertently?) put users to very high memory loads and at the same time, because users tend to write passwords down, to inacceptable security practices and risks.
We designed an experiment where we tested how such strict password management policies reflect in users memorizing their system-assigned passwords.
We first tested the times needed to enter a password produced by three different methods: random, passphrase and psychopass. At the beginning of the experiment, when users typed-in the passwords for the first time, the easiest (and the fastest) password to enter was passphrase, followed by random and psychopass with mean times of 16.894,18, 17.387,25 and 30.327,85 seconds, respectively. The mean times of passphrase and psychopass passwords and of random and psychopass are statistically significantly different at any reasonable threshold, while the pair random-passphrase is not. This finding partially confirms our expectations: the mean times did differ, and the passphrase was easiest (fastest) to enter.
However, at the end of entering (learning) of passwords, the mean times for entering various passwords are not statistically significantly different from each other. This was a surprise, meaning that the users were in average able to enter the PsychoPass-generated password as quickly as the other two. Additional surprise was that the average time to enter any password was around 10 to 11 seconds, although they were of different lengths: 8, 14, and 11 characters for random, passphrase and psychopass, respectively.
None of the participants remembered neither the random string nor passphrase password. However, 4 participants out of 40 (10%) did remember their psychopass password. There is a statistically significant association (P = 0.016) between password type and recall, that is the psychopass passwords are easier to remember. This result needs to be taken with a word of caution: they may be easier to remember than others, yet they are still difficult to remember.
As a side effect, we found several advantages of the PsychoPass method. First, the main advantage of the method seems to be the memorability of the password, yet this needs to be checked under more lax security policies. Second, a psychopass password looks like a randomly generated one and hence, the attackers cannot recognize it as such. Third, the passwords are currently resilient to dictionary attacks as there are no known dictionaries built and the currently available are useless. Fourth, the method enables the password reuse: the same visual effect can produce several different passwords by just shifting the starting point of the first key. For each of different authentication services a user only needs to know the starting key for a particular service; the visual sequence is always the same. Thus, an attack that would repeat a compromised password on a different service would fail. Further research is needed to show the perceived benefits of the method in settings where users may create their own passwords.
It is true that the PsychoPass method performed better than the other two in terms of memorability and was just as good in terms of usability (speed of typing/entering), however, the results also show that the achieved threshold of 10% is way below expected and previously measured by Zviran and Haga (1993). However, in their research the authors did not control for the password write-down, and hence 23% of their participants ‘remembered’ the system-assigned (random) password. In our experiment, no one remembered their random password, hence one can conclude that memorability in Zviran and Haga’s research can be attributed to write-down effect mainly. Other studies confirm that up to 50% of users write down their passwords (Vu et al., 2007).
Our findings raise a serious question on applicability of strict password management policies not allowing the users to select their own passwords. It is true that system-assigned passwords are hard (or close to impossible) to break using brute force or dictionary attacks, but at the same time users forget them. An adversary who knows the details of password management policy would simply not use brute force or dictionary attacks, but other available means (e.g. shoulder surfing, workplace browsing, garbage shifting, stealing of notes, etc.).
The password management policy implementation is not an easy task. Users should not be considered as an uneducated and ignorant enemy. In many cases system/security administrators can be their own worst enemies. Tightening restriction in one field may open up a new hole in an unexpected way and area. A sound password management policy today needs to implement a dictionary checking and also probabilistic checking (e.g. Markov models based, grammar based, or a combination) to prevent weak passwords.
